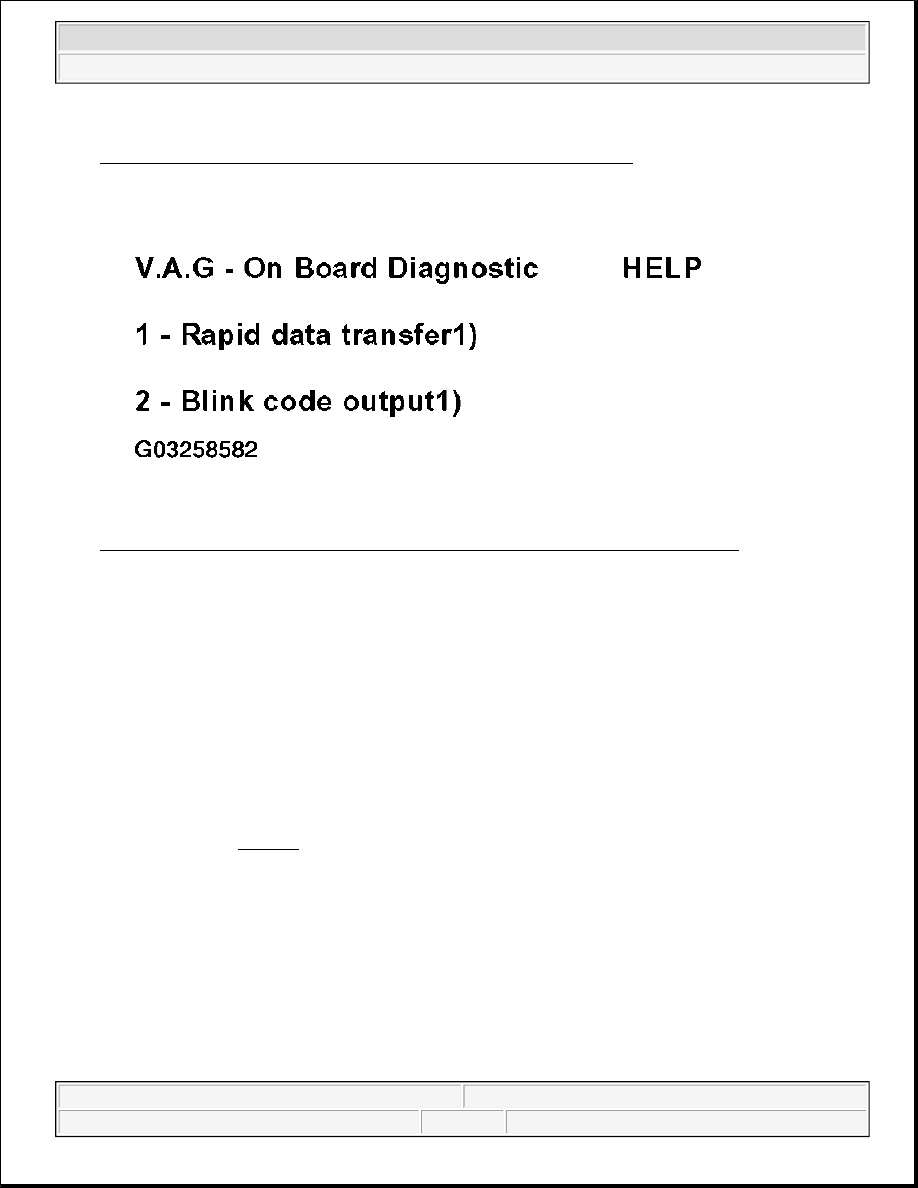

Fig. 157: Identifying V.A.G 1551/3 Or 1551/3A Adapter Cable Work sequence z Connect V.A.G 1551 scan tool using cable V.A.G 1551/3. z Connect VAS 5051, see ON BOARD DIAGNOSTIC (OBD), PERFORMING . Fig. 158: Connecting V.A.G 1551 Scan Tool Using Cable V.A.G 1551/3 Indicated on display: See Fig. 159 . 1) Is displayed alternately
NOTE: z If the display does not indicate as described in the work sequence: See Scan tool operating instructions z If due to an input malfunction "Malfunction in the data transfer!" is
2003 Volkswagen New Beetle GLS 1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
|
