Volkswagen New Beetle. Manual - part 780

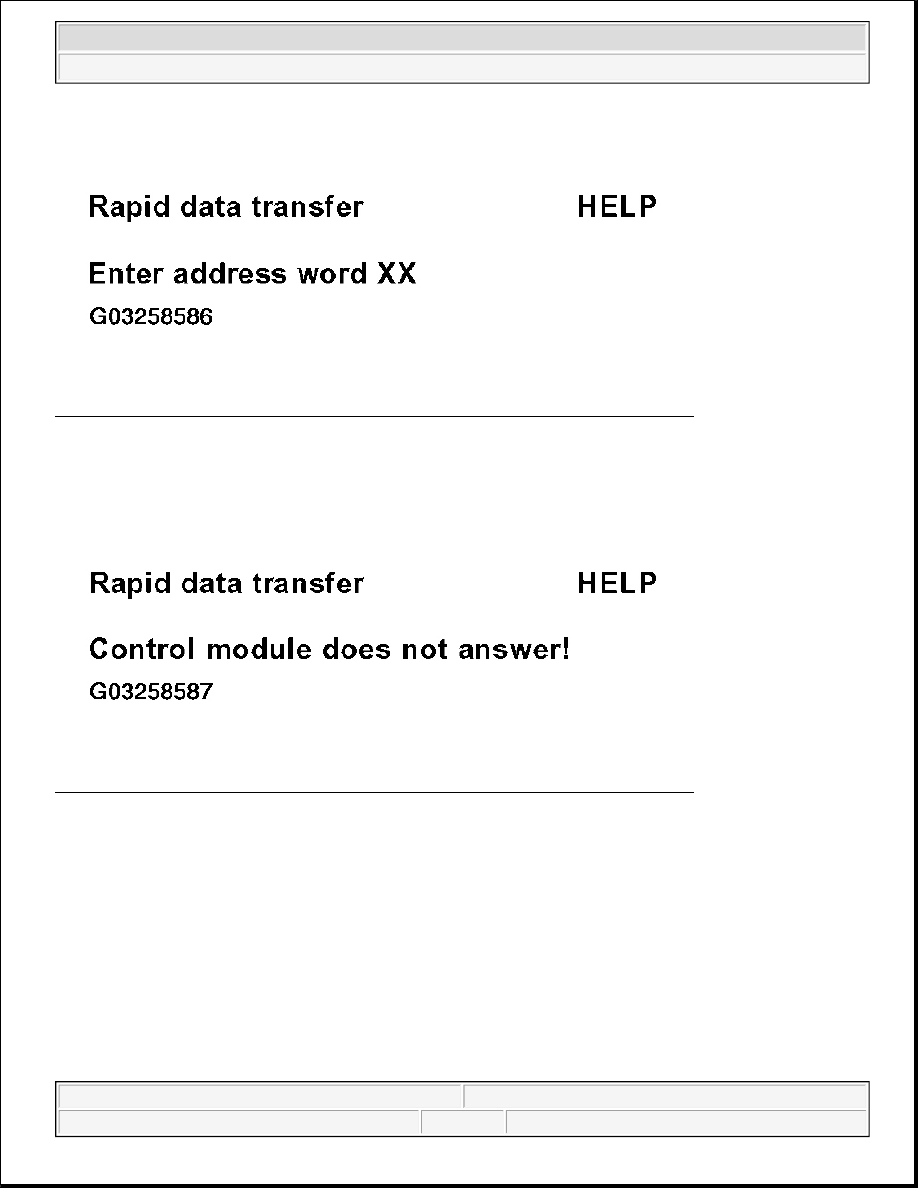

Fig. 163: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (5 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 164: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (6 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

By pressing the HELP key, a list of possible fault causes is printed out.

z

After eliminating the possible causes of malfunctions, enter the address word 03 for "Brake electronics"
again and confirm.

If "control module does not answer!" again appears:

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

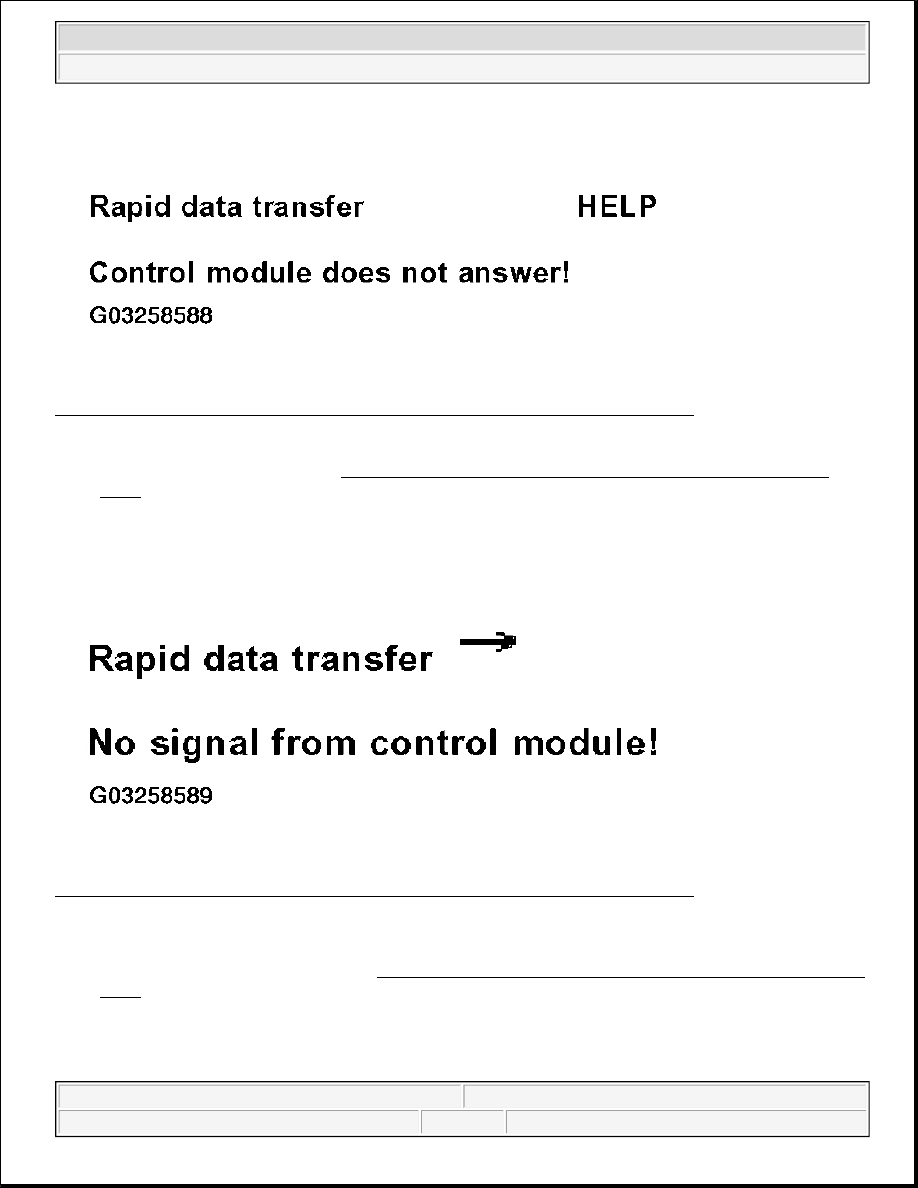

Fig. 165: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (7 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Perform test steps 1, 2 and 3, see ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y.
10.00
 , Electrical check.

Control module identification influenced during checking (possibly influenced from external sources?)

Fig. 166: V.A.G 1551 Scan Tool Display - Performing On Board Diagnostic (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check diagnostic wire as well as voltage supply and ground connection for ABS Control Module
(w/EDL) -J104-, Electrical check, see ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y.
10.00
 .

z

After repairing the possible causes of the malfunction, again enter the address word 03 for "Brake
electronics" and confirm with Q key.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



LIST OF SELECTABLE FUNCTIONS

SELECTABLE FUNCTIONS LIST

AUTOMATIC TEST SEQUENCE

The automatic test sequence checks all the Diagnostic Trouble Codes (DTC) memories of the control modules.

z

Switch on ignition.

Indicated on display:





page

00
-

Automatic test sequence

See AUTOMATIC TEST SEQUENCE

01
-

Check control module version

See connecting V.A.G 5051 scan tool

and selecting function

See ON BOARD DIAGNOSTIC (OBD), PERFORMING

02
-

Check Diagnostic Trouble Code

(DTC) memory

See DIAGNOSTIC TROUBLE CODE (DTC)

MEMORY, CHECKING

03
-

Output Diagnostic Test Mode (DTM)

See OUTPUT DIAGNOSTIC TEST MODE (DTM)

04
-

Initiate basic setting

See INITIATING BASIC SETTING

05
-

Erase DTC memory

See DIAGNOSTIC TROUBLE CODE (DTC) ERASING

MEMORY, ENDING OUTPUT

06
-

End output

See DIAGNOSTIC TROUBLE CODE (DTC) ERASING

MEMORY, ENDING OUTPUT

07
-

Code control module

See ABS CONTROL MODULE, CODING

08
-

Read measured value block

See MEASURED VALUE BLOCK, READING

11
-

Login procedure

See LOGIN PROCEDURE



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

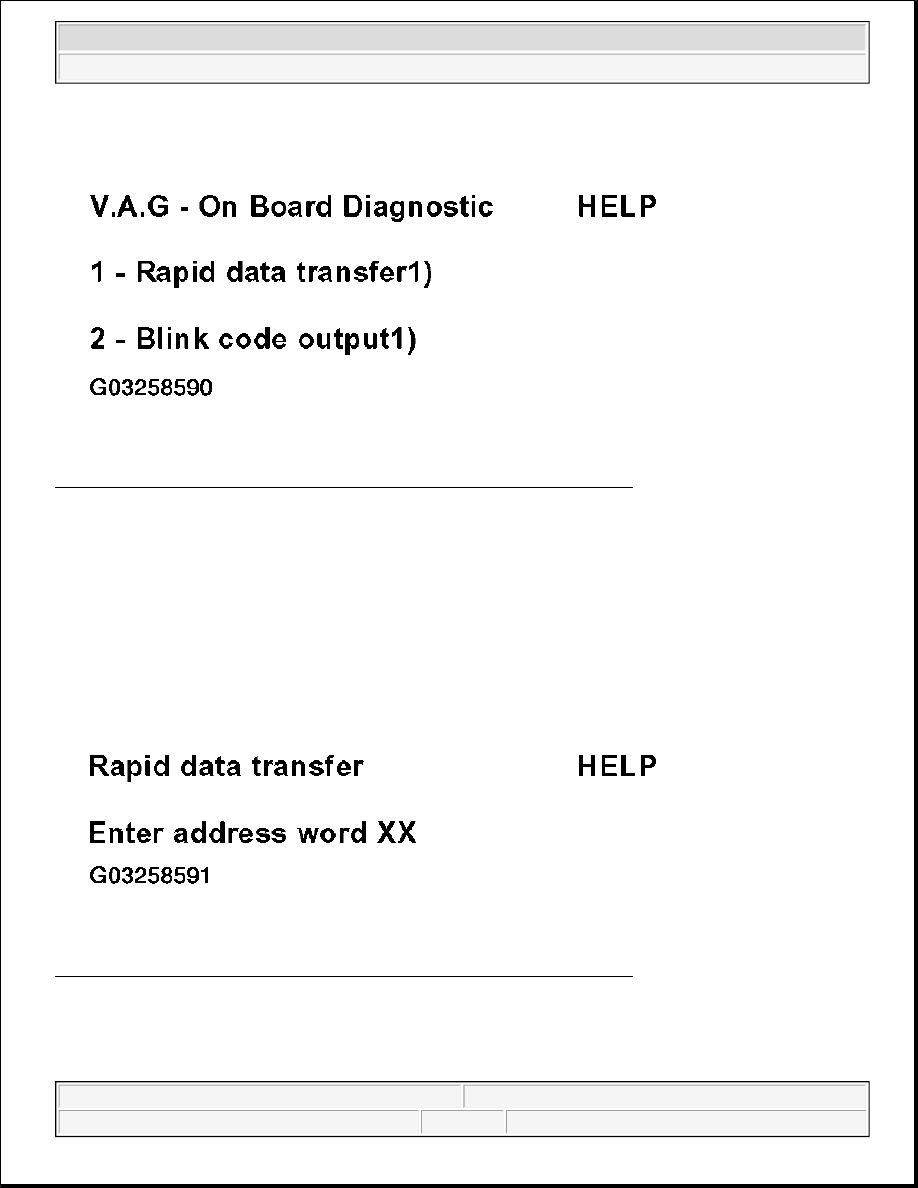

Fig. 167: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1)

 Is displayed alternately



z

Press key -1- for "Rapid data transfer" operating mode.

z

Switch on printer with the Print key (indicator lamp in key lights up).

Indicated on display:

Fig. 168: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press key -0- twice; 00 to enter "Check automatic test sequence" function.

z

Confirm entry with Q key.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
