Volkswagen New Beetle. Manual - part 766

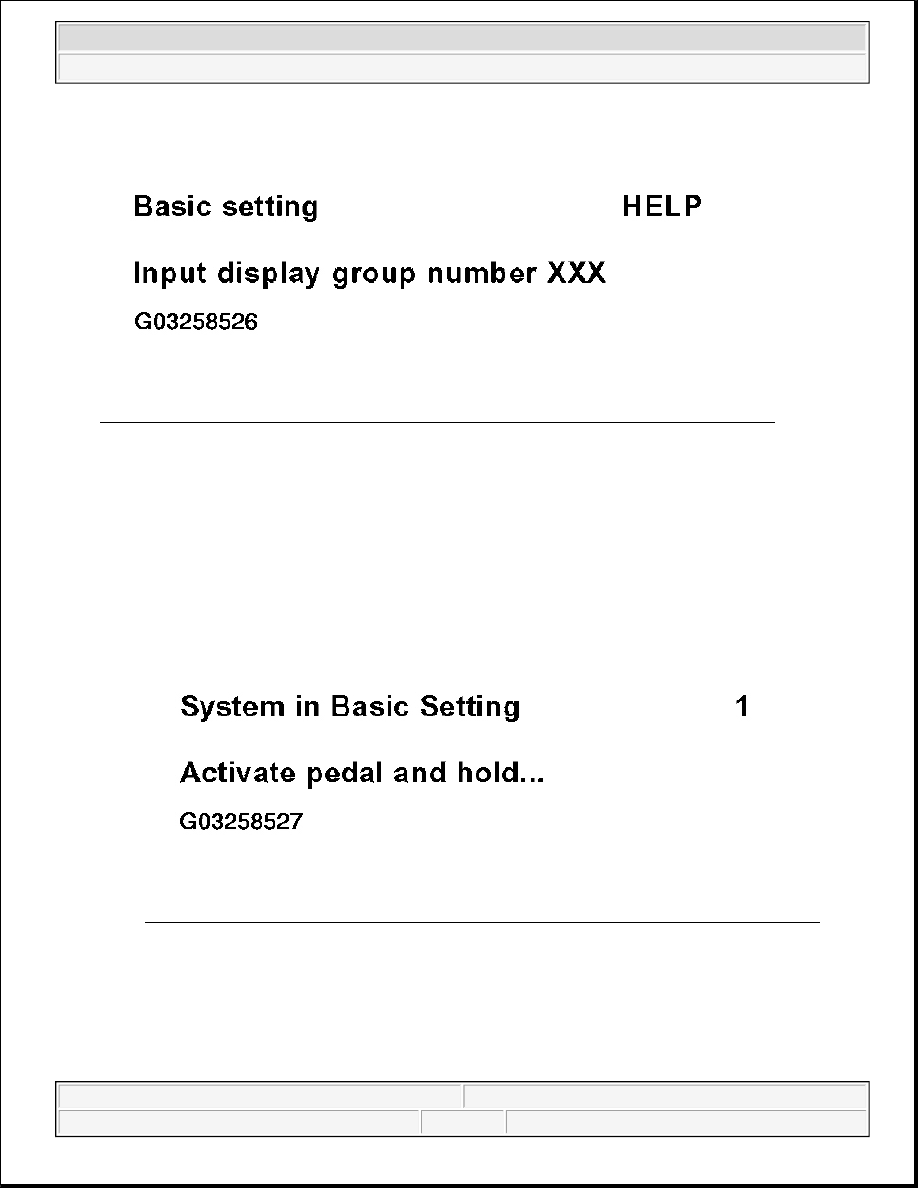

Fig. 103: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (3 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down.

z

Hydraulic pump runs.

z

Pedal comes back.

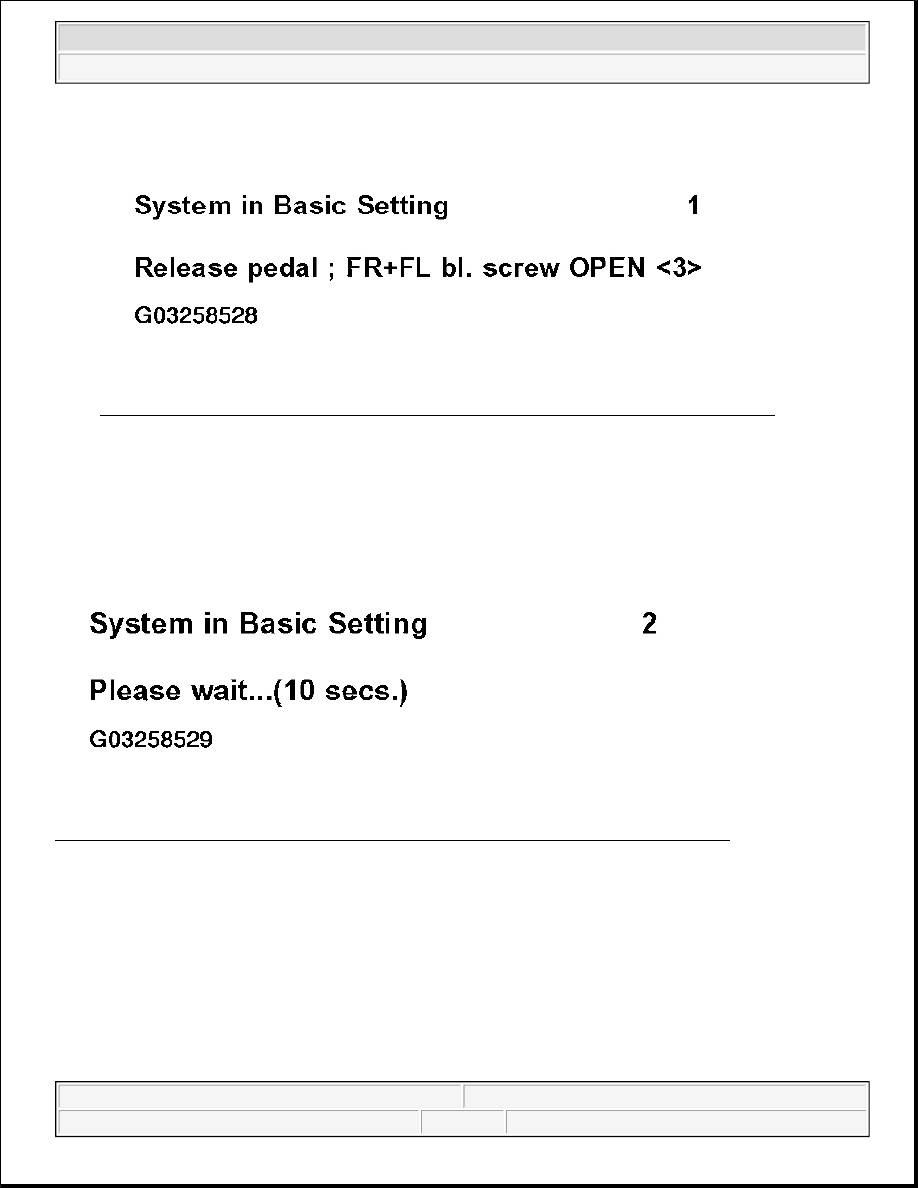

Fig. 104: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (4 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

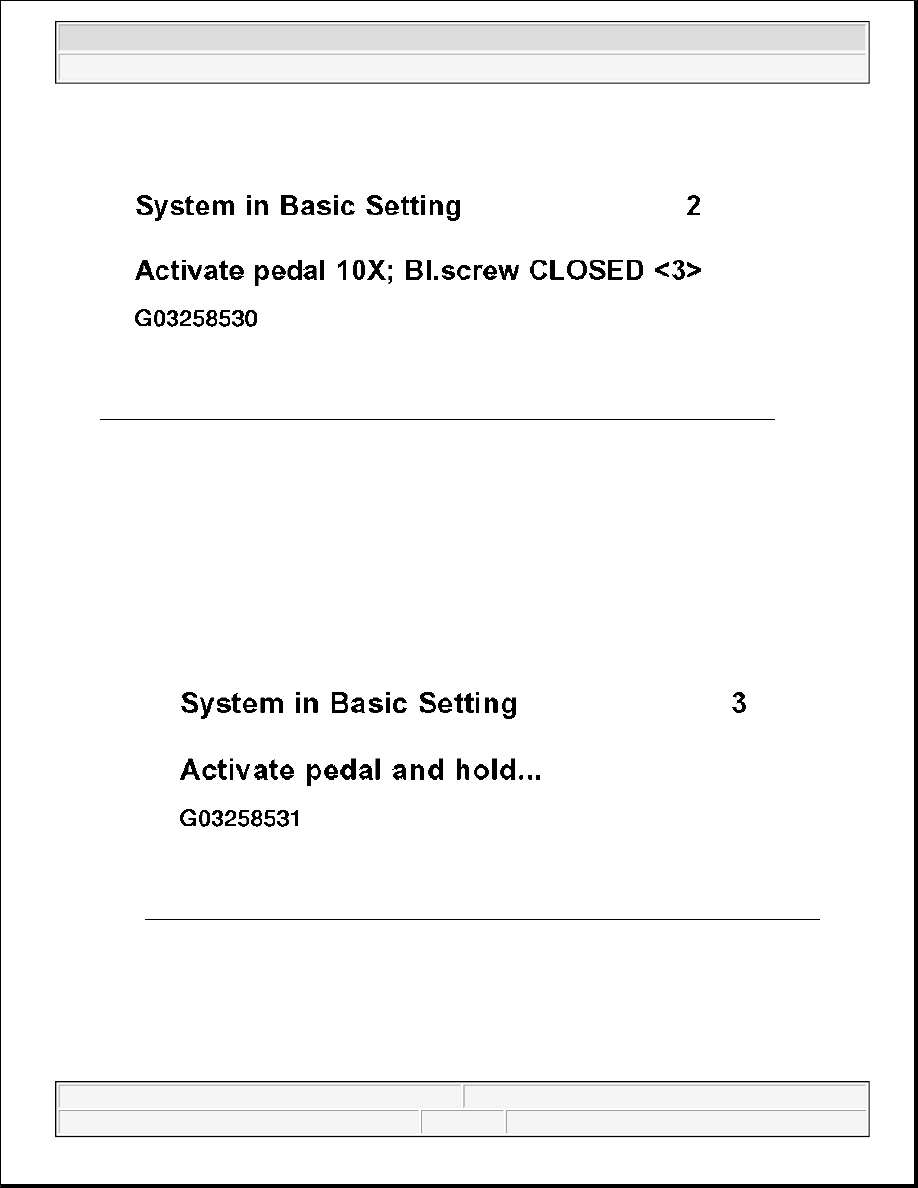

Fig. 105: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (5 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

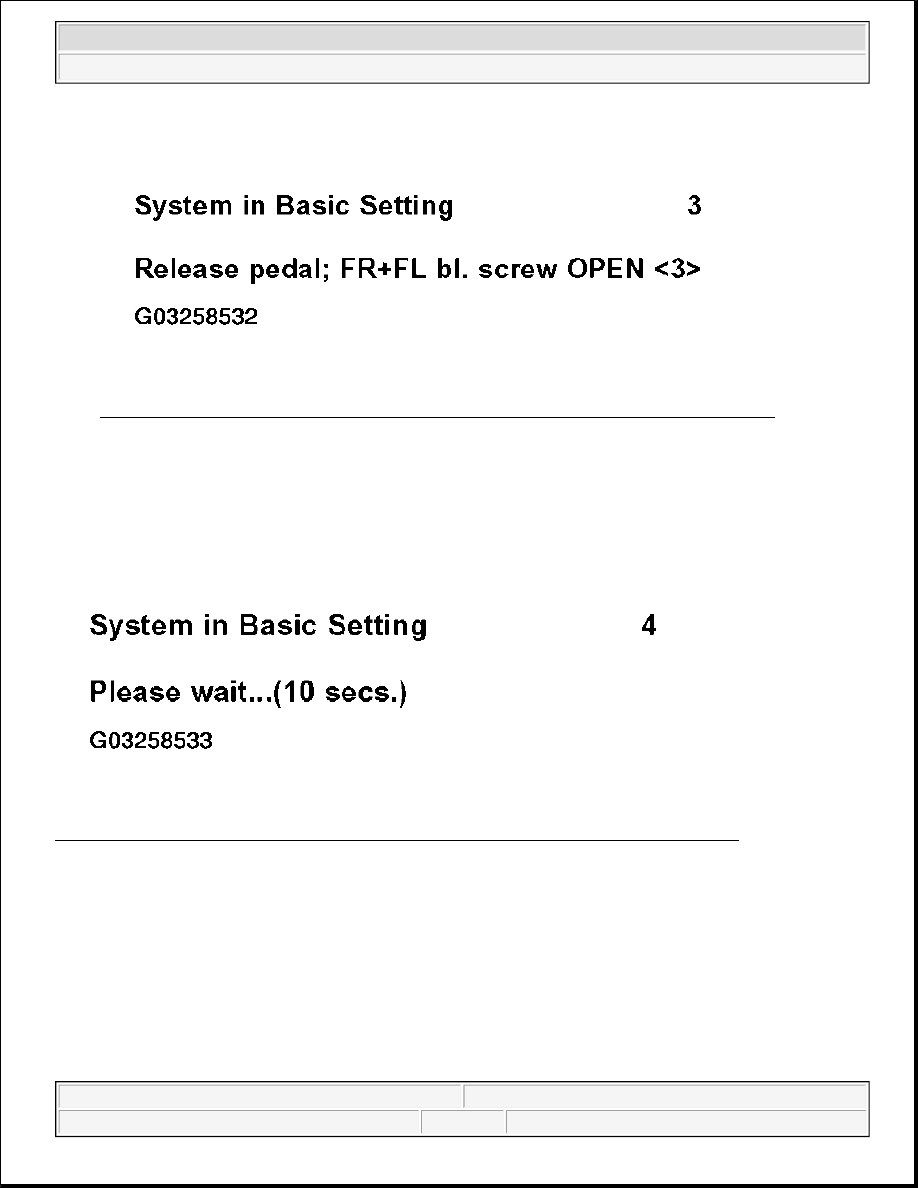

Fig. 106: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (6 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 107: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (7 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

Fig. 108: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (8 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 109: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (9 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

Fig. 110: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (10 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.
