Volkswagen New Beetle. Manual - part 767

Fig. 111: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (11 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

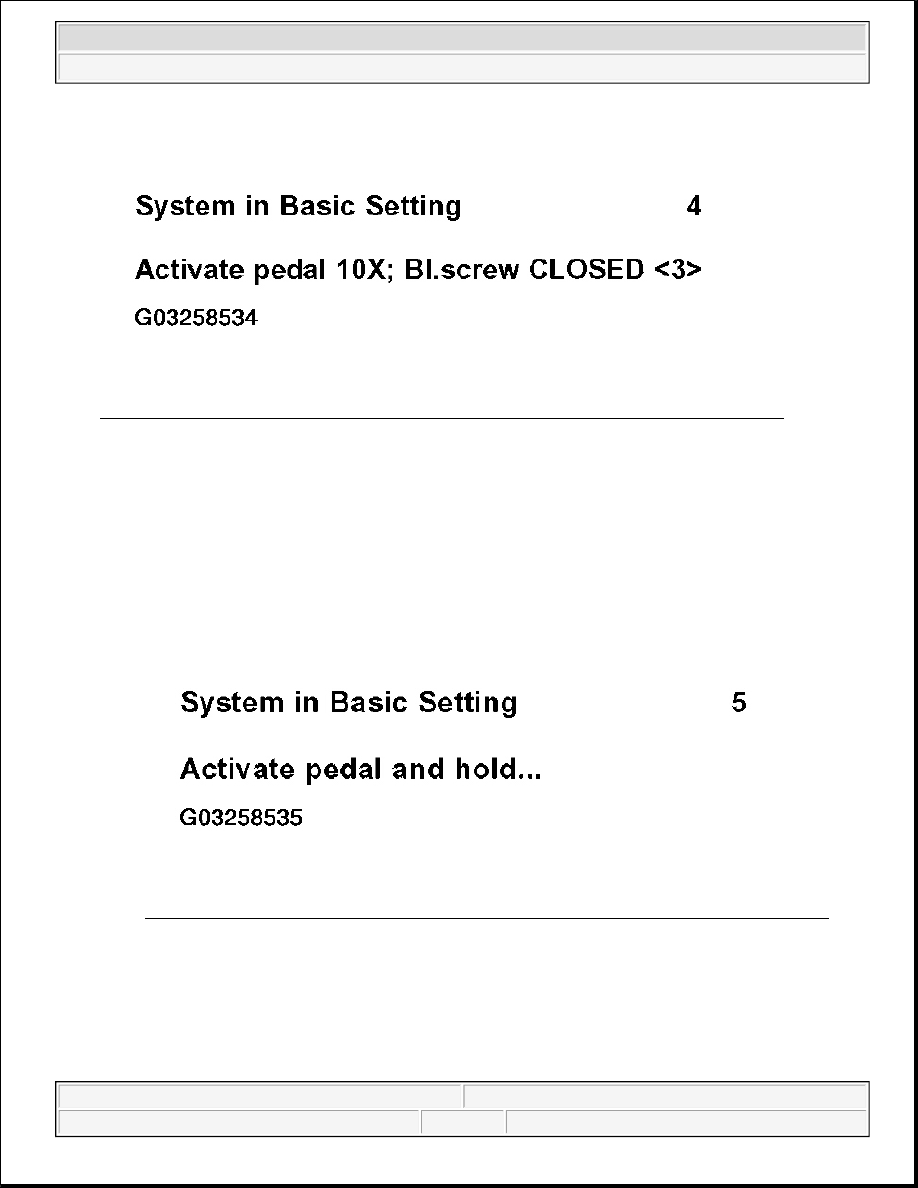

Fig. 112: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (12 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 113: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (13 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

Fig. 114: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (14 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



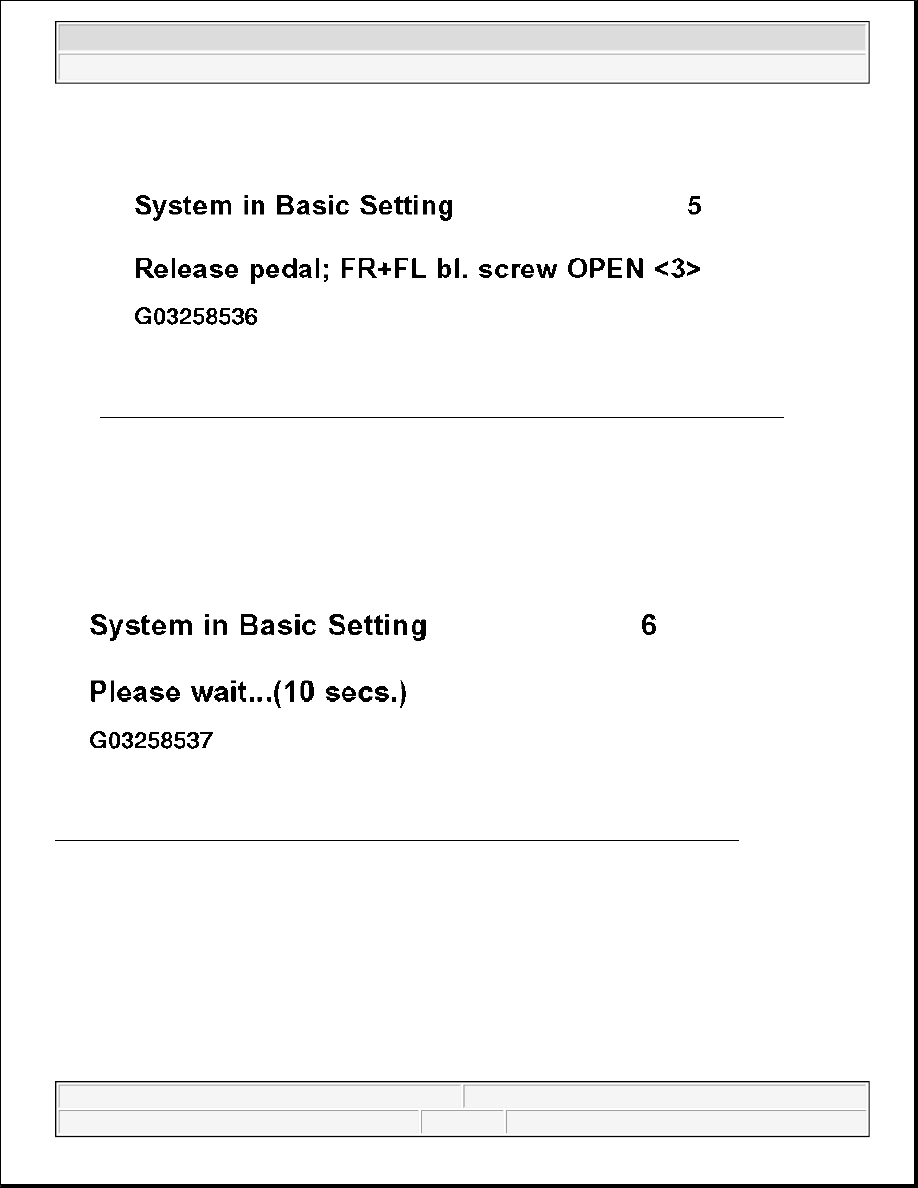

Fig. 115: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (15 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

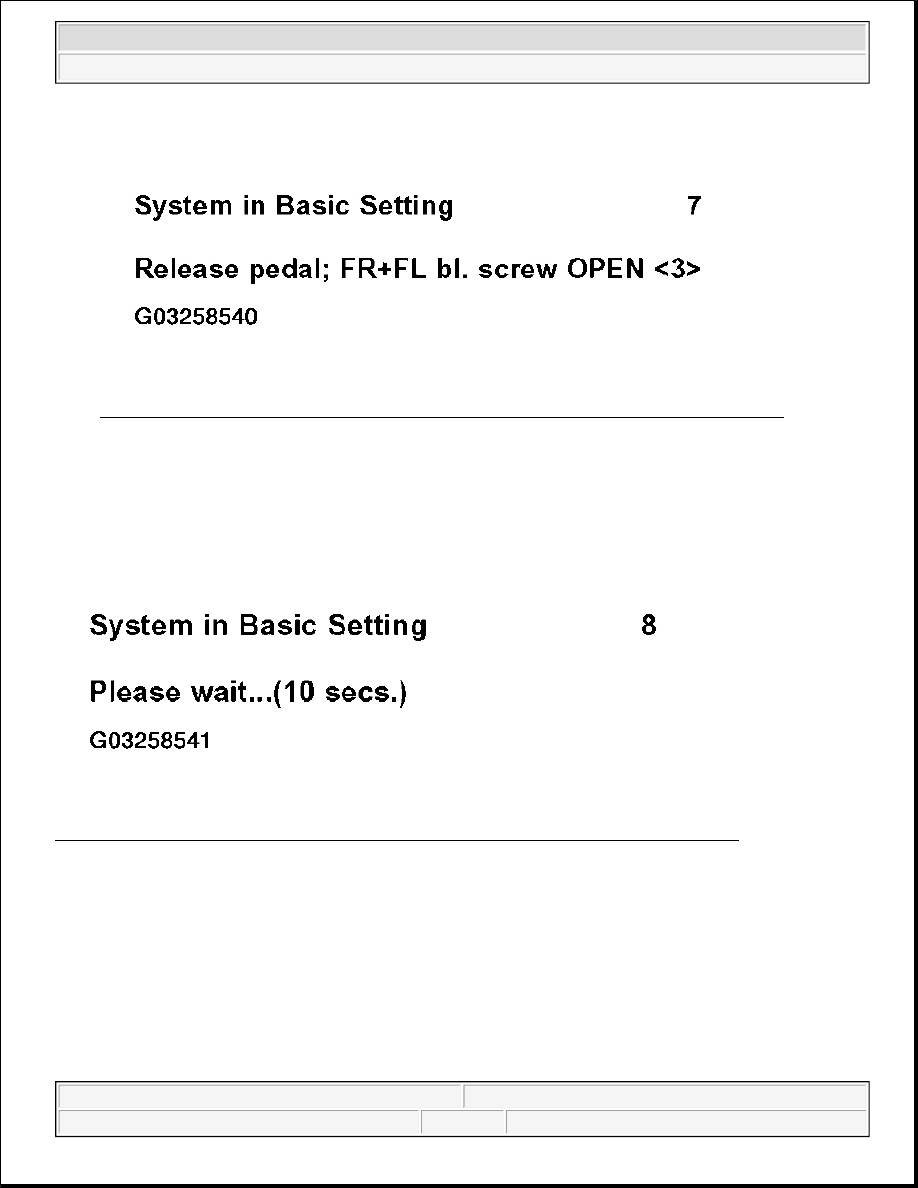

Fig. 116: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (16 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 117: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (17 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Hydraulic pump runs.

Fig. 118: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (18 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.
