Courtesy of VOLKSWAGEN OF AMERICA, INC.

Brake pedal must not give.

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must be
replaced:

See ABS CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel locks it is possible that the brake lines to the wheel calipers have been interchanged.

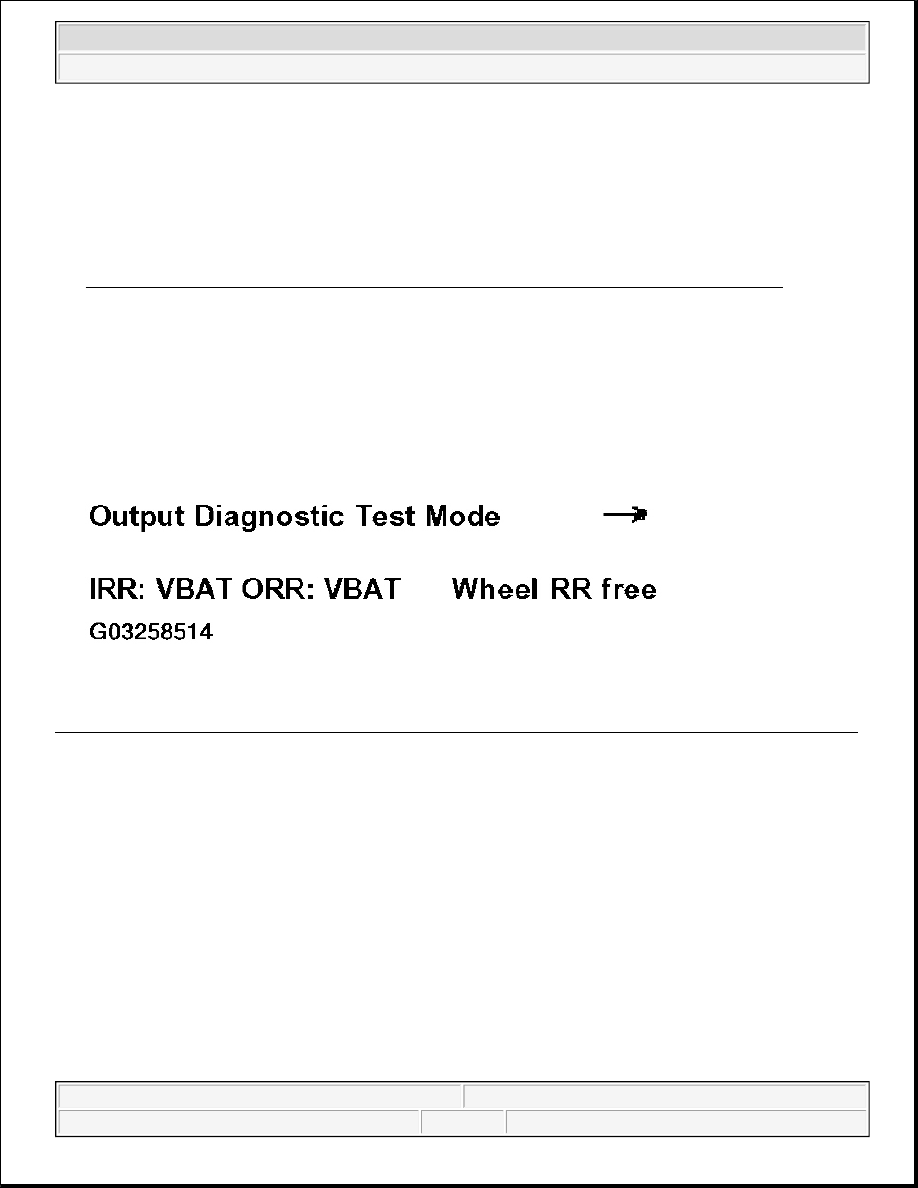

Fig. 91: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (31 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

ABS hydraulic pump display group number: no longer runs.

Indicated on display

z

Press --> button.

Brake pedal must give noticeably.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



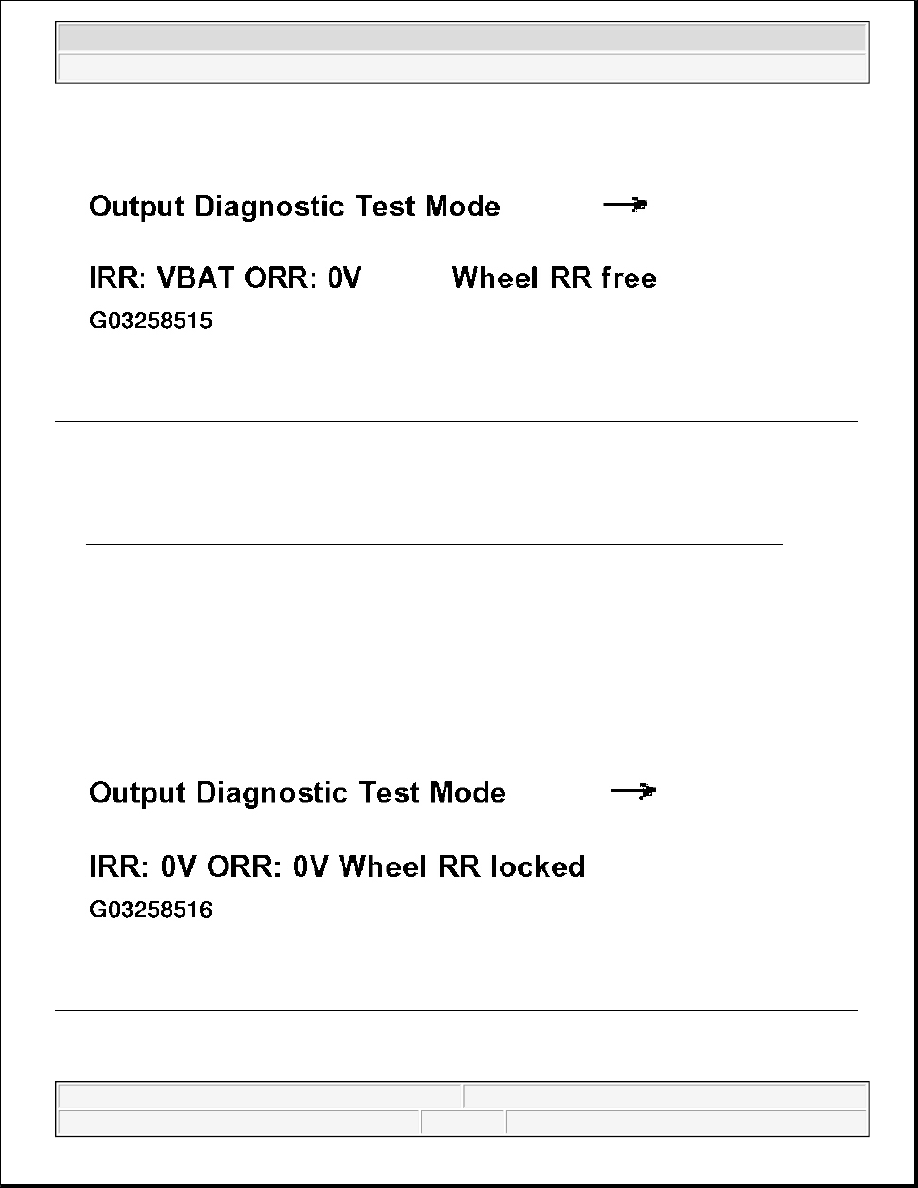

Fig. 92: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (32 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced:

See ABS CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel does not lock, a malfunction may exist in the mechanical and/or hydraulic section of the brake
system.

Fig. 93: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (33 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display

z

Remove foot from brake pedal.

z

Press --> button.

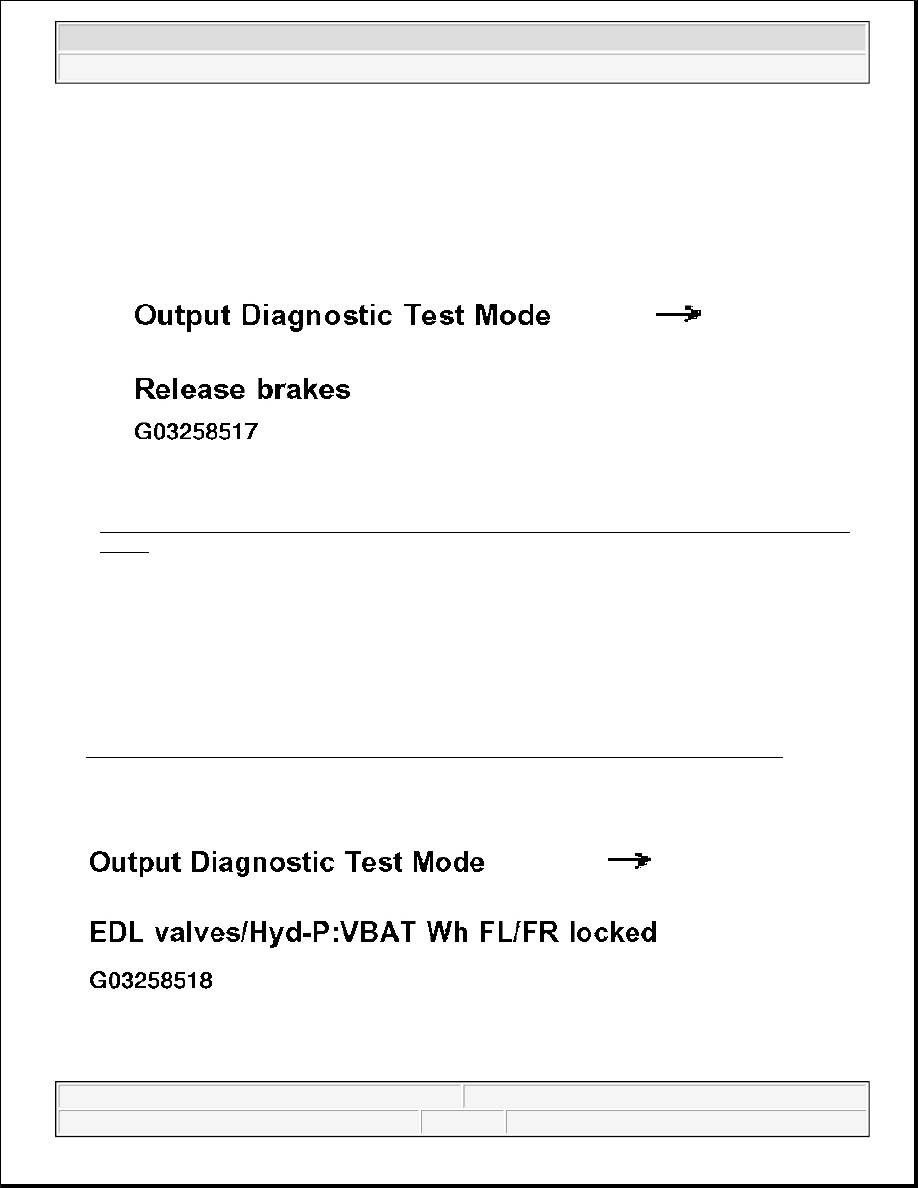

Fig. 94: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (34
Of 37)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (vehicles with EDL)

A second technician is required to rotate the respective wheel by hand.

If the wheels do not lock, there is a malfunction in the hydraulic part of ABS system. In this case the hydraulic
unit must be replaced:

See ABS CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

Fig. 95: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (35 Of 37)



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

ABS warning lamp -K47- goes out.

Indicated on display

Output Diagnostic Test Mode (DTM) is completed.

z

Press --> button.

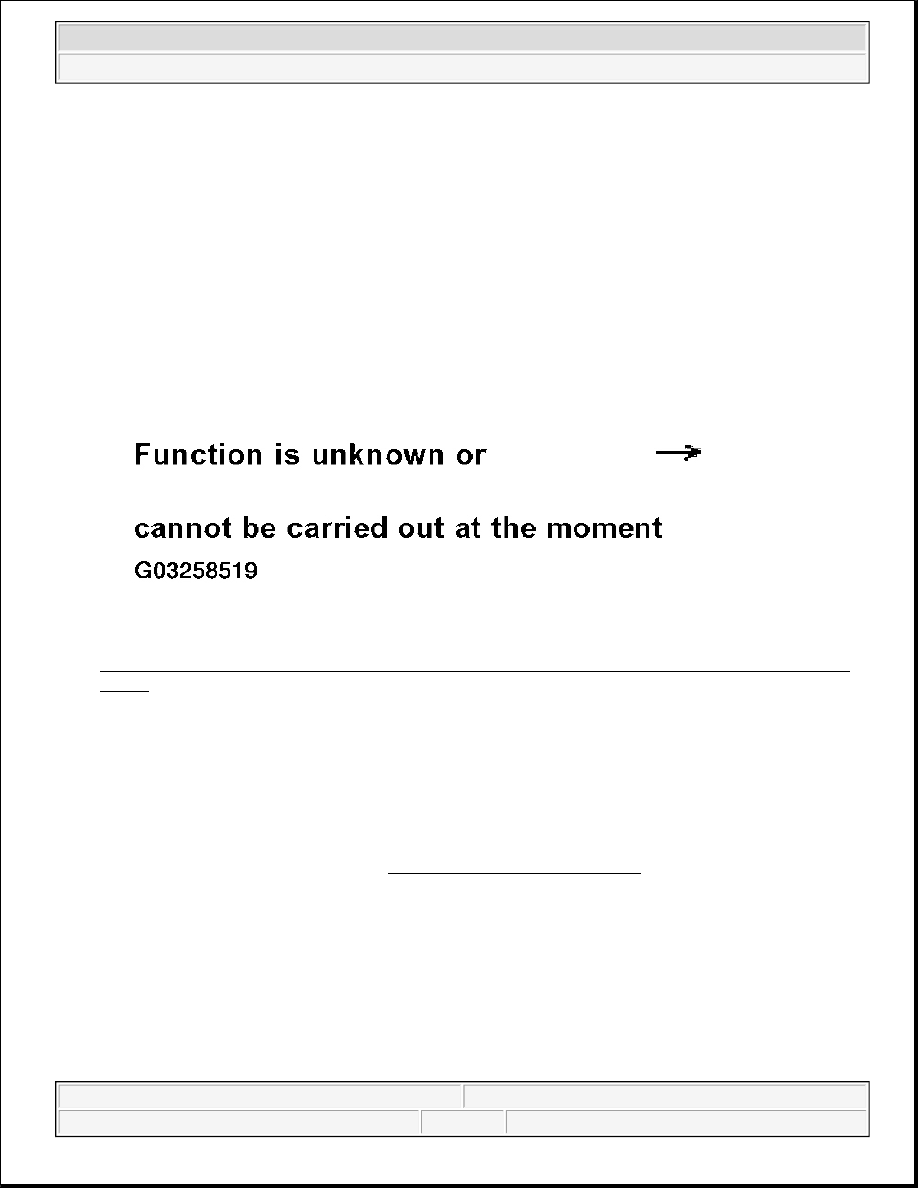

Fig. 96: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (36
Of 37)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

End Output (scan tool function 06), see END OUTPUT (FUNCTION 06)

NOTE:

z

If ABS warning lamp does not go out there is a malfunction in the system.

z

Adhere exactly to the test sequence: first check DTC memory, then erase.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
