Volkswagen New Beetle. Manual - part 730

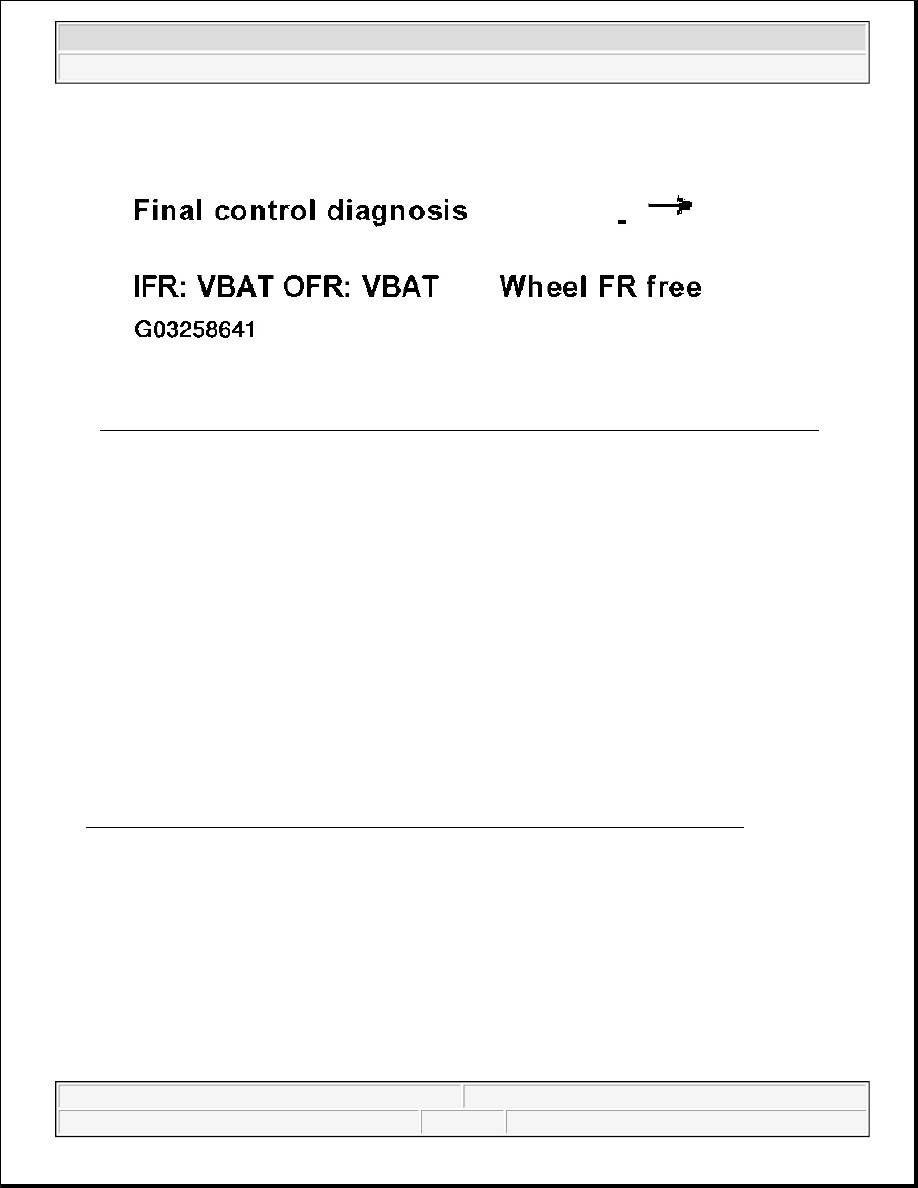

Fig. 218: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (15 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> key.

ABS hydraulic pump -V64- no longer runs.

Indicated on display

z

Press --> key.

Brake pedal must give perceptibly

If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced.

See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

NOTE:

If the wheel locks there is a possibility that the brake lines to the wheel
calipers/cylinders have been interchanged.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

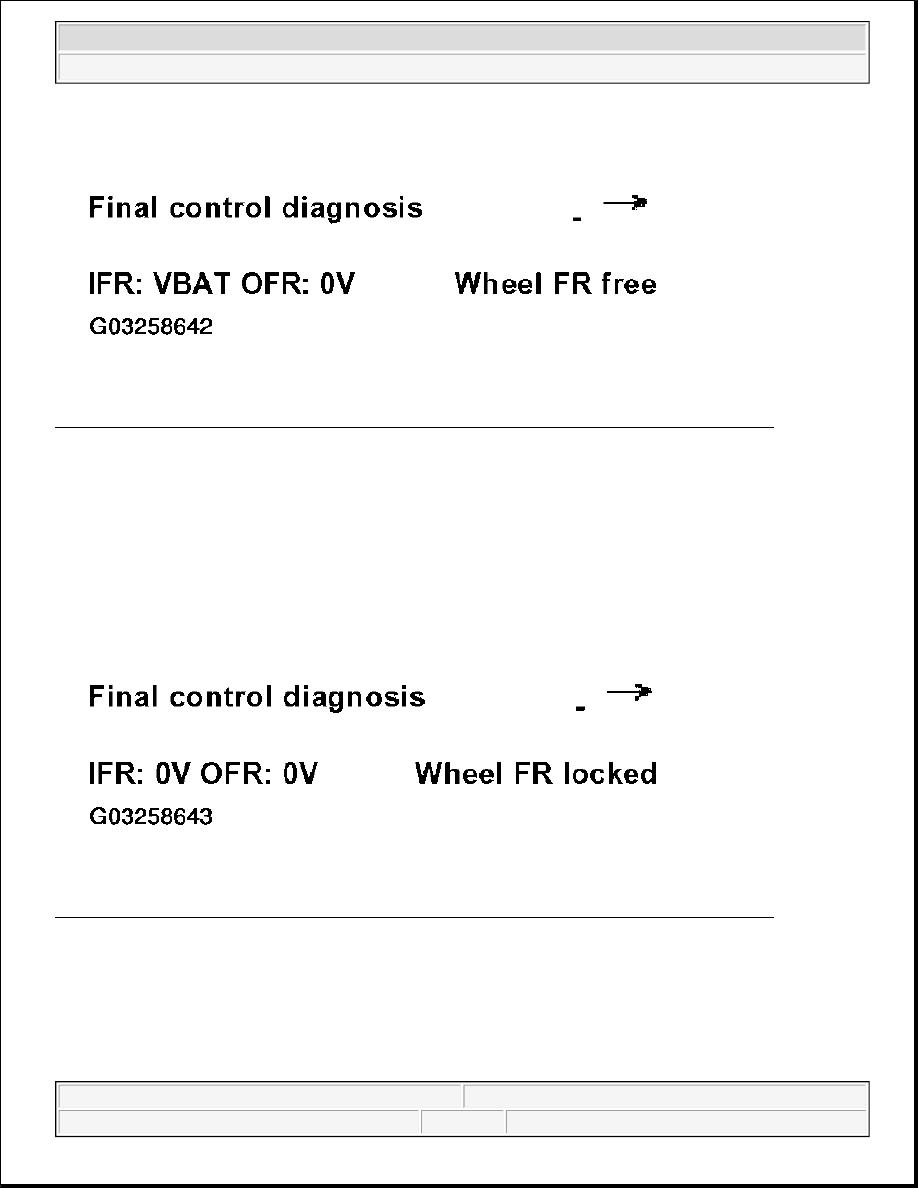

Fig. 219: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (16 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

If the wheel does not lock, there is a possibility that there is a malfuncton in the mechanical/hydraulic part of
the brake system.


Fig. 220: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (17 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> key.

Indicated on display

z

Remove foot from brake pedal.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press --> key.

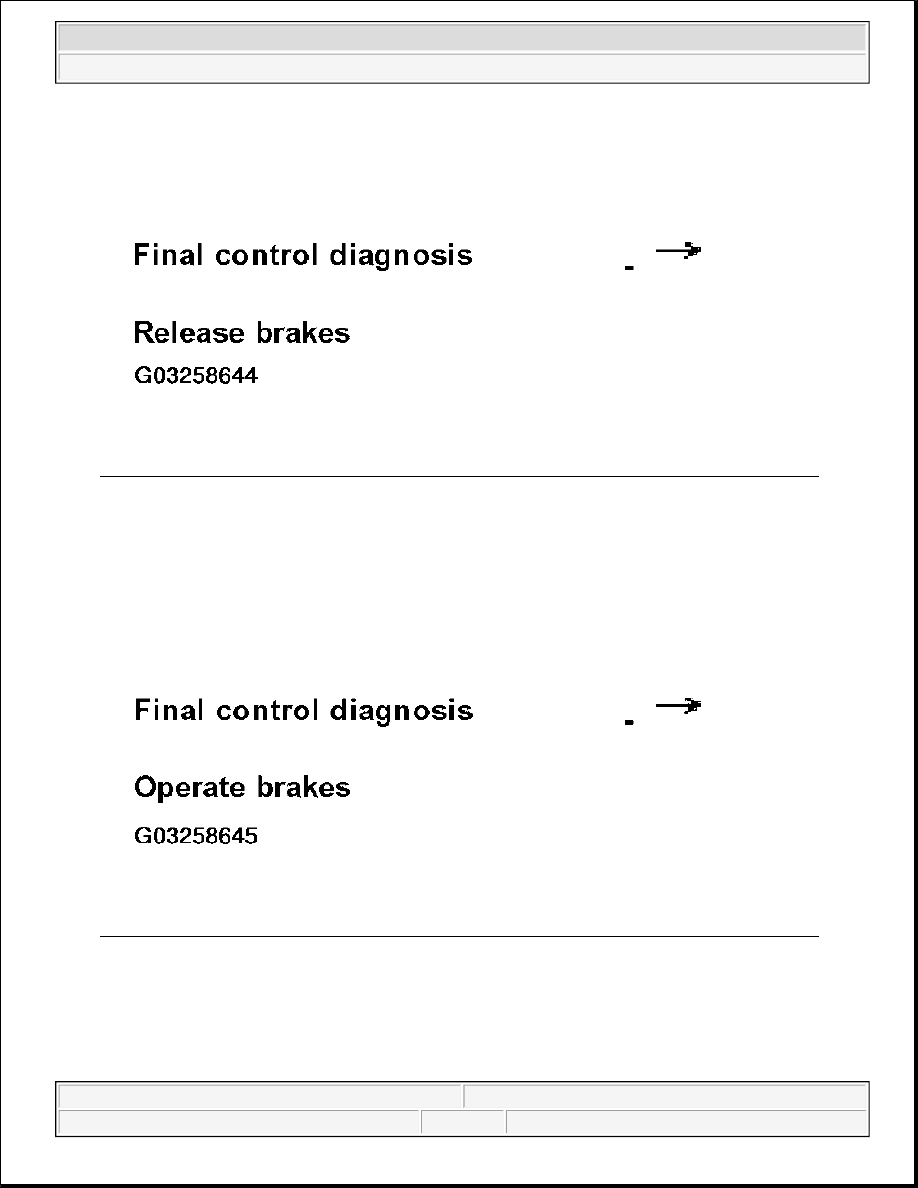

Fig. 221: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (18 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate brake pedal.

z

Press --> key.

Fig. 222: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (19 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

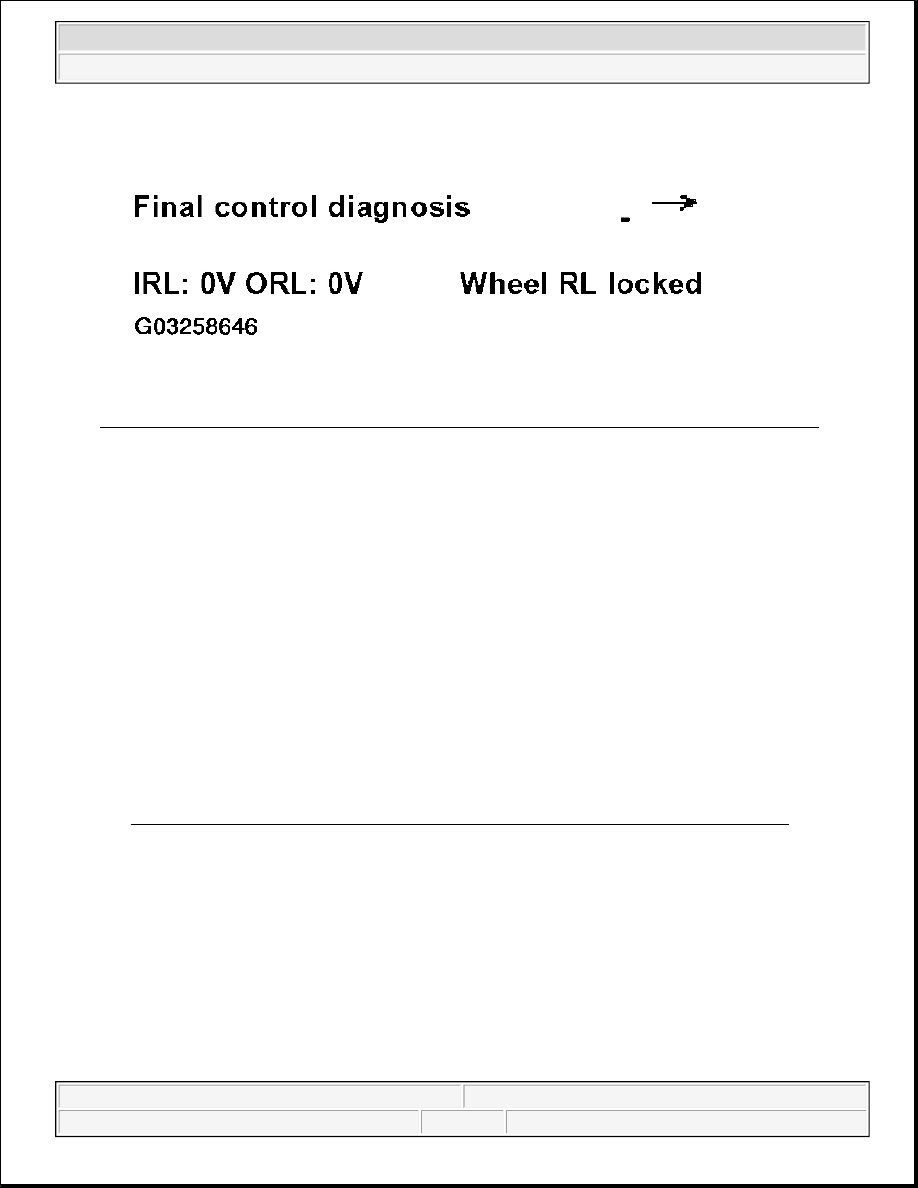

Fig. 223: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (20 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

Indicated on display

z

Press --> key.

ABS hydraulic pump -V64- must run.

Brake pedal must not give

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced.

See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
