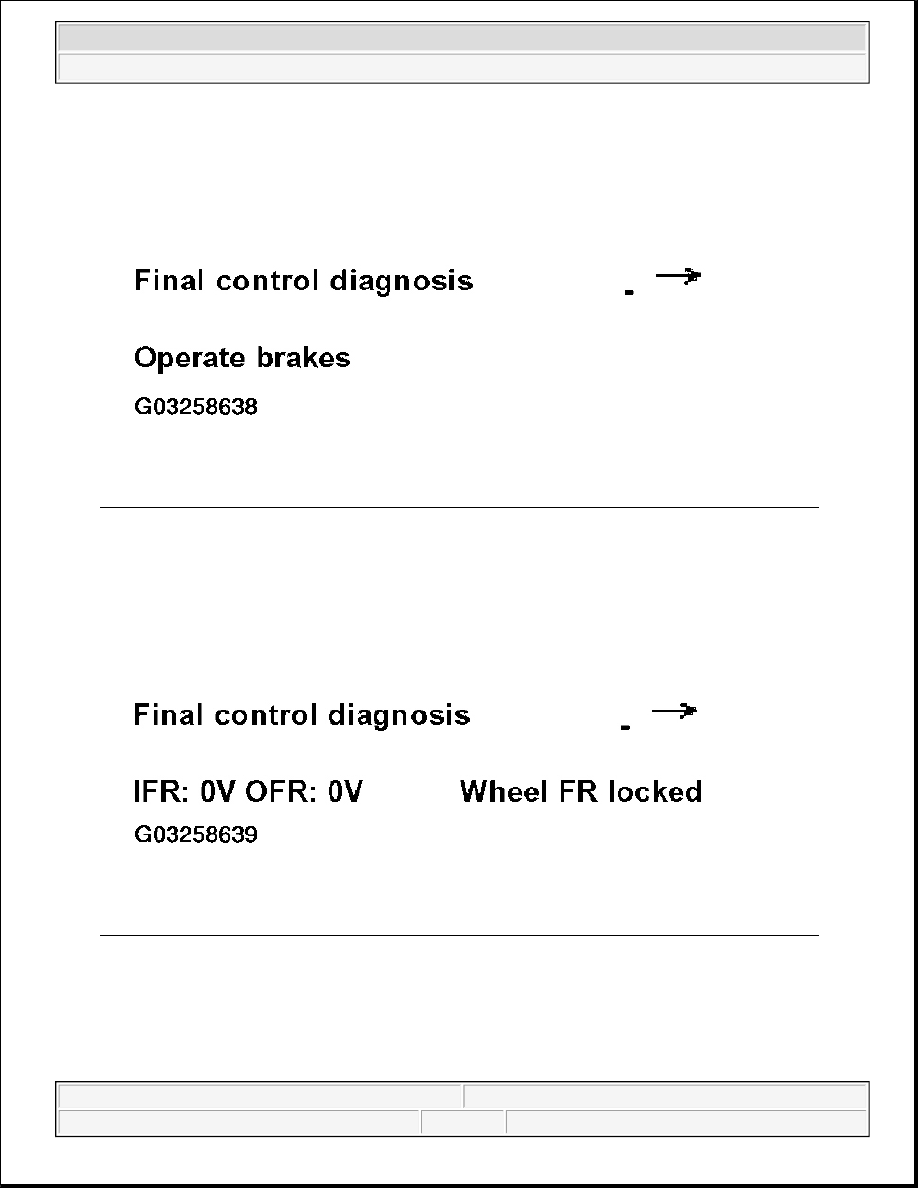

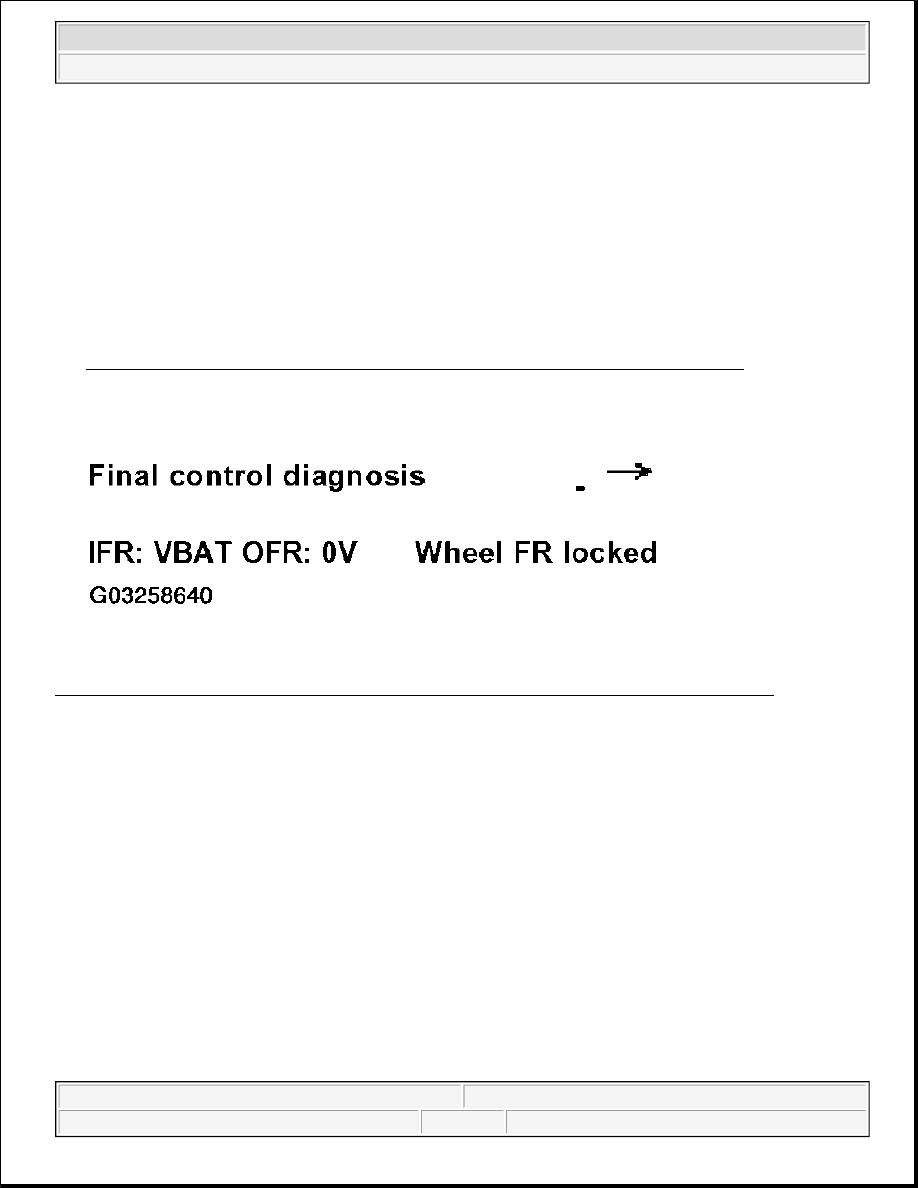

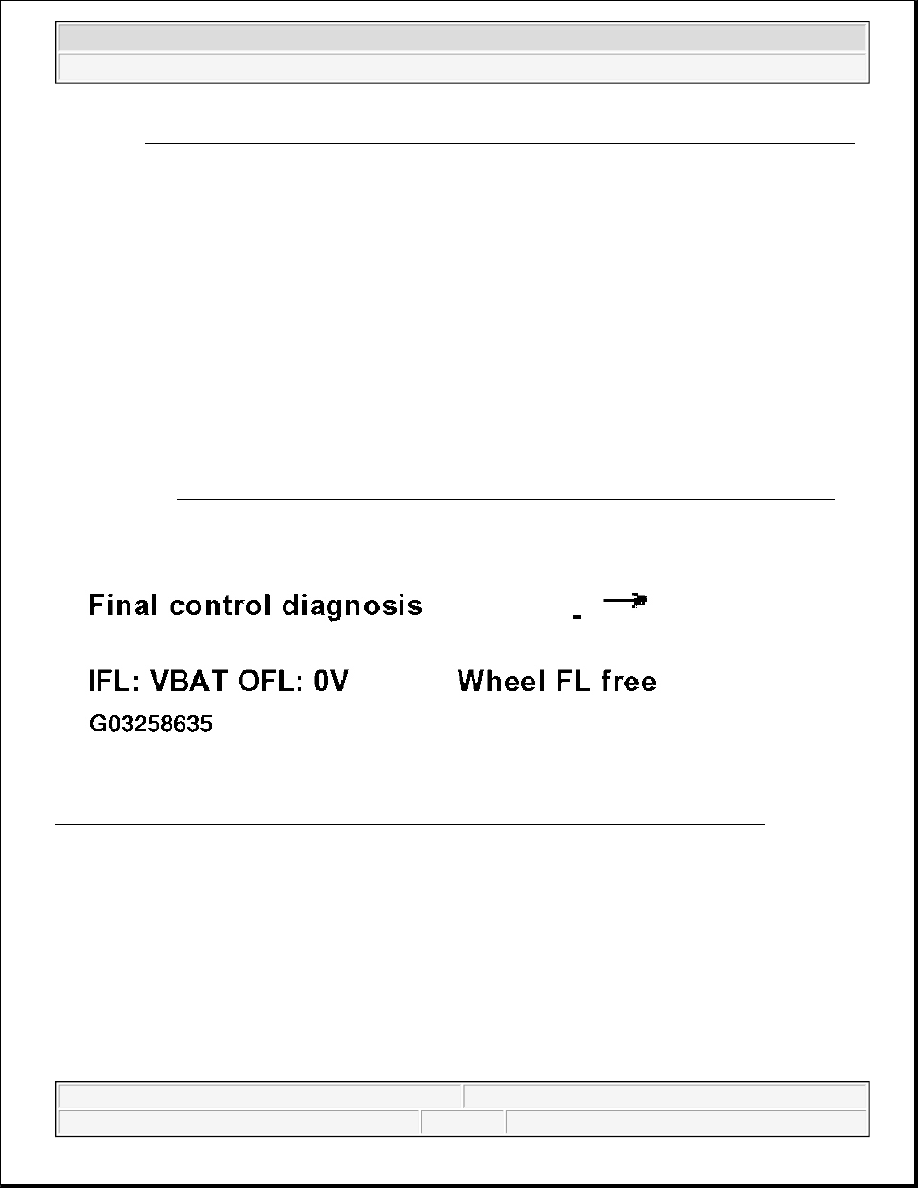

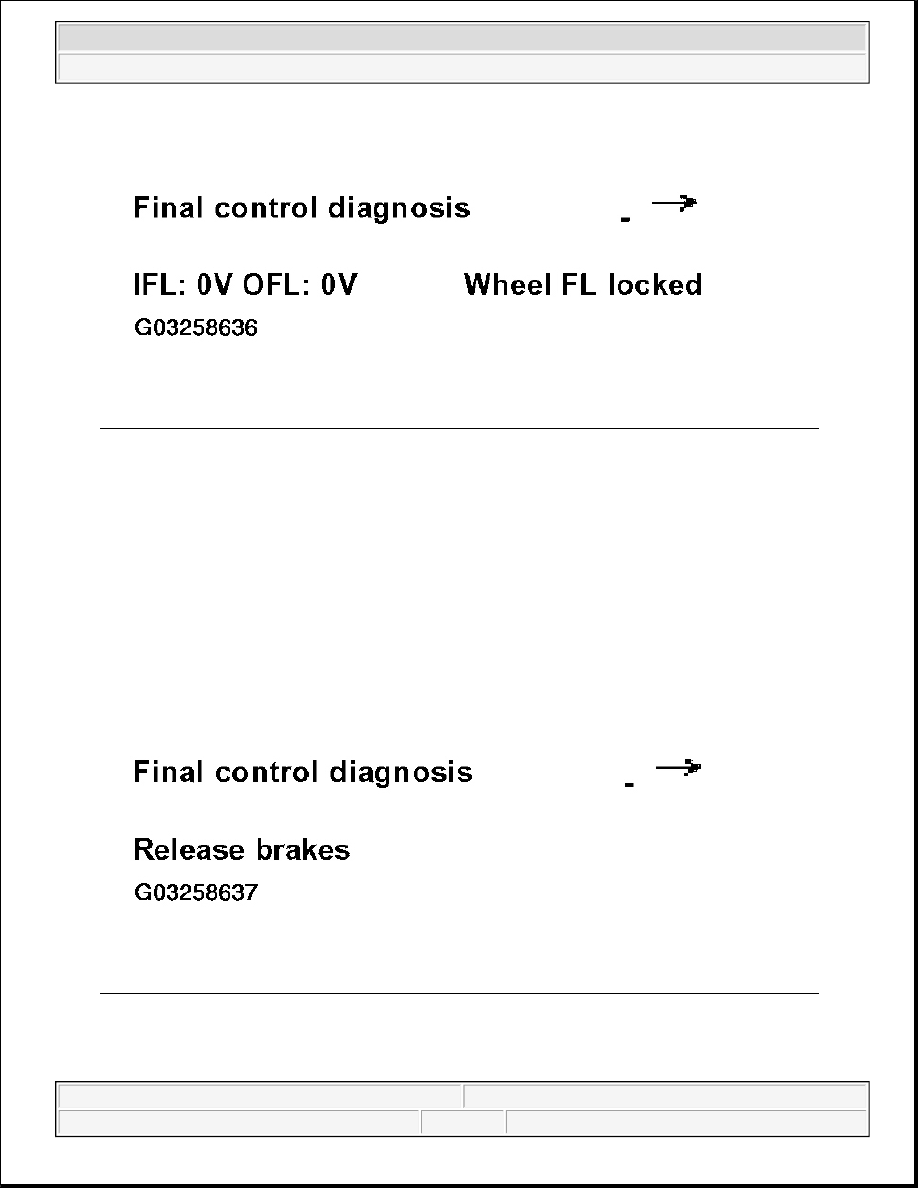

Fig. 211: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (8 Of 35) z Press --> key. ABS hydraulic pump -V64- no longer runs. Indicated on display z Press --> key. Brake pedal must give perceptibly If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must Fig. 212: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (9 Of 35) Indicated on display z Indicate to 2nd mechanic which wheel requires turning by hand. NOTE: If the wheel locks there is a possibility that the brake lines to the
2003 Volkswagen New Beetle GLS 1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
|
