Volkswagen New Beetle. Manual - part 728





Indicated on display:

z

Confirm entry with key Q.

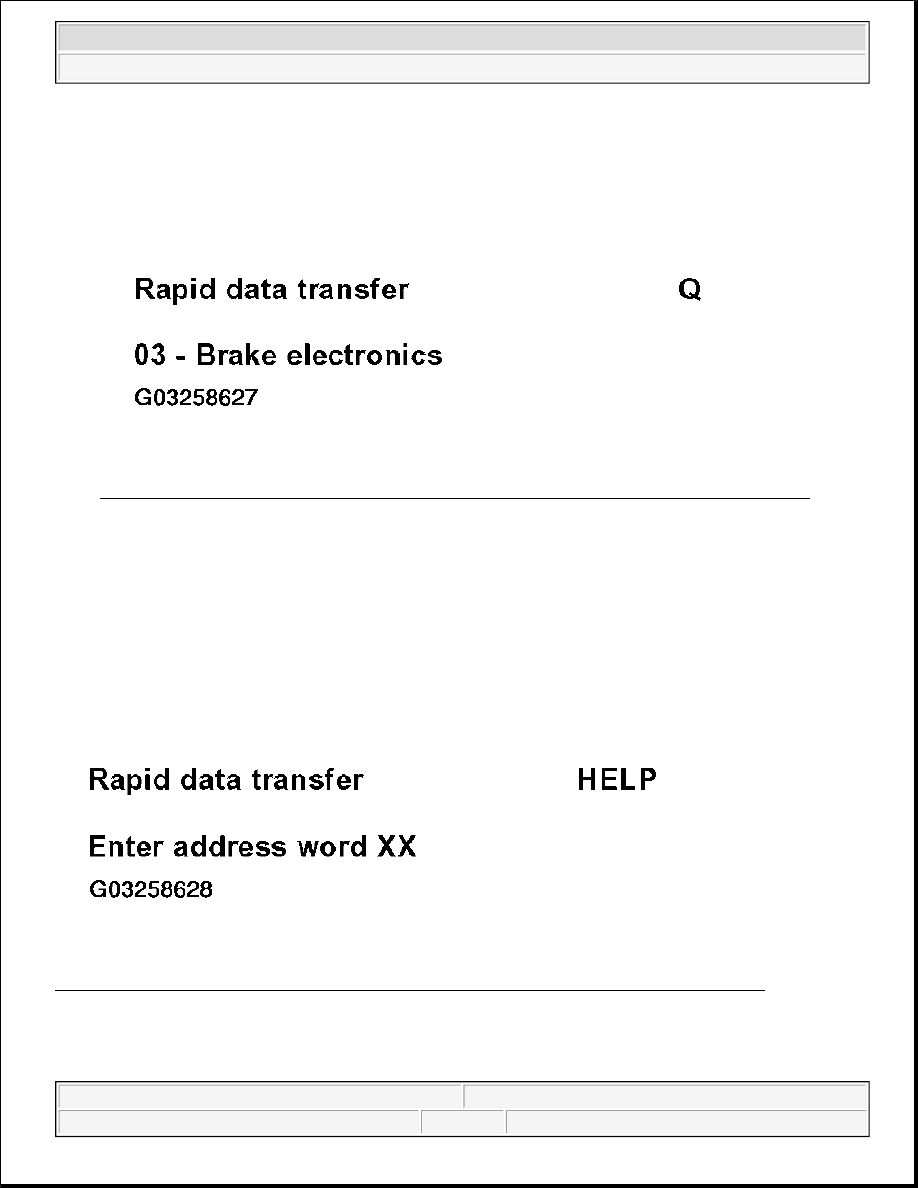

Fig. 204: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (1 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Read off control module version in V.A.G 1551 display.

z

Press --> key.

Indicated on display

Fig. 205: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (2 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys 0 and 3

NOTE:

During the next work steps the ABS warning light -K47- flashes.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display

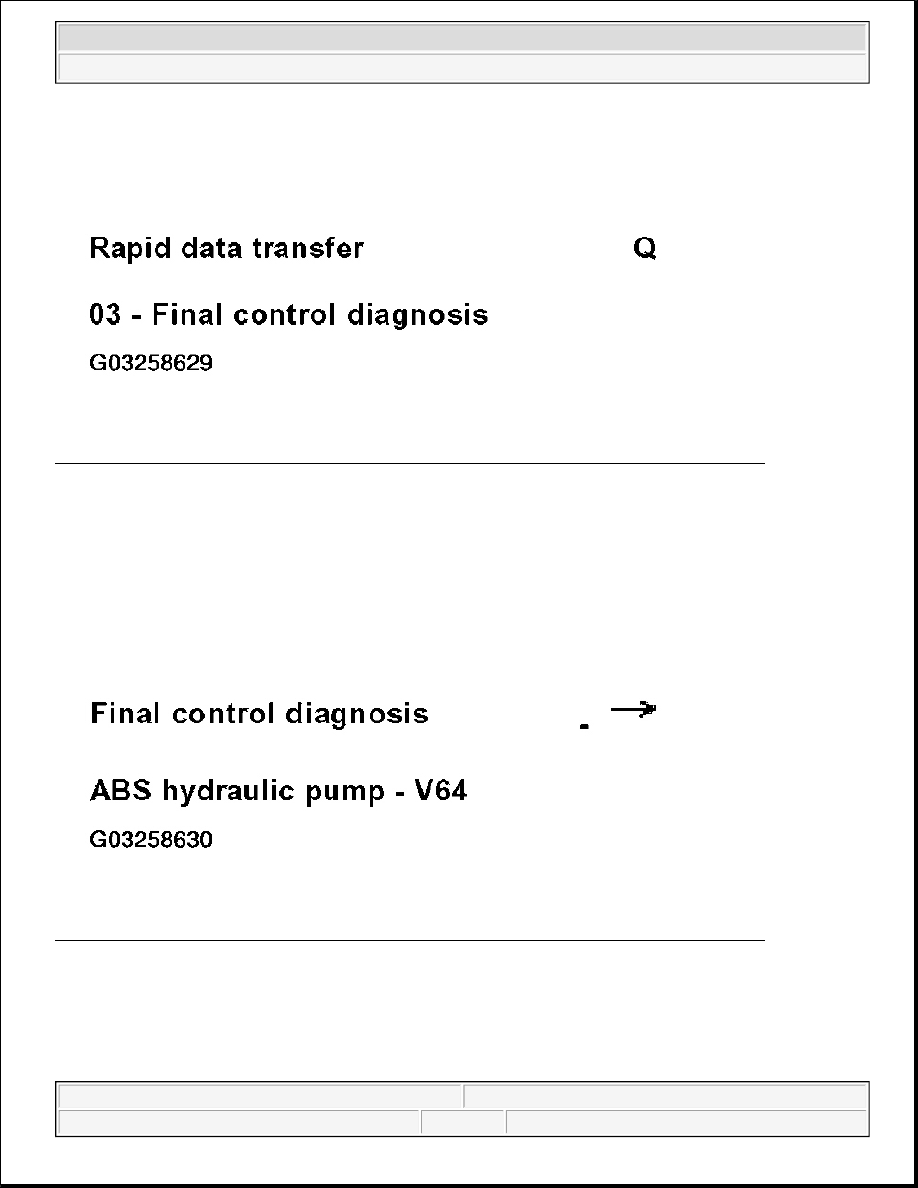

Fig. 206: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (3 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with key Q.

ABS hydraulic pump -V64- must run.

Indicated on display

Fig. 207: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (4 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

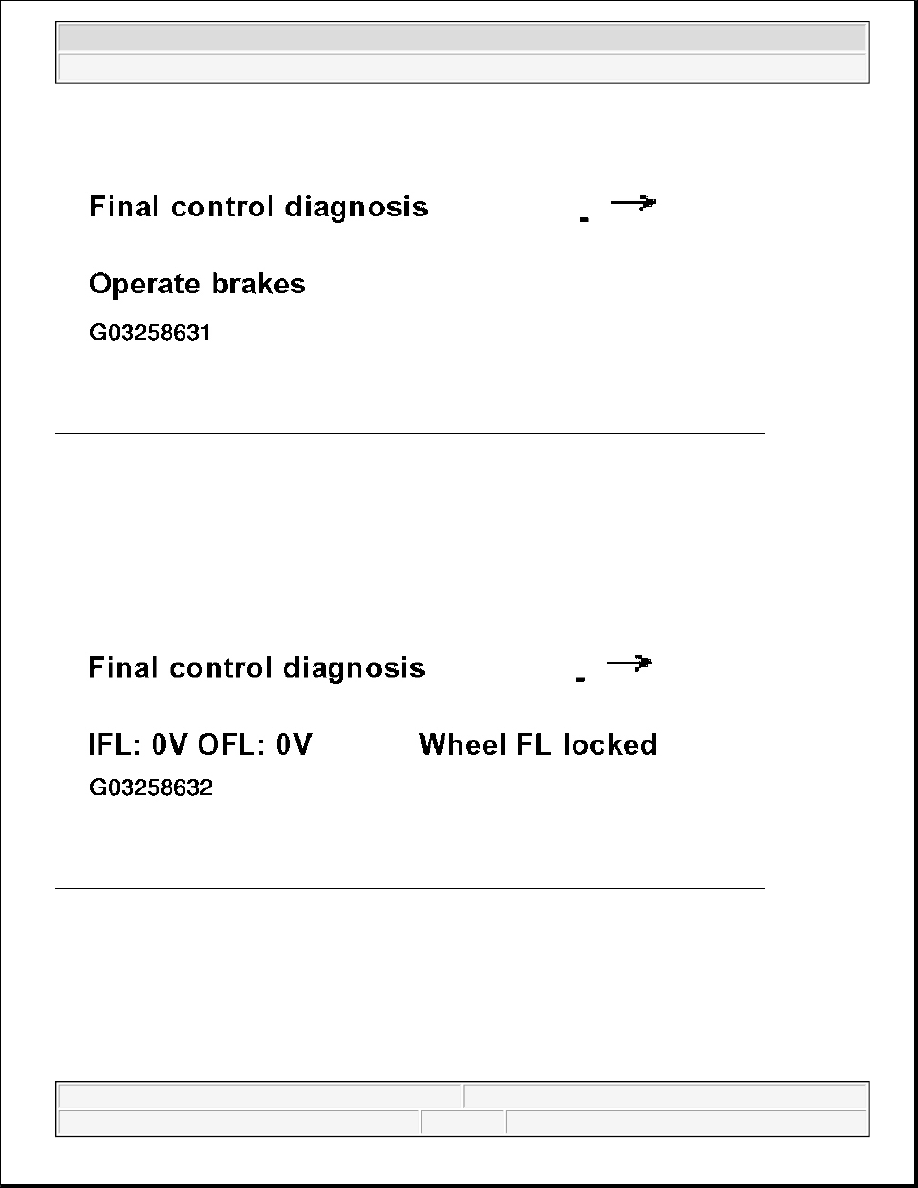

Fig. 208: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (5 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate brake pedal.

z

Press --> key.

Indicated on display

Fig. 209: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (6 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Indicate to 2nd mechanic which wheel requires turning by hand.

z

Press-> key.

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display

z

Press --> key.

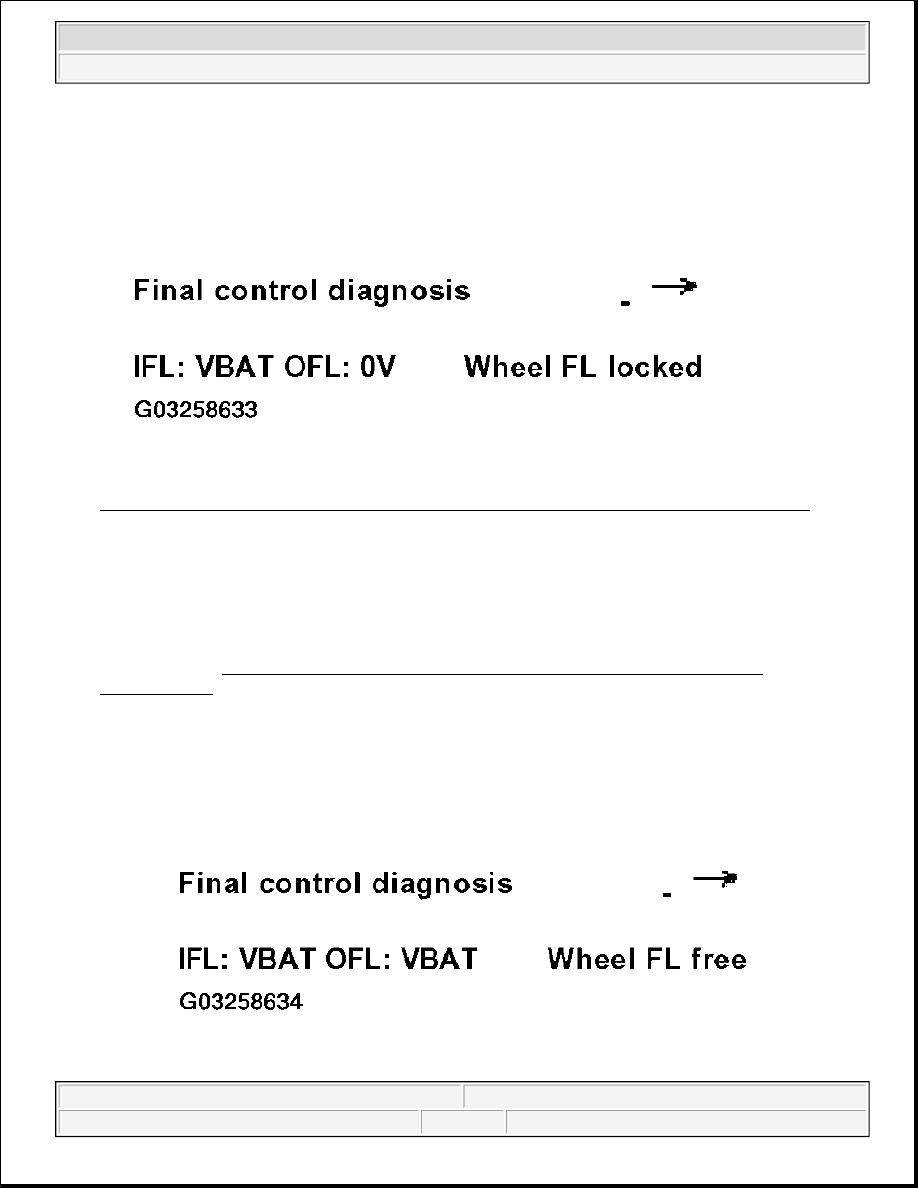

Fig. 210: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (7 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ABS hydraulic pump -V64- must run.

Brake pedal must not give.

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced. See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND
INSTALLING
 .

Indicated on display

{

Indicate to 2nd mechanic which wheel requires turning by hand.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
