5. If wiper arm does not release easily from shaft, use the following procedure:

z

Place locating arms of Puller (T10130) under wiper arm as illustrated. See Fig. 15 .

z

Turn spindle screw clockwise until it engages the wiper shaft and previously loosened nut (the nut
serves as a centered guide for spindle).

z

Continue to turn spindle screw clockwise, until wiper arm releases from shaft.

6. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE

SPECIFICATIONS .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

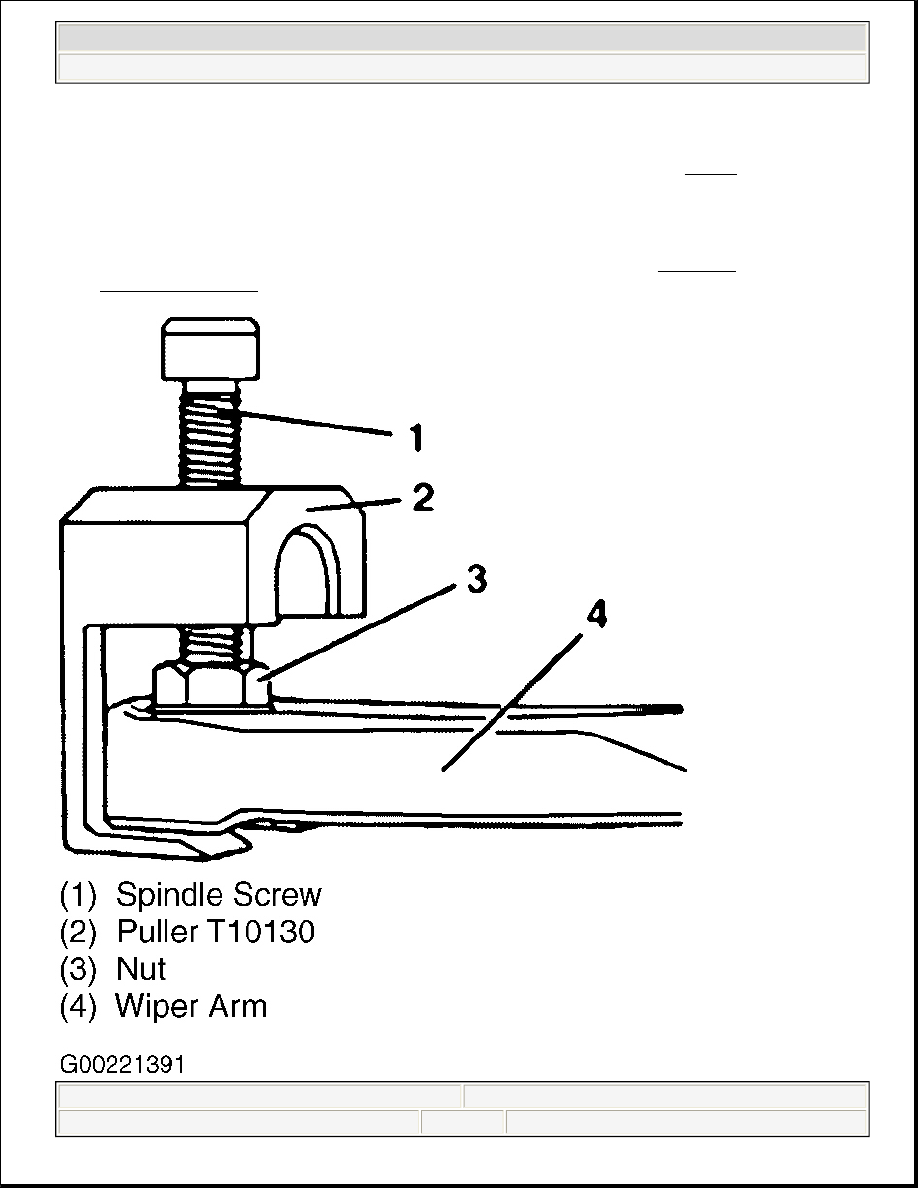

Fig. 15: Removing Wiper Arm Nut Using Puller (T10130)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

WIRING DIAGRAMS

See WIPER/WASHER in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

Component

Ft. Lbs. (N.m)

Wiper Arm Nut

15 (20)

Wiper Motor Crank Nut

15 (20)

INCH Lbs. (N.m)

Wiper Motor Mounting Bolts

71 (8)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 BRAKES

Anti-Lock Brake System - New Beetle

ANTI-LOCK BRAKE SYSTEM (ABS) AND ANTI-LOCK BRAKE SYSTEM
WITH ELECTRONIC DIFFERENTIAL LOCK (ABS/EDL) ITT MARK 20 IE,
VEHICLES UP TO 09.00

GENERAL

ABS layout (left-hand drive vehicle)

The ABS or ABS/EDL brake system is divided diagonally. Brake pedal pressure is boosted pneumatically by a
vacuum brake booster.

Vehicles with ITT Mark 20 IE ABS do not have a mechanical brake pressure regulator. The control module
controls the rear axle brake pressure regulation.

Malfunctions of the ABS or ABS/EDL systems do not influence conventional braking or the vacuum brake
booster. The conventional braking system remains functional if the ABS is not operating.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



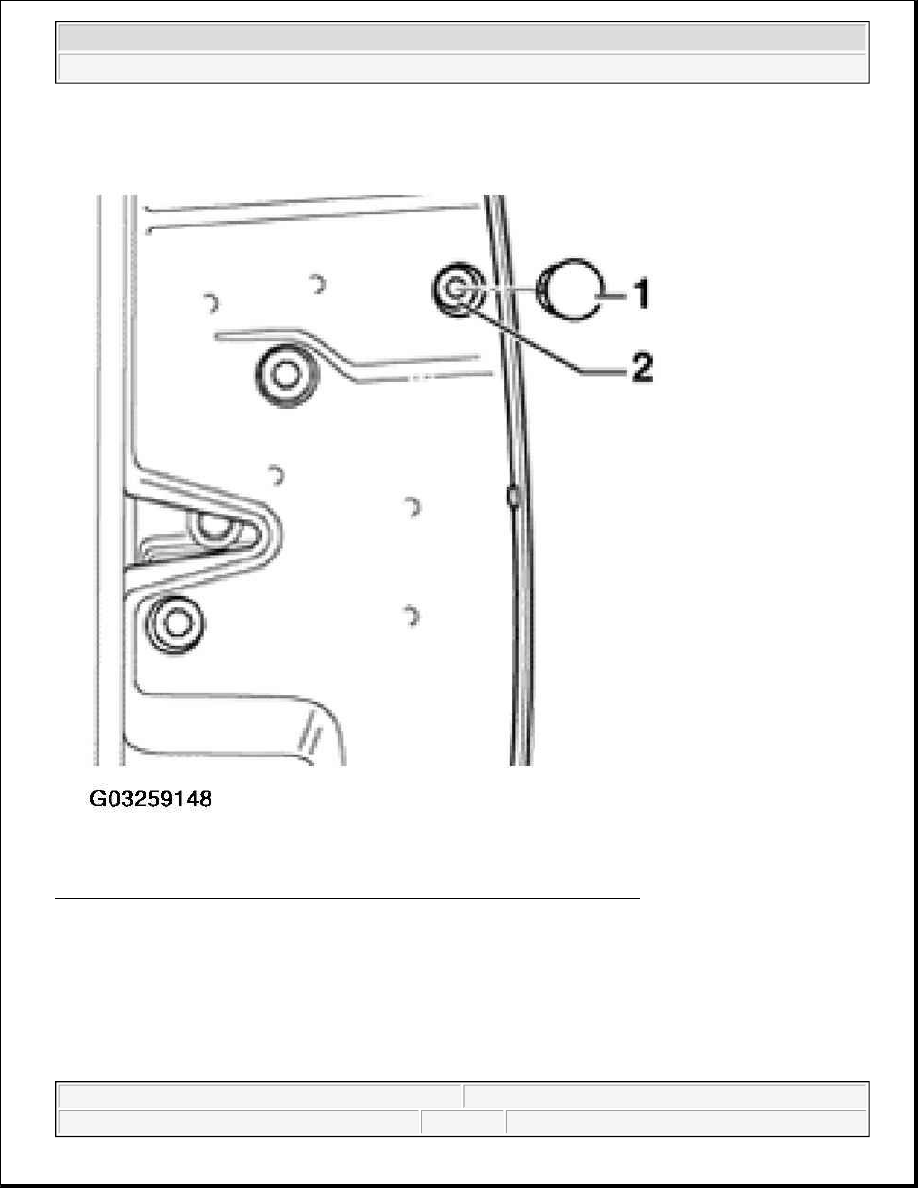

Fig. 1: Identifying ABS Layout - ITT Mark 20 IE (Left-Hand Drive Vehicle)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The hydraulic part -a- and control module part -b- form one unit. They can only be separated when removed
from the vehicle.

New control modules (replacement parts) are not coded and must be coded after installation.

Before working on the ABS or ABS/EDL, determine the cause of the malfunction using the On Board
Diagnostic (OBD) program.
