Volkswagen New Beetle. Manual - part 656







2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

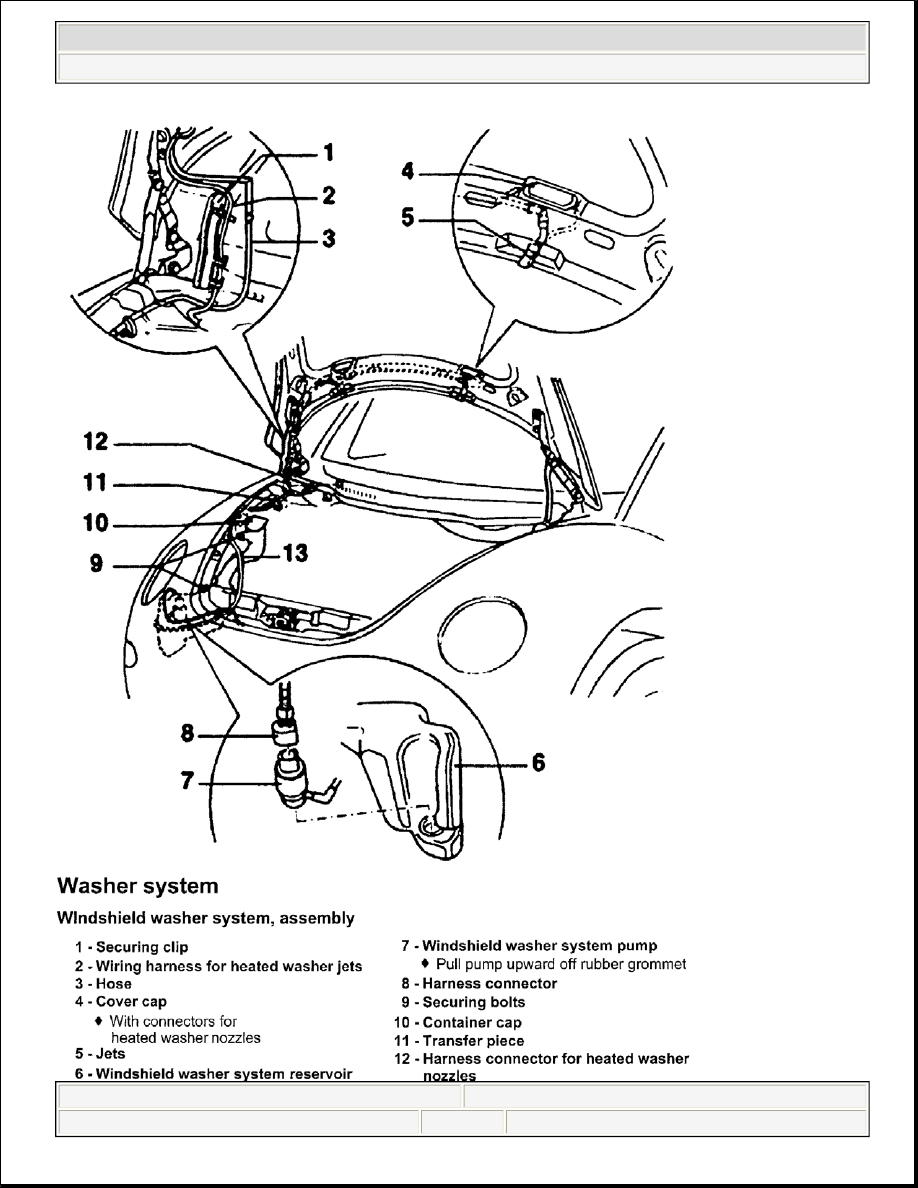

Fig. 11: Exploded View Of Washer System
Courtesy of VOLKSWAGEN UNITED STATES, INC.

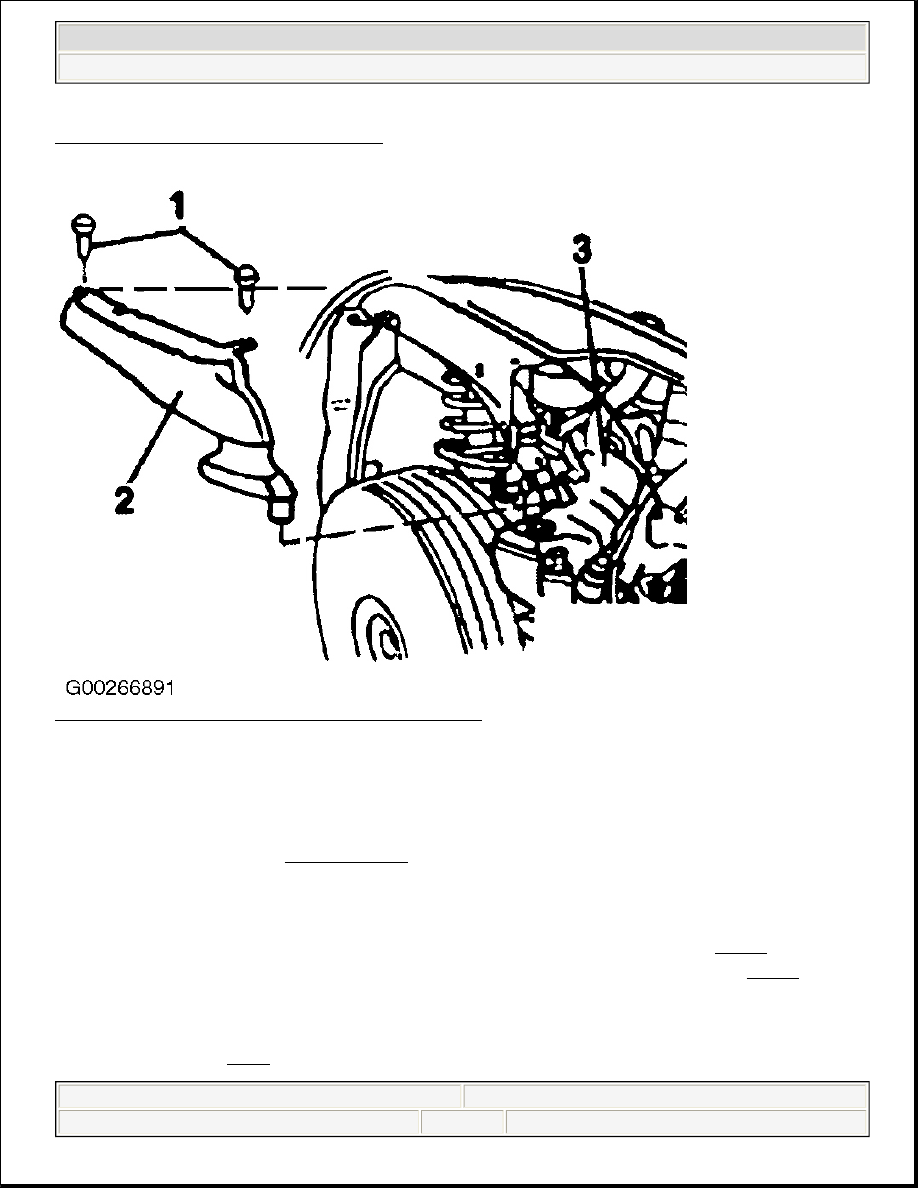

Fig. 12: Removing & Installing Washer Fluid Reservoir
Courtesy of VOLKSWAGEN UNITED STATES, INC.

WIPER ASSEMBLY

Removal

1. Remove wiper arms. See WIPER ARMS .

2. Open hood. Remove cowl panels. The cowl panel is attached to a window guide underneath the

windshield. Pull up plenum panel rubber gasket and remove. Carefully pry cowl panel off in upward
direction.

3. Remove hex screws (arrows) and pull plenum panel divider (1) slightly forward. See Fig. 13 .

4. Disconnect wiper motor harness connector. Remove wiper assembly mounting bolts. See Fig. 14 .

Remove wiper assembly.

5. To remove wiper motor from frame, pry rods off wiper crank using a large screwdriver. Remove crank

retaining nut and remove crank. Remove 3 bolts retaining wiper motor and remove wiper motor from
wiper frame. See Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 17

© 2004 Mitchell Repair Information Company, LLC.

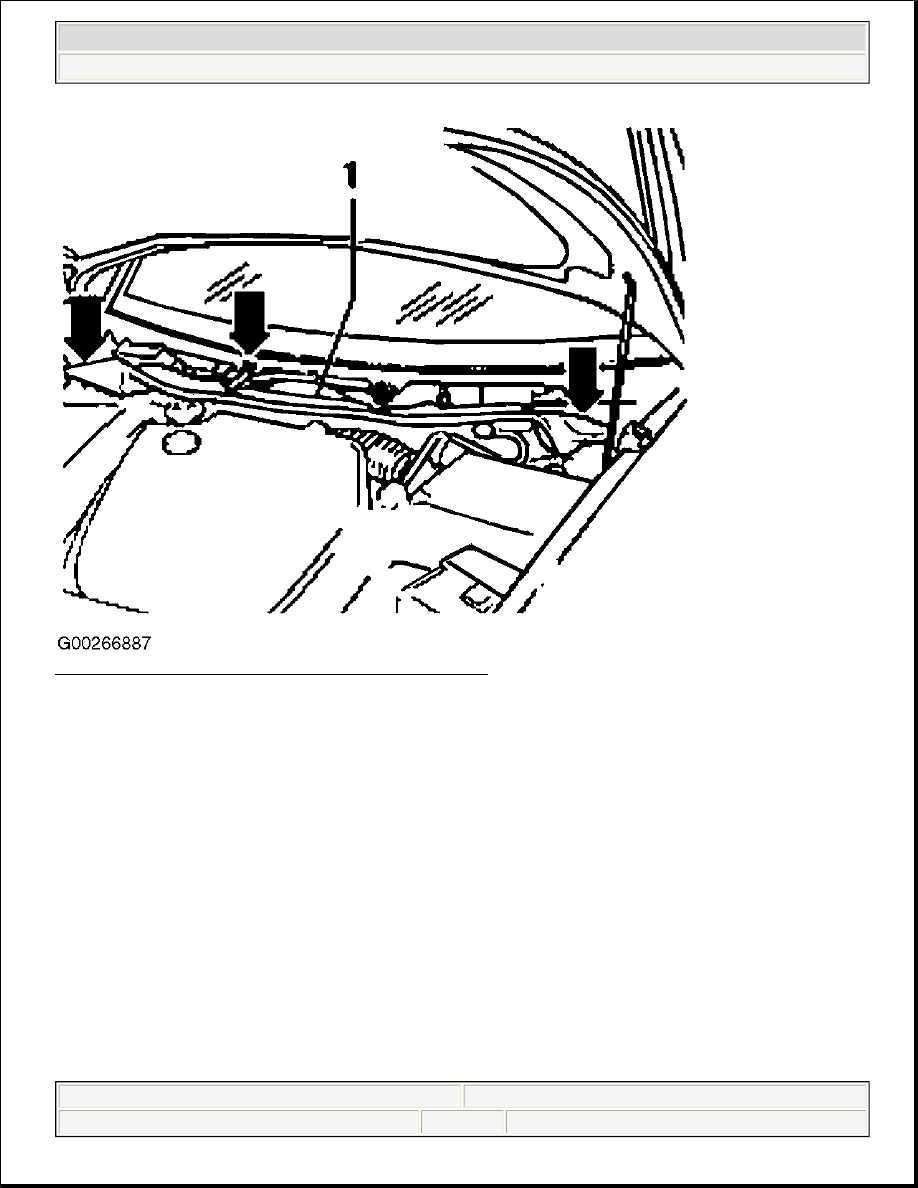

Fig. 13: Removing & Installing Wiper Assembly (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

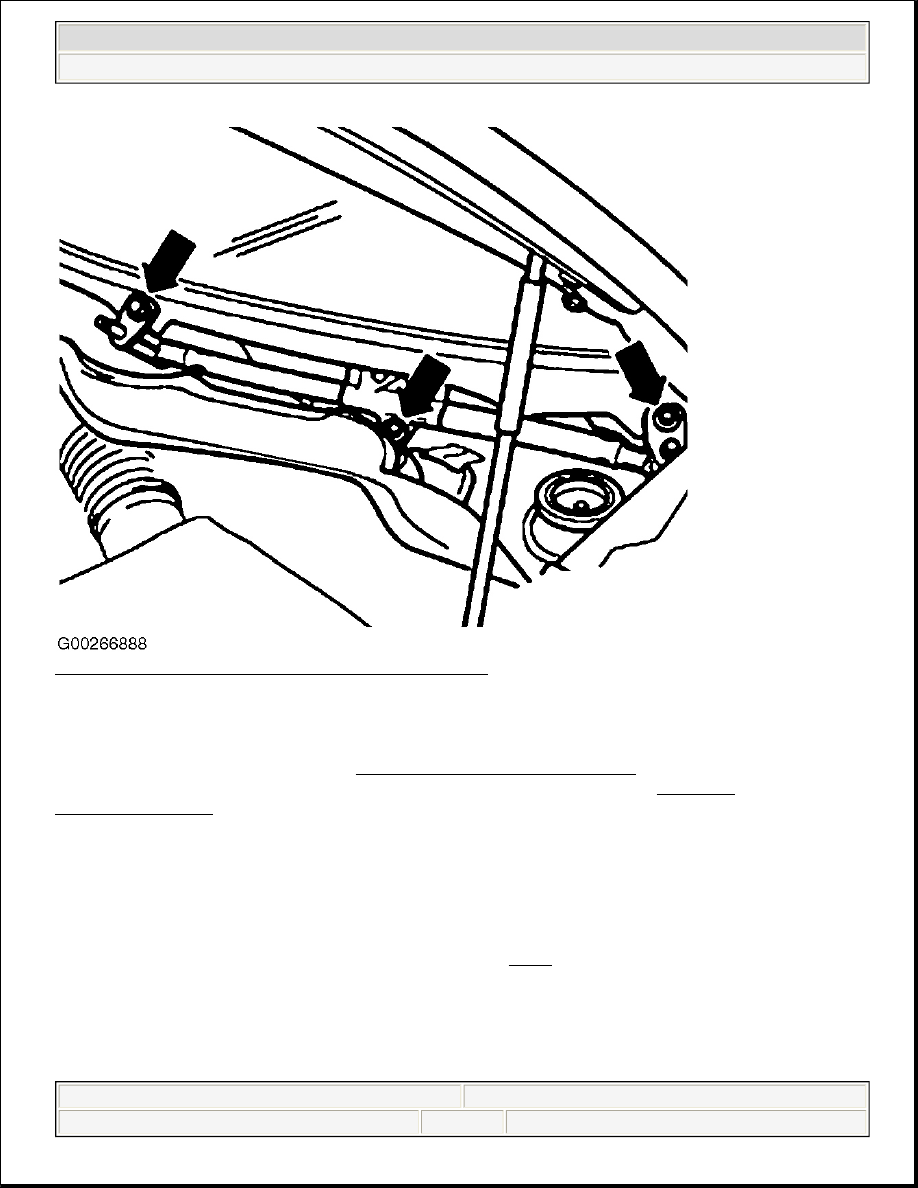

Fig. 14: Removing & Installing Wiper Assembly (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

Ensure crank arm is in park position. See WIPER BLADE PARK POSITION under ADJUSTMENTS.
Installation is reverse of removal procedure. Tighten fasteners to specification. See TORQUE
SPECIFICATIONS
.

WIPER ARMS

1. Pry off wiper arm caps (arrows) with a screwdriver. See Fig. 3 .

2. Loosen wiper arm nuts, but do not remove completely.

3. Rock wiper arms back and forth on shaft until wiper arm releases from shaft.

4. Remove nut completely and remove wiper arms. If wiper arm does not release easily from shaft after

loosening nut, do not use force. Go to next step.

NOTE:

Before removing wiper arms, ensure that wiper motor is in park position. This
ensures proper wiper arm/blade park position when reinstalling.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.
