connector terminal No. 8 and wiper/washer switch connector terminal No. 1. If problem is found, repair
White/Green wire as necessary. If no problem is found, replace wiper/washer switch. See
COMBINATION SWITCH under REMOVAL & INSTALLATION.

8. Turn ignition off. Reinstall wiper/washer intermittent relay. Lift wiper/washer switch lever to position

No. 3 (high wiper speed). Turn ignition on. If wiper does not operate at high speed, go to next step. If
wiper operates at high speed, go to step 12 .

9. Turn ignition off. Remove wiper/washer intermittent relay. Turn ignition on. Lift wiper/washer switch

lever to position No. 3 (high wiper speed), measure voltage between ground and wiper/washer
intermittent relay socket connector terminal No. 13 (Black/Gray wire). See WIRING DIAGRAMS . If
approximately zero volts is present, go to next step. If approximately battery voltage is present, go to step
11 .

10. Check for open or shorted condition in Green/Gray (or Green/Yellow) wire between wiper/washer

intermittent relay socket connector terminal No. 2 and wiper/washer switch connector terminal No. 6. If
problem is found, repair Green/Gray wire as necessary. If no problem is found, replace wiper/washer
motor. See WIPER ASSEMBLY under REMOVAL & INSTALLATION.

11. Turn ignition off. Remove wiper/washer intermittent relay from auxiliary relay panel. Check for

continuity between wiper/washer intermittent relay socket connector terminal No. 17 (Brown wire) and
terminals No. 4 (Green wire), No. 5 (Green/Gray or Green/Yellow wire) and No. 11 (Green/Black wire).
See WIRING DIAGRAMS . If continuity exists at all circuits go to next step. If continuity does not
exist, check suspect circuit. If all circuits are okay, replace wiper motor. See WIPER ASSEMBLY under
REMOVAL & INSTALLATION.

12. Turn ignition off. Remove wiper/washer intermittent relay. Turn ignition on. Lift wiper/washer switch

lever to position No. 1 (intermittent). Measure voltage between wiper/washer intermittent relay socket
connector terminals No. 12 (Brown/Black wire) and No. 17 (Brown wire). If approximately zero volts is
present, go to next step. If battery voltage is present, go to step 14 .

13. Check for open or shorted condition in Brown/Black wire between wiper/washer intermittent relay and

wiper/washer switch connector terminal No. 7. See WIRING DIAGRAMS . If problem is found, repair
Brown/Black wire as necessary. If no problem is found, go to next step.

14. Turn ignition off. Reinstall wiper/washer intermittent relay. Turn ignition on. Lift wiper/washer switch

lever to position No. 1 (intermittent). Measure voltage between wiper/washer intermittent relay socket
connector terminals No. 12 (Brown/Black wire) and No. 17 (Brown wire). If approximately zero volts is
present, go to next step. If battery voltage is present, go to step 16 .

15. Check for and repair open or shorted condition in Brown/Black wire between wiper/washer intermittent

relay and wiper/washer switch connector terminal No. 7. See WIRING DIAGRAMS .

16. Turn ignition off. Measure resistance between wiper/washer intermittent relay socket connector terminals

No. 3 (Green/Violet wire) and No. 17 (Brown wire). Move intermittent wiper regulator to each of 4
positions. See WIPER INTERMITTENT REGULATOR RESISTANCE (BEETLE) table. If
resistance is not as specified, go to next step. If resistance is as specified, replace wiper/washer
intermittent relay.

17. Check for open, high resistance or shorted condition in Green/Violet wire between wiper/washer

intermittent relay socket connector terminal No. 3 and windshield wiper intermittent regulator connector
terminal No. 5. Also, check for open, high resistance or shorted condition in Brown wire between
windshield wiper intermittent regulator connector terminal No. 6 and ground connection. See WIRING
DIAGRAMS
. If problem is found, repair as necessary. If wires are okay, replace windshield wiper
intermittent regulator.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

WIPER INTERMITTENT REGULATOR RESISTANCE (BEETLE)

REMOVAL & INSTALLATION

COMBINATION SWITCH

FRONT BUMPER

Front bumper must be removed to access headlight washer components or fluid reservoir. Use illustration to aid
in removal of front bumper. See Fig. 9 .

Relay Position

(1)

Resistance (Ohms)

2000

4000

8000

16,000

(1)

Measured between wiper/washer intermittent relay J31 socket connector terminals
No. 3 (Green/Violet wire) and No. 17 (Brown wire).

WARNING:

Vehicles are equipped with air bag supplemental restraint system. Before
attempting ANY repairs involving steering column, instrument panel or
related components, see SERVICE PRECAUTIONS and DISABLING &
ACTIVATING AIR BAG SYSTEM (or AIR BAG SAFETY PRECAUTIONS) in
appropriate AIR BAG RESTRAINT SYSTEMS article in RESTRAINTS.

CAUTION: When battery is disconnected, vehicle computer and memory systems

may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
battery.

CAUTION: Before disconnecting battery, obtain radio anti-theft code. If wrong code is

entered into radio after power is restored, radio will become inoperable.

NOTE:

For windshield wiper switch removal and installation procedures, see
COMBINATION SWITCH under REMOVAL & INSTALLATION in appropriate
STEERING COLUMN SWITCHES article.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

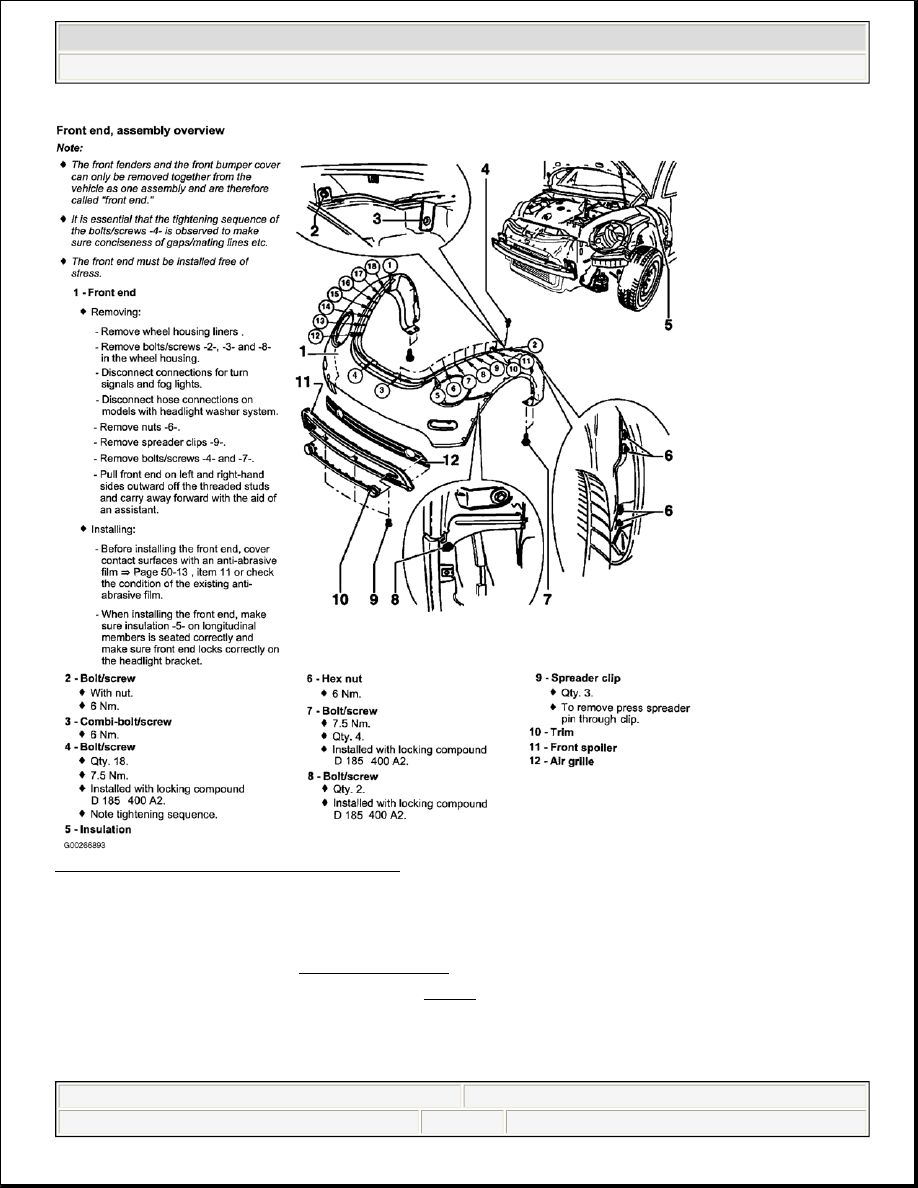

Fig. 9: Removing & Installing Front Bumper
Courtesy of VOLKSWAGEN UNITED STATES, INC.

HEADLIGHT WASHER JETS

1. Remove front bumper. See FRONT BUMPER .

2. Remove screws (4) from speed nuts (5). See Fig. 10 . Unclip headlight washer system hose (3) from hose

clips (2). Pull hose (3) from spray jet carrier (1).

3. Installation is reverse of removal procedure. Once installation is complete, bleed headlight washer system

by operating system several times.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

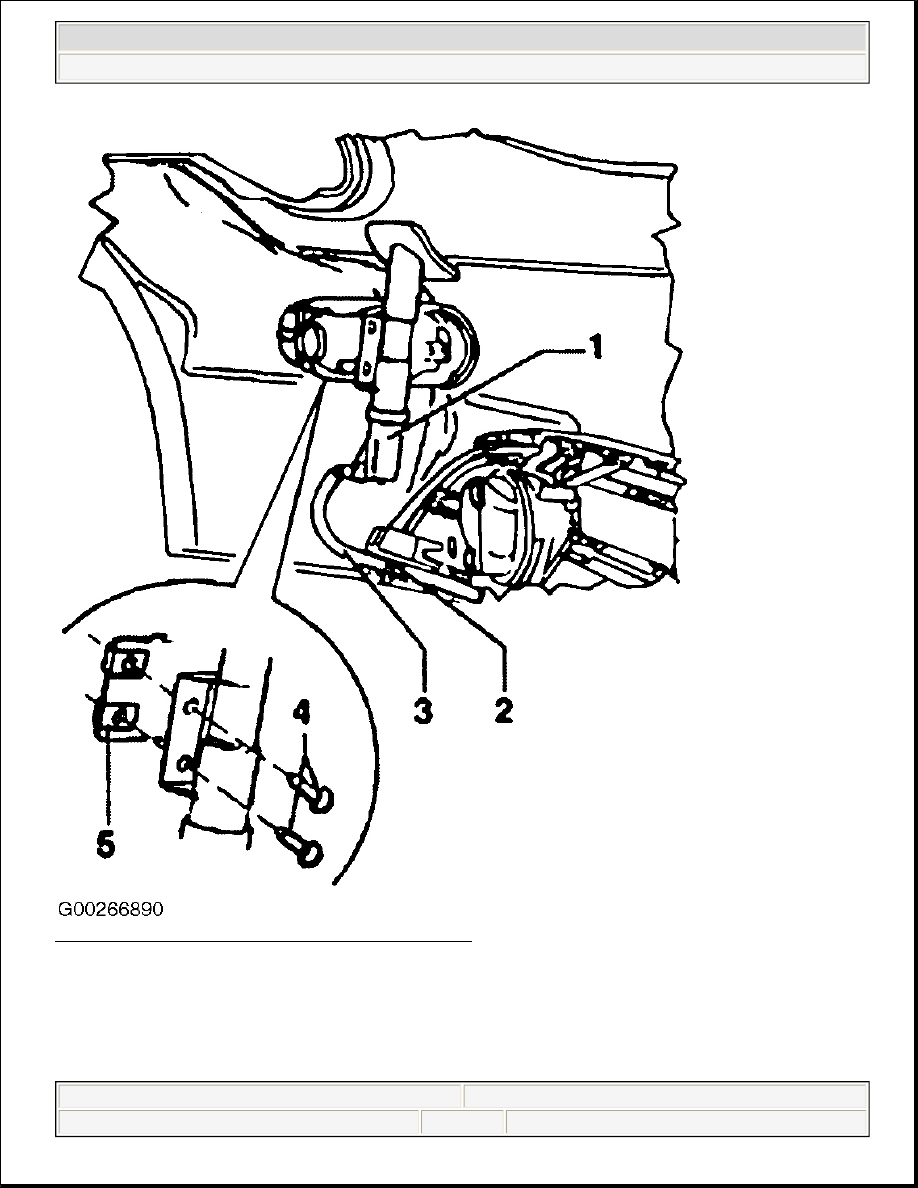

Fig. 10: Removing & Installing Headlight Washer Jets
Courtesy of VOLKSWAGEN UNITED STATES, INC.

WASHER FLUID RESERVOIR

Removal & Installation

Washer reservoir is accessed by removing right front inner fender lining. See Fig. 11 and Fig. 12
