Volkswagen New Beetle. Manual - part 646





HIGH MOUNT BRAKE LIGHT

HIGH MOUNT BRAKE LIGHT, REMOVING AND INSTALLING

The additional brake light is installed in the rear trunk lid.

Removing

z

Remove rear lid lower trim.

See LOWER TRIM PANEL, ASSEMBLY OVERVIEW .

z

Remove Phillips-head screws (arrows) for high mount brake light.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

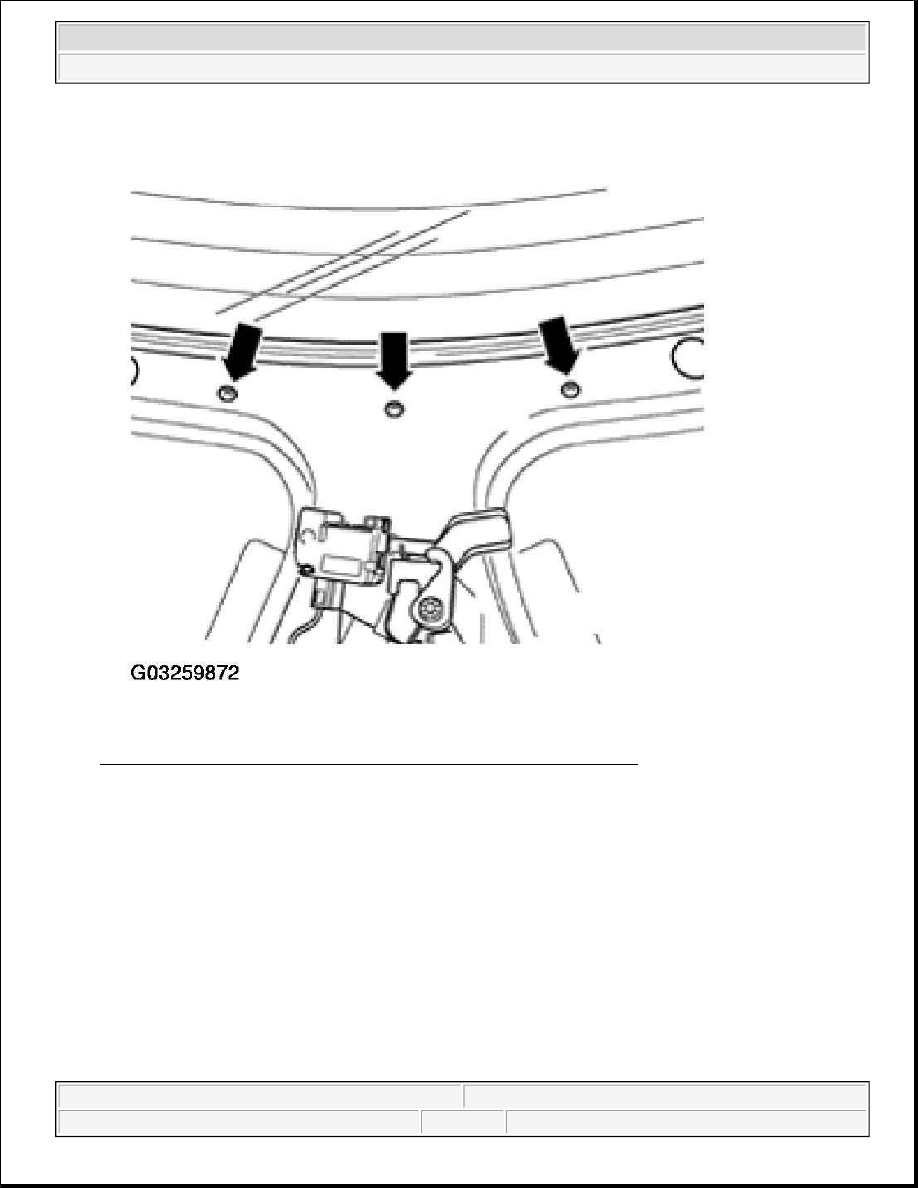

Fig. 86: Removing Phillips-Head Screws For High Mount Brake Light
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove brake light upward and disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Insert brake light in bumper.

To attach screws:

z

Reach behind panel and position high mount brake light correctly.

z

Tighten screws.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



LICENSE PLATE LIGHT

LICENSE PLATE LIGHT, REMOVING AND INSTALLING

Removing

z

Carefully pry out license plate light -2- with suitable tool until retaining tab -1- releases.

z

Remove license plate light -2-.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

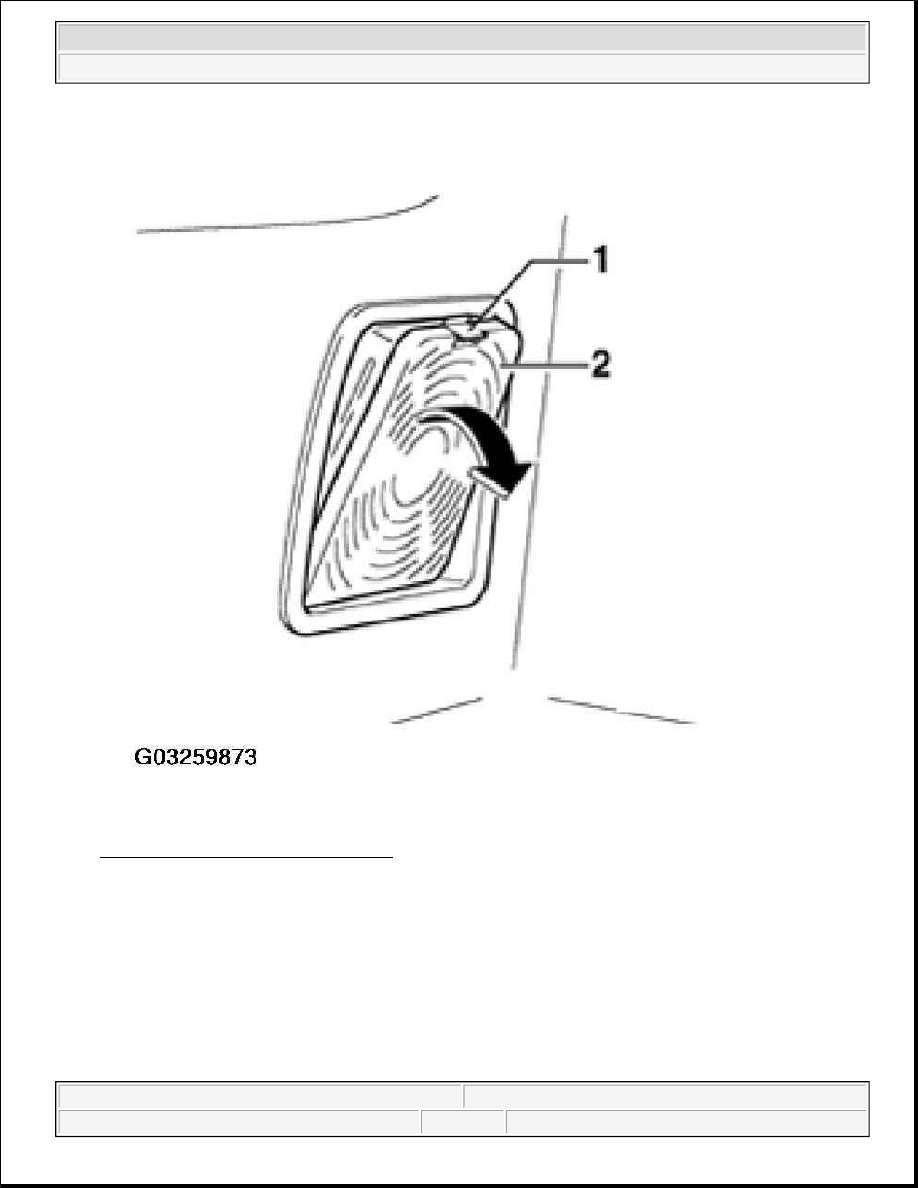

Fig. 87: Removing License Plate Light
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Insert license plate light in bumper.

z

Press in upper retaining tab -1- and lock in position.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
