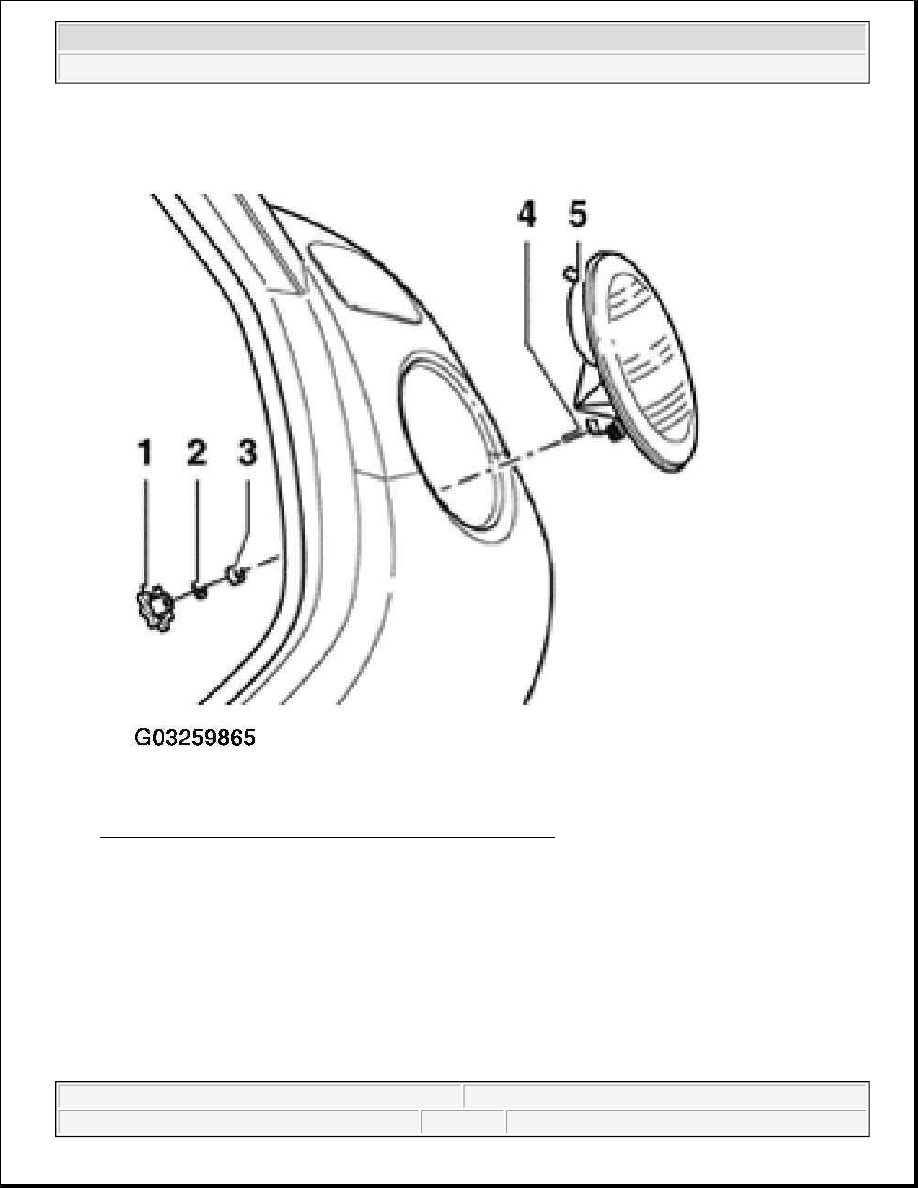

Fig. 79: Installing Spacer And Washer Onto Retaining Bolt
Courtesy of VOLKSWAGEN OF AMERICA, INC.

REAR LIGHT BULBS, REPLACING

The procedure for removing and installing turn signal light bulbs is the same as that for brake light and taillight
bulbs.

Only the procedure for brake light and taillight bulbs is described here.

Removing

z

Remove rear light. See REAR LIGHT HOUSING, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Turn bulb holder in direction shown -arrow- and remove from housing.

z

Remove bulb from holder.

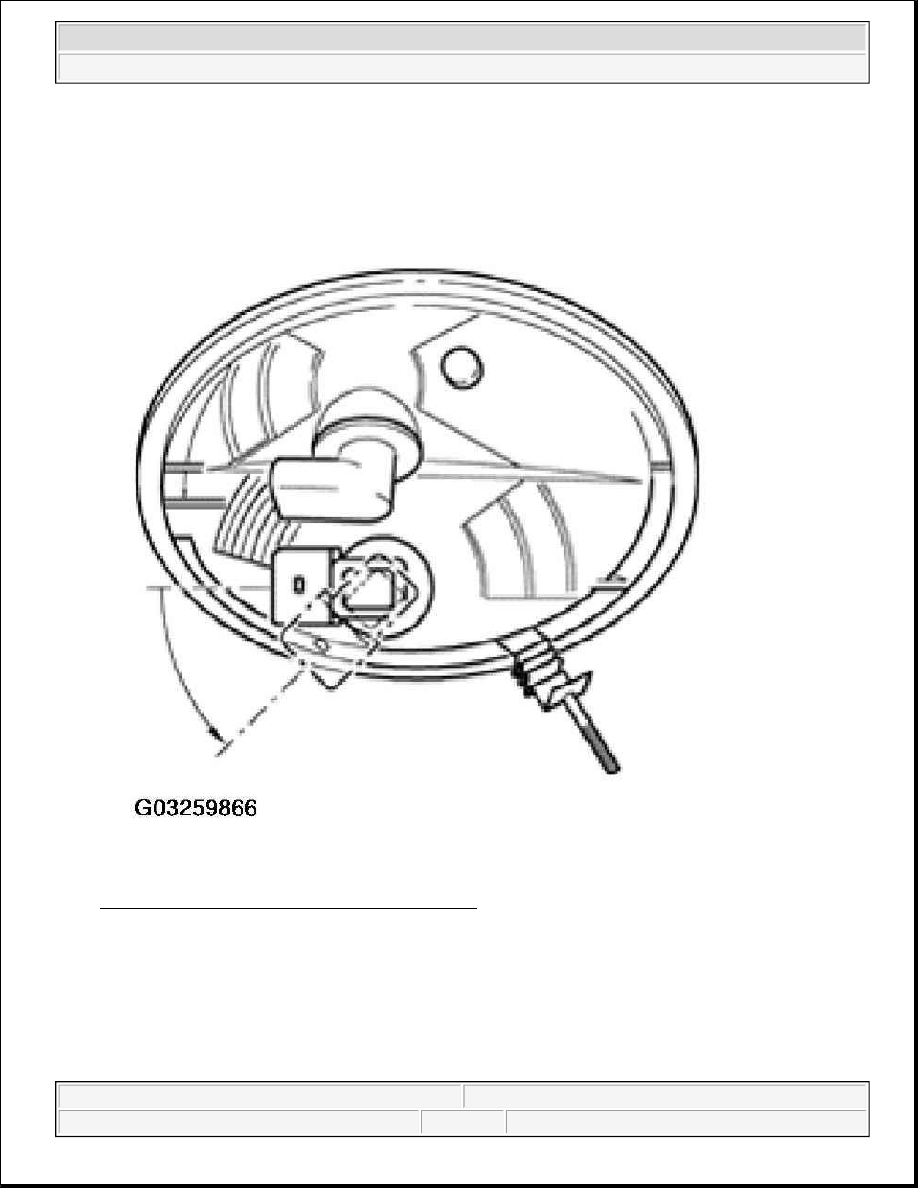

Fig. 80: Removing Rear Light Bulb From Holder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Install in reverse order of removal.

z

When installing, make sure bulb holder engages in housing by turning in opposite direction shown -
arrow-.

REAR SIDE MARKER LIGHTS, REMOVING AND INSTALLING

Removing

z

Remove rear inner fender liner.

See REAR WHEEL HOUSINGS LINER, ASSEMBLY OVERVIEW .

z

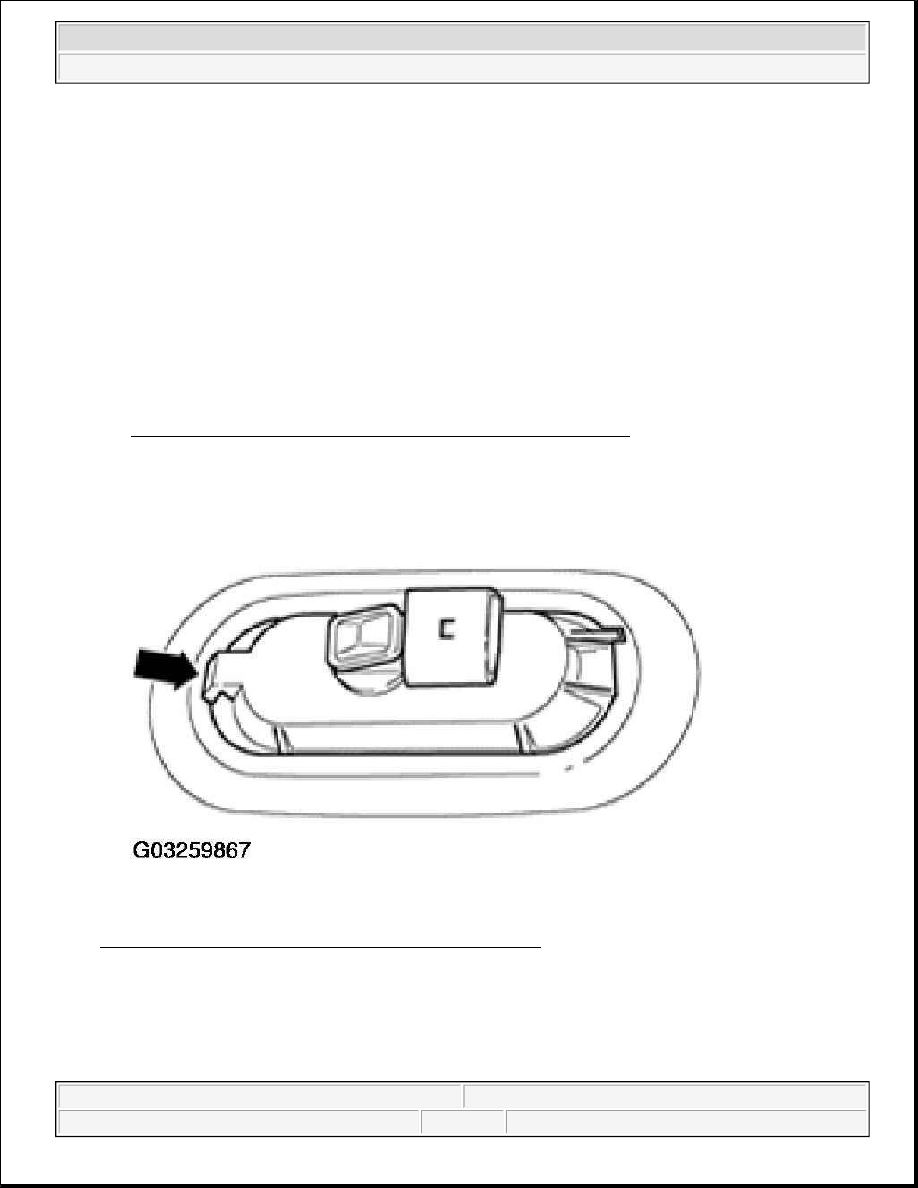

On inner side of bumper, carefully press retainer clip in direction shown -arrow-.

Fig. 81: Removing Rear Side Marker Light Retainer Clip
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connector.

Installing

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Connect electrical connector.

z

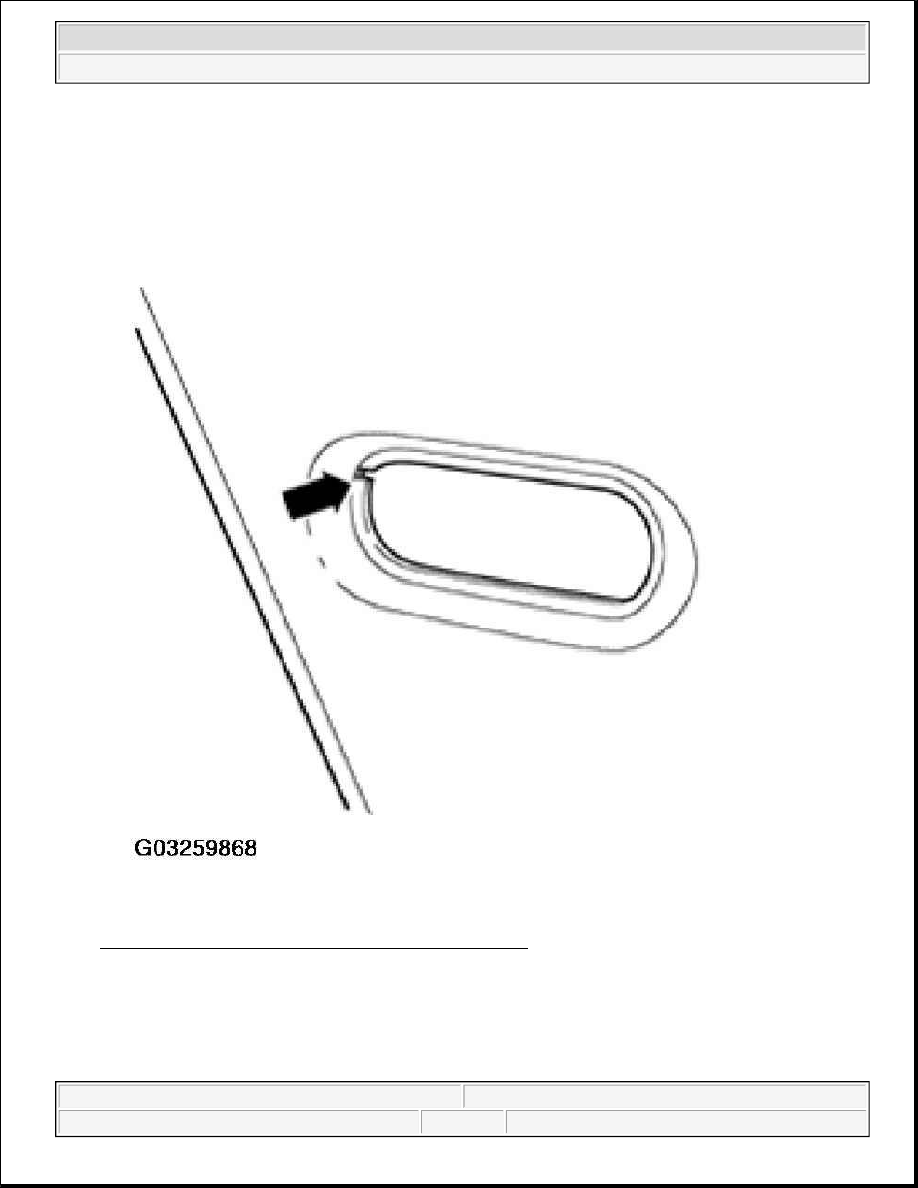

Insert side marker light into bumper and click in place, make sure locating boss is seated correctly in
cutout -arrow-.

Fig. 82: Inserting Rear Side Marker Light Into Bumper
Courtesy of VOLKSWAGEN OF AMERICA, INC.

REAR SIDE MARKER LIGHT BULB, REPLACING

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
