Removing

z

Remove rear inner fender liner.

See REAR WHEEL HOUSINGS LINER, ASSEMBLY OVERVIEW .

z

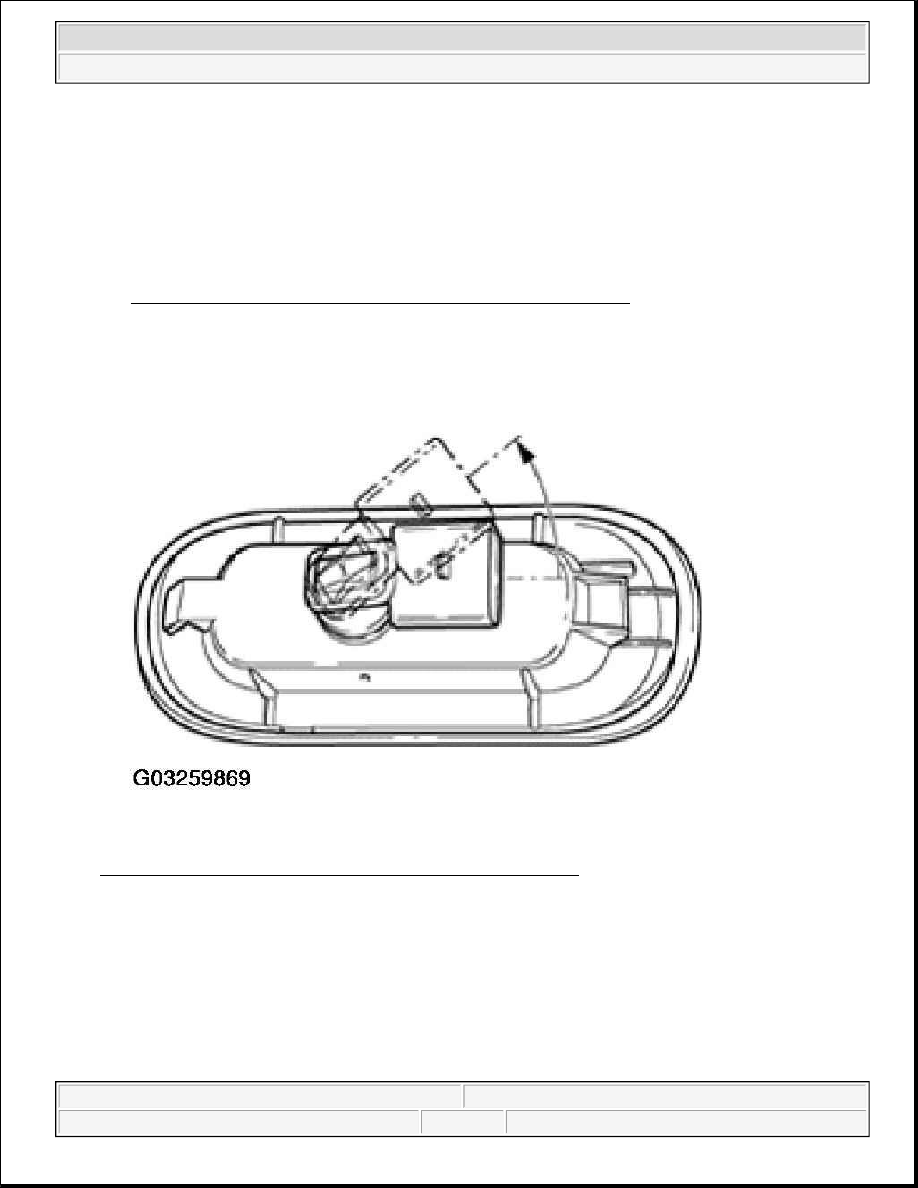

Turn bulb holder in direction shown -arrow- and pull out from housing.

Fig. 83: Removing Rear Side Marker Light Bulb From Holder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull out bulb (12V/5W), do not turn.

Installing

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Install in reverse order of removal.

BACK-UP LIGHTS, REMOVING AND INSTALLING

Removing

z

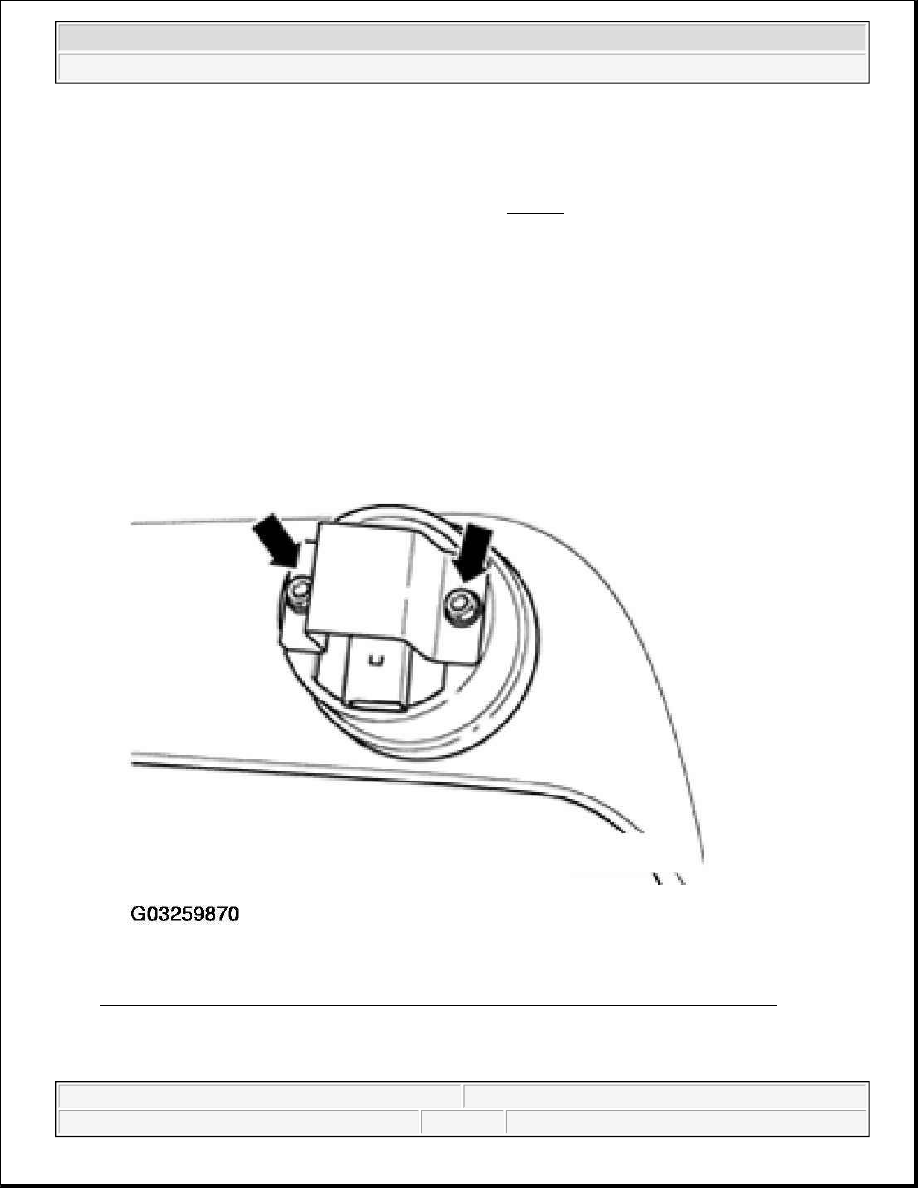

Remove retaining nuts M5 from inner side of rear bumper (arrows).

Fig. 84: Removing Back-Up Light Retaining Nuts M5 From Inner Side Of Rear Bumper
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove back-up lights toward rear.

NOTE:

When installing, make sure bulb holder engages in housing by turning in
opposite direction shown -arrow-. See Fig. 83 .

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Disconnect electrical connector from back-up lights.

Installing

z

Connect electrical connector.

z

Install back-up lights into rear bumper and secure with retaining nuts.

BACK-UP LIGHT BULB, REPLACING

Removing

z

Remove back-up light. See BACK-UP LIGHTS, REMOVING AND INSTALLING .

z

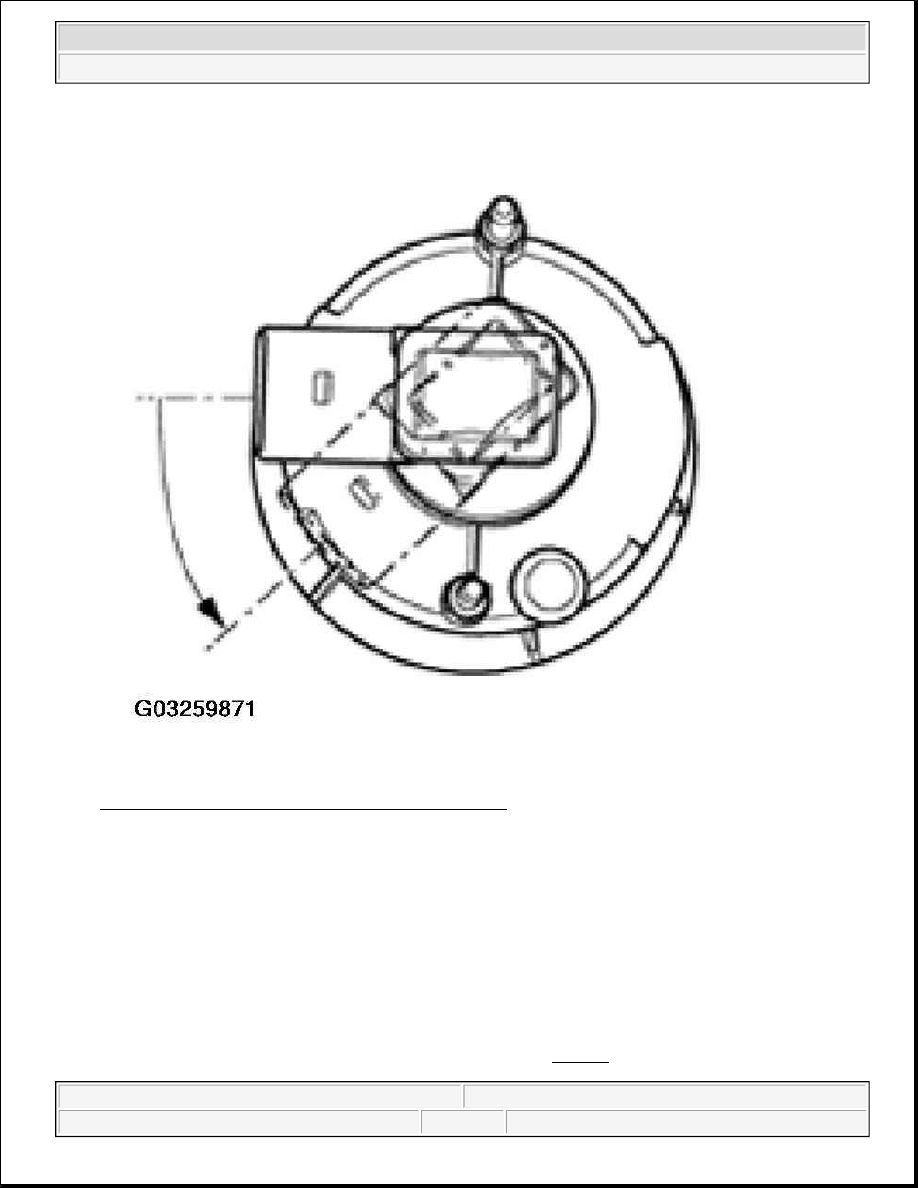

Turn bulb holder in direction shown -arrow- and pull out from housing.

z

Remove bulb from holder.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 85: Removing Back-Up Light Bulb From Holder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Install in reverse order of removal.

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation
can cause the glass to cloud over.

NOTE:

When installing, make sure bulb holder engages in housing by turning in
opposite direction shown -arrow-. See Fig. 85 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
