Volkswagen New Beetle. Manual - part 585





Fig. 40: Tightening Combi-Nuts In Assembly Opening
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Tighten retaining plate bolts/screws.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



z

Install window slot outer seal.

CARRIER PLATE, REMOVING AND INSTALLING

Removing

z

Remove side window. See SIDE WINDOW, REMOVING AND INSTALLING .

z

Disconnect electric window connection.

z

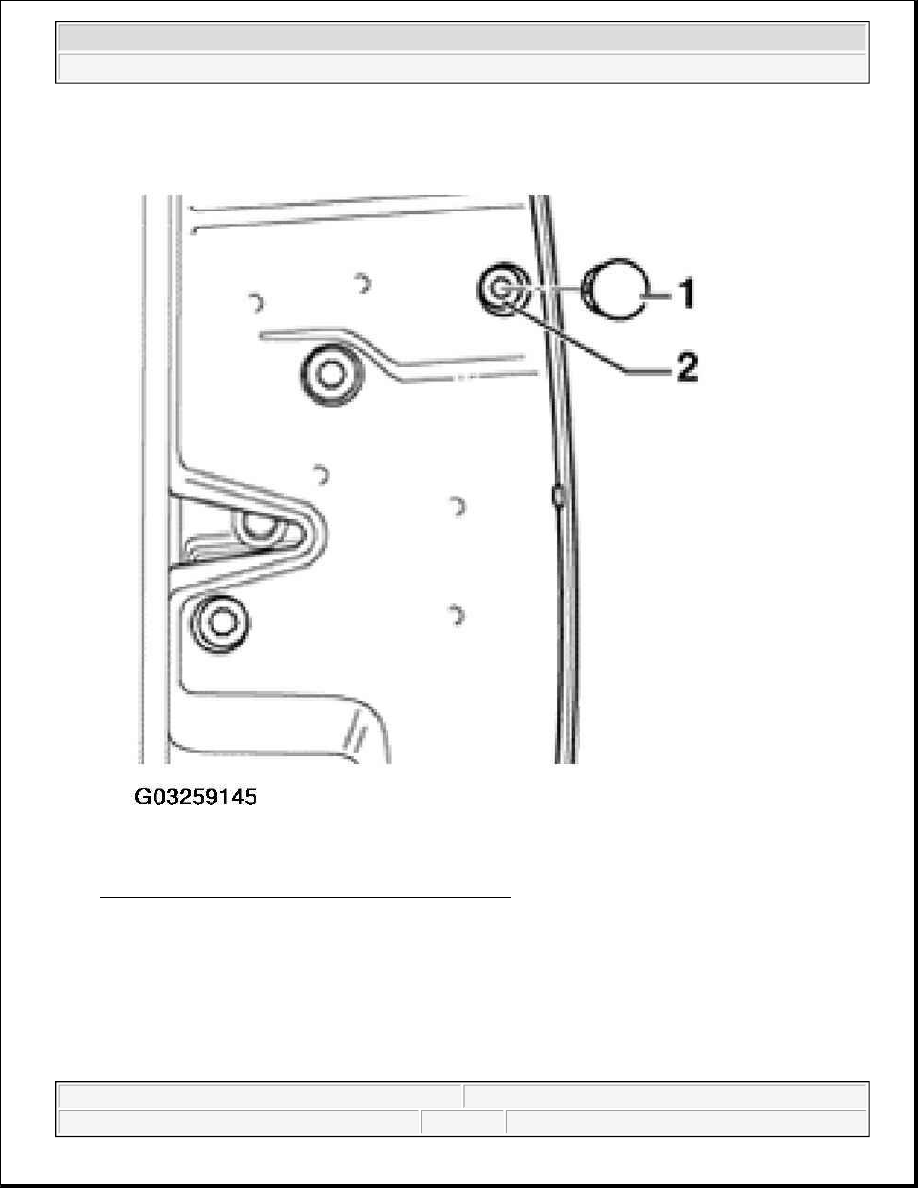

Remove cap from lower assembly opening.

z

Loosen combi-nuts in assembly opening -arrows-

NOTE:

z

The carrier plate can also be removed with side window. The upper
adjuster must screwed in completely for this.

z

If the side inclination (distance) is not correct this can be corrected via the
adjuster on the carrier plate.

z

The side window must be installed for this.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



Fig. 41: Loosening Combi-Nuts In Assembly Opening
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Take carrier plate out upward through window slot.

Installing

Install in reverse order of removal.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



WINDOW ELECTRIC MOTOR, REMOVING AND INSTALLING

Removing

z

Remove carrier plate, see CARRIER PLATE, REMOVING AND INSTALLING .

z

Remove the 4 screws -1- from the rear.

NOTE:

Check adjustment of side window after assembly.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle
