Fig. 63: Pulling Clamping Profile Off Bracing Hoop
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull off C-pillar roof frame seal in direction of -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Convertible Top - New Beetle



Fig. 64: Pulling Off C-Pillar Roof Frame Seal
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull convertible top fabric beading out of C-pillar channel in direction of -arrow-.

Fig. 65: Pulling Convertible Top Fabric Beading Out Of C-Pillar Channel
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

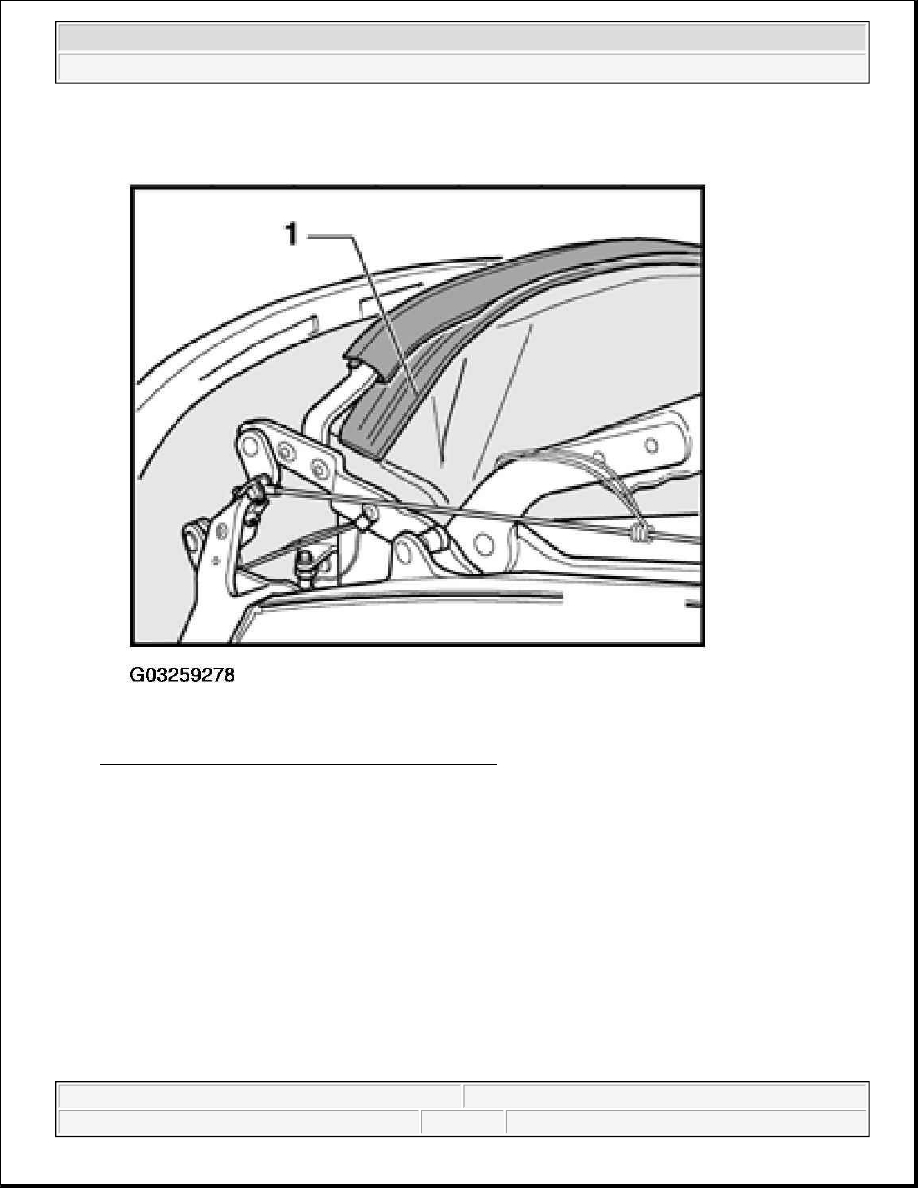

Release convertible top lining from C-pillar bonding -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Convertible Top - New Beetle



Fig. 66: Releasing Convertible Top Lining From C-Pillar Bonding
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drill out pop rivet for tensioning cable.

Fig. 67: Drilling Out Pop Rivet For Tensioning Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drill out pop rivet for retainer -1- for tensioning cable.

z

Open convertible top completely



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Convertible Top - New Beetle



Fig. 68: Drilling Out Pop Rivet For Retainer For Tensioning Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drill out pop rivet for lower retainer -1- for tensioning cable.

z

Close convertible top.

Fig. 69: Drilling Out Pop Rivet For Lower Retainer For Tensioning Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull convertible top lining -2- out of convertible top fabric retaining frame -1- in direction of -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Convertible Top - New Beetle
