Volkswagen New Beetle. Manual - part 485





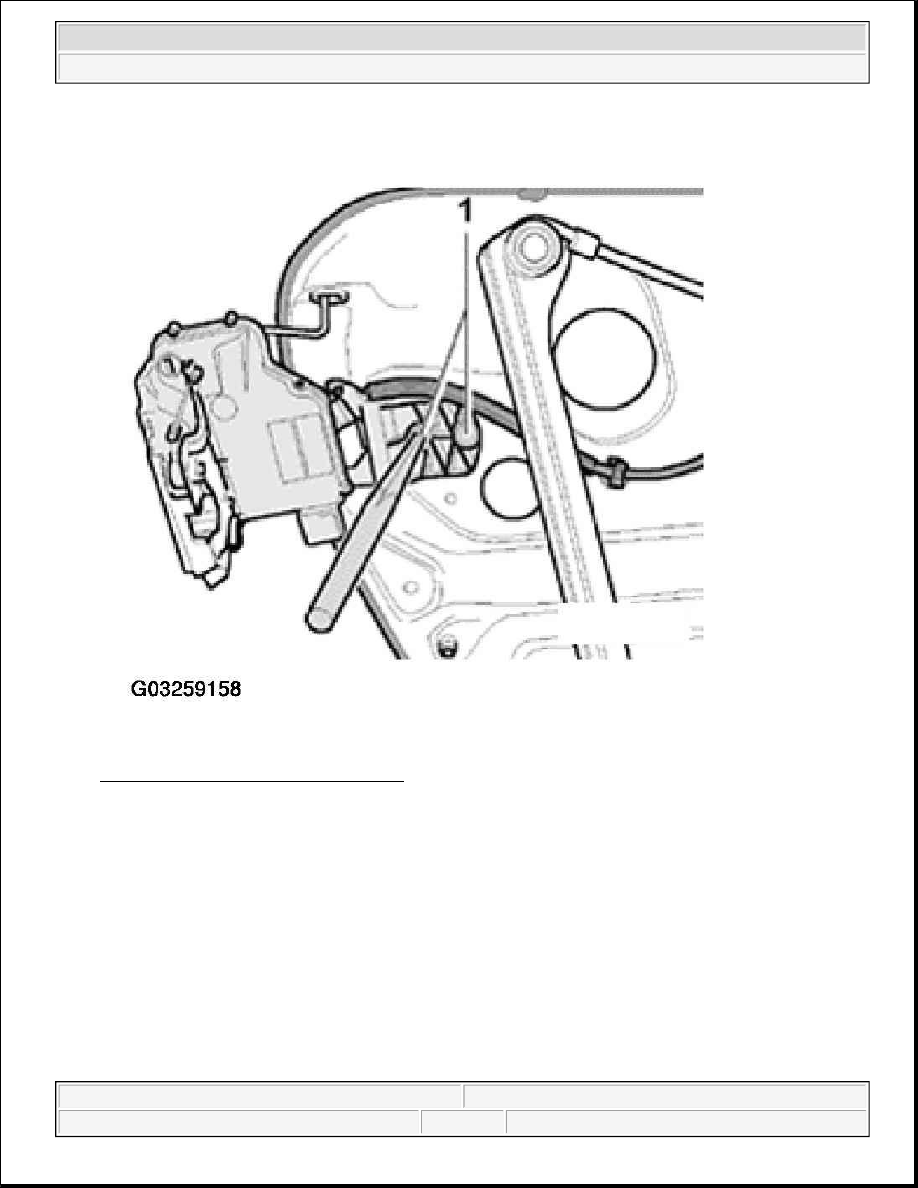

Fig. 42: Driving Out Clips With A Drift
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Unclip cable -2- from clip-1-.

z

Pry door lock with retaining bracket off assembly carrier using a screwdriver -3-.

NOTE:

Retaining bracket is not part of scope of delivery for door lock. It is
secured to door lock by a bolt/screw and a pop rivet.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

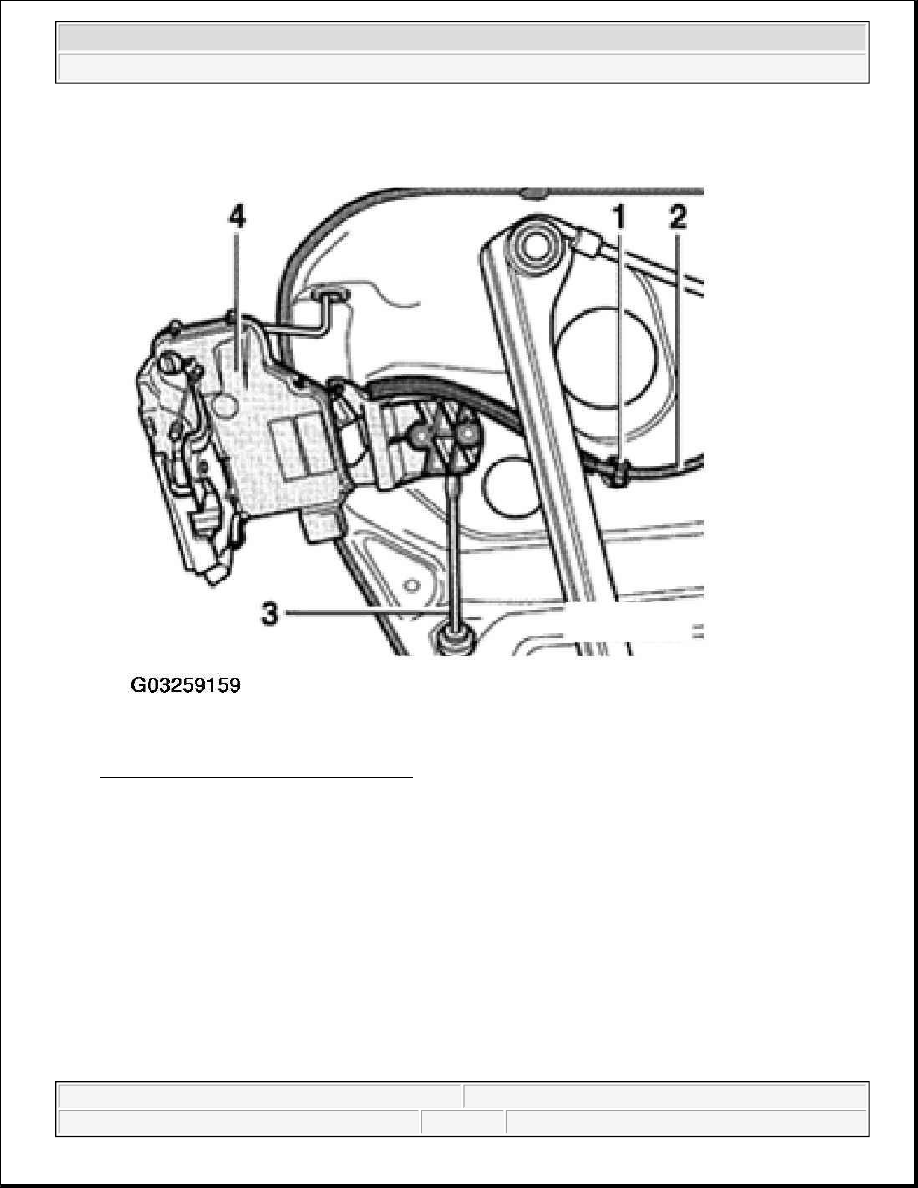

Fig. 43: Removing Clip Cable From Clip
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Unclip securing rod -1-. Turn door lock in direction of -arrow- to do this.

z

Unclip cable -2-.

z

Turn cable nipple through 90° and remove from eye.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

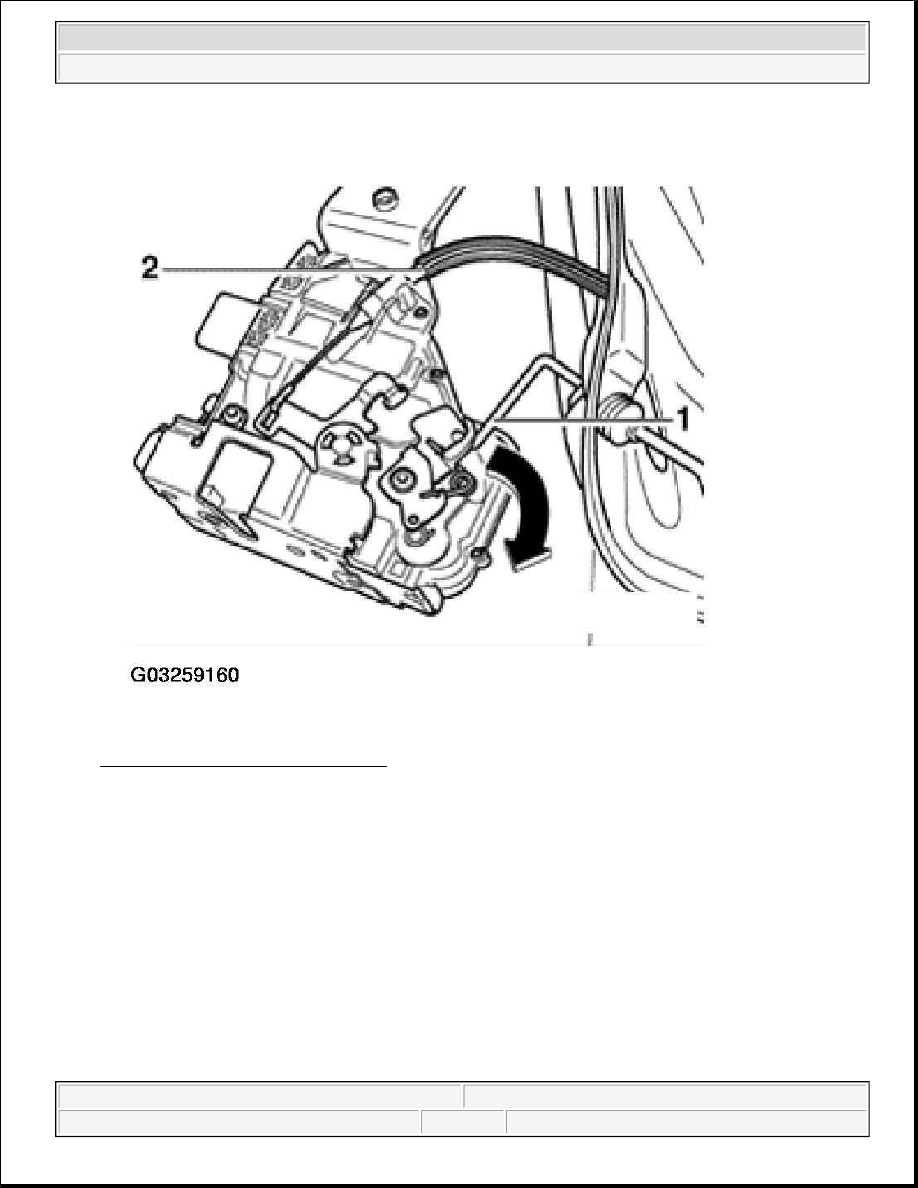

Fig. 44: Removing Clip Securing Rod
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Pull lock lever -1- in direction of -arrow-.

z

Tension spring -2- which is secured on door lock, in direction of -arrow- with a screwdriver and hook
locking lever into spring.

NOTE:

Hooking the operating lever in locks lock. Incorrectly attaching Bowden
cable later is thereby prevented (lock may move slightly).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



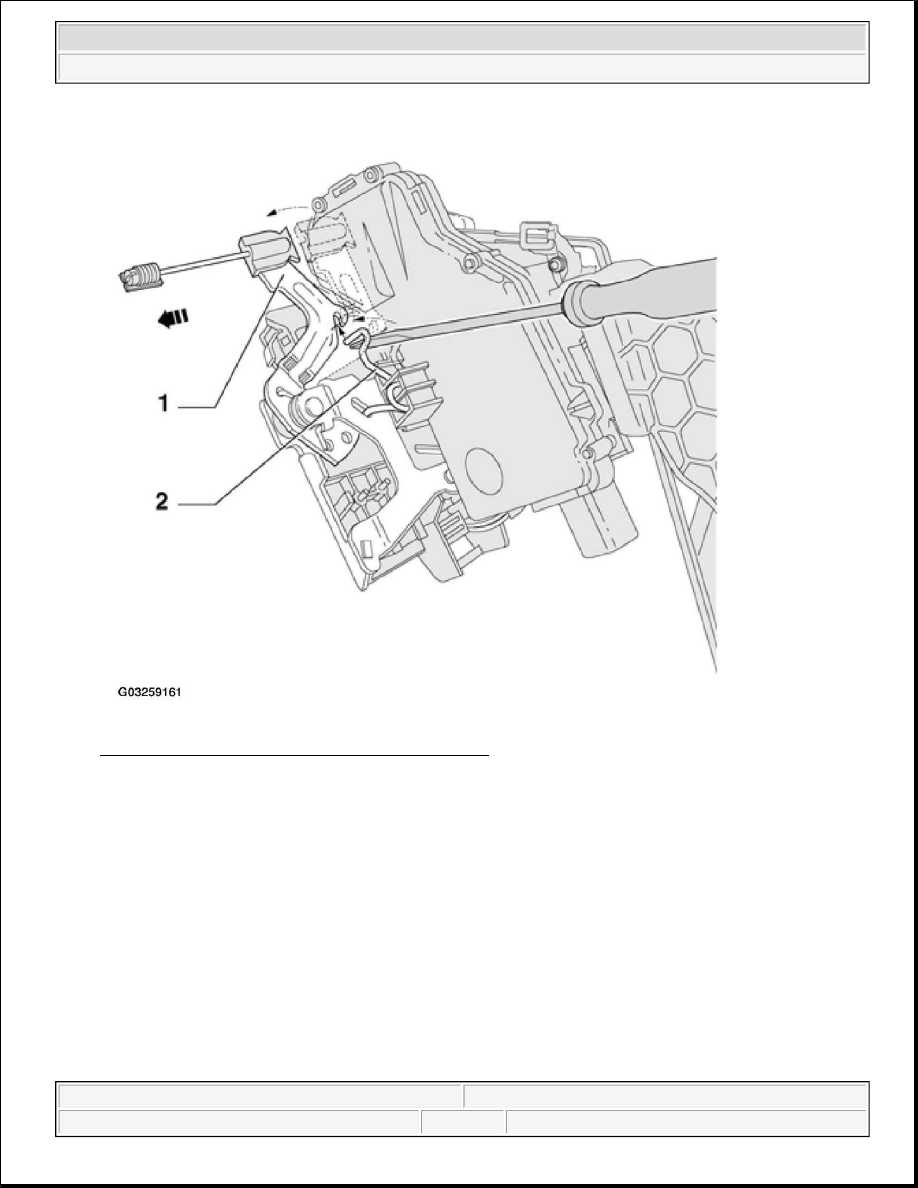

Fig. 45: Pulling Lock Lever In Direction Of Arrow
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Insert mounting plate in door.

z

Install all bolts/screws -1- to -11-. Tighten bolts/screws in order as they are numbered.

z

Torque setting: 8 N.m.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle
