Volkswagen New Beetle. Manual - part 486

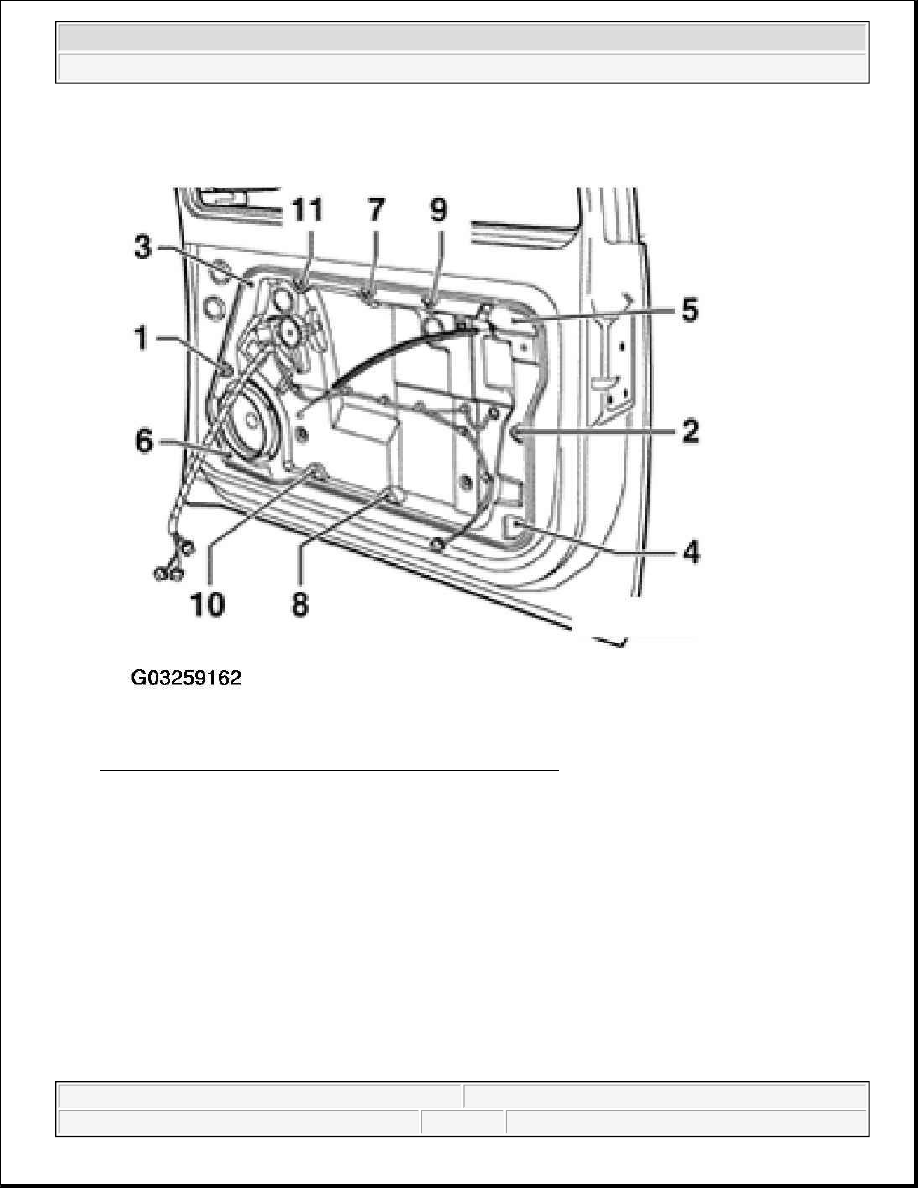

Fig. 46: Identifying Tighten Sequence Of Door Bolts/Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Push door window -1- into window guide -arrow- and tighten clamps with bolts/screws -2- (10 N.m).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

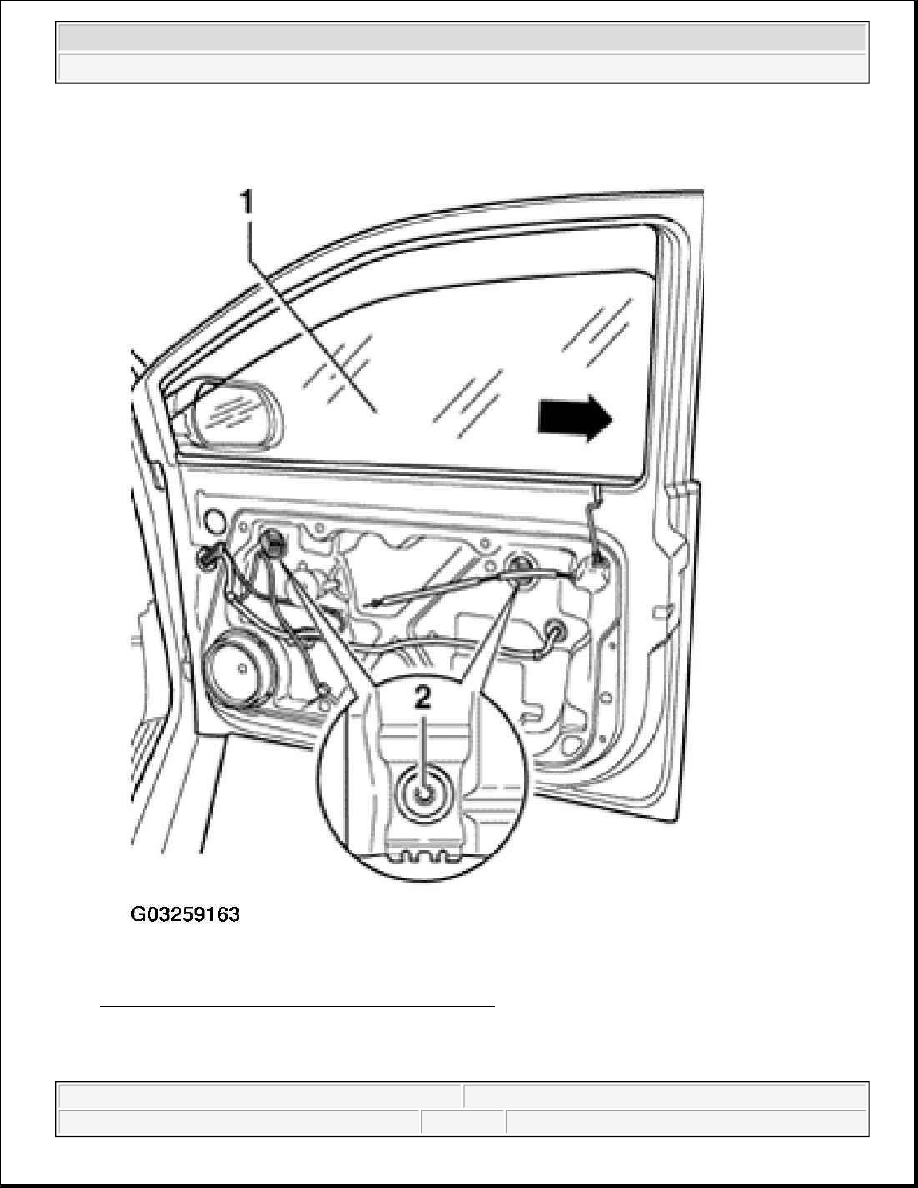

Fig. 47: Pushing Door Window Into Window Guide
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Then perform remaining installation in reverse order of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Then perform functional check.

DOOR LOCK, REMOVING AND INSTALLING (CONVERTIBLE)

Door lock and loudspeaker are secured to assembly carrier.

Door lock can only be removed in conjunction with assembly carrier.

Removing

z

Remove front door trim

See FRONT DOOR TRIM (CONVERTIBLE), REMOVING AND INSTALLING .

z

Remove lock cylinder housing, see LOCK CYLINDER HOUSING, REMOVING .

z

Unclip clip -1- from door handle.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



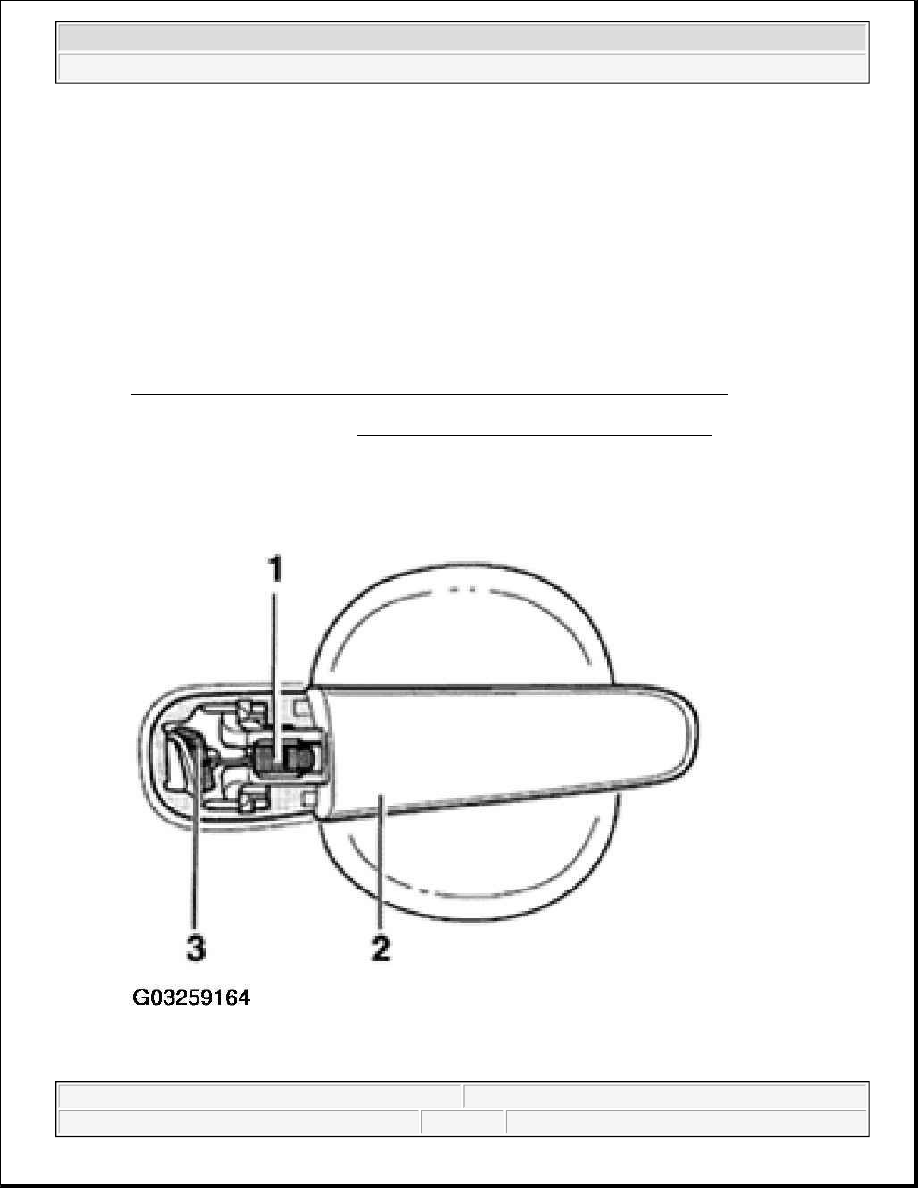

Fig. 48: Removing Clip From Door Handle
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Unscrew bolts/screws -1-.

z

Torque setting: 20 N.m.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle
