Volkswagen New Beetle. Manual - part 483





z

Lower door window until door window securing bolts/screws -2- are accessible.

z

Loosen bolts/screws -2- and press clamps apart.

z

Push window upward and secure in position (e.g. with adhesive tape).

z

Remove hood release lever (driver's side only). See RELEASE LEVER, REMOVING AND
INSTALLING
 .

z

Remove A-pillar lower trim.

See A-PILLAR LOWER TRIM, REMOVING AND INSTALLING .

z

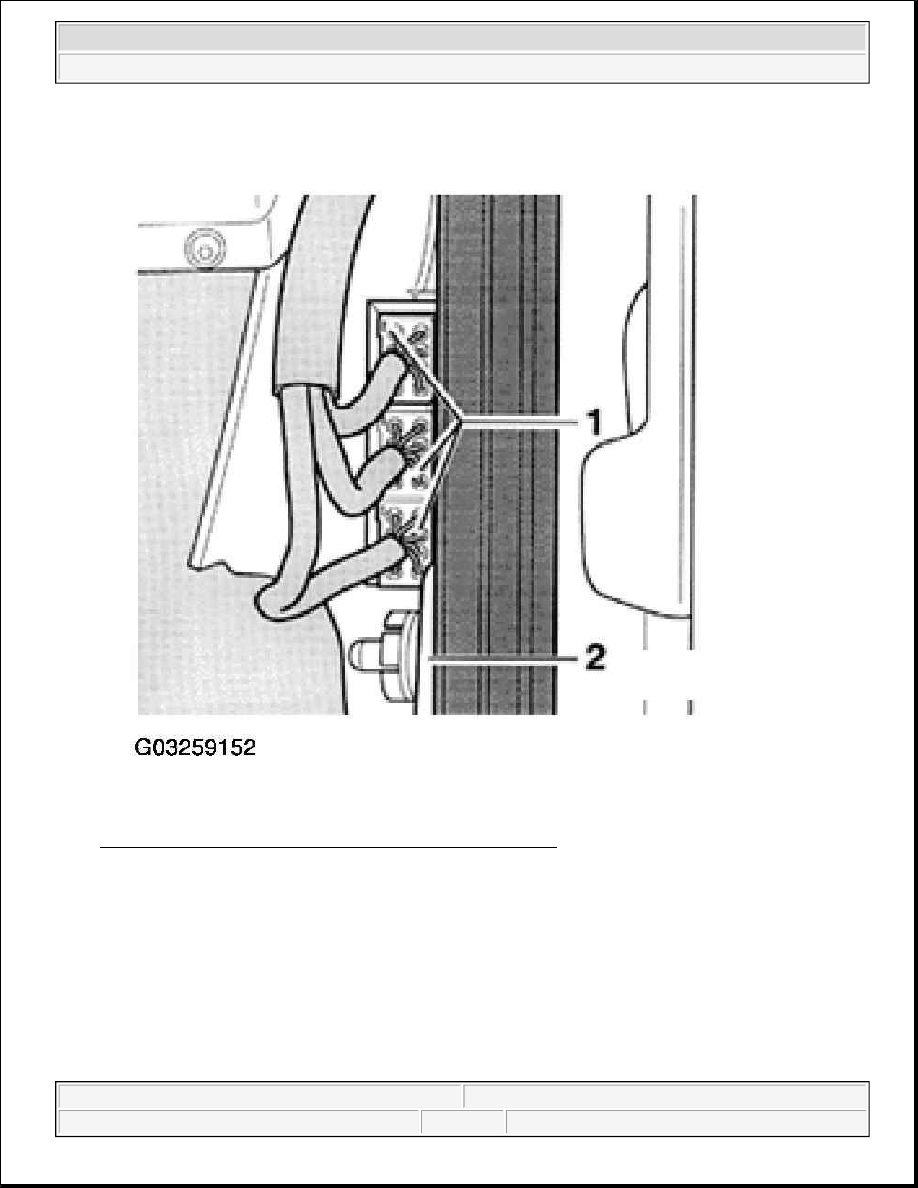

Disconnect multi-pin connection -1- on A-pillar -2-.

NOTE:

If the work sequence cannot be carried out because there is a malfunction
with the electric window motor, remove motor to slide window down.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



Fig. 36: Disconnecting Multi-Pin Connection From A-Pillar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

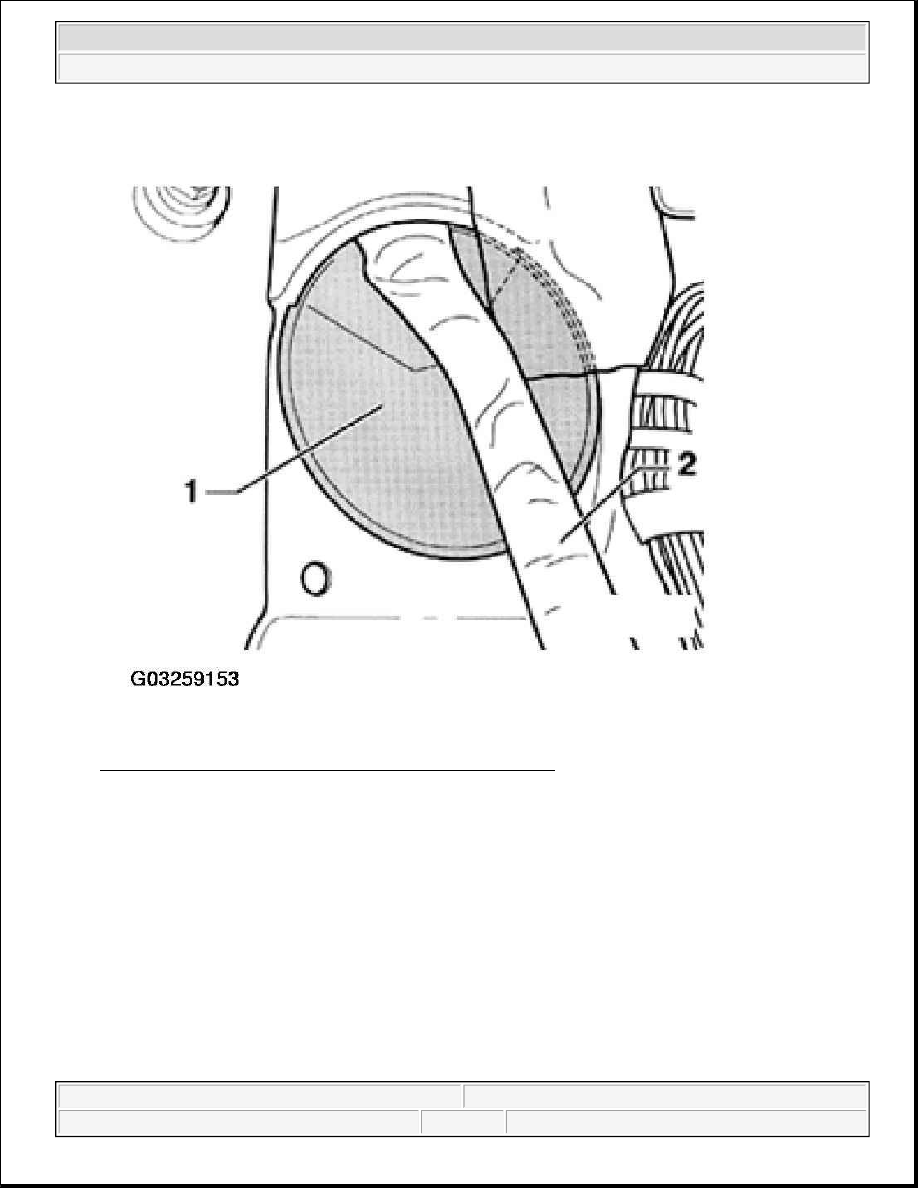

Remove cover -1- for wiring harness -2- out of body opening in A-pillar.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



Fig. 37: Removing Cover From Wiring Harness In A-Pillar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

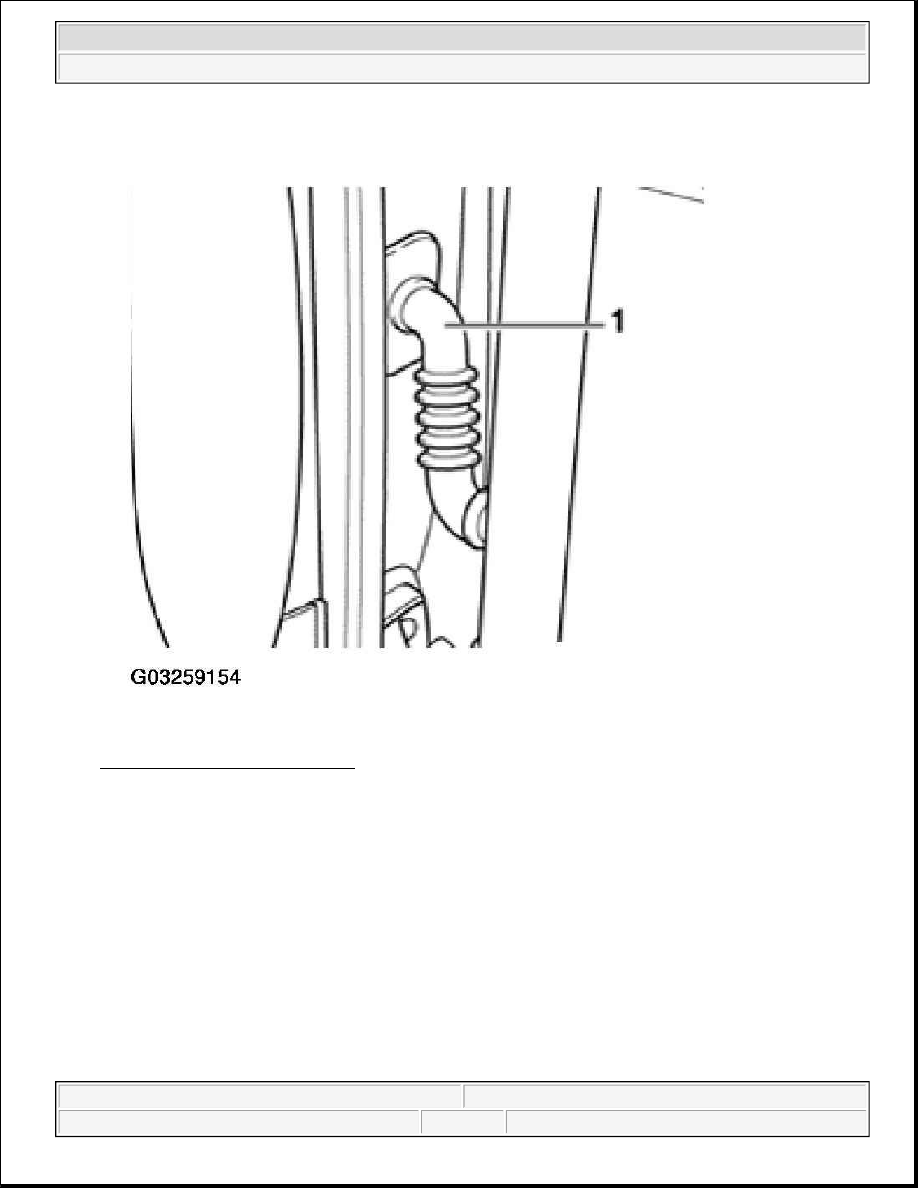

Pull wiring harness out of A-pillar at boot -1- between door and A-pillar.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



Fig. 38: Identifying A-Pillar Boot
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect connection for exterior mirror -arrow- and unhook wiring from assembly carrier.

z

Remove screw -1- and remove wiring harness guide -2- from door.

z

Guide wiring harness with boot through door.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle
