DOOR HANDLE, REMOVING AND INSTALLING

Removing

z

Remove lock cylinder housing. See LOCK CYLINDER HOUSING, REMOVING .

z

Unclip clip -1- out of door handle -2-.

z

Swing door handle out of door.

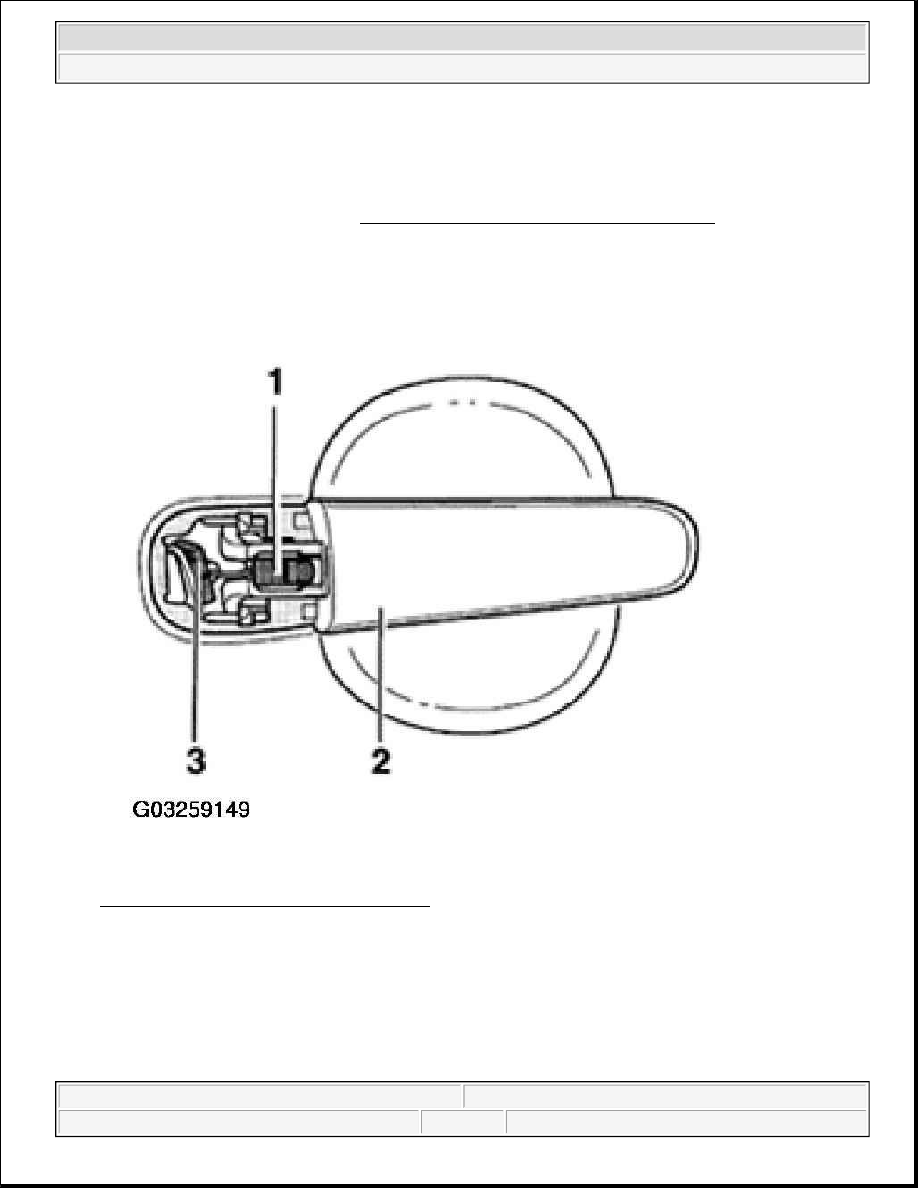

Fig. 33: Removing Clip From Door Handle
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Swing door handle into door.

NOTE:

Swing out door handle pretensions and block spring for door handle. (No
spring action in door handle when inserting).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Pull clip -1- into panel cut out and lock in door handle -2-.

z

Installing lock cylinder housing, see LOCK CYLINDER HOUSING, REMOVING .

DOOR LOCK, REMOVING AND INSTALLING

Window regulators, door lock and loudspeaker are secured to assembly carrier.

Door lock can only be removed in conjunction with assembly carrier.

Assembly carrier can only be removed when door window pane is unscrewed from window lifter clamps. To do
this lower door window to height of assembly holes in assembly carrier and loosen clamps.

If electric windows cannot be lowered then cause of malfunction must be determined first.

To do this, interrogate convenience locking system DTC memory (address word 46) using fault reader V.A.G
1551.

See ON BOARD DIAGNOSTIC (OBD) .

If an electrical malfunction is present, correct this first.

If it is established that electric window motor is cause of malfunction, then continue as described in
REMOVING .

Removing

z

Remove front door trim

See FRONT DOOR TRIM, REMOVING AND INSTALLING .

z

Remove lock cylinder housing, see LOCK CYLINDER HOUSING, REMOVING .

z

Unclip clip -1- from door handle.

NOTE:

When installing clip, do not pull lock operating lever -3- and the door
handle -2- must be pressed against the door panel.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

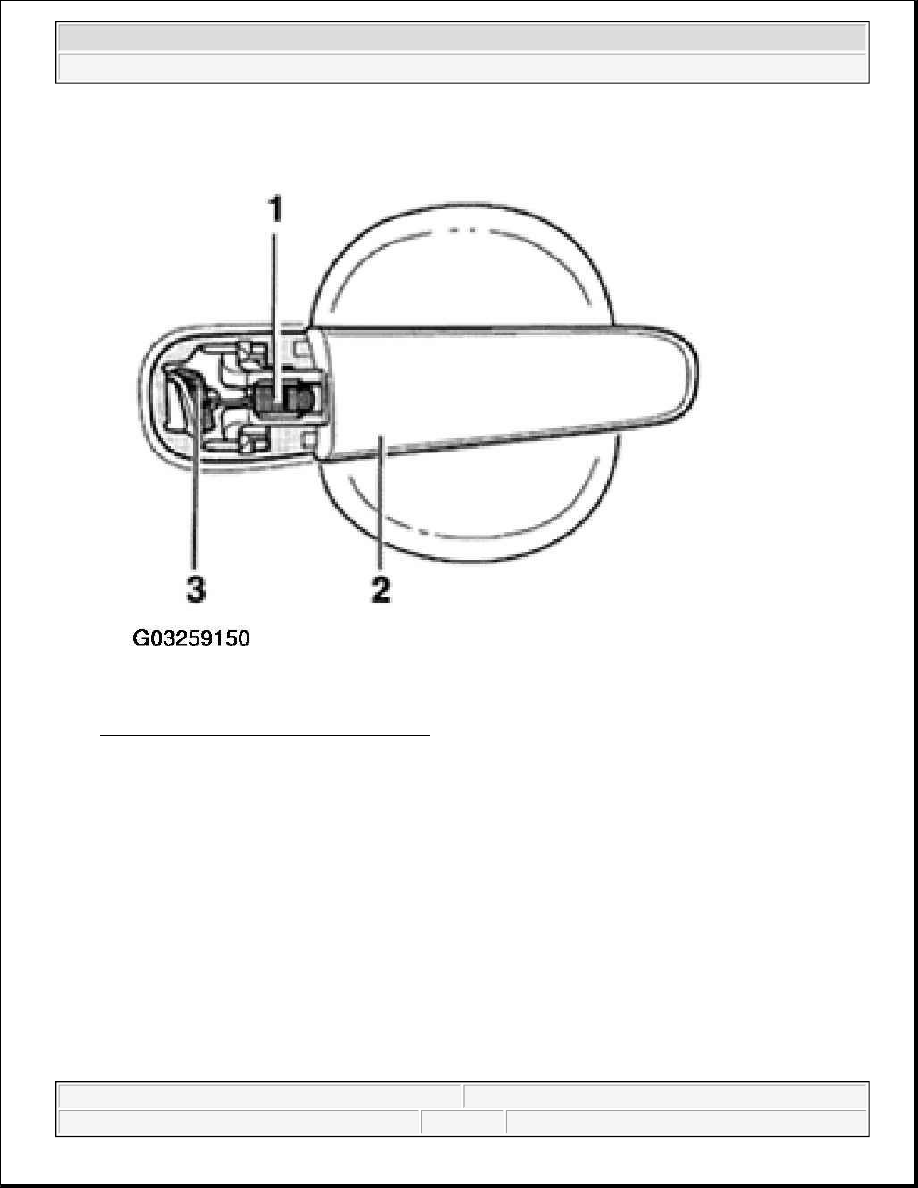

Fig. 34: Removing Clip From Door Handle
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pry out cover caps-1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

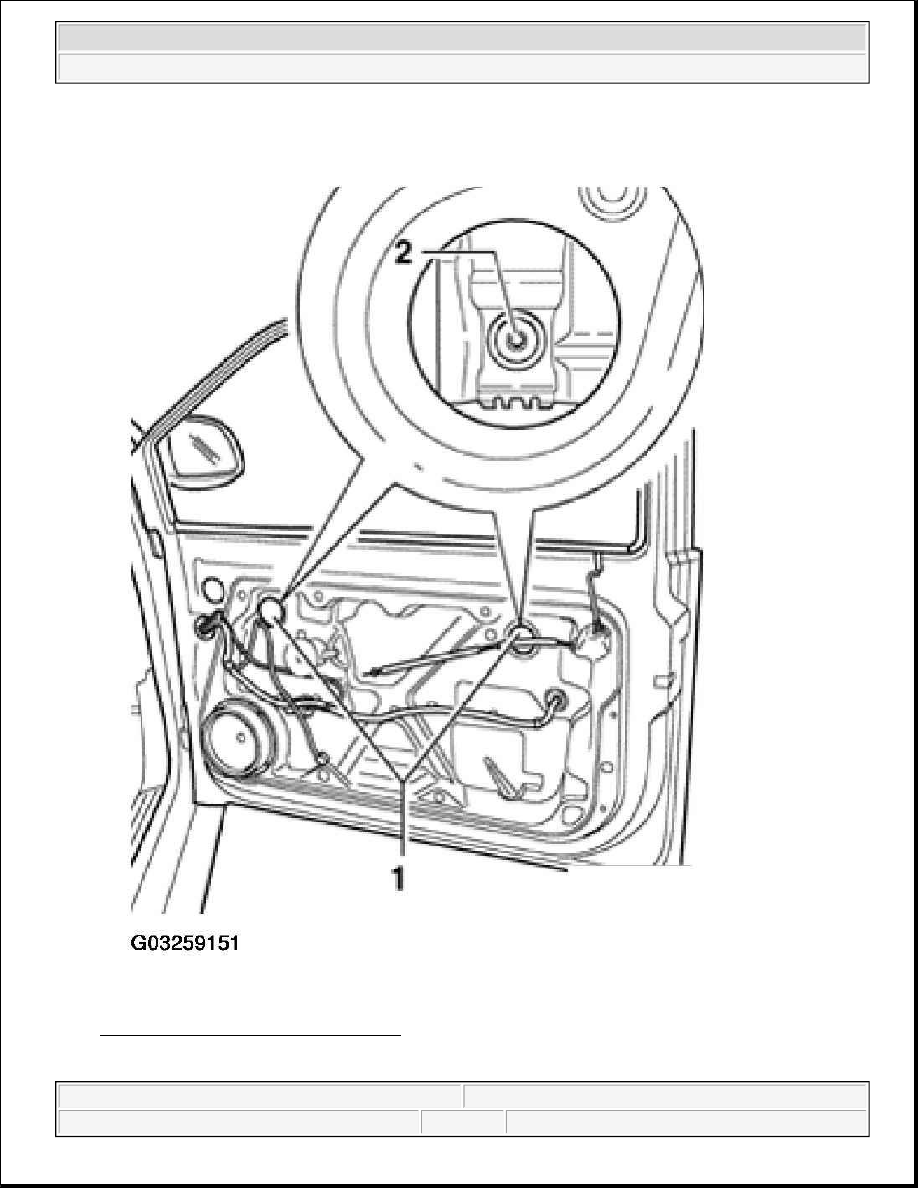

Fig. 35: Removing Cover Caps In Door
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle
