Volkswagen New Beetle. Manual - part 477

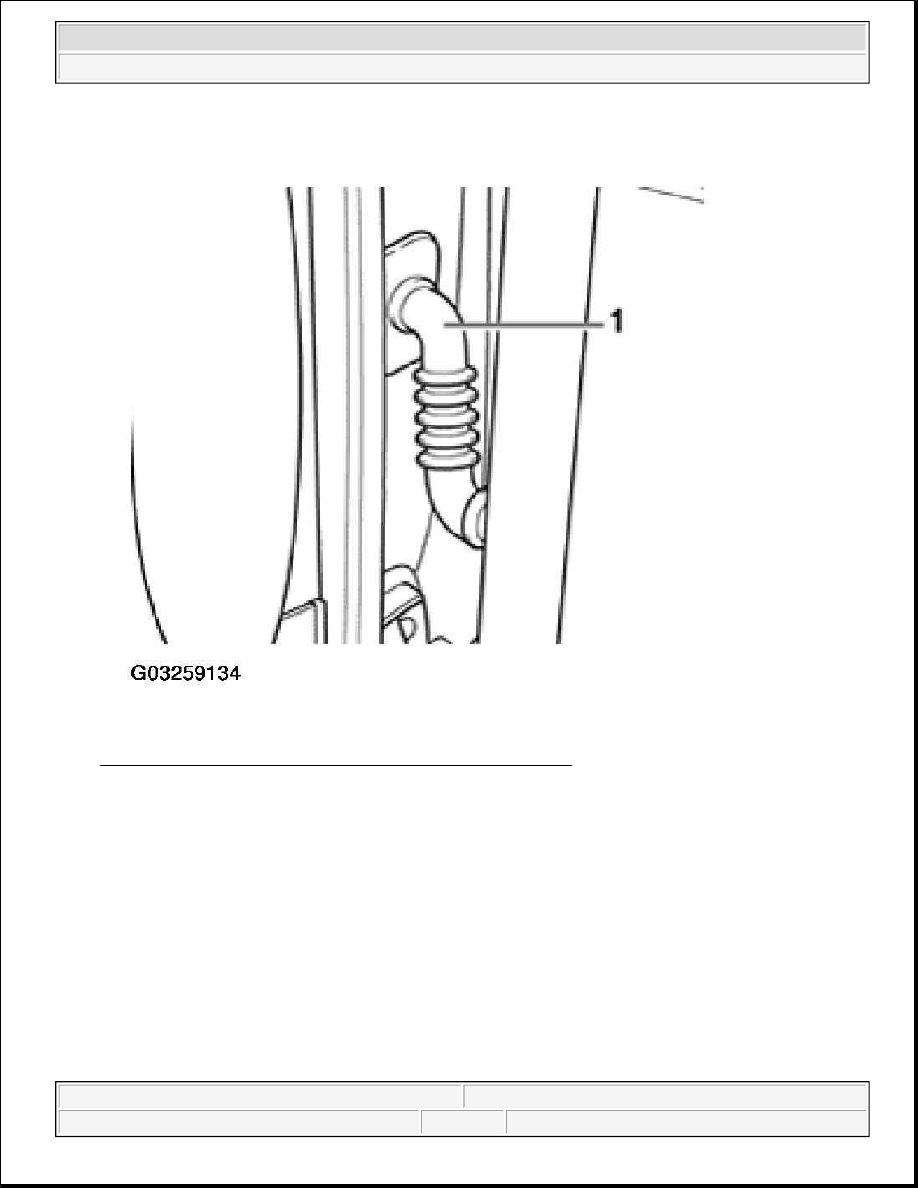

Fig. 18: Identifying A-Pillar Boot Between Door And A-Pillar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove door arrester -2- pin -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

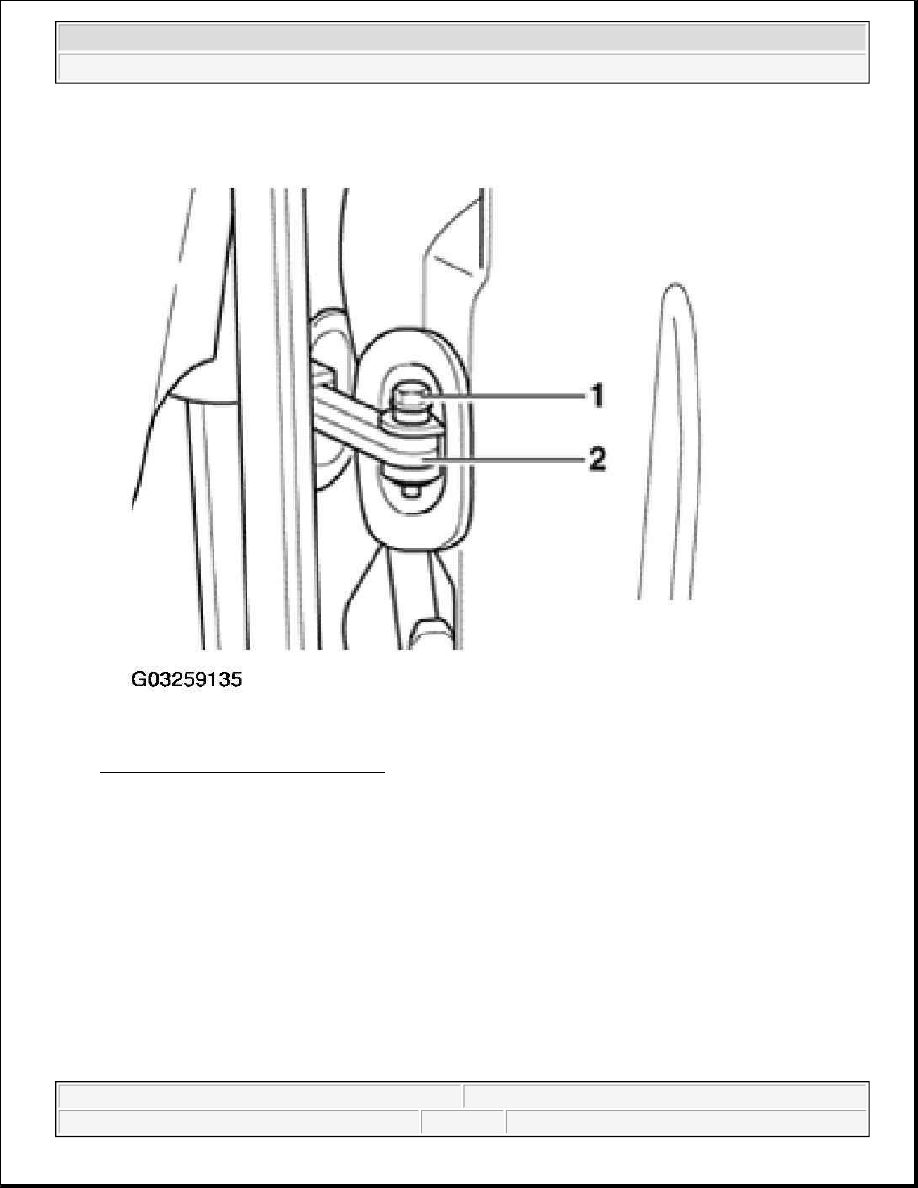

Fig. 19: Removing Door Arrester Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

To prevent damage to paint work, mask lower edge of fender -2- in area of lower hinge -3- with textile
reinforced adhesive tape -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

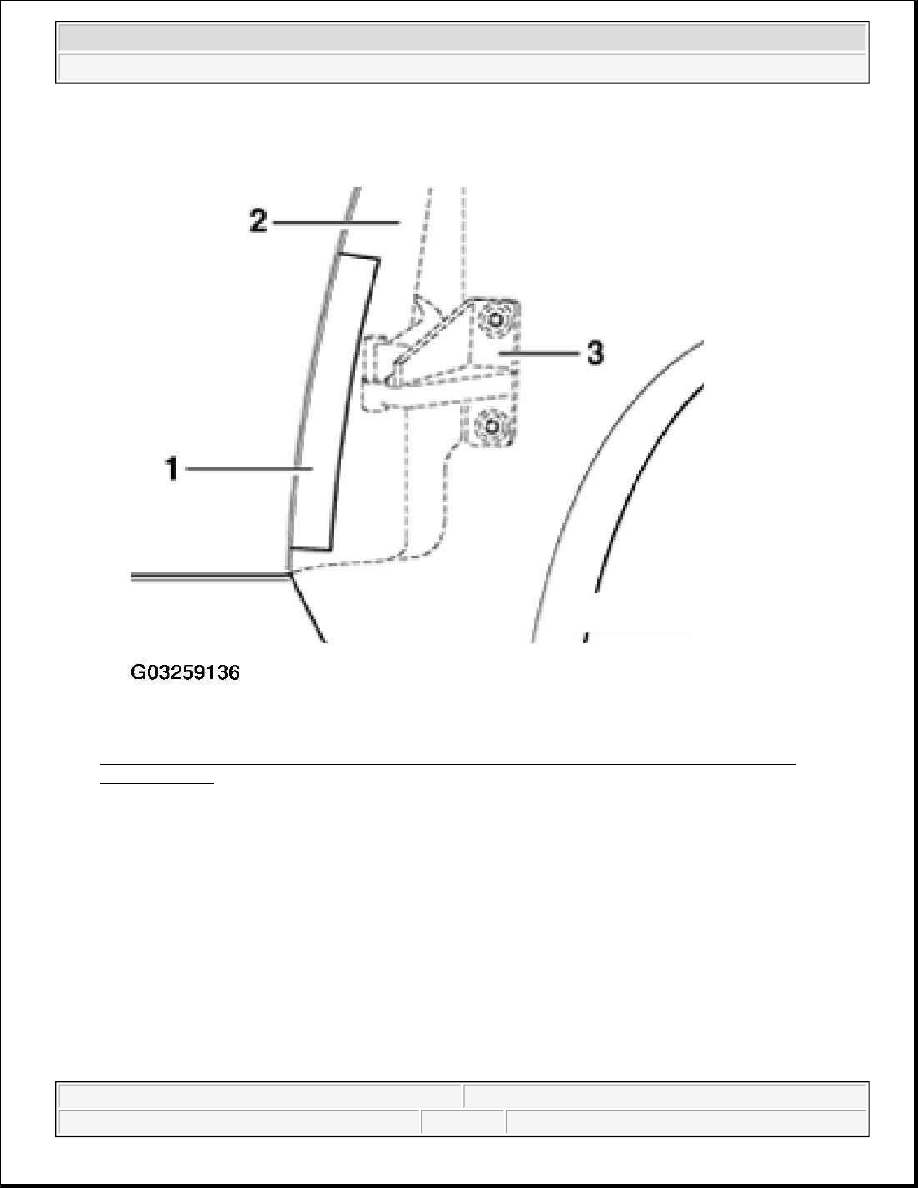

Fig. 20: Masking Lower Edge Of Fender In Area Of Lower Hinge With Textile Reinforced
Adhesive Tape

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove cover cap -1- from grub screw on lower hinge.

z

Remove grub screw -2- on lower hinge.

z

Torque setting: 13 N.m.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

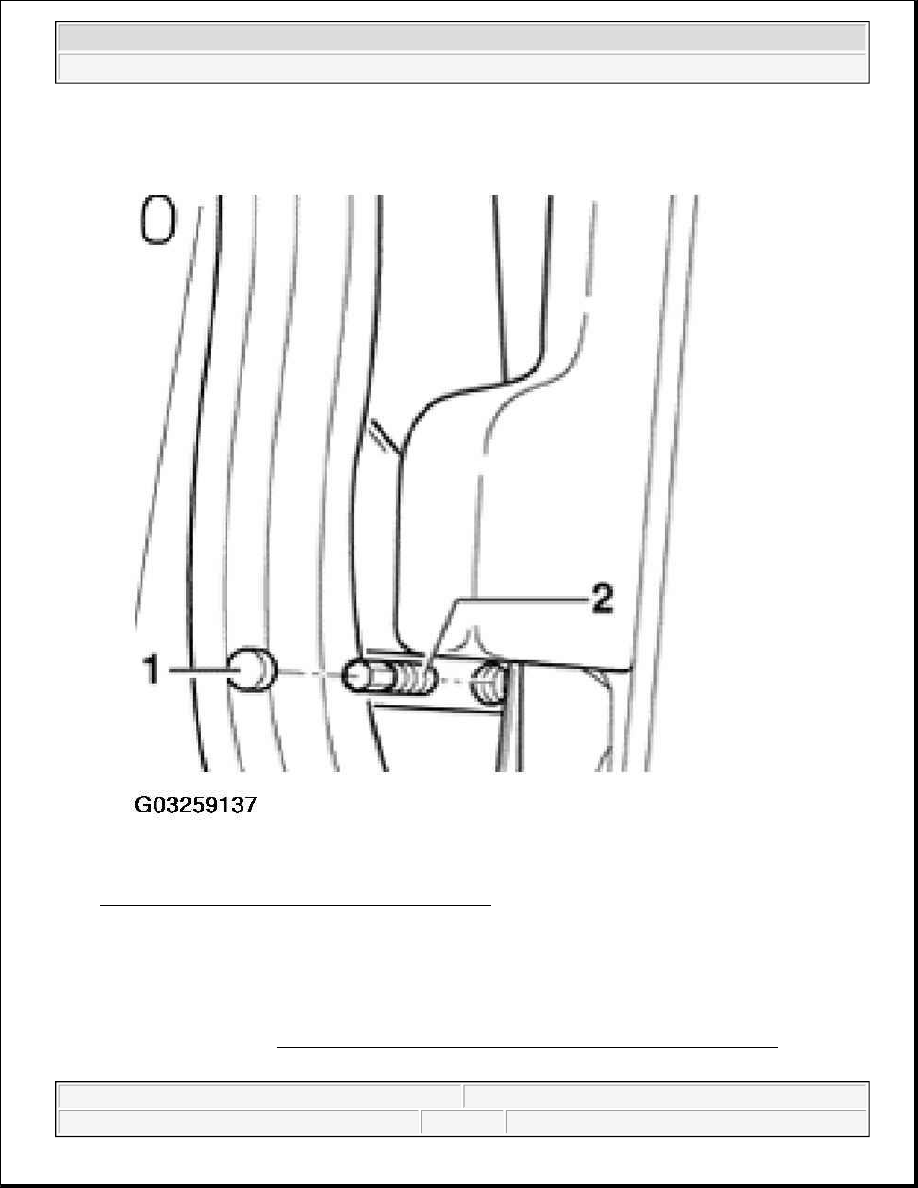

Fig. 21: Removing Grub Screw From Lower Hinge
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If access to the grub screw through gap between door and A-pillar is not possible, or is extremely difficult, then
proceed as follows:

z

Release rear half of front wheel housing in area of A-pillar so that access to fender securing points along
A-pillar is possible. See FRONT WHEEL HOUSING LINER, ASSEMBLY OVERVIEW .

z

Remove screws -1- and nuts -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle
