Volkswagen New Beetle. Manual - part 470

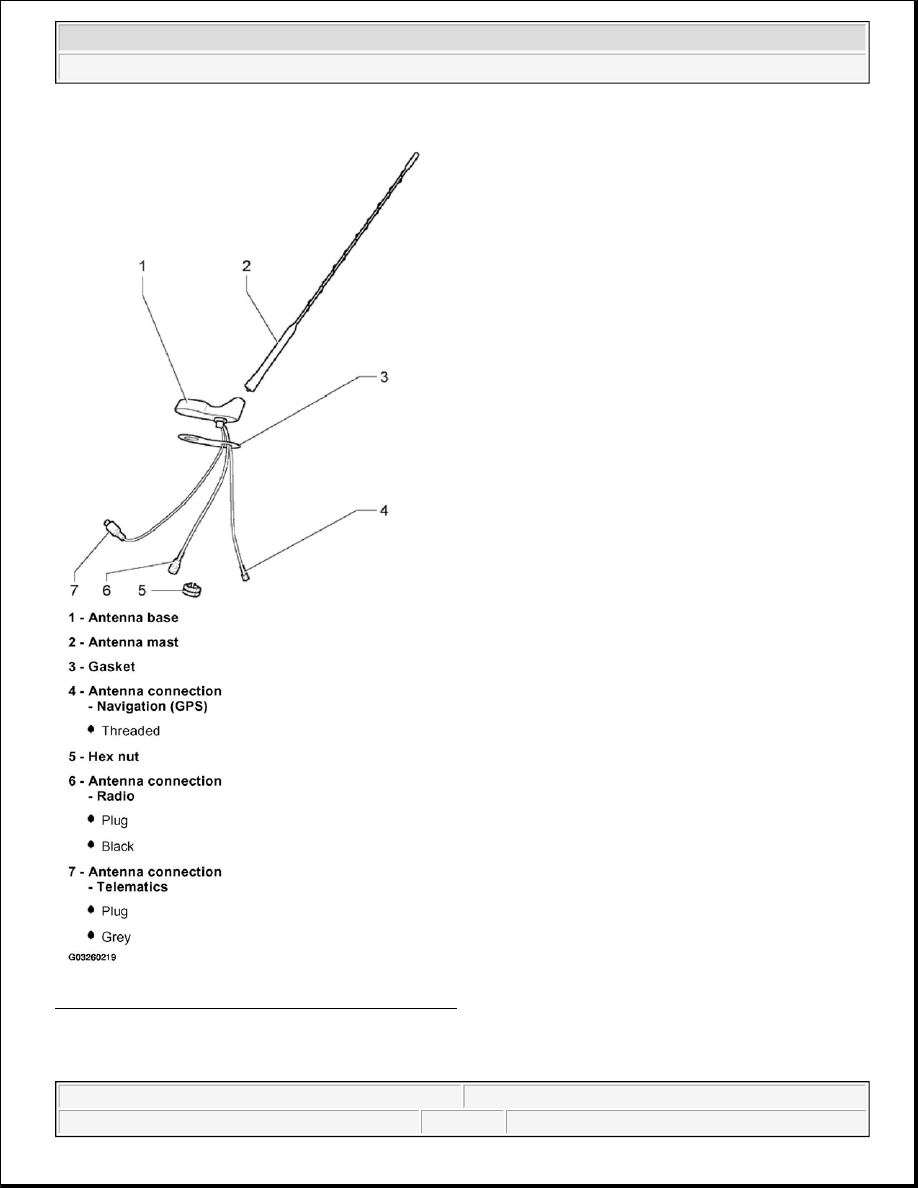

Fig. 94: Exploded View Of GPS/Telematics Antenna
Courtesy of VOLKSWAGEN UNITED STATES, INC.

GPS/TELEMATICS ANTENNA, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Removing

z

Unclip rear headliner trim and left/right C-pillar trim

See PILLARS AND SIDE TRIMS and PILLARS AND SIDE TRIMS (CONVERTIBLE) .

z

Carefully lower headliner at rear slight in order to access antenna cables etc.

z

Unclip cable connections -arrows- from roof and separate connections.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

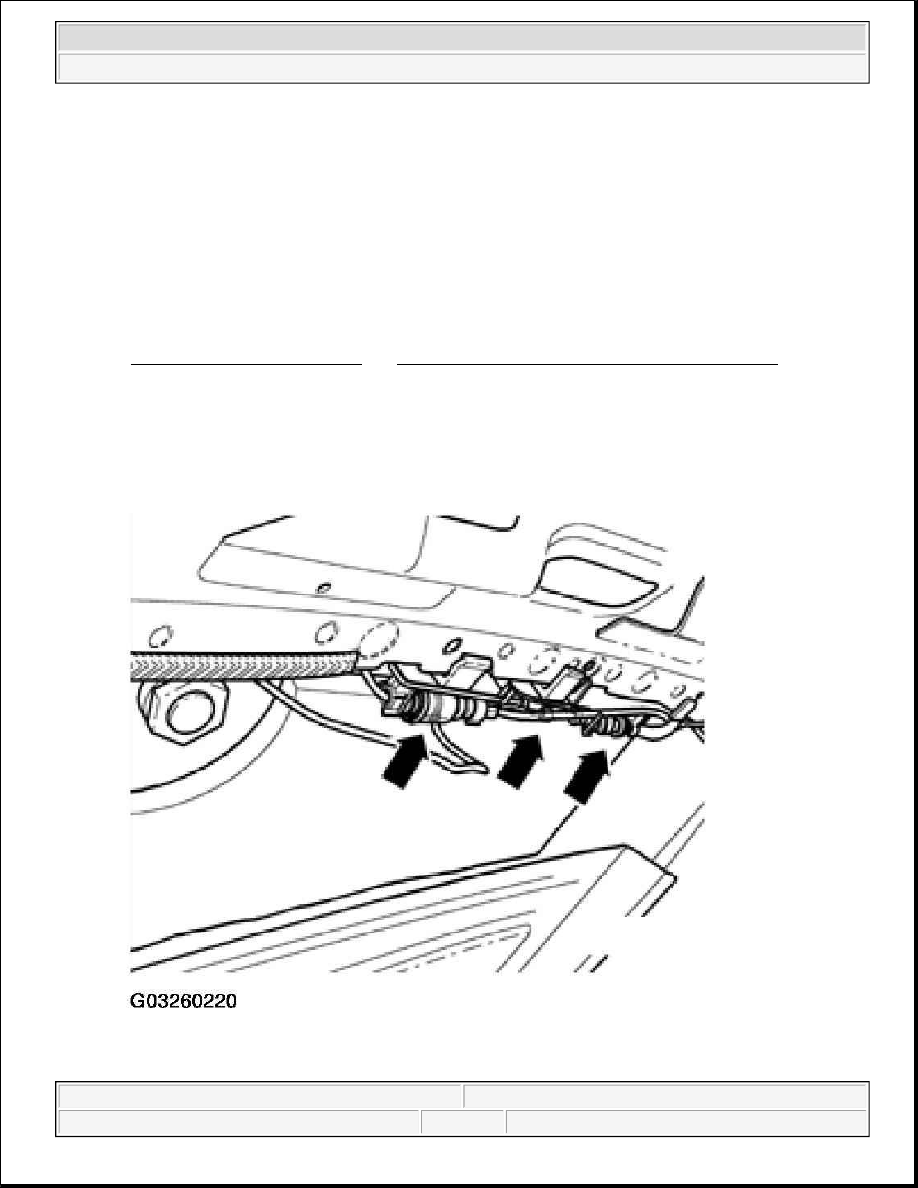

Fig. 95: Removing Cable Connections From Roof
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove nut -2- and remove antenna.

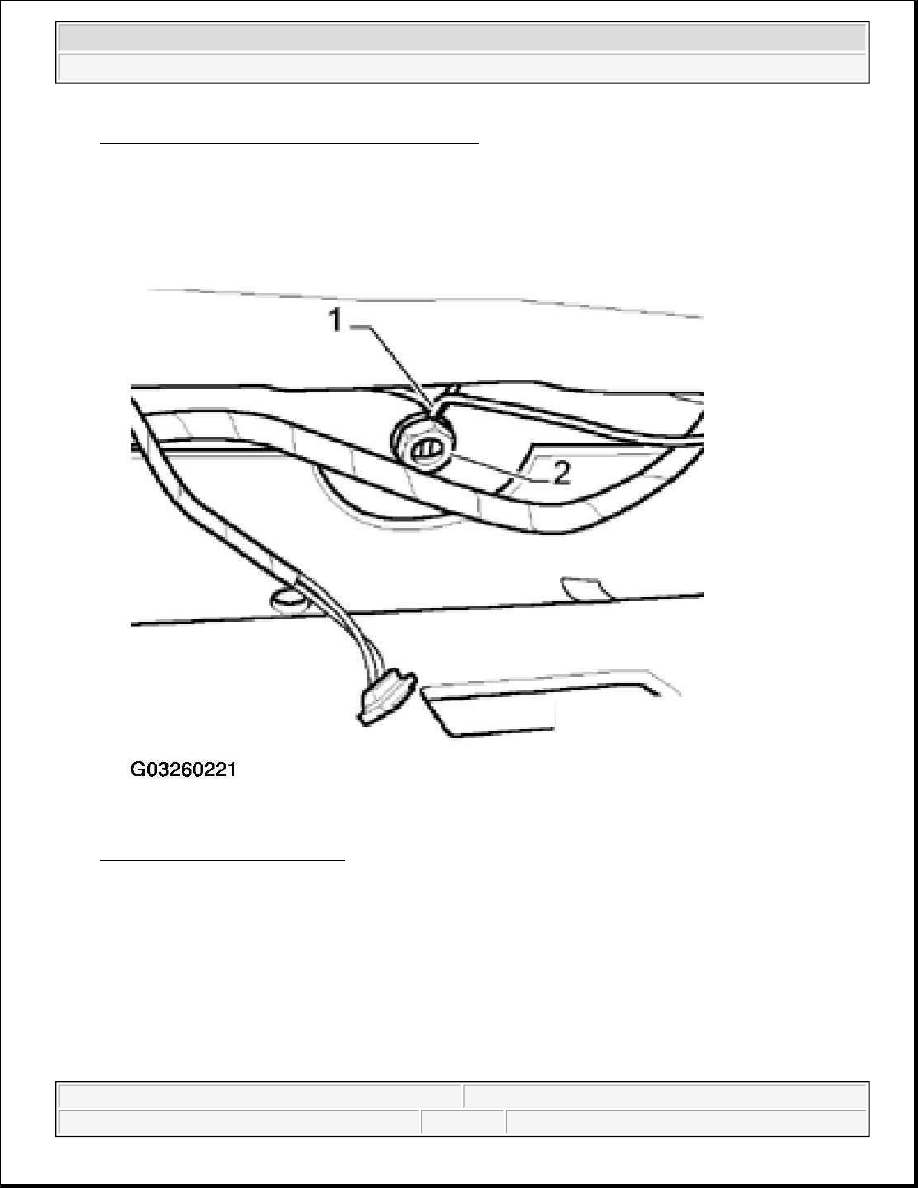

Fig. 96: Removing Antenna Nut
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

Install in reverse order of removal, noting the following:

z

Ensure gasket is properly oriented in relation to relief areas -arrows- on antenna base



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

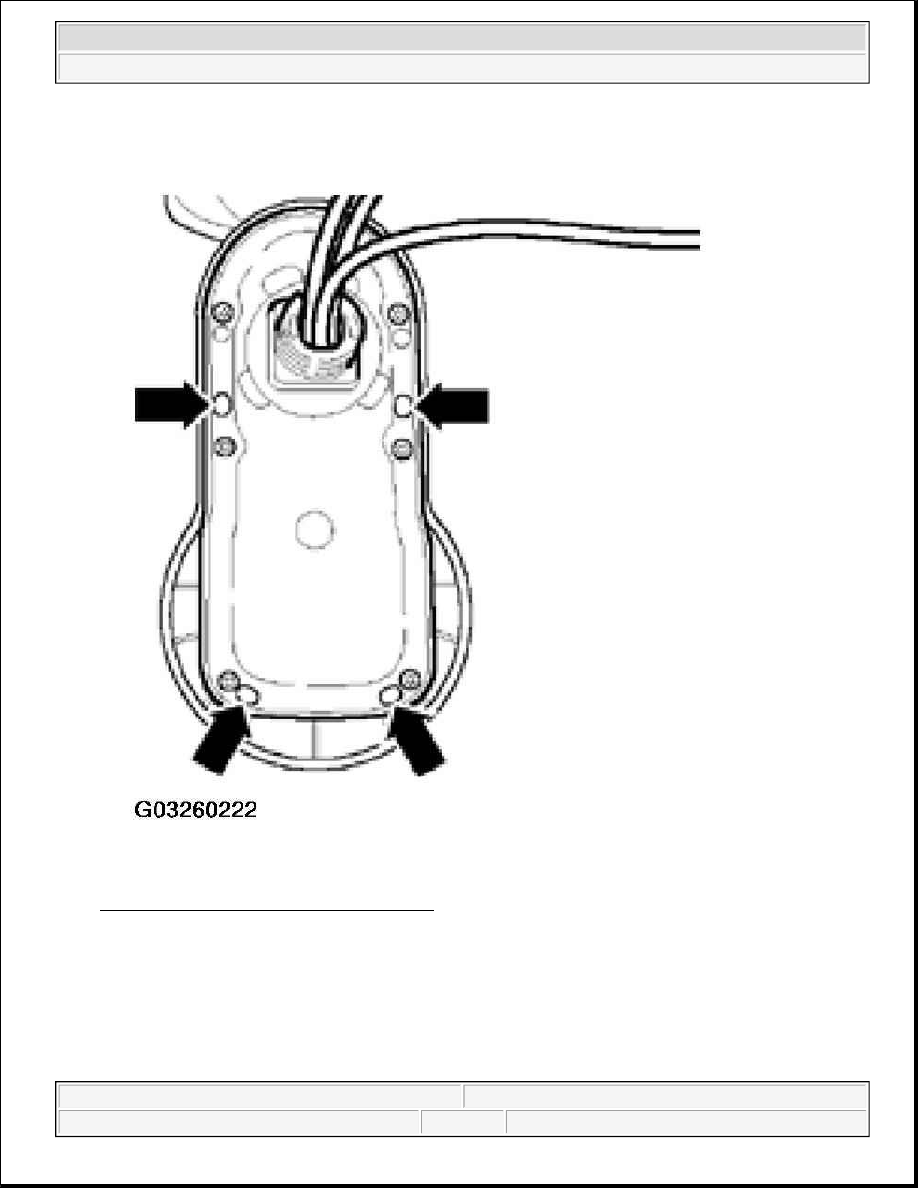

Fig. 97: Installing Gasket On Antenna Base
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Ensure stress free routing of antenna cables -1- through nut -2-.

z

Apply contact grease in area where nut/serrated washer contacts roof sheet metal.
