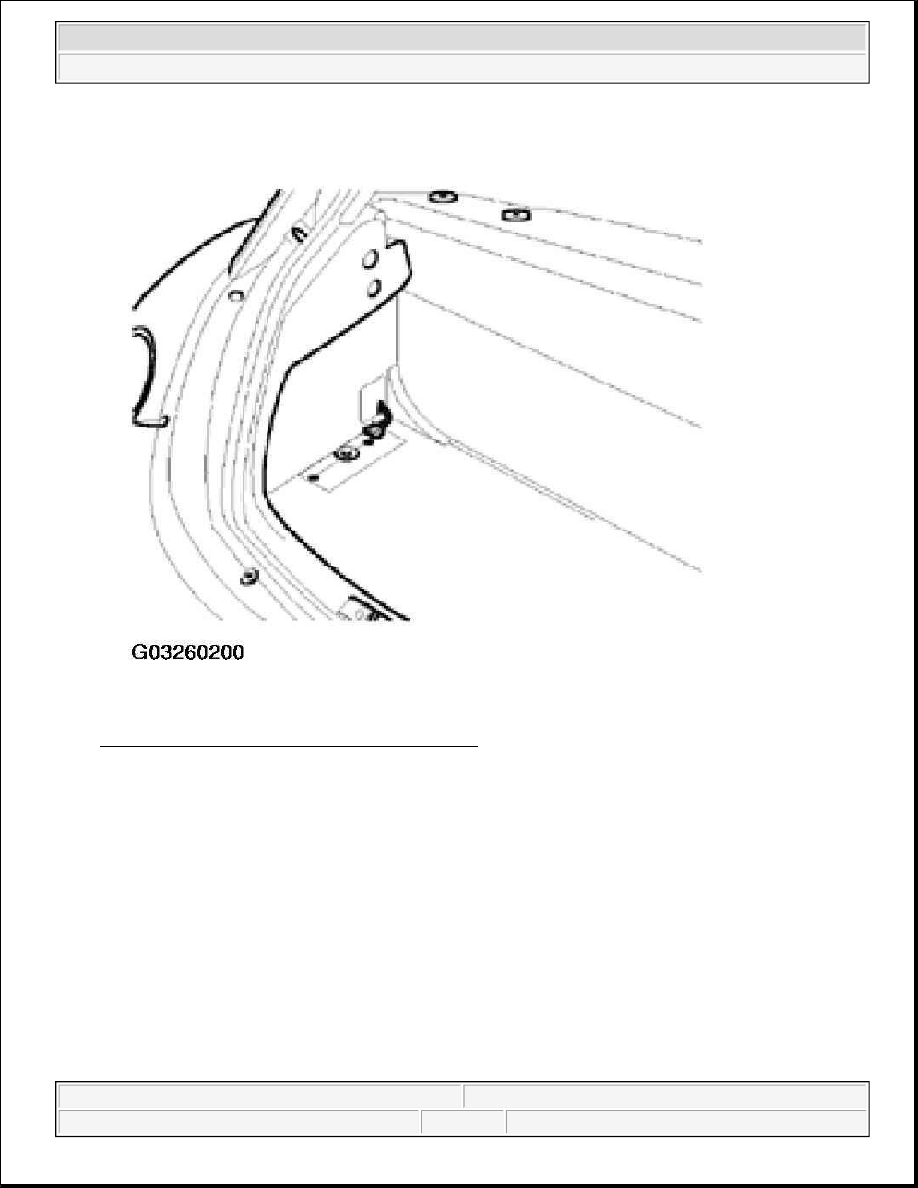

Fig. 75: Installing Luggage Compartment Carpet
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Mount CD changer bracket -1- to floor using hex screws -2-.

z

Tightening torque: 4.5 N.m (39 in lb)

CD changer, preparation



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

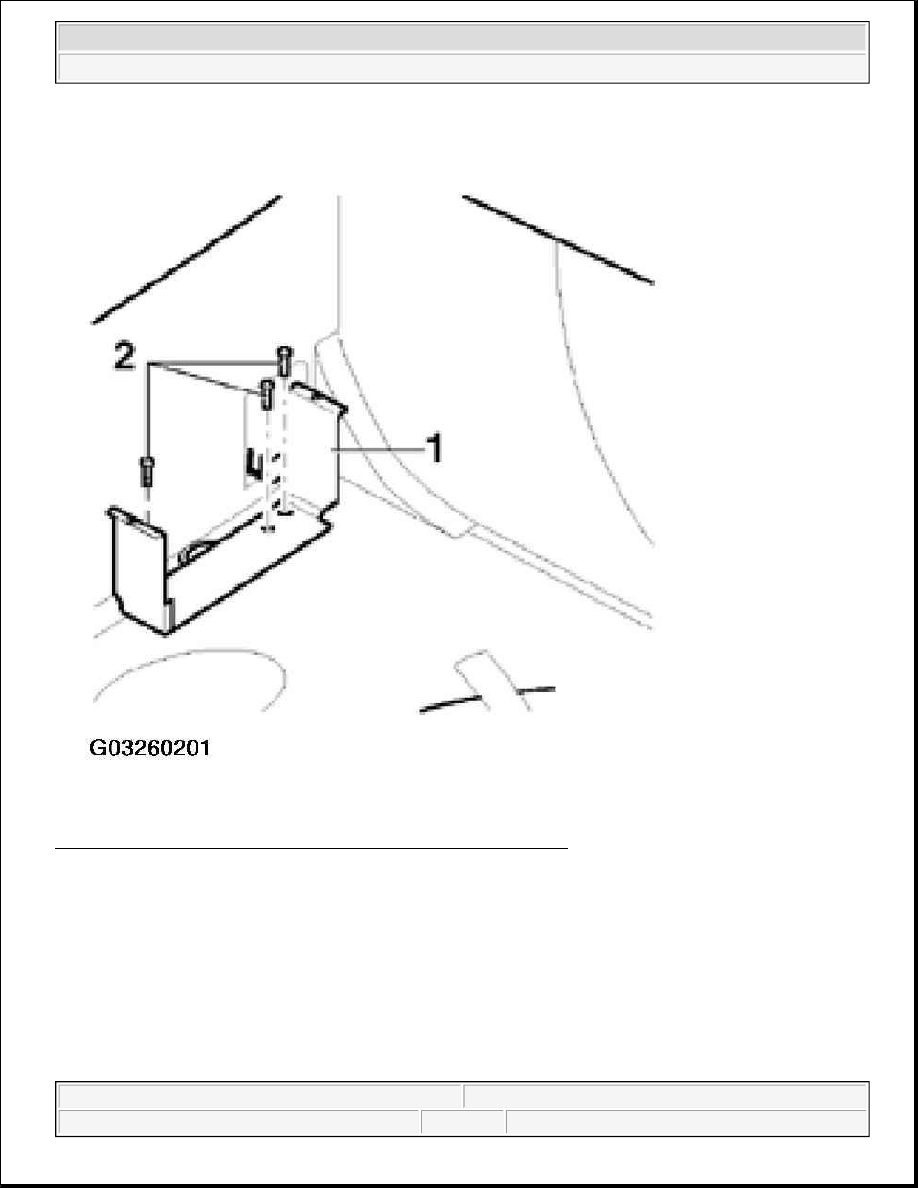

Fig. 76: Installing CD Changer Bracket To Floor With Hex Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Verify both CD changer position settings. Settings must be located on top.

If not, loosen lateral screws, slide them toward top into "V" position and tighten.

z

Tightening torque: 3 N.m (27 in lb)

NOTE:

z

CD playback will skip if switches are not set correctly.

z

Always check/set switches prior to CD installation.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

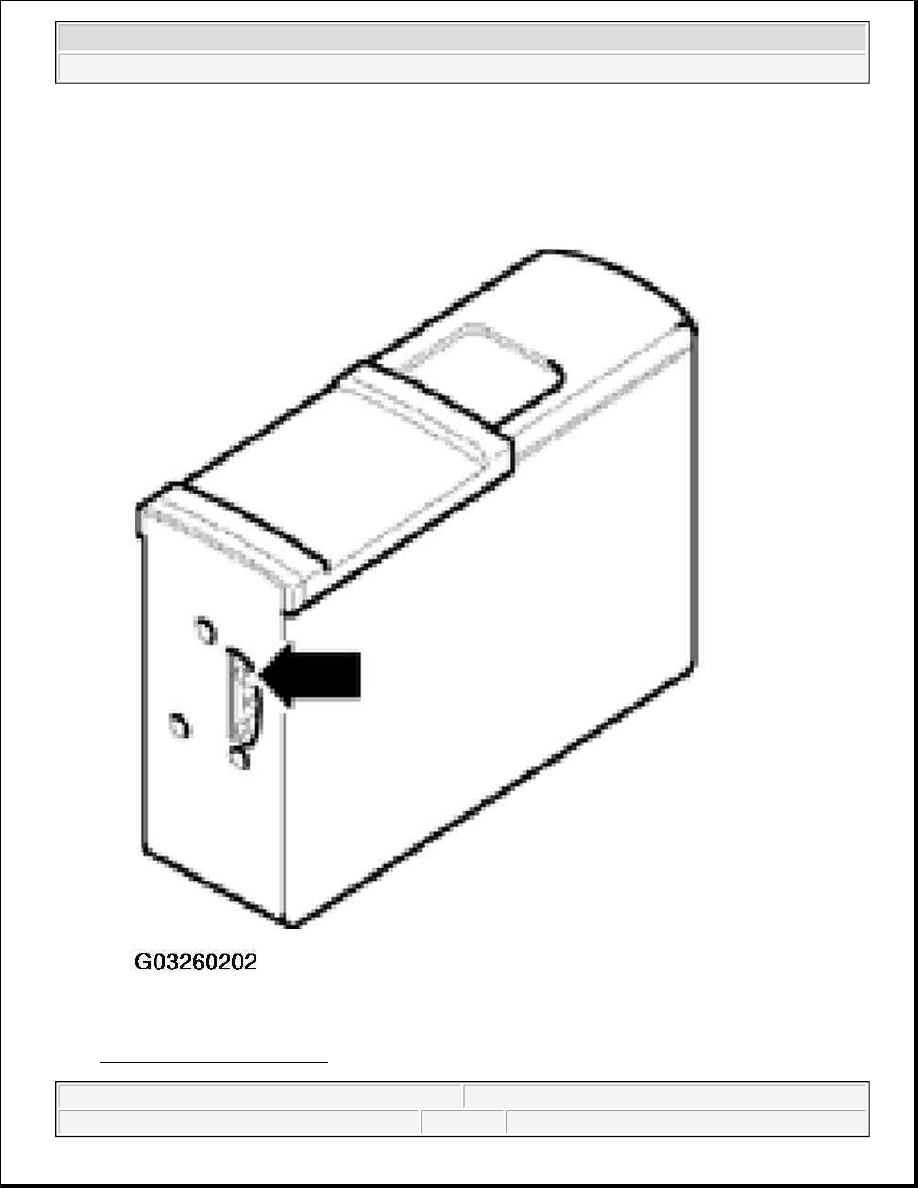

Fig. 77: View Of CD Changer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Switches must move completely to their end positions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Attach support -1- to CD, install with screws -2-.

z

Tightening torque: 3 N.m (27 in lb)

z

Connect CD Changer harness cable connector (arrow).

z

Place connectors -1- in bracket and CD Changer in bracket.

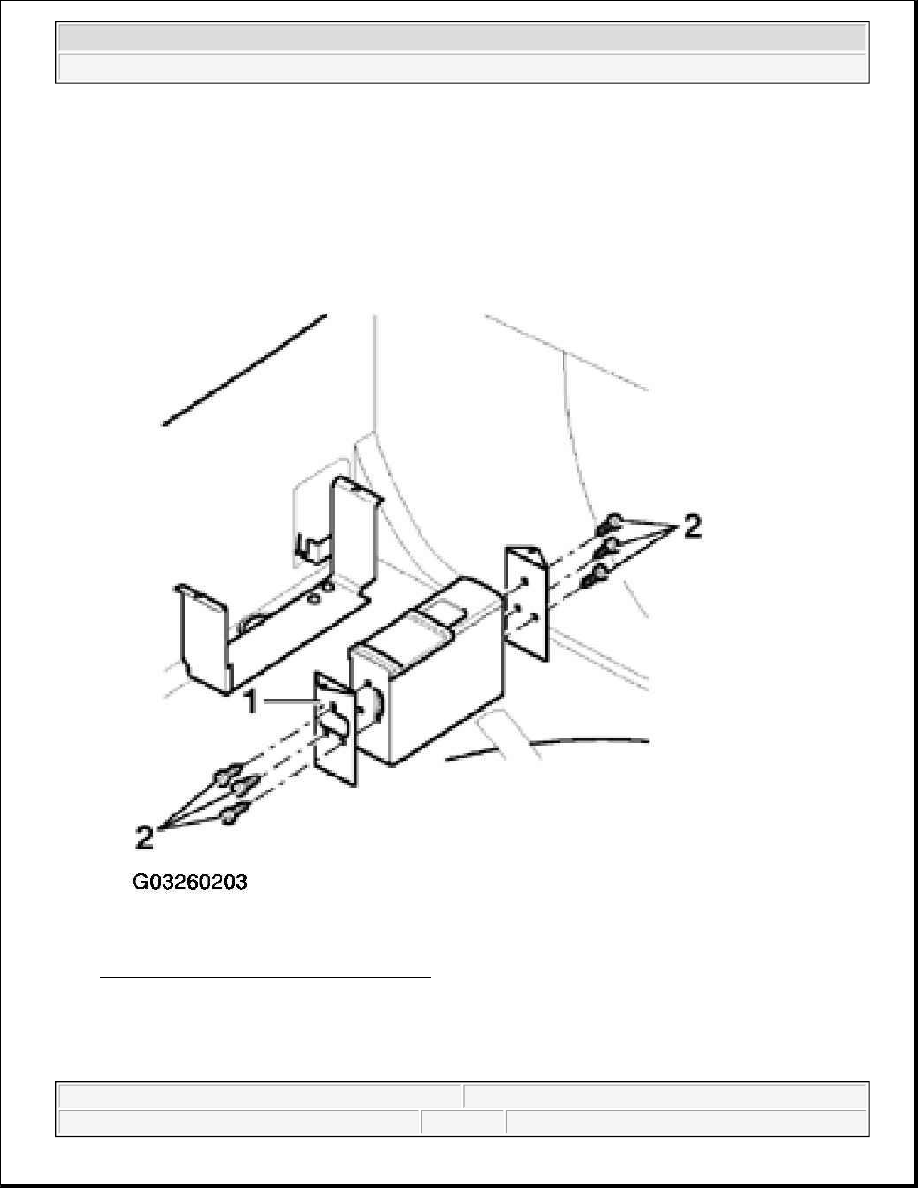

Fig. 78: Installing Support To CD Changer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connectors should be in same side of harness support (arrow).

z

Install CD cover -1- and ensure tips at bottom of cover align with slots in bracket.
