Attach both support brackets -1- to CD changer with screws -2-..

z

Tightening torque: 3 N.m (27 in lb)

z

Connect CD changer harness cable connector.

z

Route CD changer cable and clip connector -1- into the connector support piece located on the CD
changer bracket -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

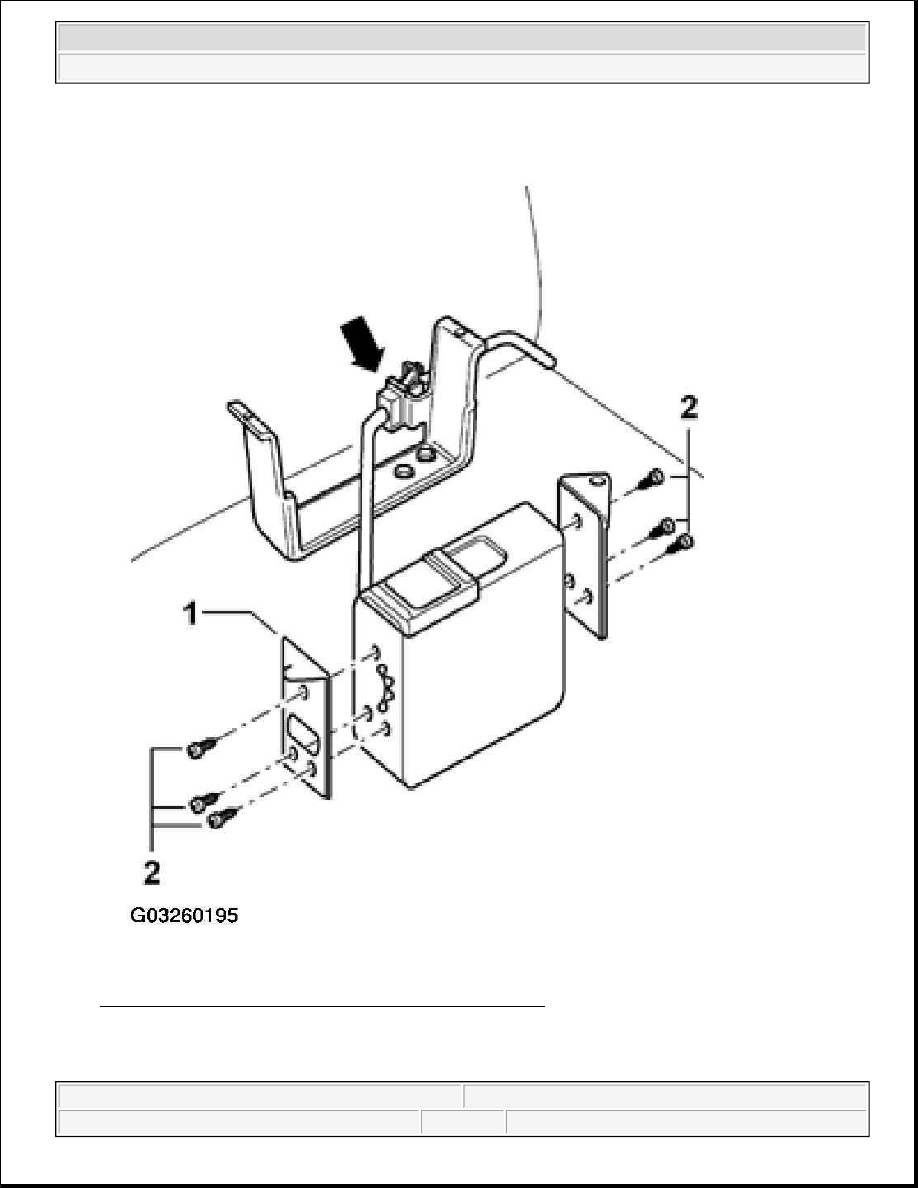

Fig. 70: Installing Both Support Brackets To CD Changer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Slide CD changer into CD changer bracket from the top ensuring that the CD changer connector is



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



securely located in the bracket -arrow-.

z

Install CD changer protective cover -1-, ensuring the tips at the bottom of the cover align with their slots
in the CD changer bracket.

z

Secure cover and bracket with screws from top.

z

Tightening torque: 3 N.m (27 in lb)

z

Code "Sound System" for CD operation using VAG 1551/1552 Scan Tool (ST), See Code Control
Module (function 07)


z

Refer to and check proper operation of CD changer.

NOTE:

z

Radio/CD OBD function is inoperative if radio system is not coded for
CD operation.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

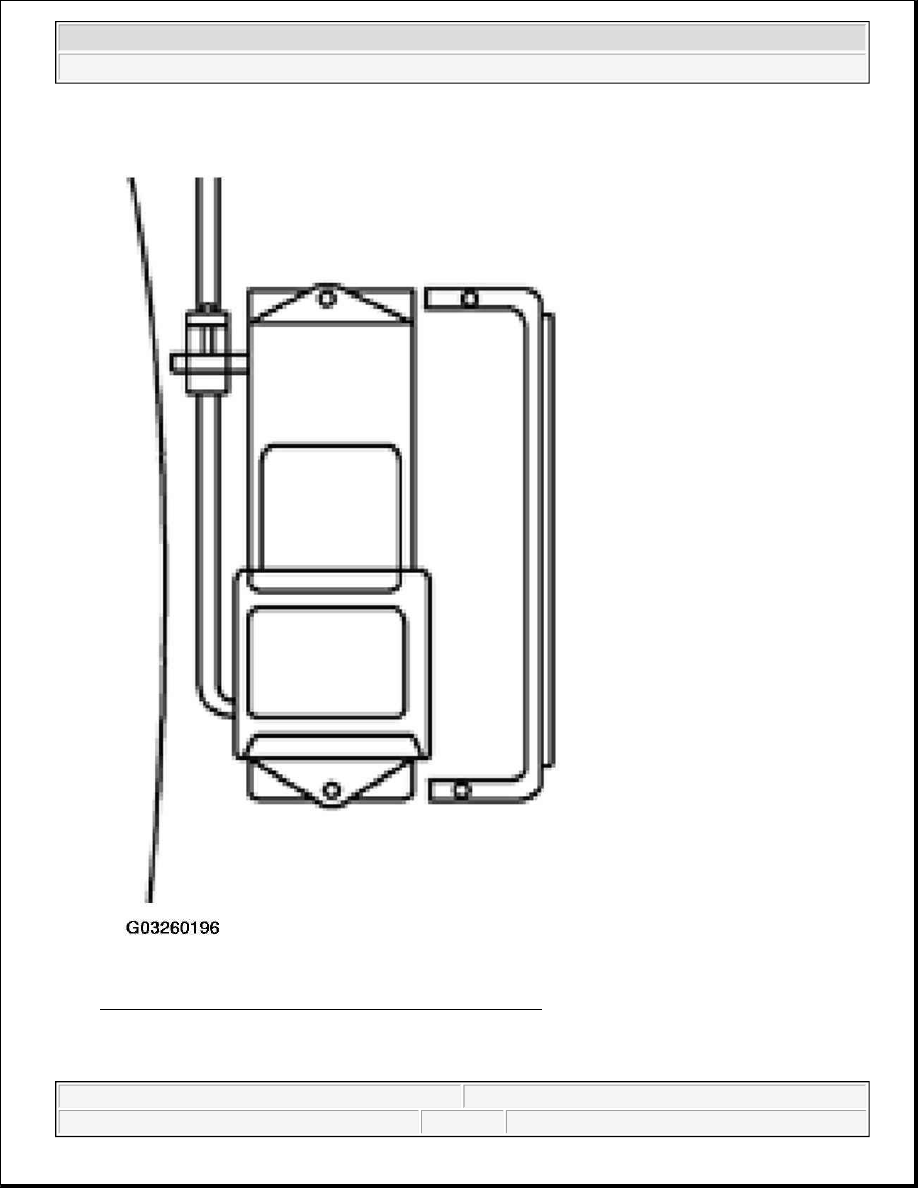

Fig. 71: Installing CD Changer Into CD Changer Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CD CHANGER - M.Y. 1999 THROUGH 07.02 PRODUCTION, INSTALLING
