Volkswagen New Beetle. Manual - part 458

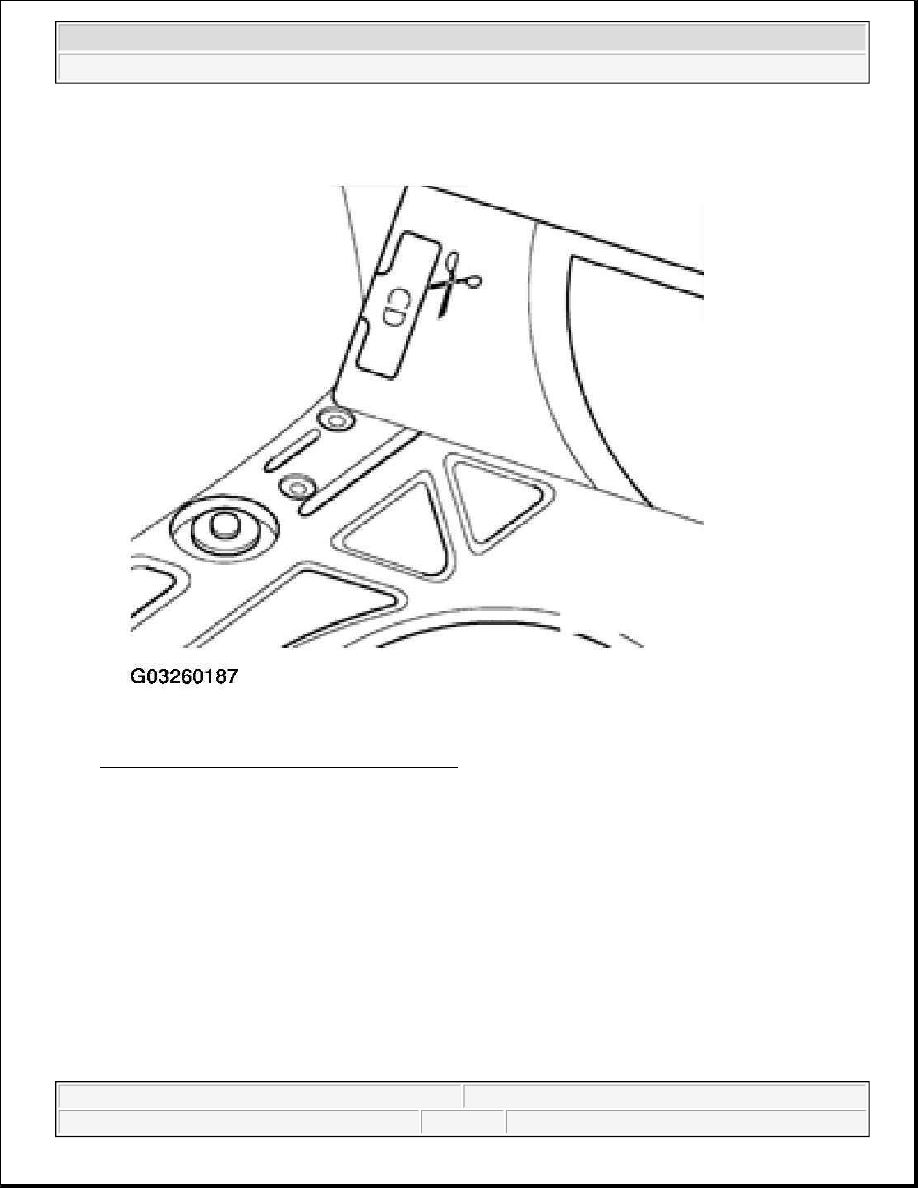

Fig. 62: Lifting Luggage Compartment Carpet
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Note location of three CD changer bracket mounting holes -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

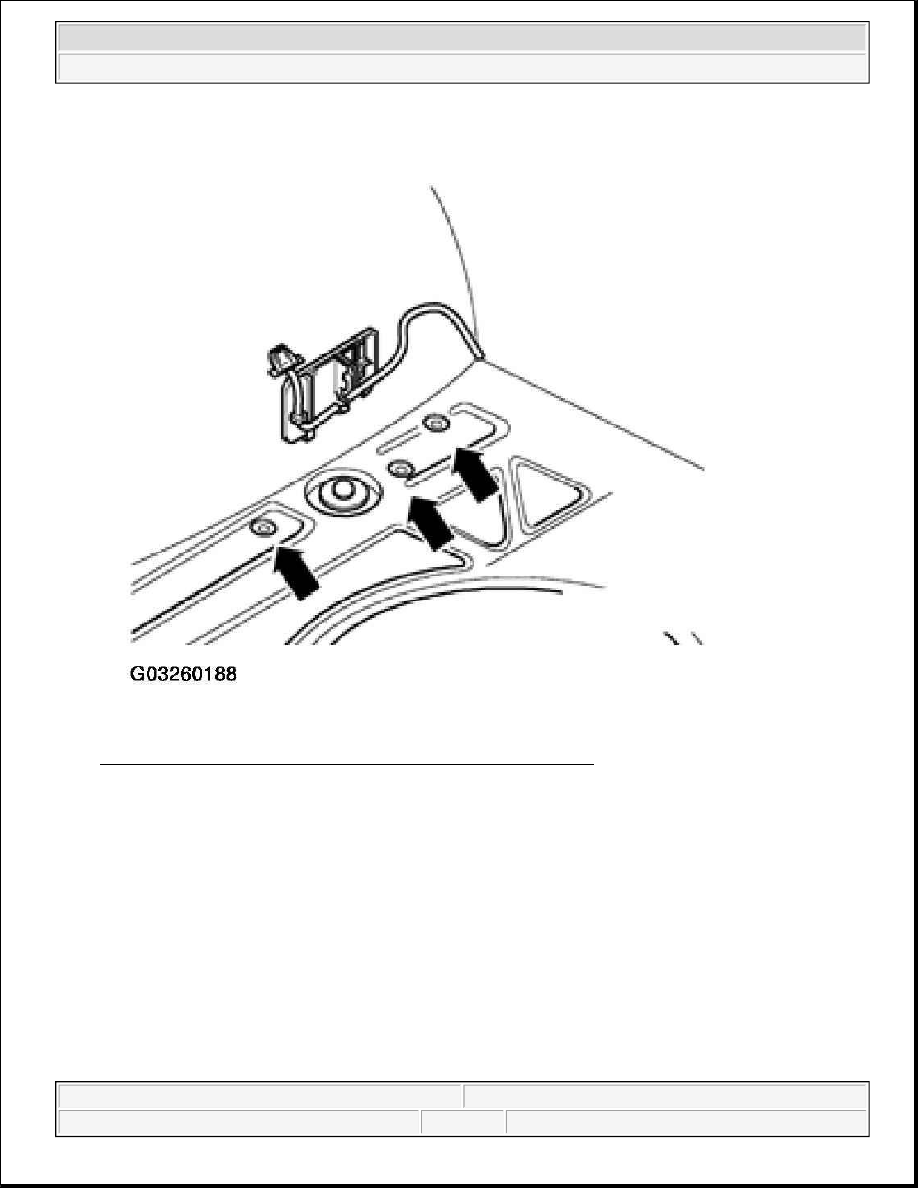

Fig. 63: Identifying Three CD Changer Bracket Mounting Holes
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Depending on production, one of two different types of CD changer (cable) prep may be used.

Version 1

CD changer connector -1- and cable secured by clip on left side of luggage compartment.

z

Remove clip -arrow- and fold back connector.

Version 2



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

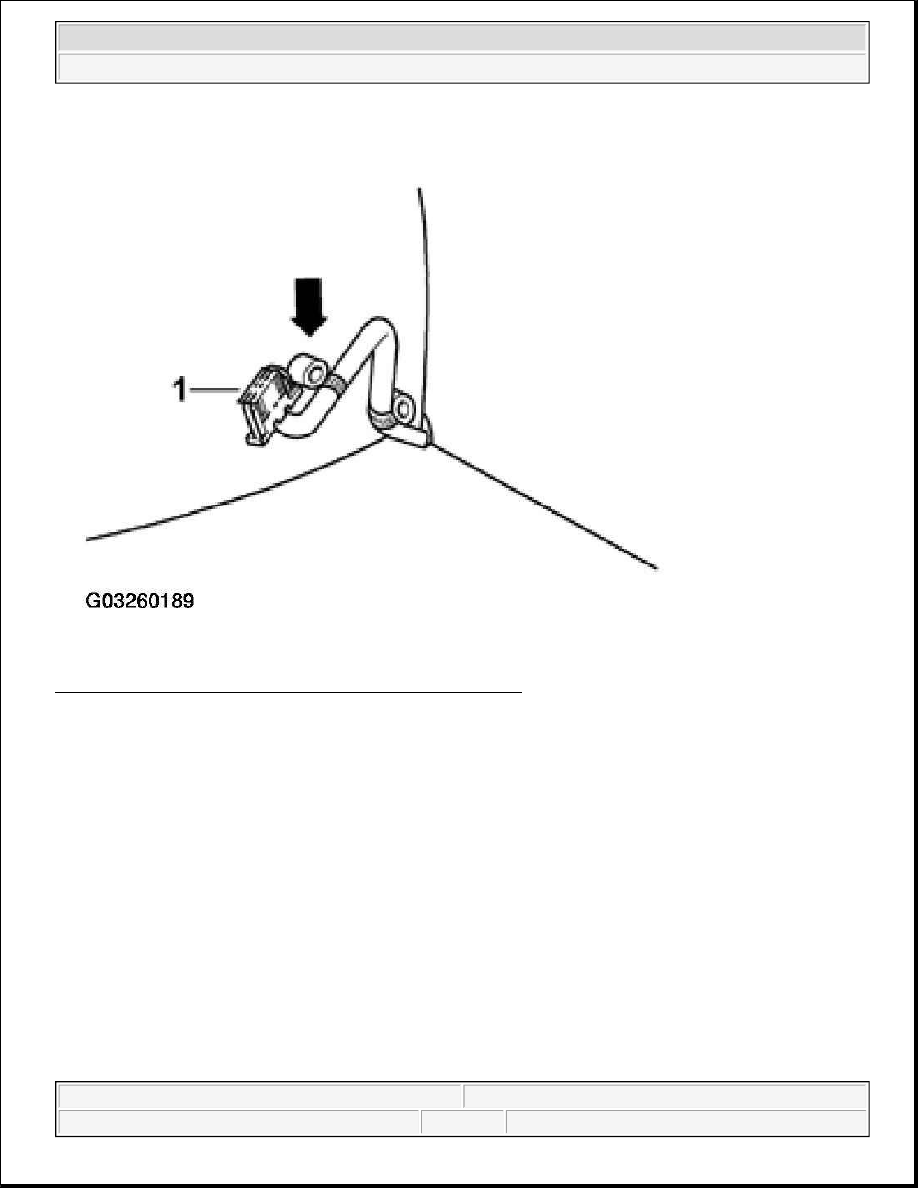

Fig. 64: Identifying CD Changer Connector And Secure Clip
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CD changer connector/harness secured inside cover -arrow-.

z

Unclip cover and pull out harness connector.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

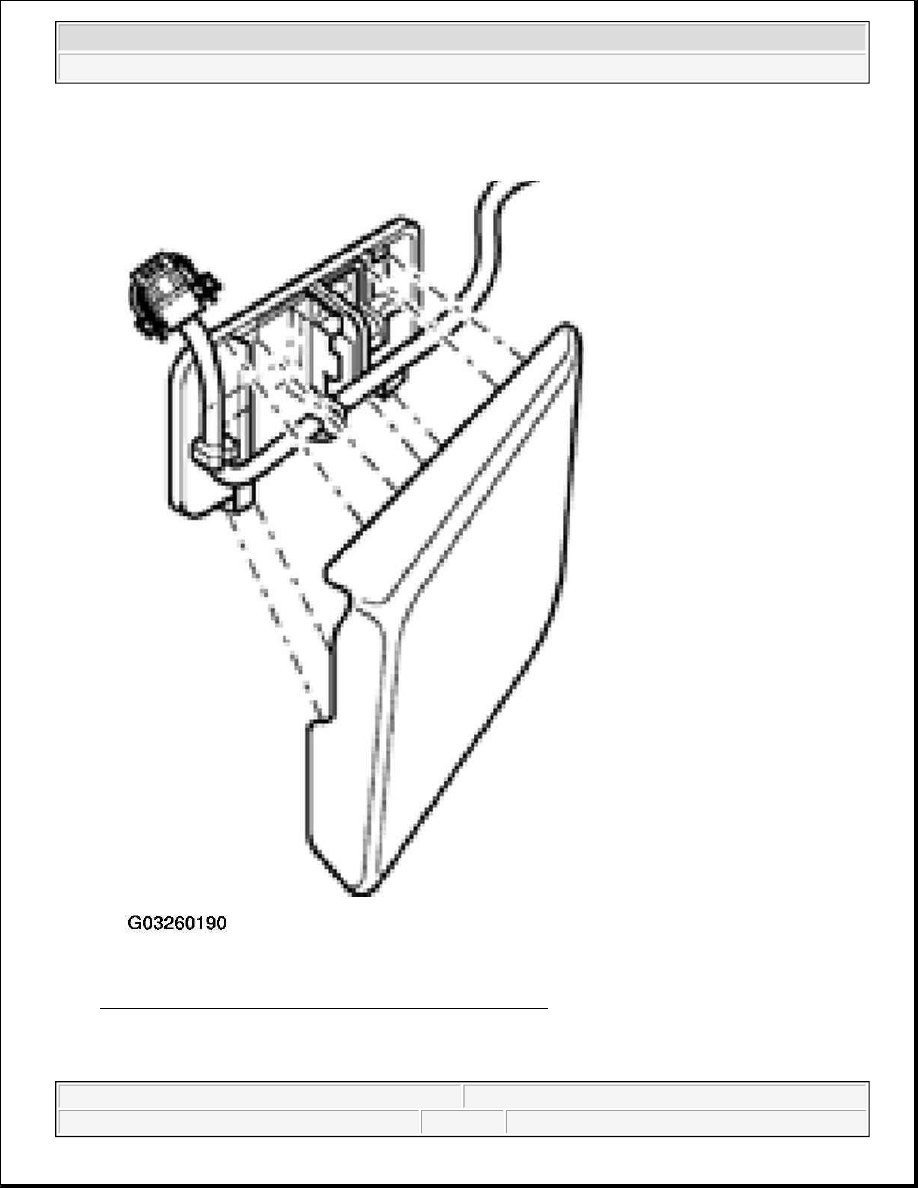

Fig. 65: Removing CD Changer Connector/Harness Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Note the cut marking on the back side of left luggage compartment carpet.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
