Volkswagen New Beetle. Manual - part 461





The following describes the factory approved service installation of Volkswagen CD changers into New Beetle
models from m.y. 1999 through 07.02 production equipped with "Premium V" or "Premium V - Monsoon"
radios.

CD changer: 1J6 035 111

Installation kit: 1 C0 098 201

Installing

Installed position: Left rear of luggage compartment, just behind folding rear seat.

CD prep (changer cable and connector routing) visible from inside luggage compartment, at left rear wheel
well.

z

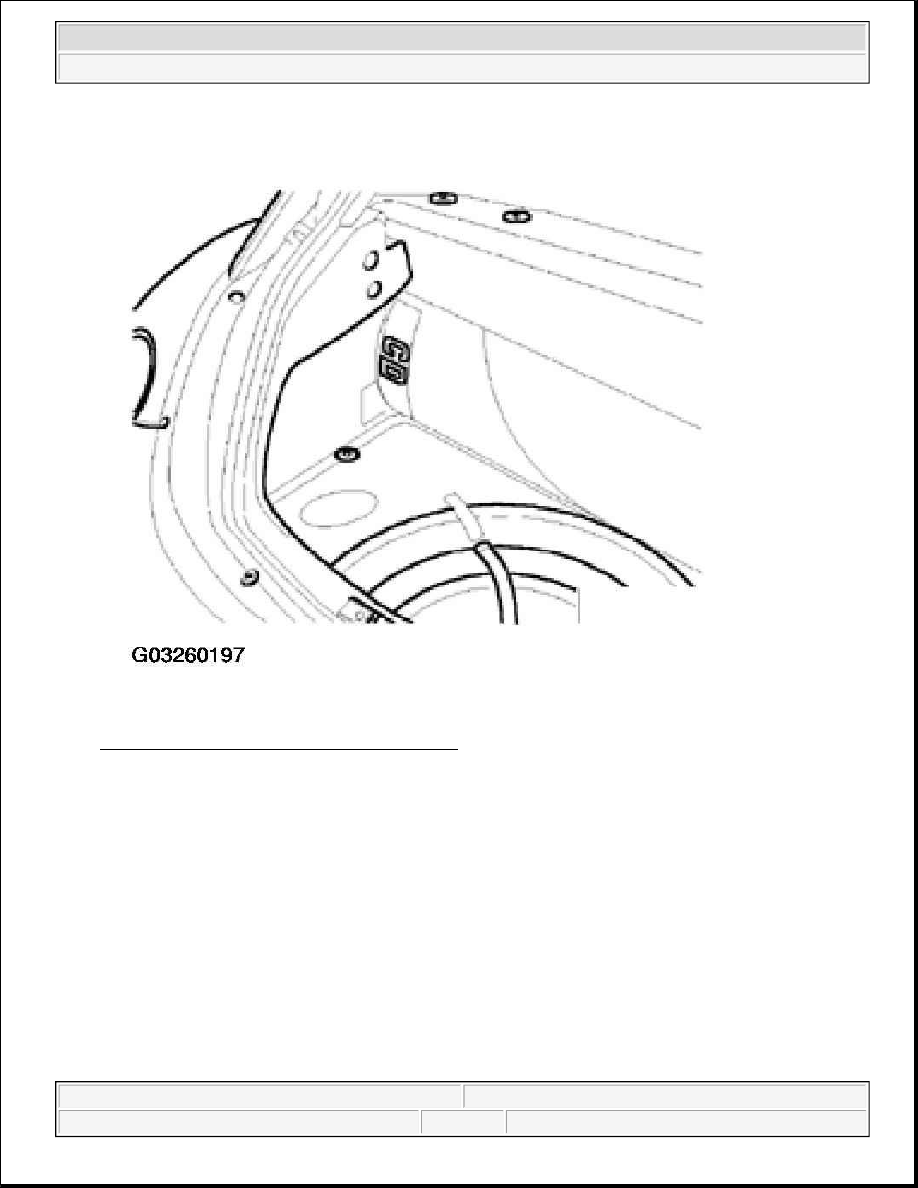

Lift luggage compartment carpet and cut as shown on carpet back.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

CAUTION:

z

Part numbers are for reference only. Always check with your Parts
Department for the most up to date information.

z

Always confirm CD changer and radio compatibility with your Parts
Department.

NOTE:

z

Carefully review all of the following instructions before proceeding with
installation.

z

Never install CD changer in a location, position, or manner other than
specified by these instructions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 72: Lifting Luggage Compartment Carpet
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

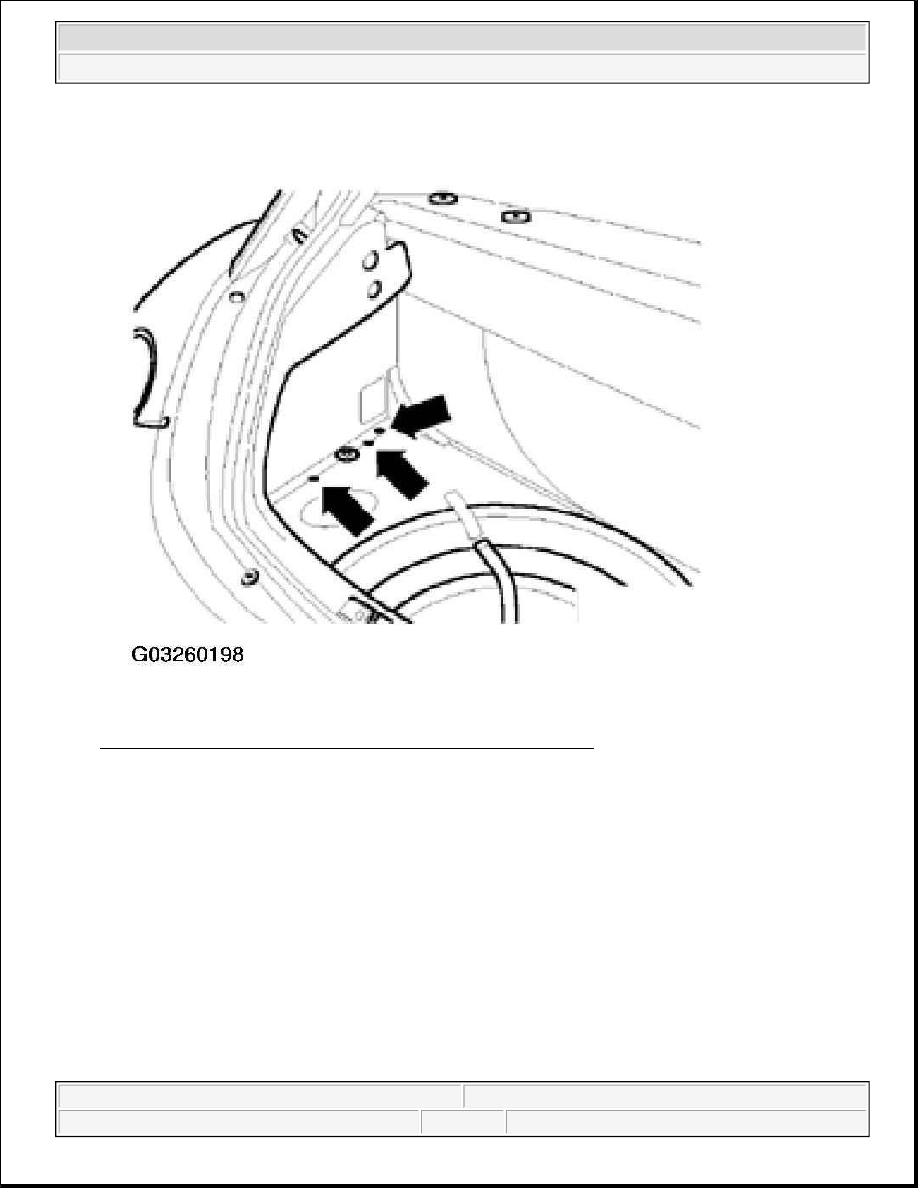

Note location of three CD changer bracket mounting holes -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 73: Identifying Three CD Changer Bracket Mounting Holes
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

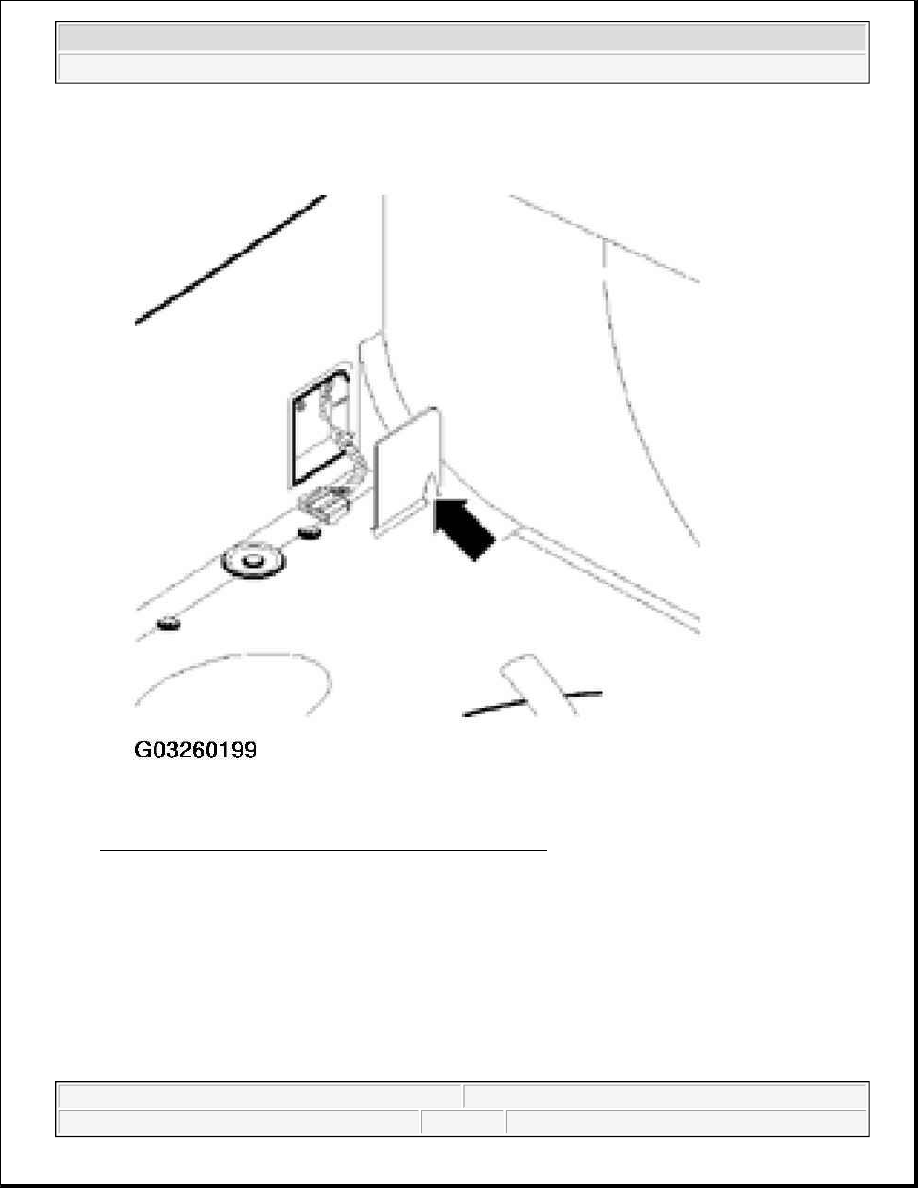

Remove CD changer harness connector cover.

z

Release harness connector as shown.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 74: Removing CD Changer Harness Connector Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Locate cutting mark inside cover.

z

Cut marked area as shown -arrow-.

z

Refit luggage compartment carpet (note area removed).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
