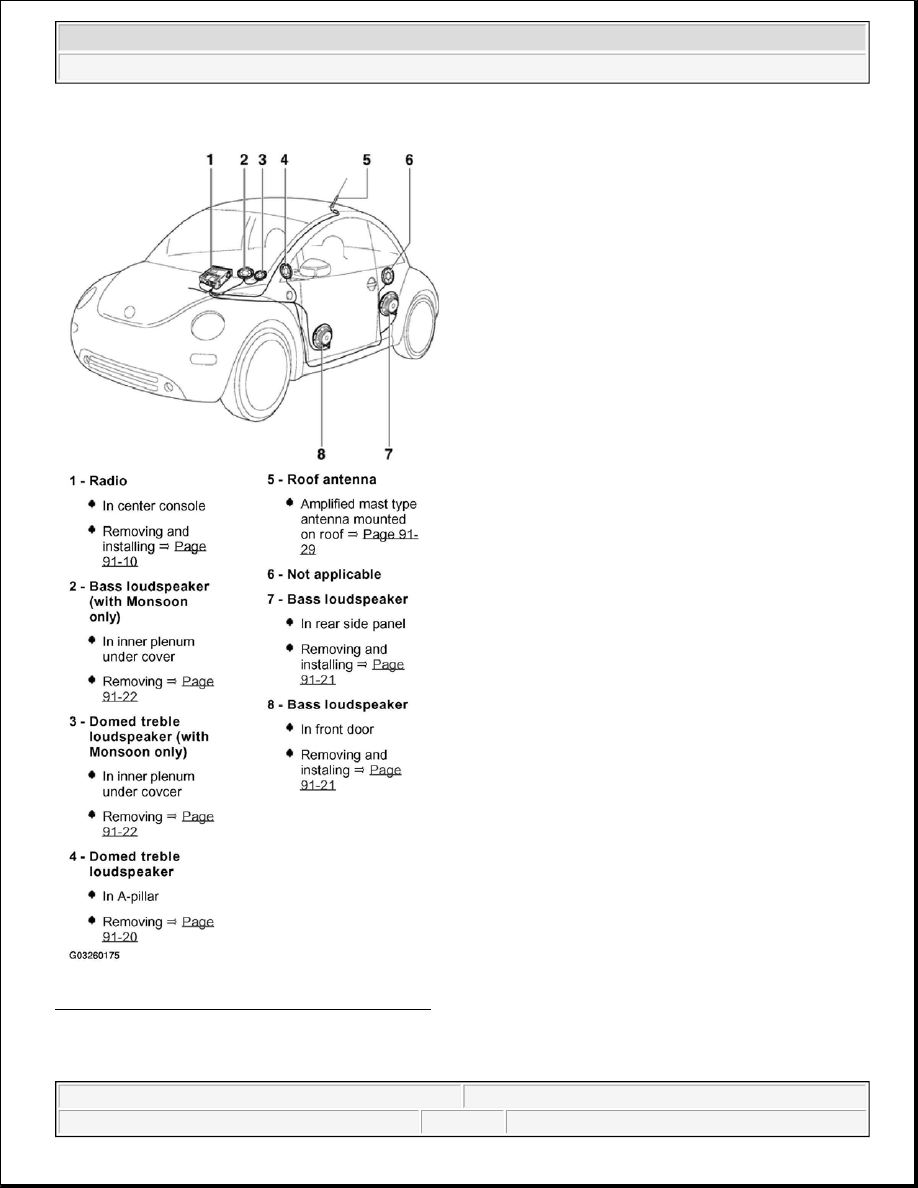

Fig. 50: Identifying Speaker System Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DOMED TREBLE LOUDSPEAKERS, REMOVING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



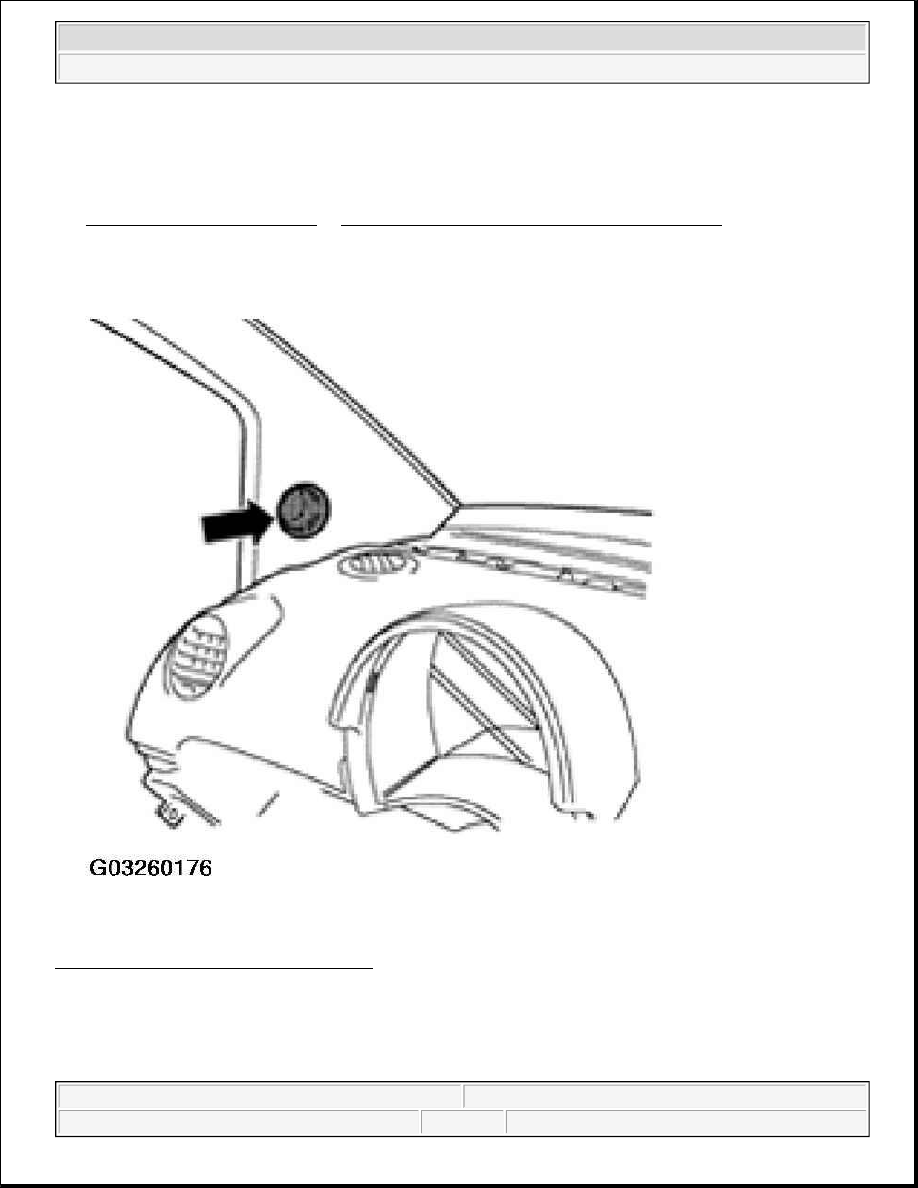

Speakers -arrow- in front A-pillars are permanently attached to the interior A-pillar trim cover.

Remove/replace entire A-pillar trim cover

See PILLARS AND SIDE TRIMS or PILLARS AND SIDE TRIMS (CONVERTIBLE) .

Fig. 51: Identifying Front Pillars Speaker
Courtesy of VOLKSWAGEN UNITED STATES, INC.

FRONT AND REAR BASS LOUDSPEAKERS, REMOVING AND INSTALLING

Removing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Remove door trim panel, (or rear trim panel)

See INTERIOR TRIM .

z

Disconnect electrical connection.

z

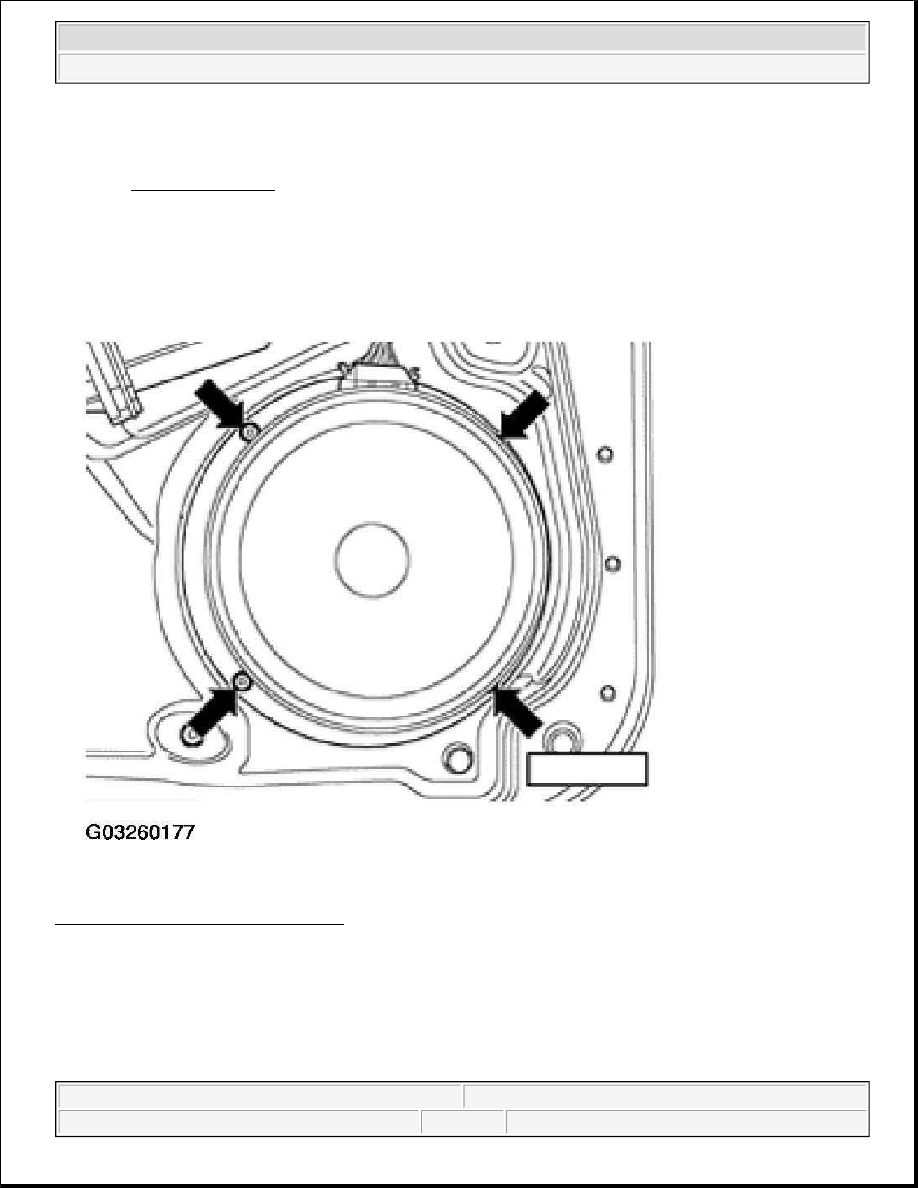

Carefully drill out rivets -arrows- and remove loudspeaker.

Fig. 52: Locating Loudspeaker Rivets
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION:

z

To prevent corrosion, make sure that all metal particles from drilling
are removed from inside the door.

z

If the paint on door frame is damaged during drilling, touch-up
immediately.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Installing

z

Secure loudspeaker with locally available pop rivets of proper length and diameter.

DOMED TREBLE AND BASS LOUDSPEAKERS (MONSOON ONLY), REMOVING AND
INSTALLING

Removing

z

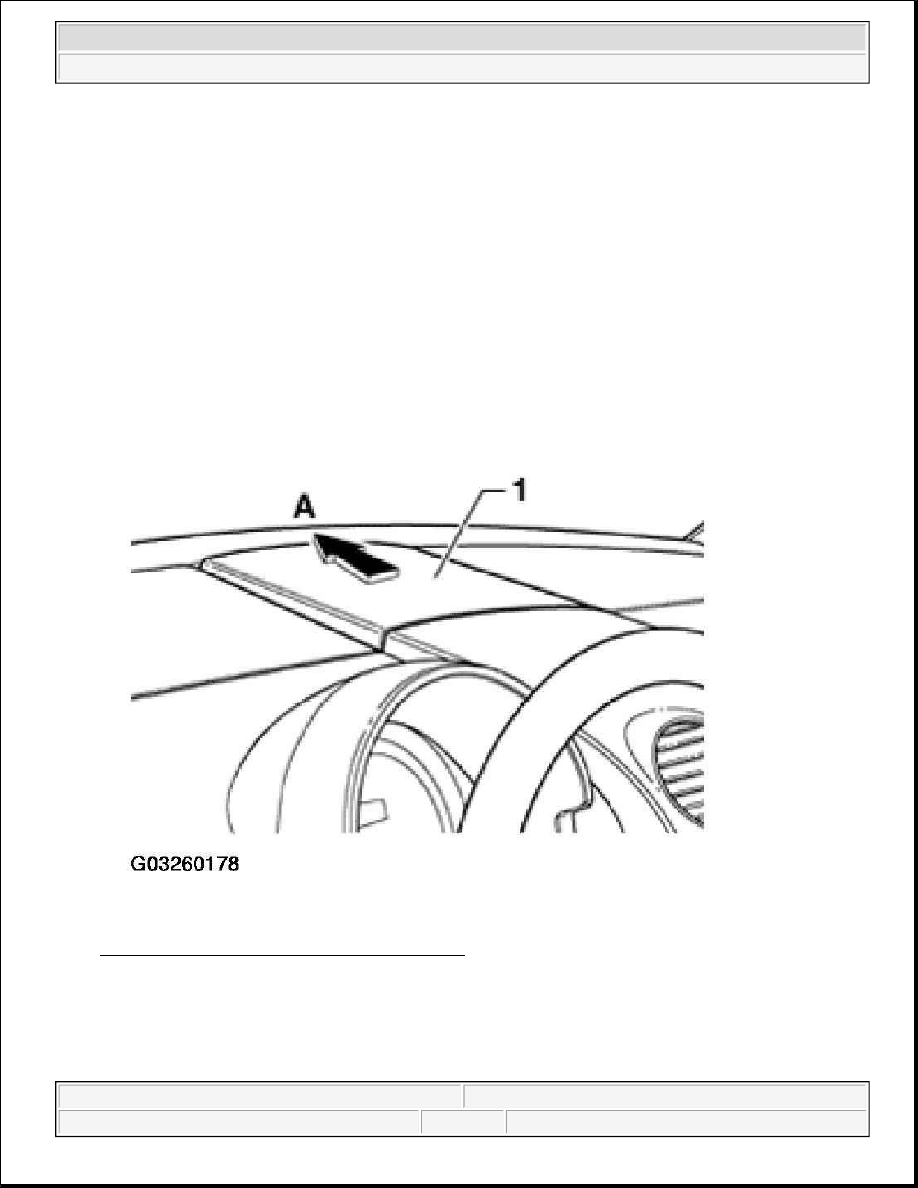

Slide instrument panel center cover -1- in direction of -arrow A- and remove.

Fig. 53: Sliding Instrument Panel Center Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove screws -arrows-.

NOTE:

Do not forget rubber insulation ring between door trim and loudspeaker when
reinstalling door trim.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
