Volkswagen New Beetle. Manual - part 455

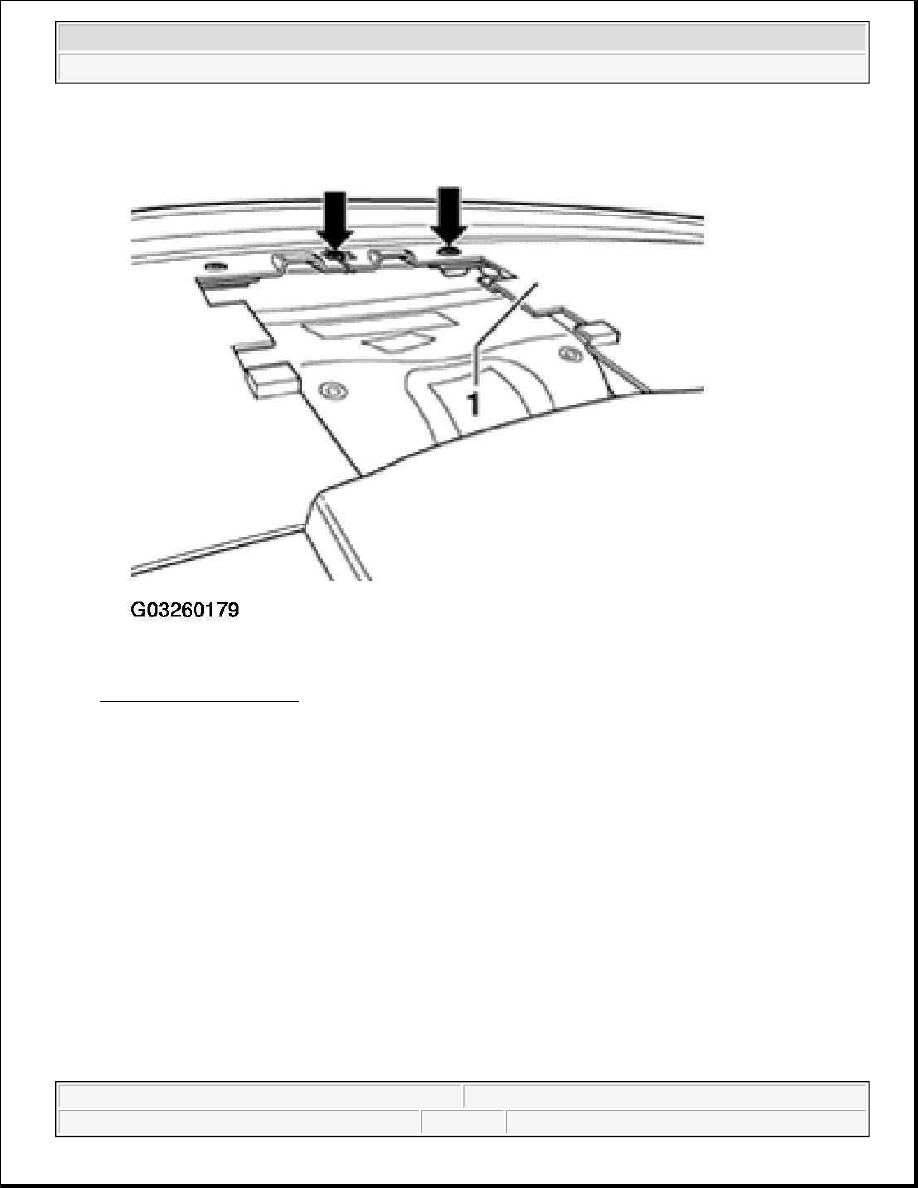

Fig. 54: Removing Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Lift inner plenum chamber cover slightly.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

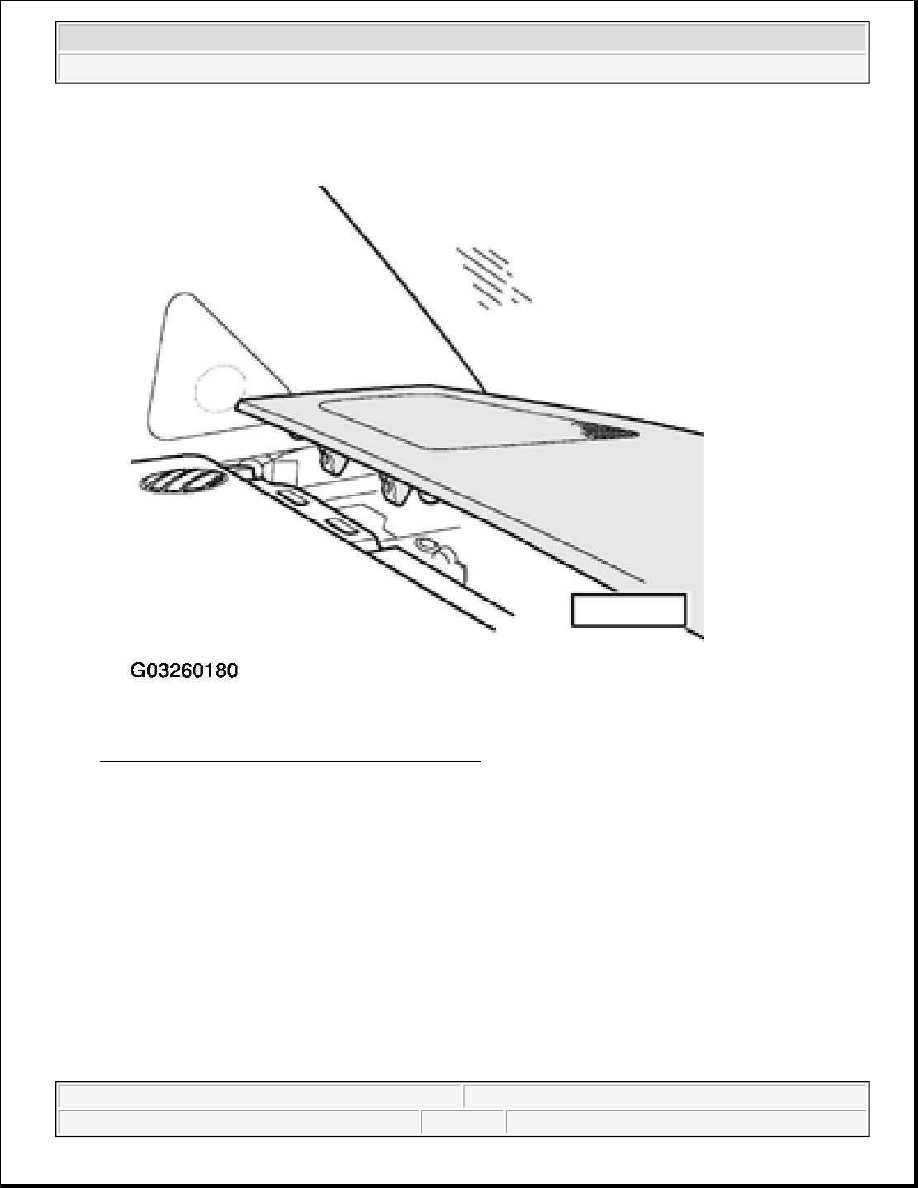

Fig. 55: Removing Inner Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Depress locking tabs and disconnect electrical connection -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

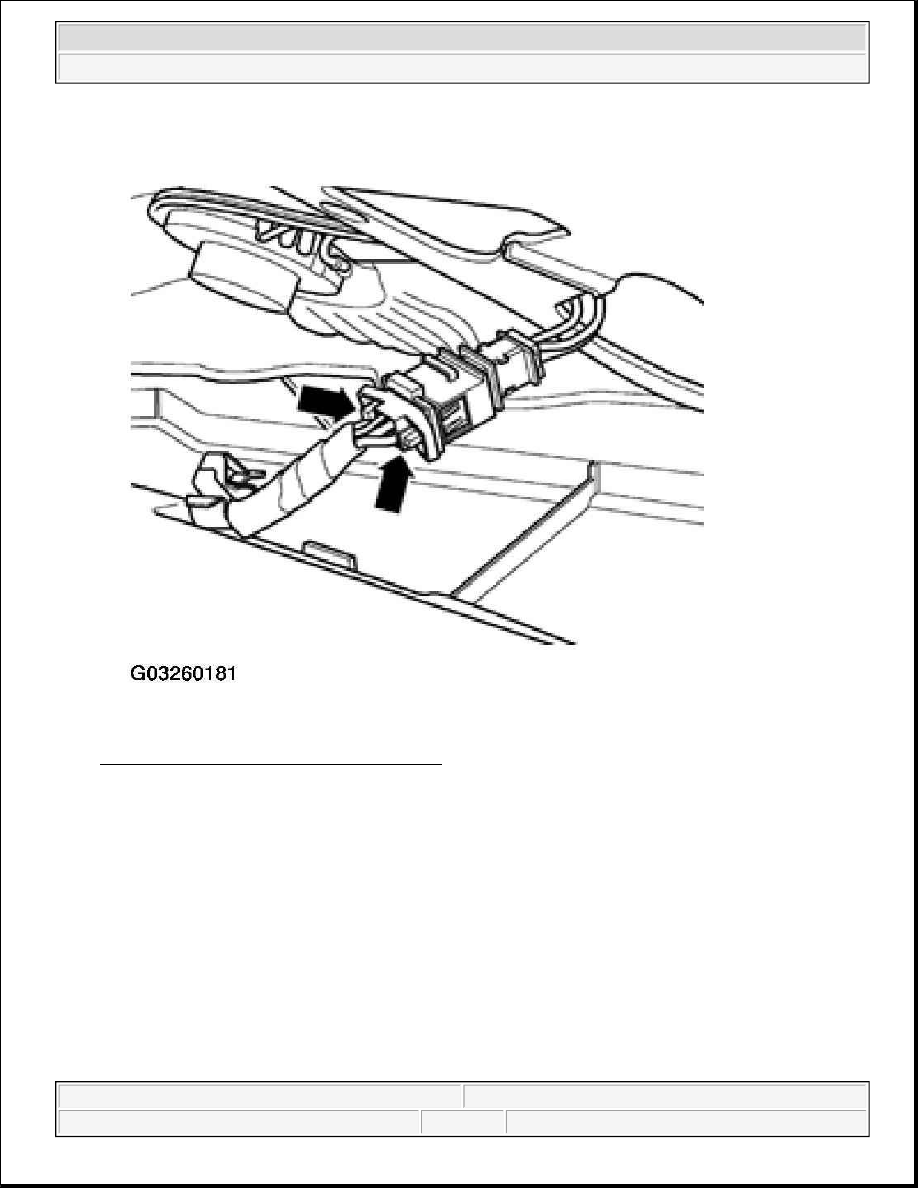

Fig. 56: Disconnecting Electrical Connection
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Carefully drill out rivets -arrows- or remove screws -arrows- as applicable and remove loudspeaker.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

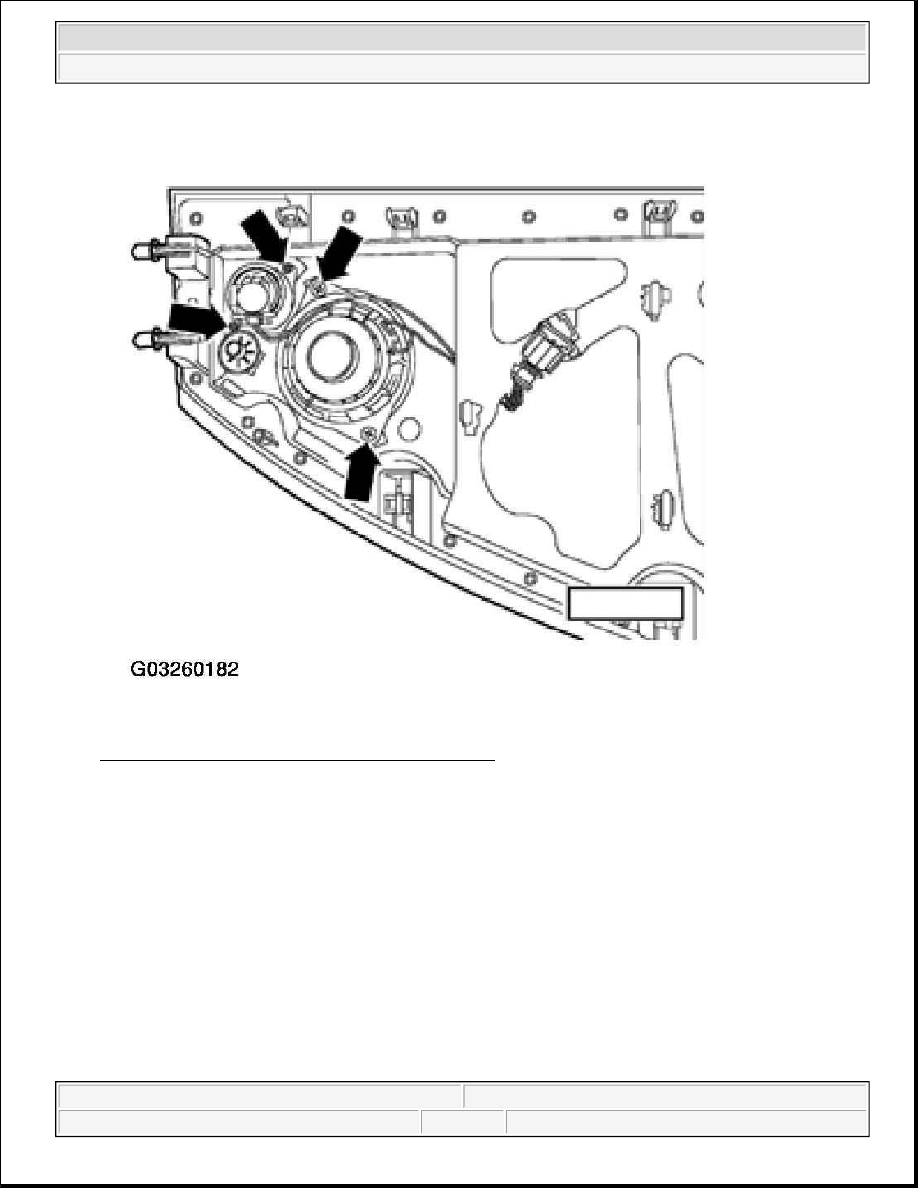

Fig. 57: Removing Loudspeaker Rivets And Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

z

Install in reverse order of removal, noting the following.

z

Screws: tightening torque: 3 N.m (27 in lb)

z

Secure loudspeaker with locally available pop rivets of proper length and diameter.

NOTE:

Installation position.
