z

Switch ignition on.

z

Switch printer on by pressing PRINT button (indicator lamp in button lights up).

z

Press button -1- for "Rapid data transfer" mode.

Indicated on display

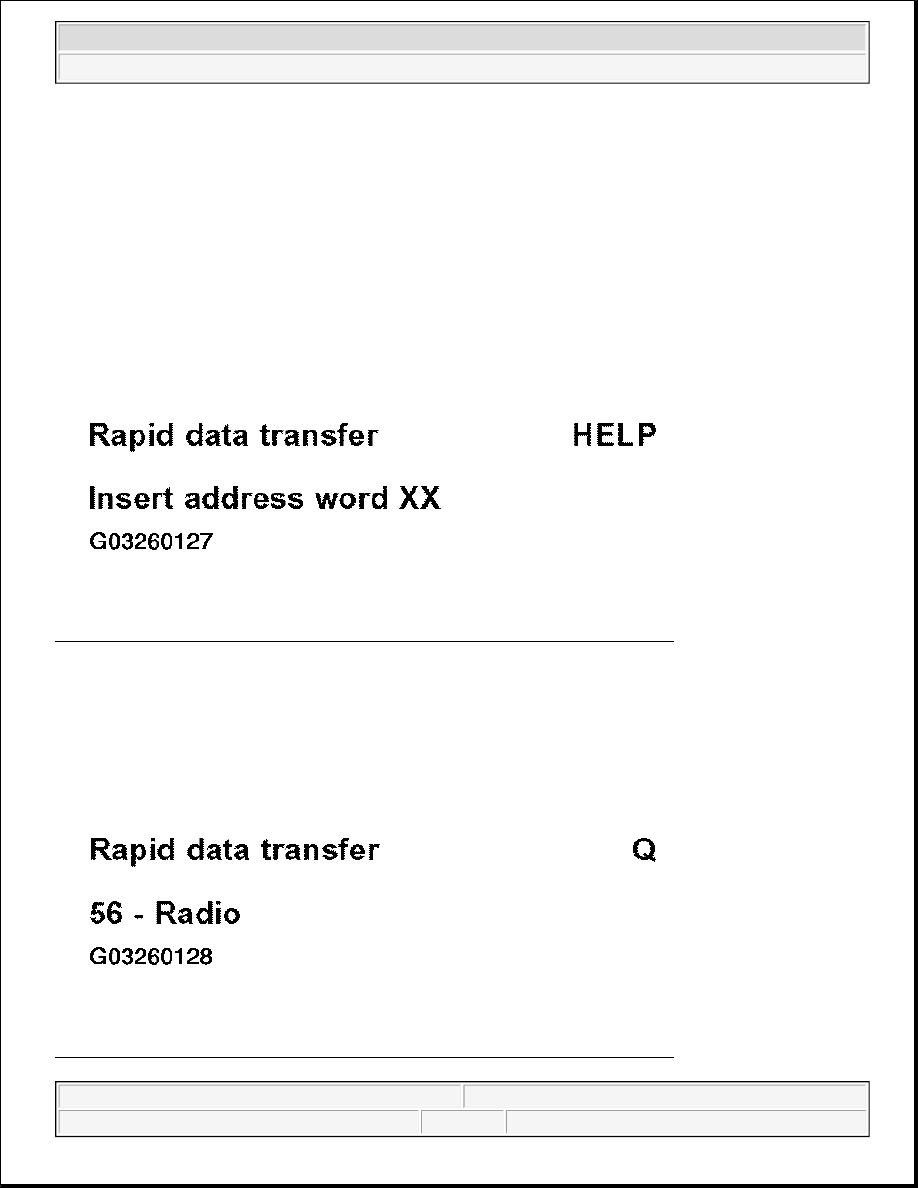

Fig. 2: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (2 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -5- and -6- to insert "Radio" address word 56.

Indicated on display

Fig. 3: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (3 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

In "Rapid data transfer" operating mode 1, all vehicle control modules with
OBD capability can be checked automatically using "Automatic Test
Sequence" address word 00.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Press -Q- button to confirm input.

Indicated on display

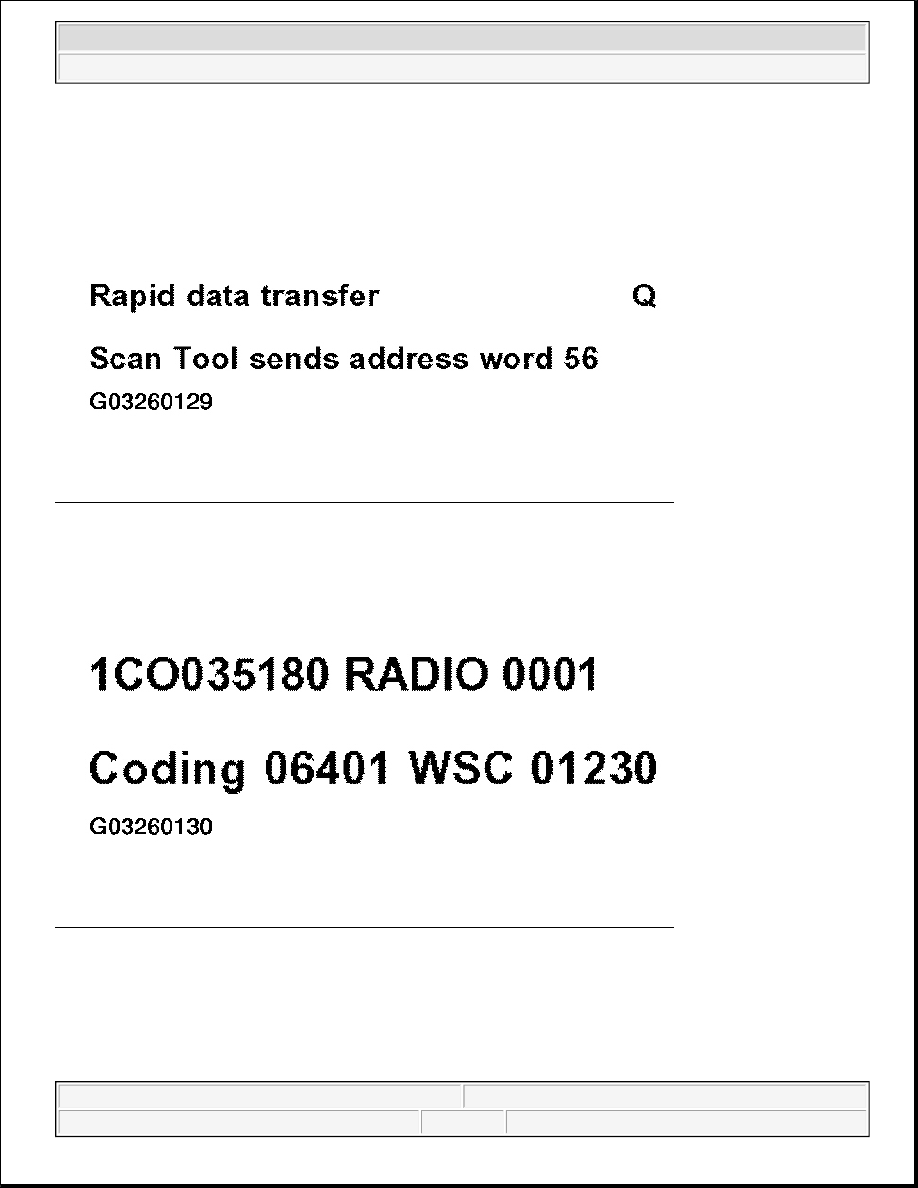

Fig. 4: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (4 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Indicated on display

Fig. 5: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (5 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

1CO035180: Part No. of control module

z

RADIO: Component designation

z

0001: Software version installed in radio

z

Coding 06401: Example of a coding for radio "New Beetle"



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

WSC 01230: Dealership number. Will be automatically stored in control module when entering the
system.

z

Press --> button.

Indicated on radio display during OBD

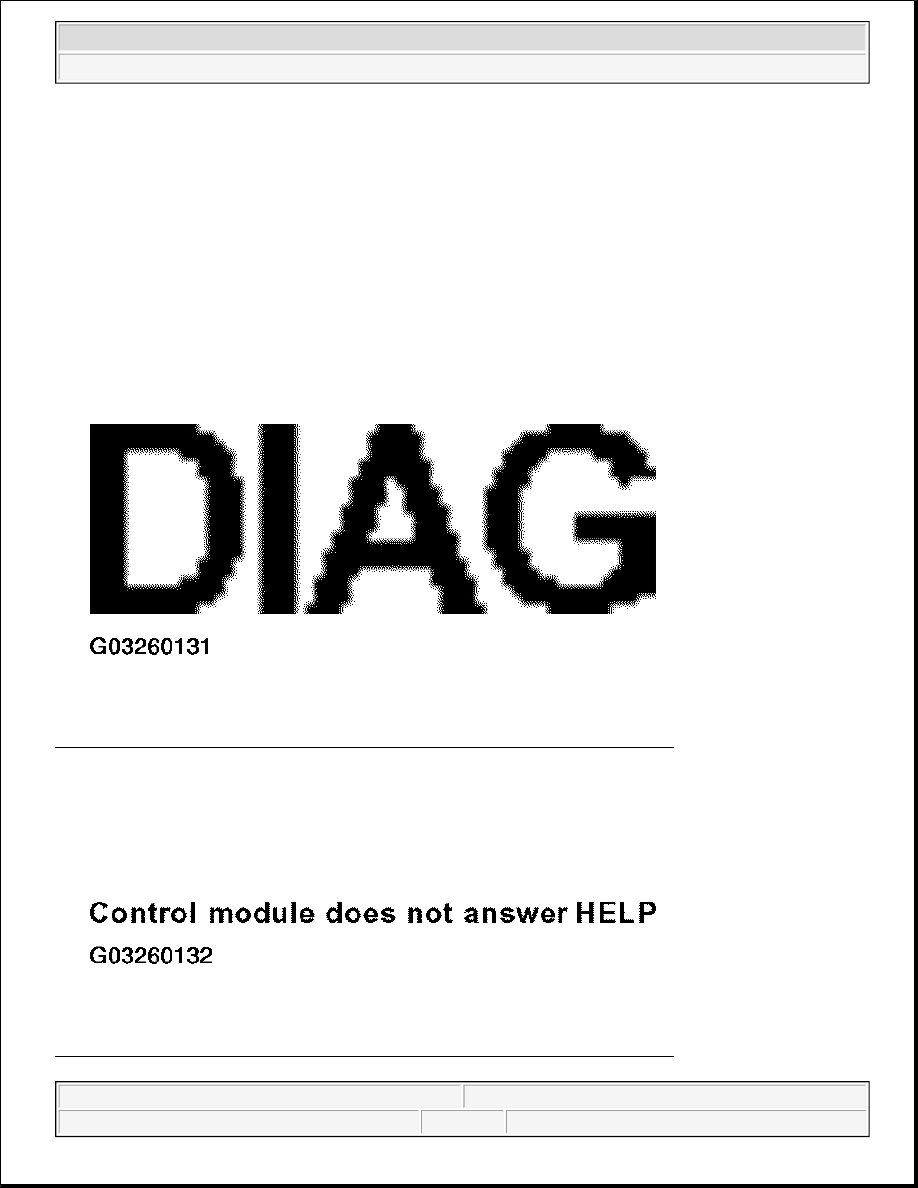

Fig. 6: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (6 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If indicated on display

Fig. 7: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (7 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION:

z

Part numbers are listed here for reference only.

z

Always check with your Parts department for the latest information.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

By pressing HELP button, a list of possible malfunction causes is printed out.

z

After repairing malfunction, insert address word 56

z

Press -Q- button to confirm input.

Indicated on display. For different codings, see CODE CONTROL MODULE (FUNCTION 07) .

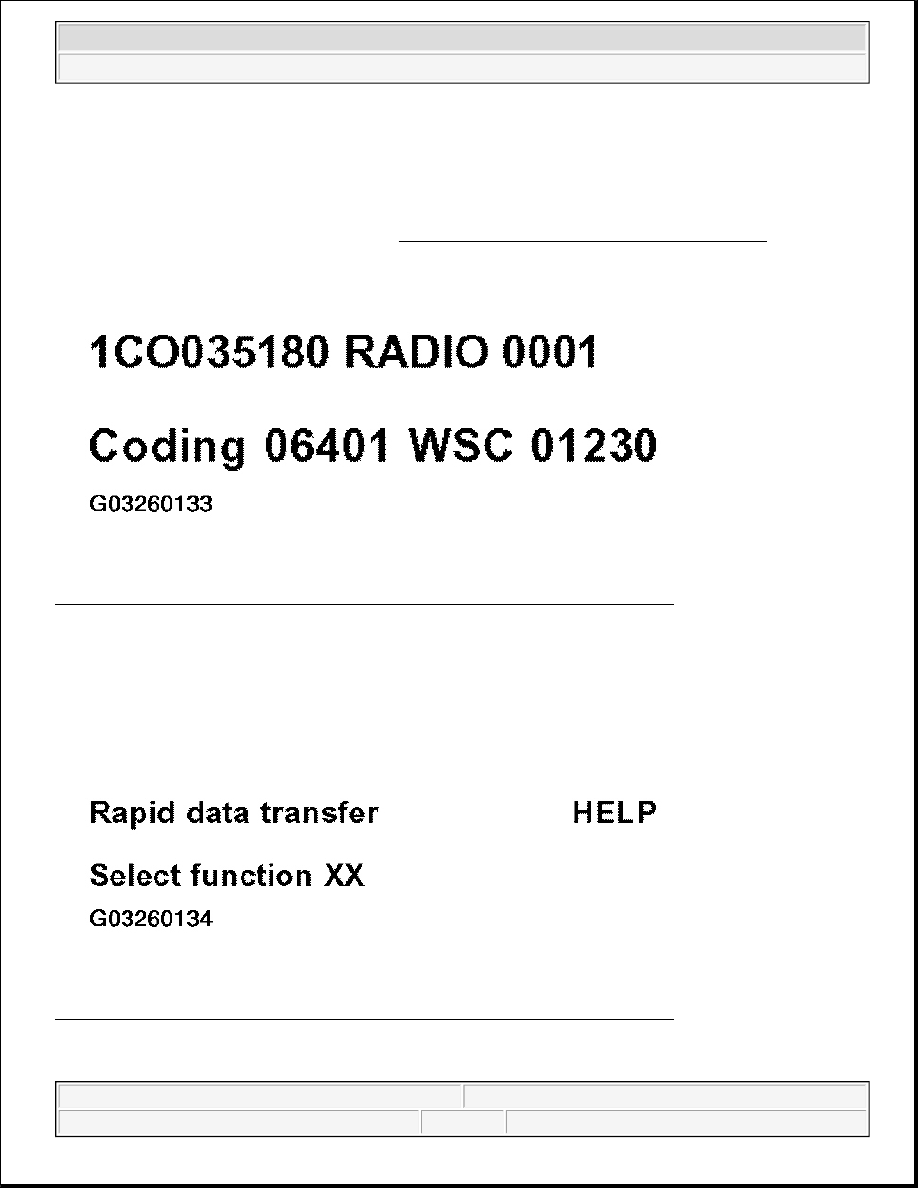

Fig. 8: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (8 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press --> button.

Indicated on display

Fig. 9: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (9 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press HELP button



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
