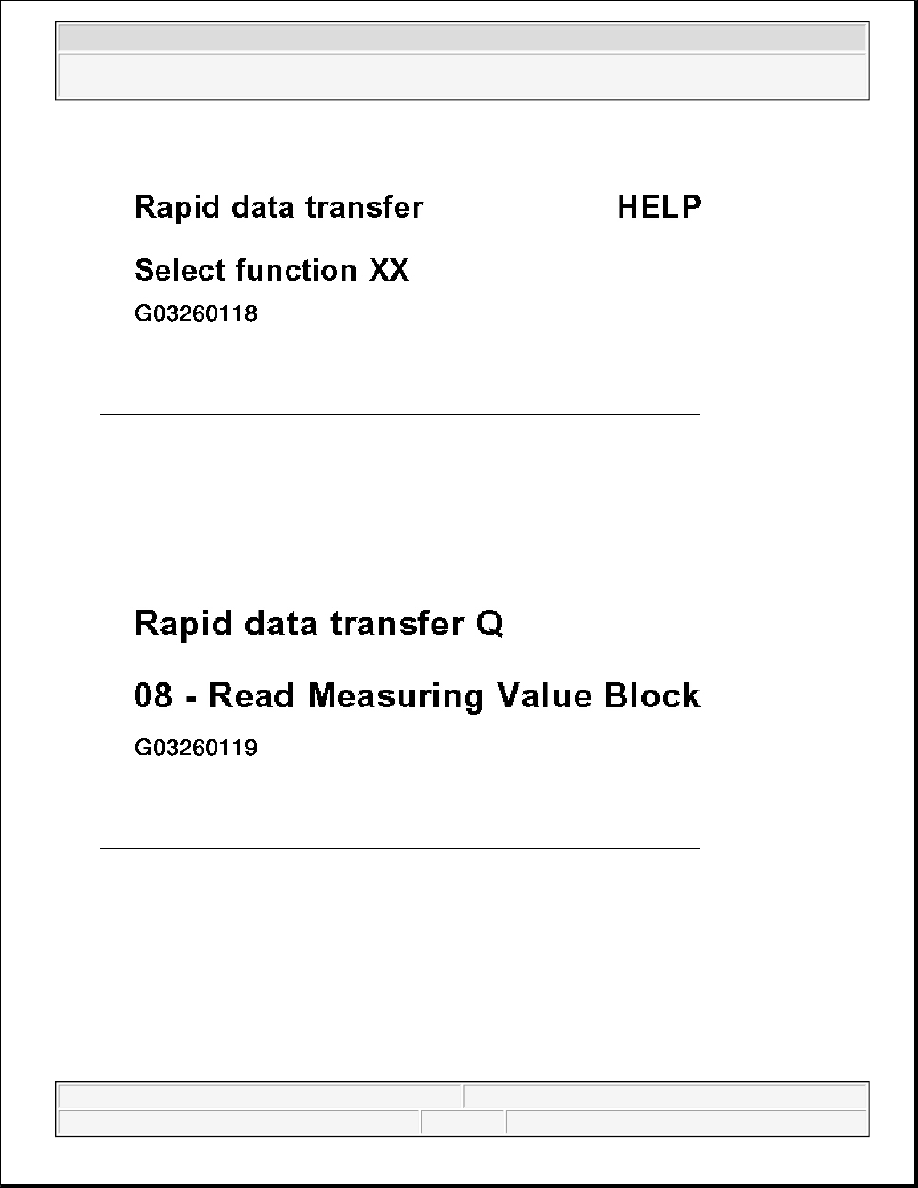

Fig. 219: VAG 1551 Scan Tool Display - Read Measuring Value Block (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 220: VAG 1551 Scan Tool Display - Read Measuring Value Block (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Using the Scan Tool (ST) button pad, enter the required display group number (following example shows
display group 001).

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

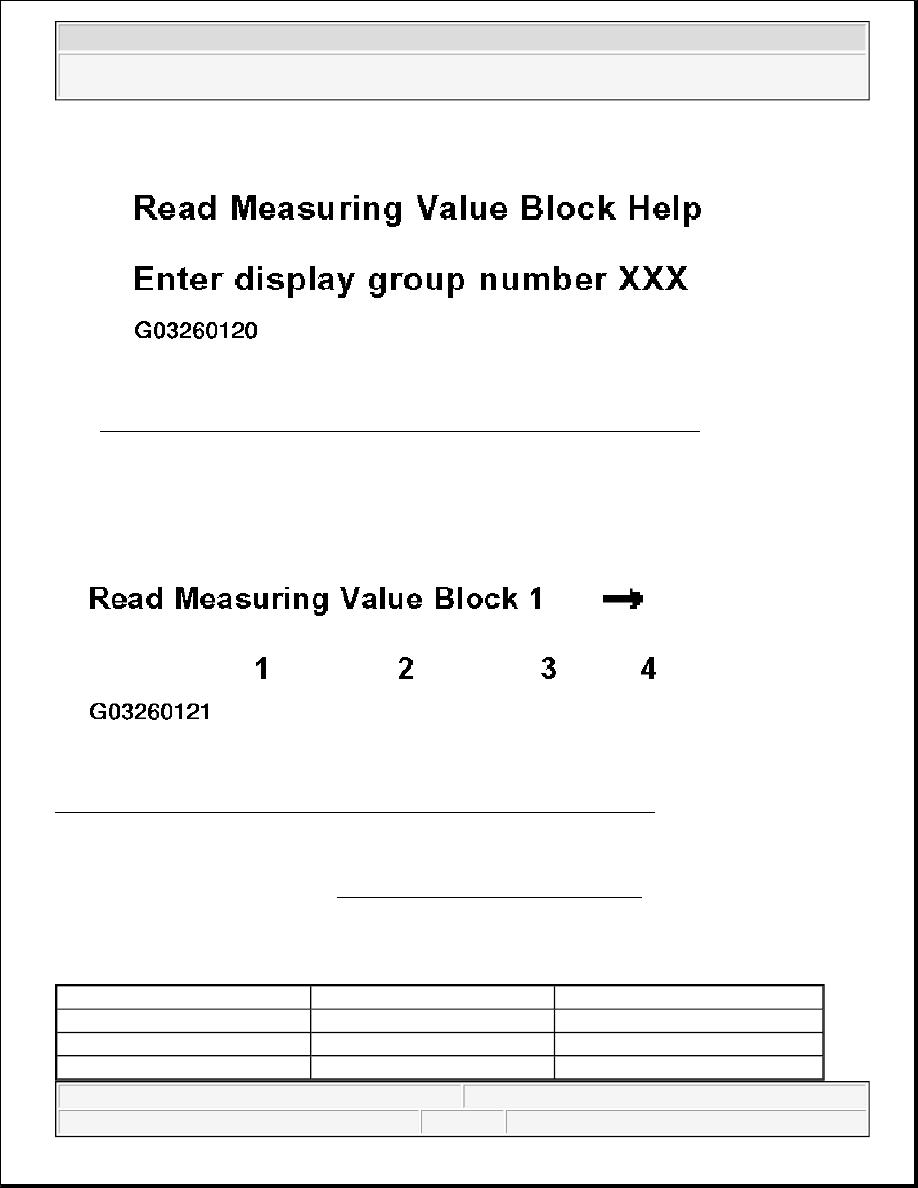

Fig. 221: VAG 1551 Scan Tool Display - Read Measuring Value Block (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (1...4 - Display fields)

Fig. 222: VAG 1551 Scan Tool Display - Read Measuring Value Block (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUP VAG 1551 AND 1552 CHART

NOTE:

Interpreting display groups and evaluating measured values in individual
display fields. See DISPLAY GROUPS, INTERPRETING .
With the printer switched on, the information on the display is printed out. To
easily change between display groups, proceed as follows:

Display group

VAG1551

VAG 1552

Higher

Press button 3

Press --> button

Lower

Press button 1

Press --> button

Skip

Press button C

Press button C



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Displayed after pressing -C- button.

Indicated on display:

z

Enter alternate display group number as needed, See tables beginning. See DISPLAY GROUPS,
INTERPRETING .

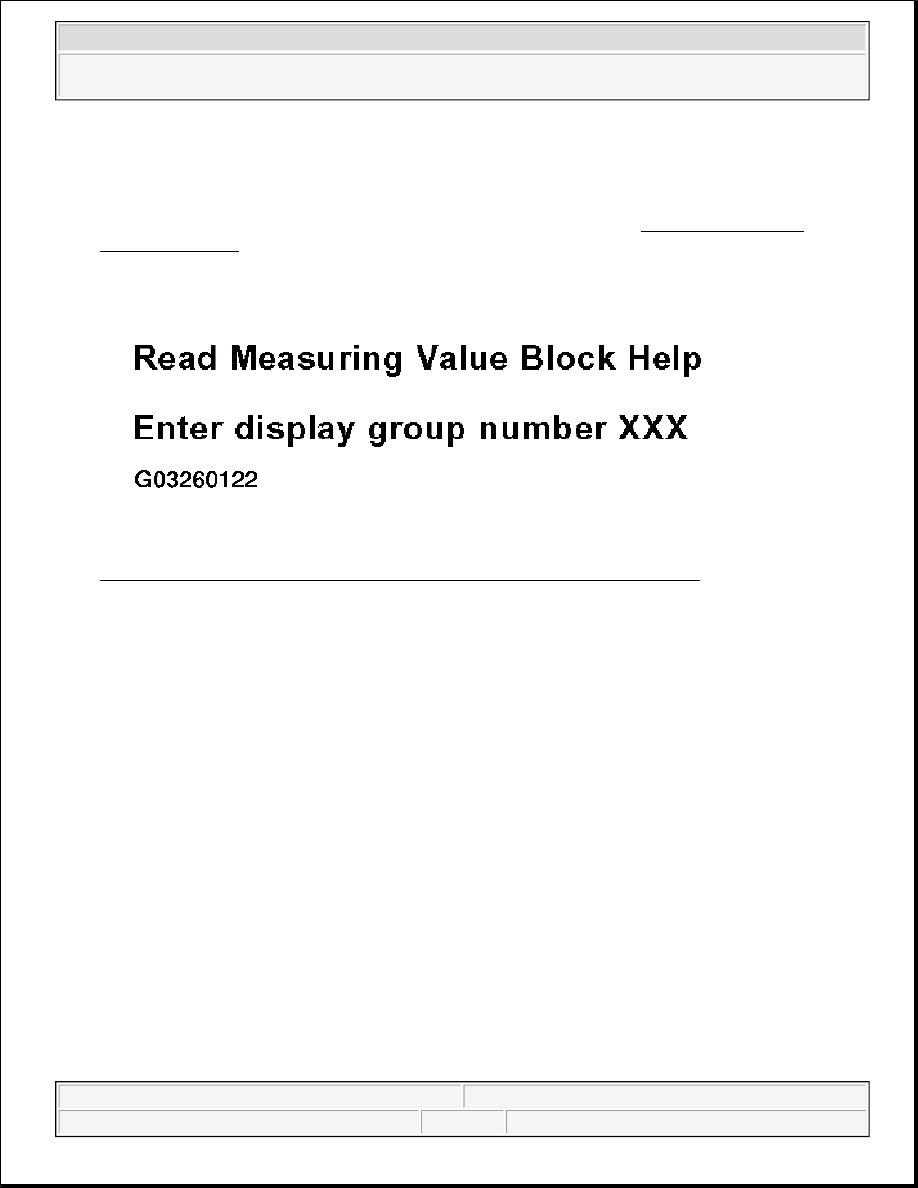

Fig. 223: VAG 1551 Scan Tool Display - Read Measuring Value Block (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The condition of the databus function for control modules which are connected to the power-train databus is
displayed in display groups 125 and 126.

The display fields for control modules which are not installed remain empty.

DISPLAY GROUPS, INTERPRETING

Display group 125

NOTE:

z

Display fields always show actual values transmitted from senders
and sensors. However, instrument cluster display values can differ
from those in the display fields due to internal filtering.

z

Other display groups are possible, but are not required for On Board
Diagnostic program!

NOTE:

z

Display fields in display groups 125 and 126 provide the CAN Data Bus
function status codes of various control modules connected to the vehicle
CAN Data Bus network.

z

If a vehicle is not equipped with control module(s) or components listed in
the following display groups, the applicable display field remains blank.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



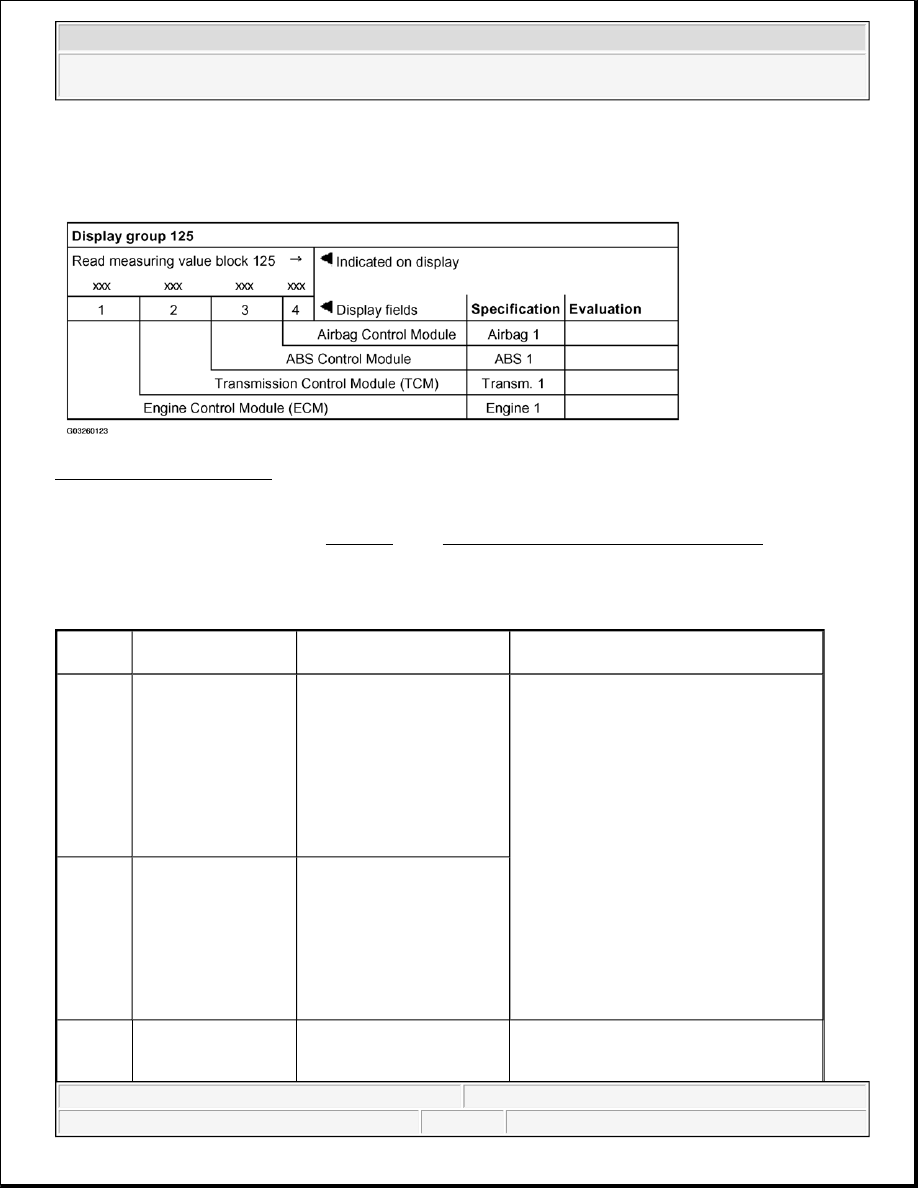

Fig. 224: Display Group 125
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 125

EVALUATING DISPLAY GROUP NUMBER 125

z

Display fields may vary depending on instrument cluster manufacturer
(VDO or MMO).

NOTE:

For evaluation of Fig. 224 , see Evaluating display group number 125 .

Display
field

Description

Display

Corrective actions

1

Engine Control

Module (ECM) -

J220-

Engine 1 = OK

Data transfer from ECM

over CAN Data Bus

network OK

Engine 0 = Not OK

No data transfer from

Engine Control Module

(ECM) over CAN Data Bus

network

No data transfer from CM over CAN Data

Bus network (code 0):

z

Check wiring and connections for

CAN Data Bus to applicable control

module using wiring diagram

2

Transmission Control

Module (TCM) -

J217-

Transm. 1 = OK

Data transfer from TCM

over CAN Data Bus

network OK

Transm. 0 = not OK

No data transfer from TCM

over CAN Data Bus

network

3

ABS Control Module

-J213-

ABS 1 = OK

Data transfer from ABS

control module over CAN

No data transfer from CM over CAN Data

Bus network (code 0):
