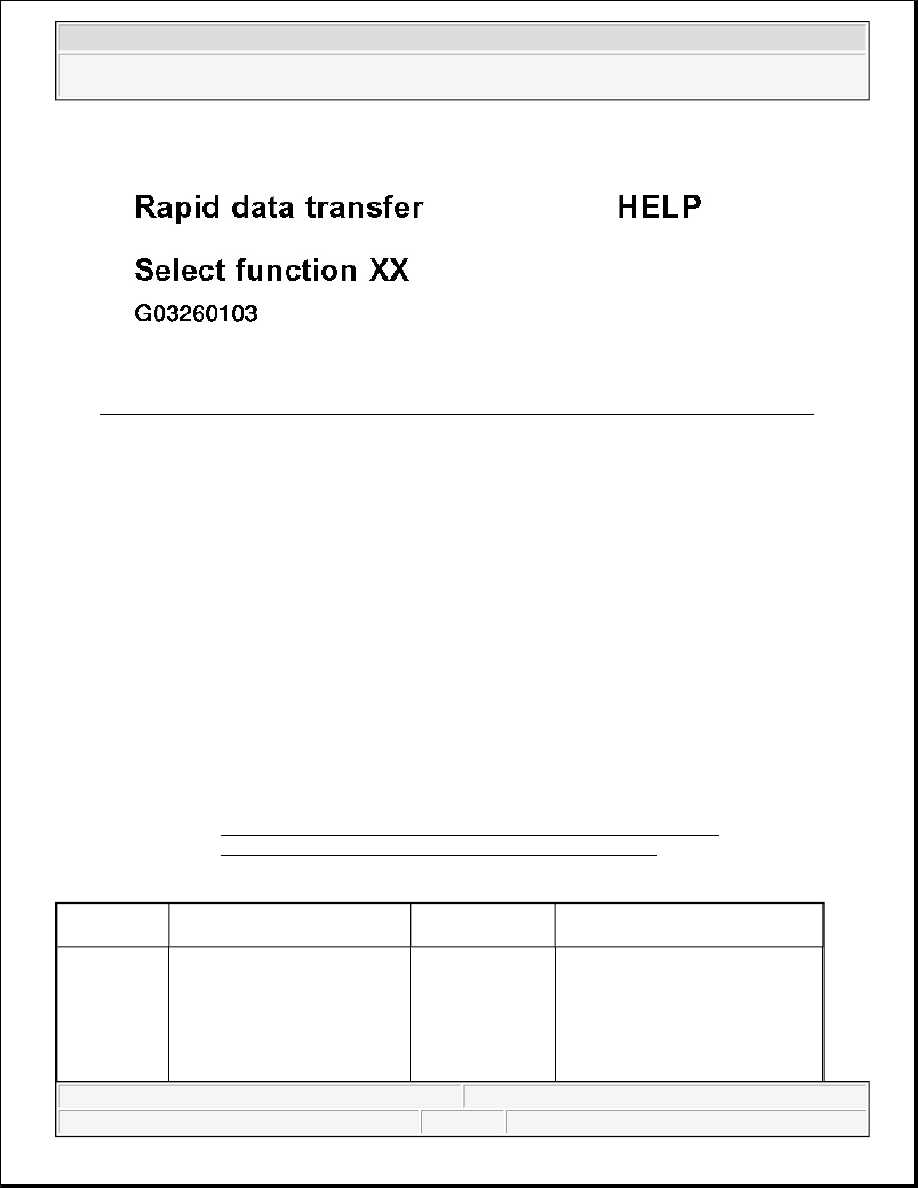

Fig. 200: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Checking (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

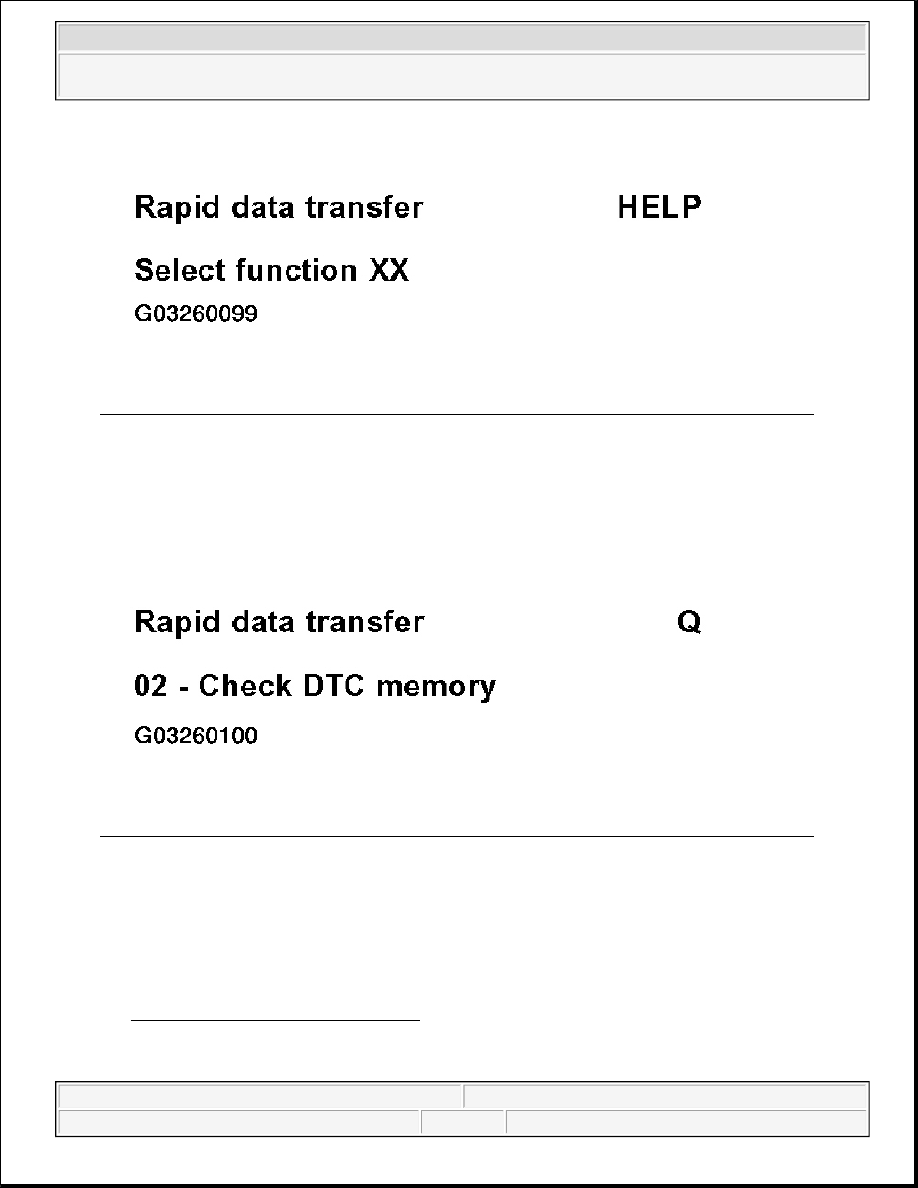

Fig. 201: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Checking (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The number of stored malfunctions appear in the display.

The number of stored DTCs or "No DTC s recognized" appears in the display and are printed out one after
another.

z

When the last DTC has been displayed and printed out, rectify malfunctions as described in DTC table.
See Diagnostic Trouble Code (DTC) table



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

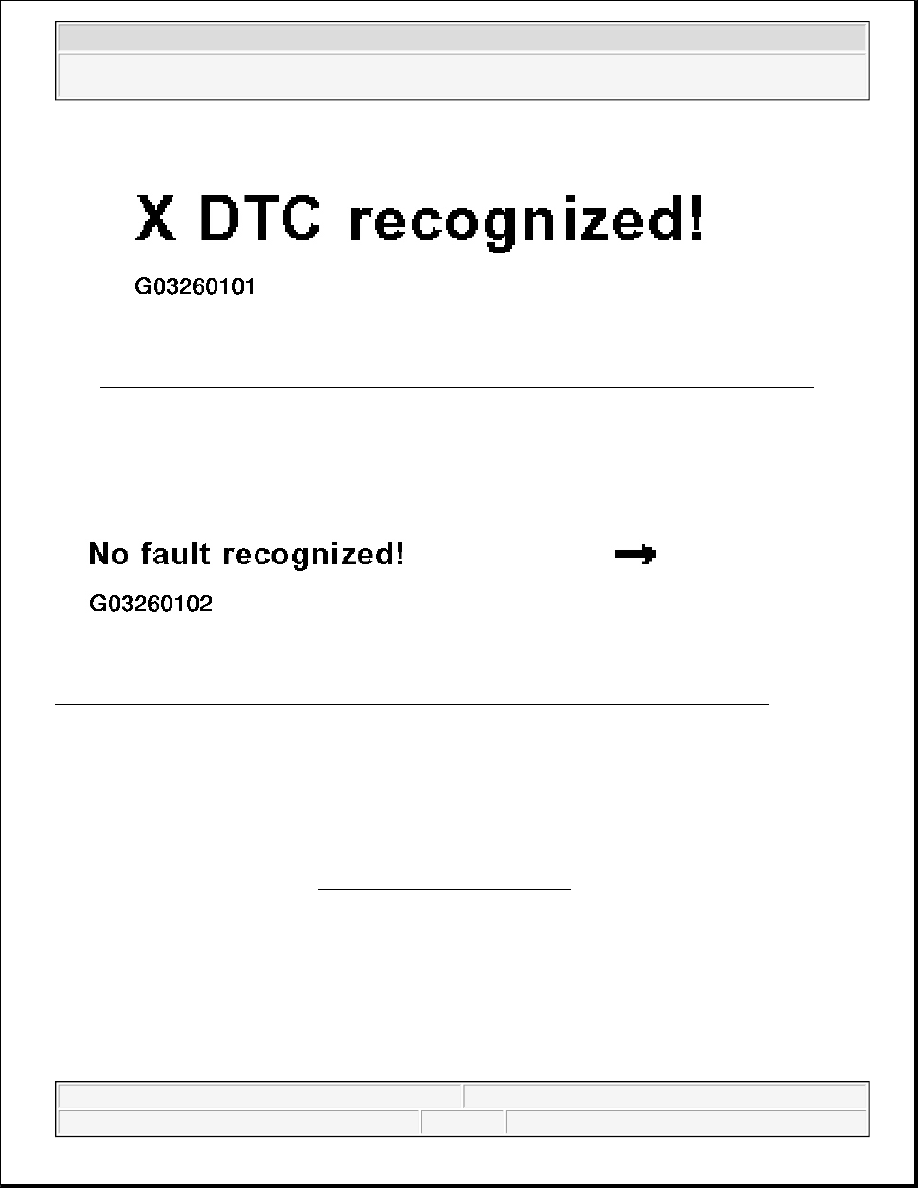

Fig. 202: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Checking (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If "No DTC recognized" is displayed, the program will return to the initial position after pressing --> button.

Fig. 203: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Checking (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

If display not indicated as shown:

See Scan tool operating instructions

z

End output (function 06). See END OUTPUT (FUNCTION 06) .

z

Switch off ignition and disconnect Data Link Connector (DLC).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 204: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Checking (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODE

NOTE:

z

The following table lists all malfunctions, with the corresponding 5 digit
code numbers, that can be recognized by control module with indicator
unit in instrument cluster insert -J285- and printed out by the VAG 1551
Scan Tool (ST).

z

If malfunctions do not occur regularly, these are displayed as occurring
sporadically ("SP").

z

DTC codes appears only on print-out.

z

Before replacing components, check the wiring and connections to these
components as well as ground connections, according to wiring diagram.

z

When repair has been carried out, the Diagnostic Trouble Code (DTC)
memory must always be erased and checked again with VAG 1551 Scan
Tool (ST).

z

If there is a specific complaint and no malfunctions are recognized after
checking Diagnostic Trouble Code (DTC) memory, carry out function 03,
OUTPUT DIAGNOSTIC TEST MODE (DTM), (FUNCTION 03) or function 08,
READ MEASURING VALUE BLOCK (FUNCTION 08) .

VAG 1551
print out

Possible cause

Possible effects

Corrective Action

01044
Control
module
incorrectly
coded

z

A control module

connected to vehicle CAN

Data Bus network is

incorrectly coded

z

A control module

connected to vehicle CAN

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

z

Check DTC memory of all

control modules connected to

vehicle CAN Data Bus,

troubleshoot and repair as

necessary.

z

Confirm correct coding of all



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



DIAGNOSTIC TROUBLE CODE

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05)

Prerequisites

z

Check DTC memory. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
(FUNCTION 02)
 .

z

All malfunctions repaired.

After checking DTC memory:

Indicated on display (select function):

z

Press buttons -0- and -5- to select function 05, "Erase DTC memory."

Data Bus network is

malfunctioning

inoperative

control modules coding

connected to vehicle CAN

Data Bus.

z

Replace control module.

VAG 1551
print out

Possible cause

Possible effects

Corrective Action

01312
Data Bus
Drive

z

Faulty

z

Fault in CAN

Data Bus

Wiring

z

Data Bus Drive

in Bus-Off

condition

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Read measuring value block, function

08, See READ MEASURING

VALUE BLOCK (FUNCTION 08)

z

Check DTC memory of all control

modules connected to vehicle CAN

Data Bus, troubleshoot and repair as

necessary

z

Confirm correct coding of all control

modules coding connected to vehicle

CAN Data Bus.

z

Check CAN Data Bus wiring using

wiring diagram

NOTE:

Erasing DTC memory (function 05) is only possible after checking DTC memory
(function 02). If DTC memory cannot be erased, check DTC memory again and
rectify indicated malfunctions.
