Volkswagen New Beetle. Manual - part 438

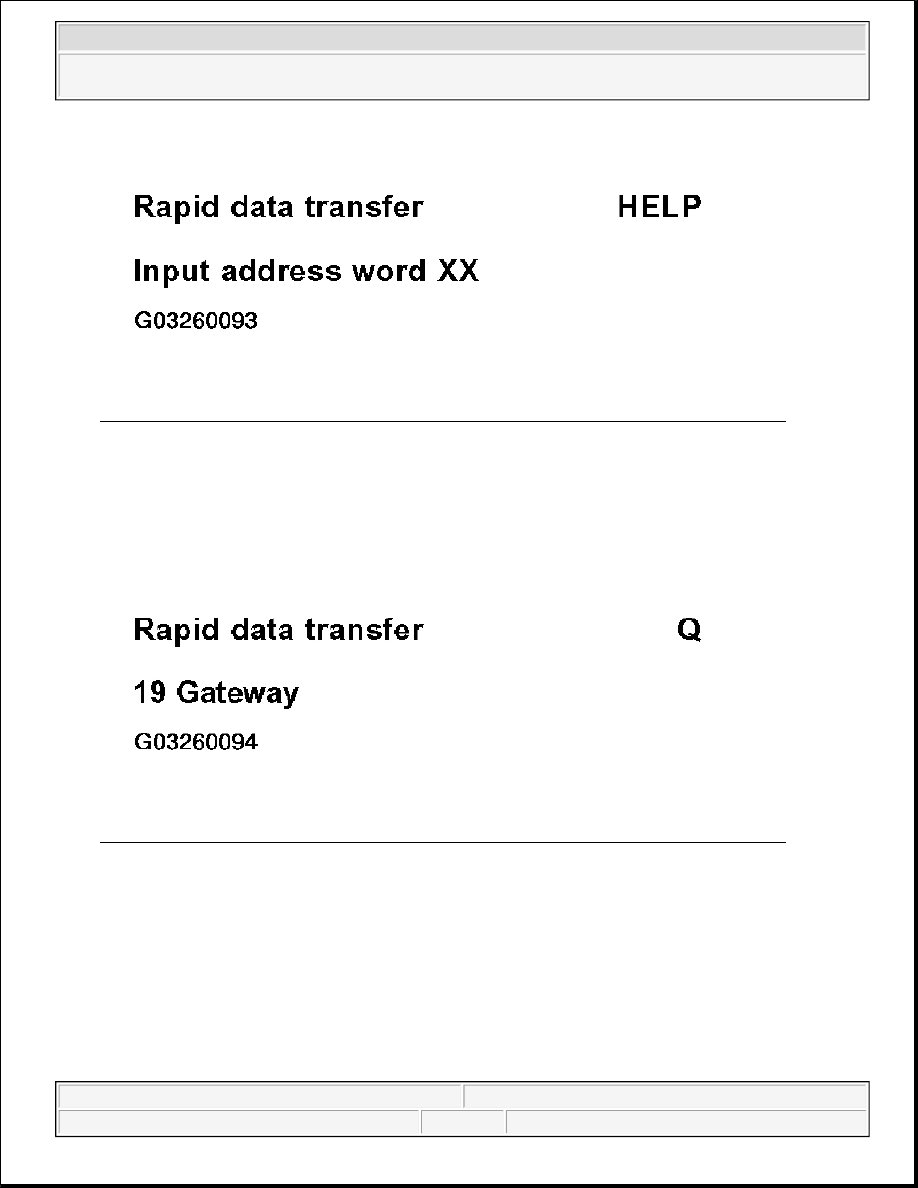

Fig. 194: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface (1 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 195: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

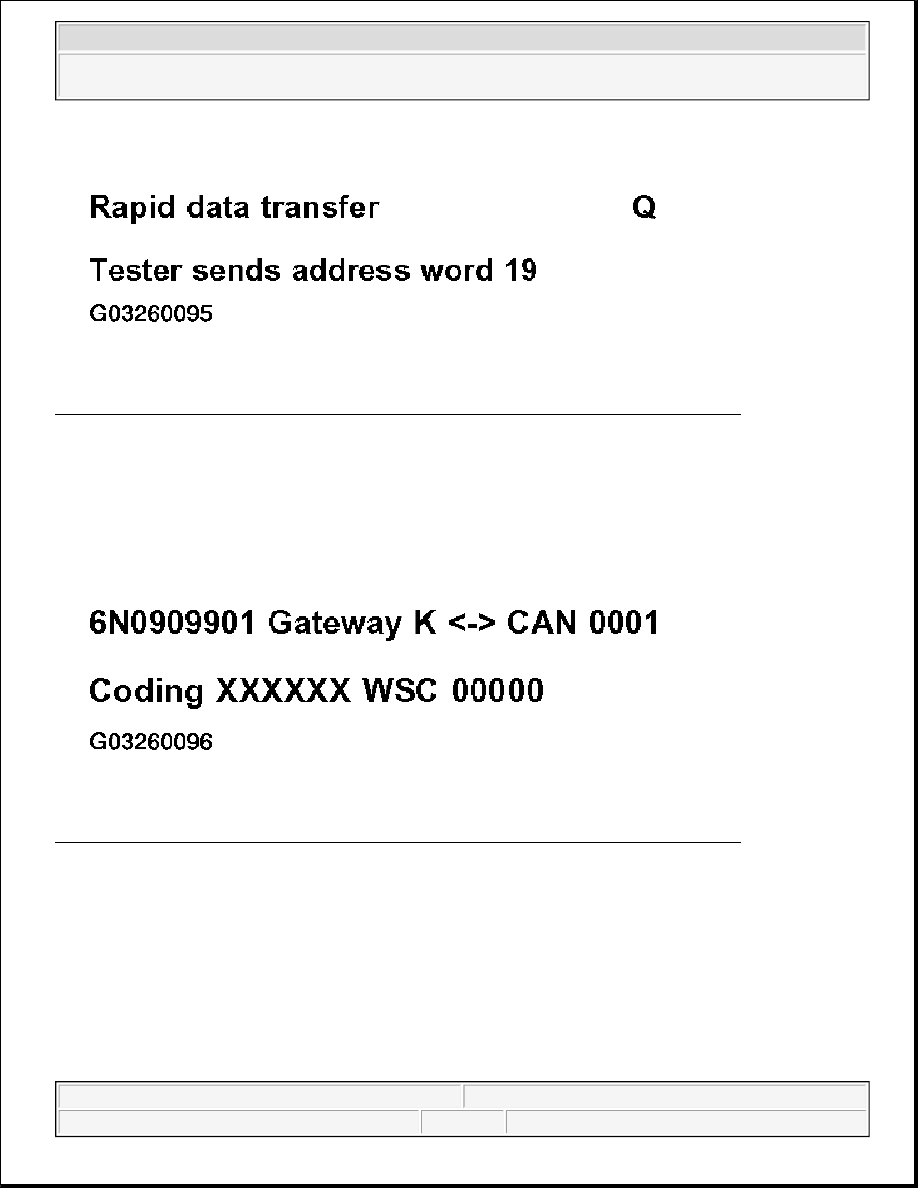

Fig. 196: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only):

Readout, top line

Fig. 197: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

6N0 909 901 = Control module identification

z

Gateway K <-> CAN = System designation (The Data Bus On Board Diagnostic Interface -J533- (which
is integrated into the instrument cluster) is identified as "Gateway")

z

0001 = Software version

Readout, bottom line

z

Coding XXXXXX: Code dependent on engine version and optional equipment

z

WSC 00000 = Workshop Code



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Press --> button.

Indicated on display (select function):

z

List of available functions. See LIST OF AVAILABLE FUNCTIONS (DATA BUS) .

Fig. 198: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

LIST OF AVAILABLE FUNCTIONS

LIST OF AVAILABLE FUNCTIONS (DATA BUS)

Function Explanation

See

02 -

Check Diagnostic Trouble

Code (DTC) memory

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY,

CHECKING (FUNCTION 02) .

05 -

Erase DTC memory

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY,

ERASING (FUNCTION 05)

06 -

End output

END OUTPUT (FUNCTION 06)

07 -

Code control module 10.00

DATA BUS ON BOARD DIAGNOSTIC INTERFACE -

J533- 10.00, CODING (FUNCTION 07)

07 -

Code control module 10.00

DATA BUS ON BOARD DIAGNOSTIC INTERFACE

J533- 10.00, CODING (FUNCTION 07)

08 -

Read measuring value block

READ MEASURING VALUE BLOCK (FUNCTION 08)

NOTE:

z

Press the HELP button to print out a complete list of available functions.
This list indicates the function capability of the VAG 1551 Scan Tool (ST)
only, and does not necessarily reflect the function capability of vehicle
systems equipped with OBD. For address word 19, do not attempt to
select functions other than those listed above.

z

After the function is completed and forwarded with the --> button, the VAG
1551 Scan Tool (ST) returns to the following start position:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display:

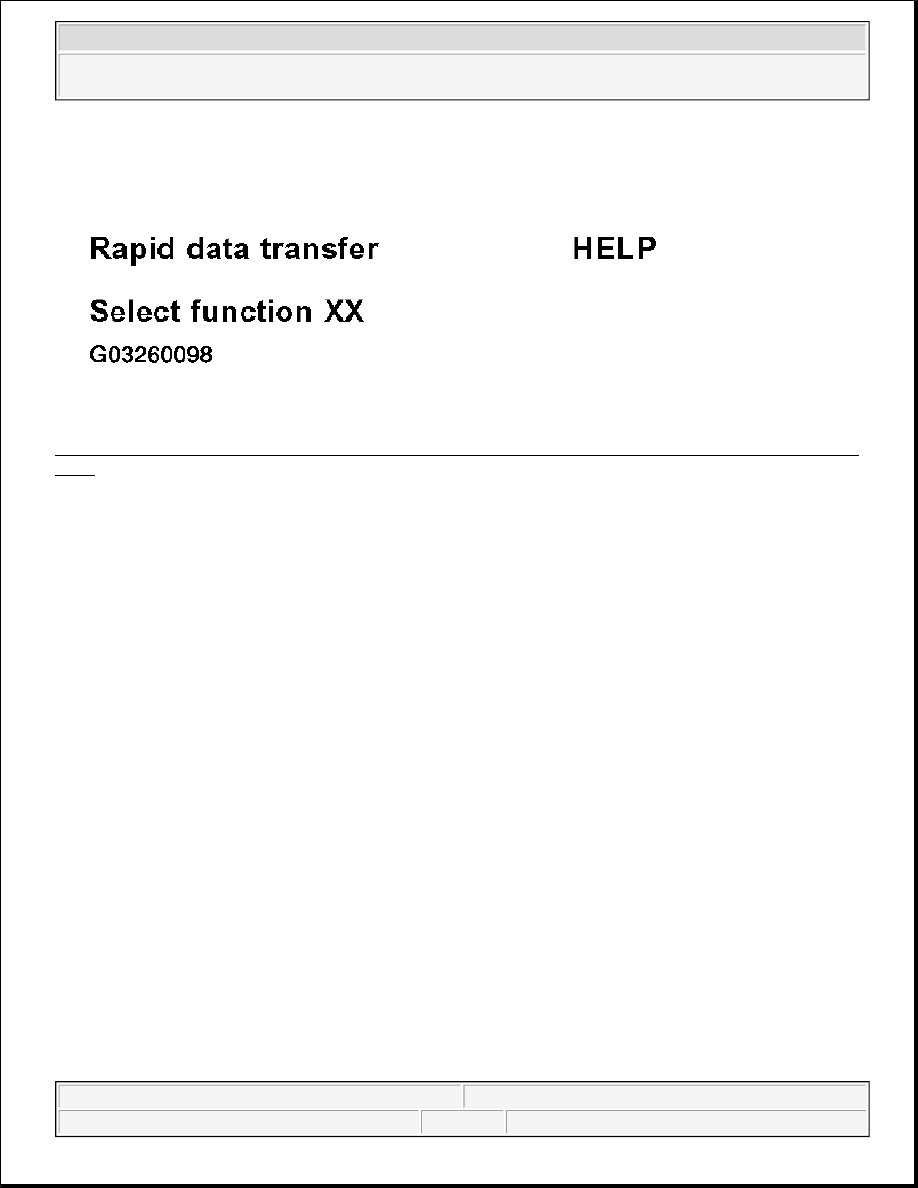

Fig. 199: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface, From 06.99 And Up (6
Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING (FUNCTION 02)

z

Switch on printer with Print button (indicator lamp in key lights up).

Indicated on display (select function):

z

Press buttons -0- and -2- to select function 02 "Check Diagnostic Trouble Code (DTC) memory".

NOTE:

z

DTCs stored in memory along with corresponding malfunction
descriptions can only be displayed by initiating the On Board Diagnostic
program and checking DTC memory (function 02)

z

Displayed DTC information is not constantly updated. Information can only
be displayed information by initiating the On Board Diagnostic program
and checking DTC memory (function 02) or with function 05 "Erase DTC
memory".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
