Volkswagen New Beetle. Manual - part 437

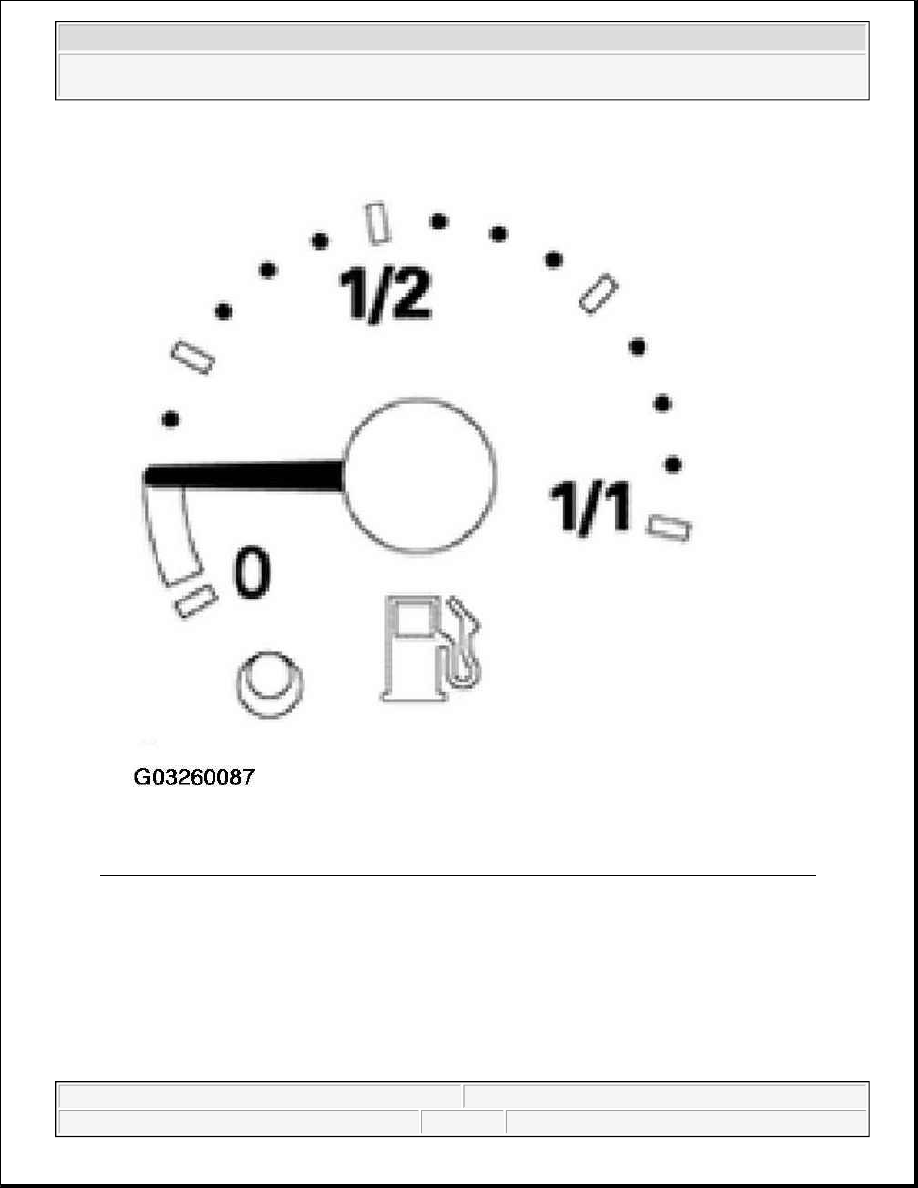

Fig. 188: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (10 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Indicated on display (example only):

z

Press -Q- button to confirm input .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

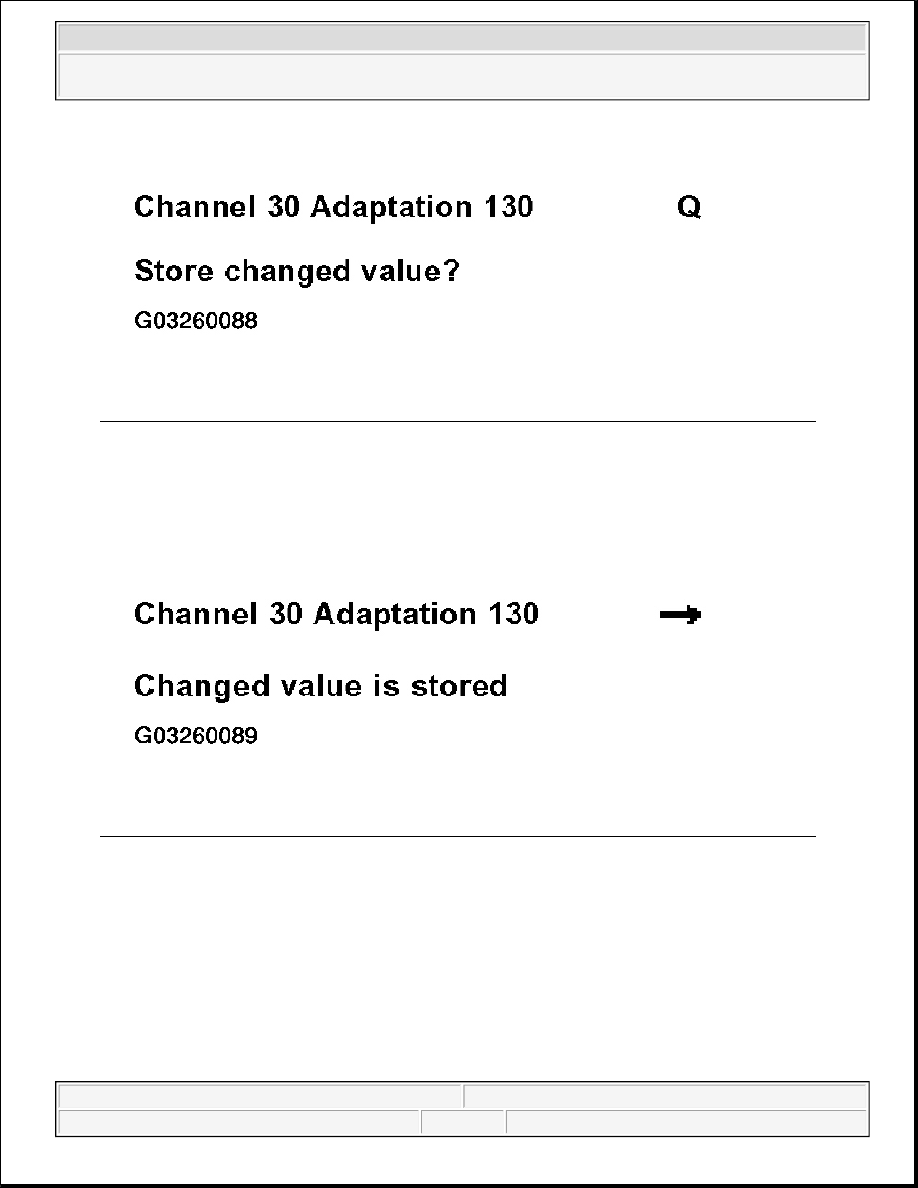

Fig. 189: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (11 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Indicated on display:

z

Press --> button to complete adaptation sequence .

Fig. 190: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (12 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press buttons -0- and -6- to select function 06 "End output".

NOTE:

If fuel gauge cannot be adapted correctly, replace fuel gauge sender.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

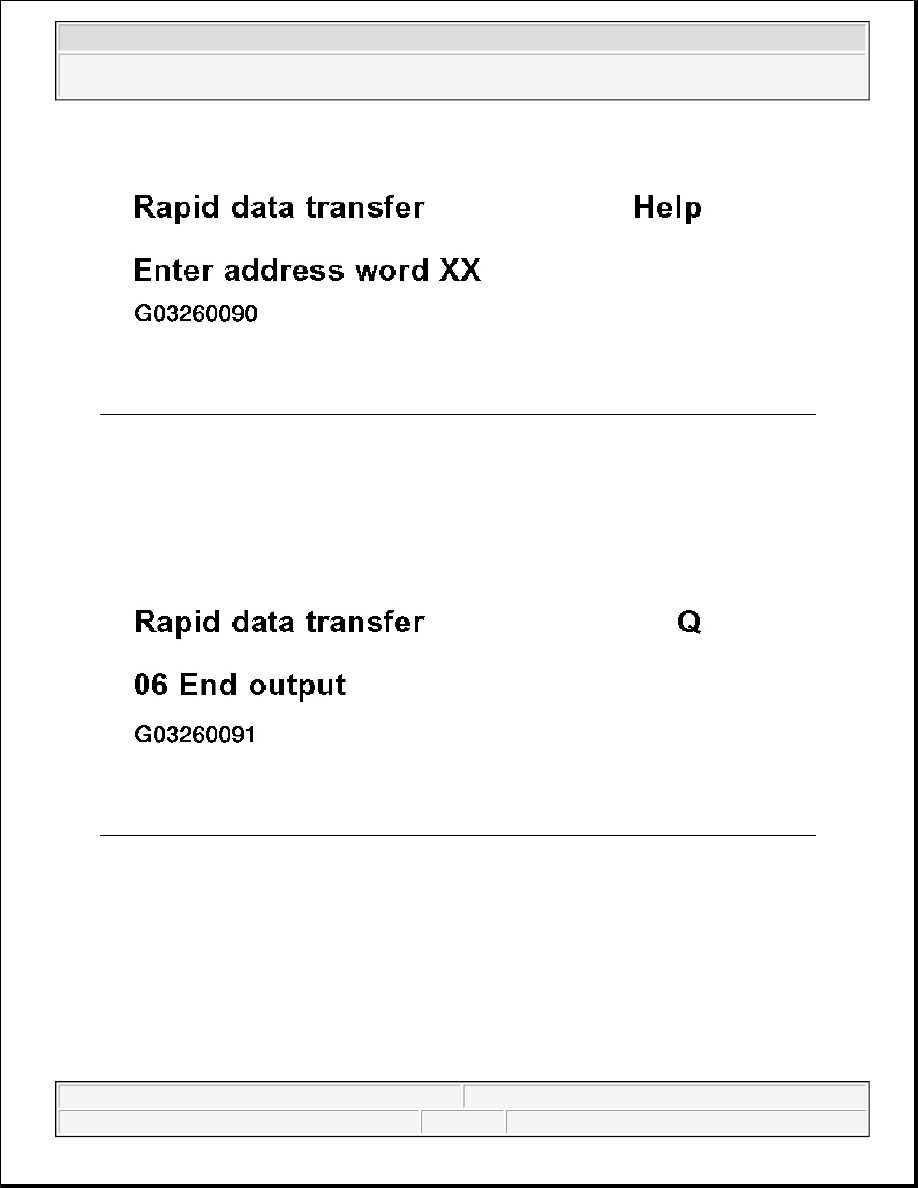

Fig. 191: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (13 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 192: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (14 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

The tester is now in basic function again.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 193: VAG 1551 Scan Tool Display - Fuel Gauge Checking, From 10.00 Models (15 Of 15)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- "GATEWAY"

The Data Bus On Board Diagnostic Interface -J533- (which is integrated into the instrument cluster) enables
data to be exchanged between the vehicle CAN Data-Bus network and the Data Link Connector (DLC) "K-
wire".

The Data Bus On Board Diagnostic Interface -J533- has specific On Board Diagnostic (OBD) capabilities and
requires a separate address word.

On replacement instrument clusters, the Data Bus On Board Diagnostic Interface -J533- must be coded
according to vehicle market version and equipment level variables, See DATA BUS ON BOARD
DIAGNOSTIC INTERFACE -J533- UP TO 10.00 MODELS, CODING (FUNCTION 07)
 .

Connect VAG 1551 Scan Tool (ST), select 1 "Rapid Data Transfer", switch on ignition.

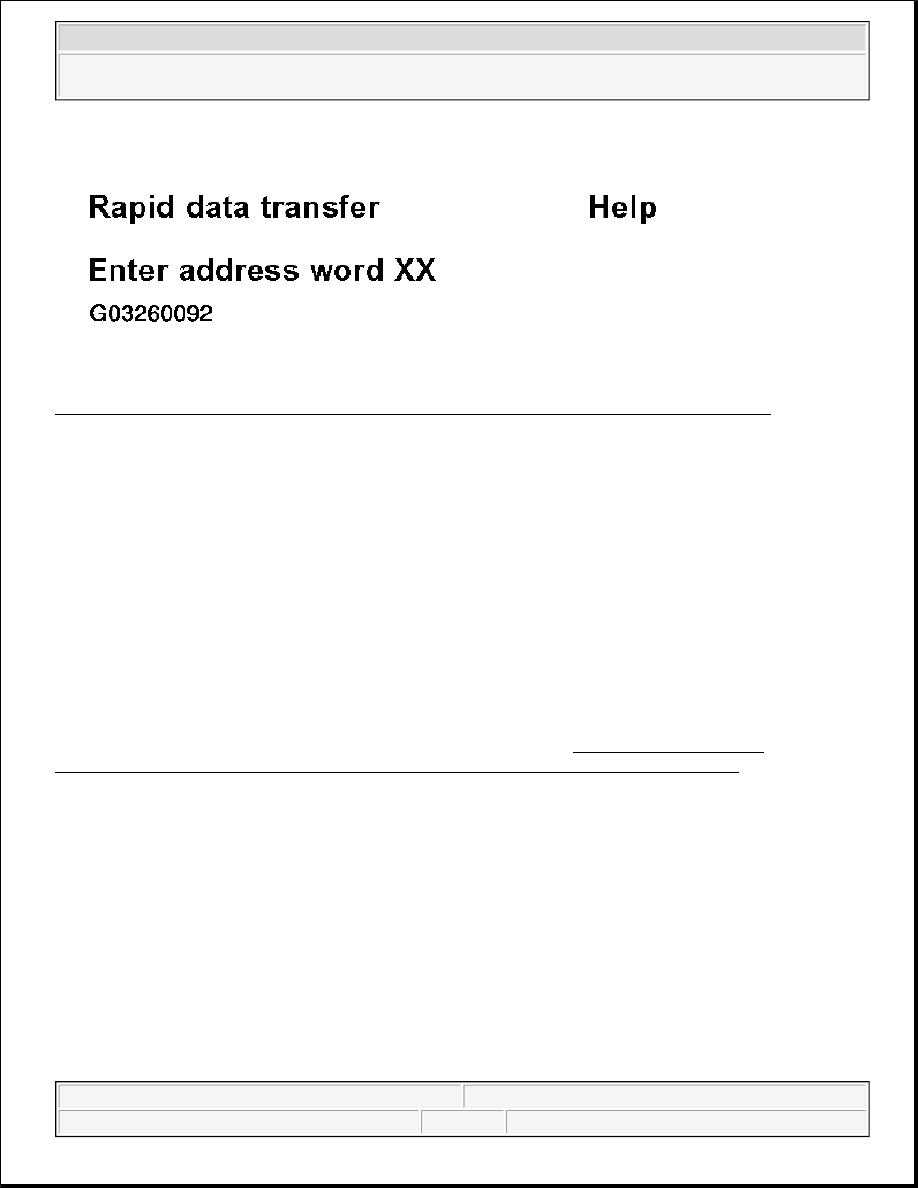

Indicated on display:

z

Press buttons -1- and -9- to select Gateway address word 19.

NOTE:

Instrument clusters FROM 06.99 AND UP are integrated into the vehicle CAN
Data Bus network (may also be known as "CAN-Bus" or "Data-Bus").



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
