securely located in the bracket -arrow-.

z

Install CD changer protective cover -1-, ensuring the tips at the bottom of the cover align with their slots
in the CD changer bracket.

z

Secure cover and bracket with screws from top.

z

Tightening torque: 3 N.m (27 in lb)

z

Code "Sound System" for CD operation using VAG 1551/1552 Scan Tool (ST), See Code Control
Module (function 07)


z

Refer to and check proper operation of CD changer.

NOTE:

z

Radio/CD OBD function is inoperative if radio system is not coded for
CD operation.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



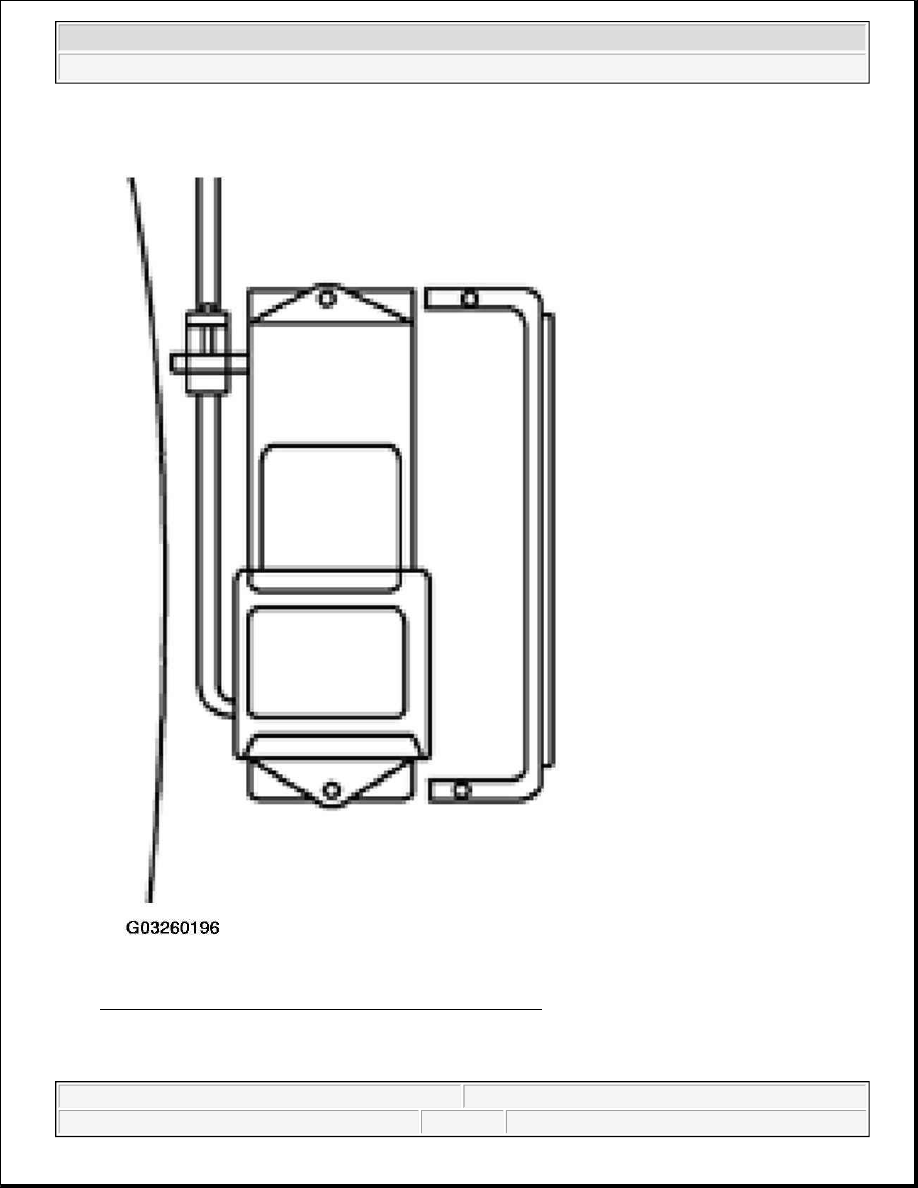

Fig. 71: Installing CD Changer Into CD Changer Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CD CHANGER - M.Y. 1999 THROUGH 07.02 PRODUCTION, INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



The following describes the factory approved service installation of Volkswagen CD changers into New Beetle
models from m.y. 1999 through 07.02 production equipped with "Premium V" or "Premium V - Monsoon"
radios.

CD changer: 1J6 035 111

Installation kit: 1 C0 098 201

Installing

Installed position: Left rear of luggage compartment, just behind folding rear seat.

CD prep (changer cable and connector routing) visible from inside luggage compartment, at left rear wheel
well.

z

Lift luggage compartment carpet and cut as shown on carpet back.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

CAUTION:

z

Part numbers are for reference only. Always check with your Parts
Department for the most up to date information.

z

Always confirm CD changer and radio compatibility with your Parts
Department.

NOTE:

z

Carefully review all of the following instructions before proceeding with
installation.

z

Never install CD changer in a location, position, or manner other than
specified by these instructions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



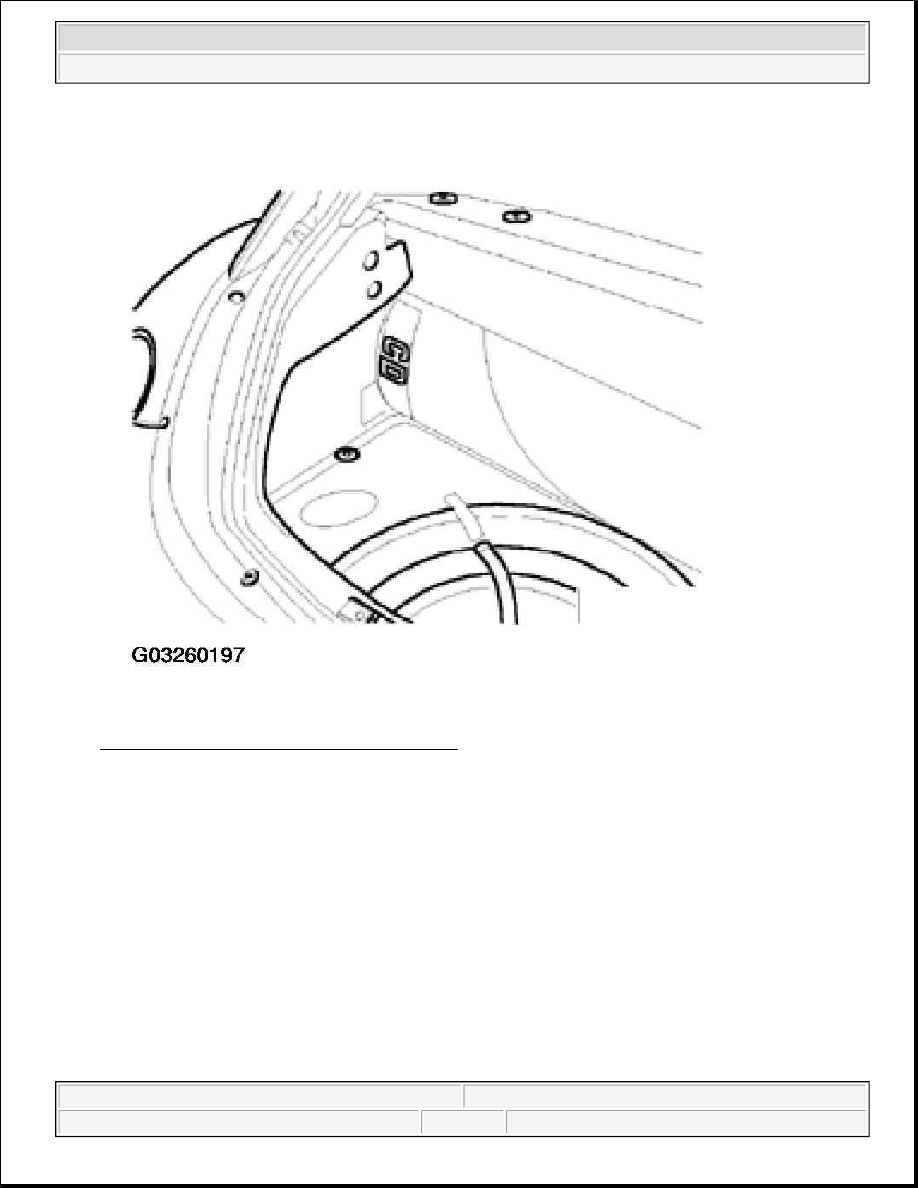

Fig. 72: Lifting Luggage Compartment Carpet
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Note location of three CD changer bracket mounting holes -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
