Volkswagen New Beetle. Manual - part 395

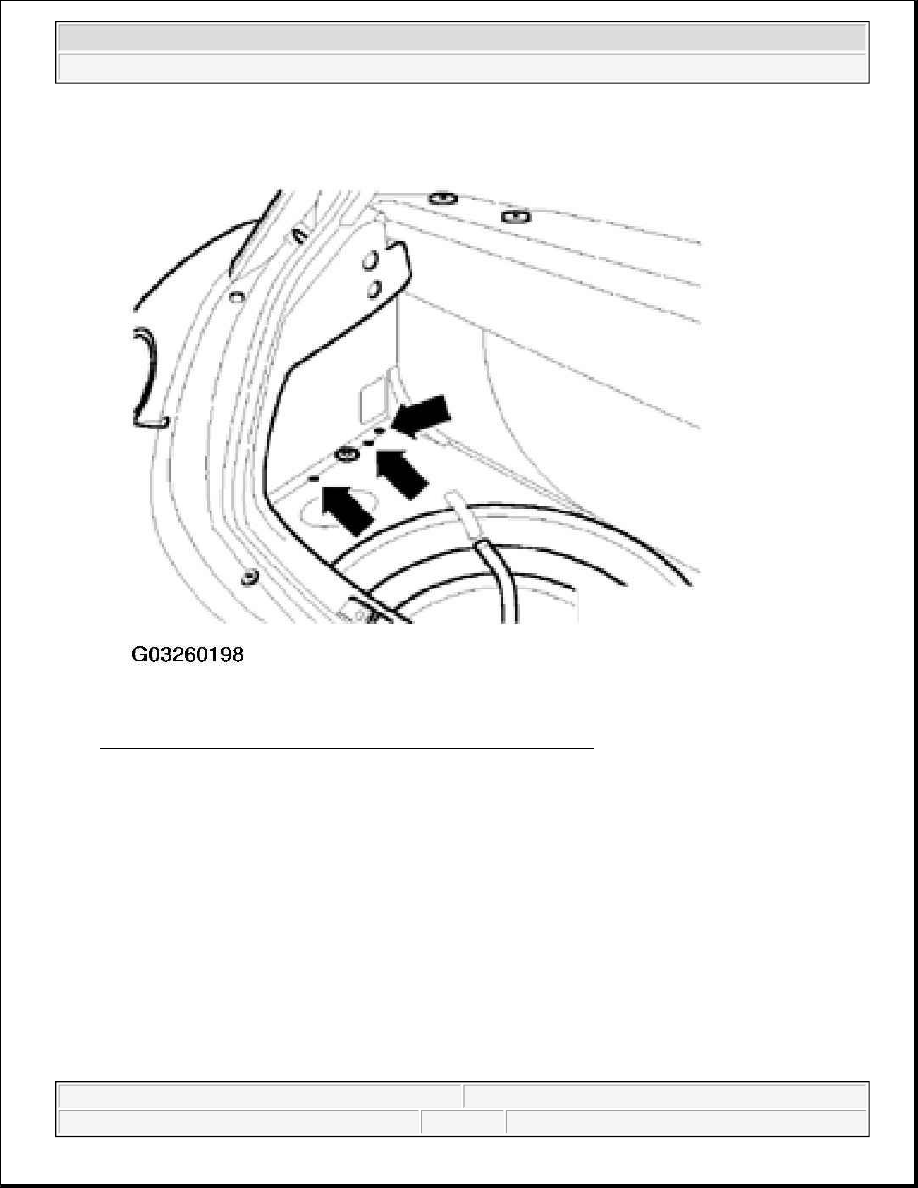

Fig. 73: Identifying Three CD Changer Bracket Mounting Holes
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove CD changer harness connector cover.

z

Release harness connector as shown.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

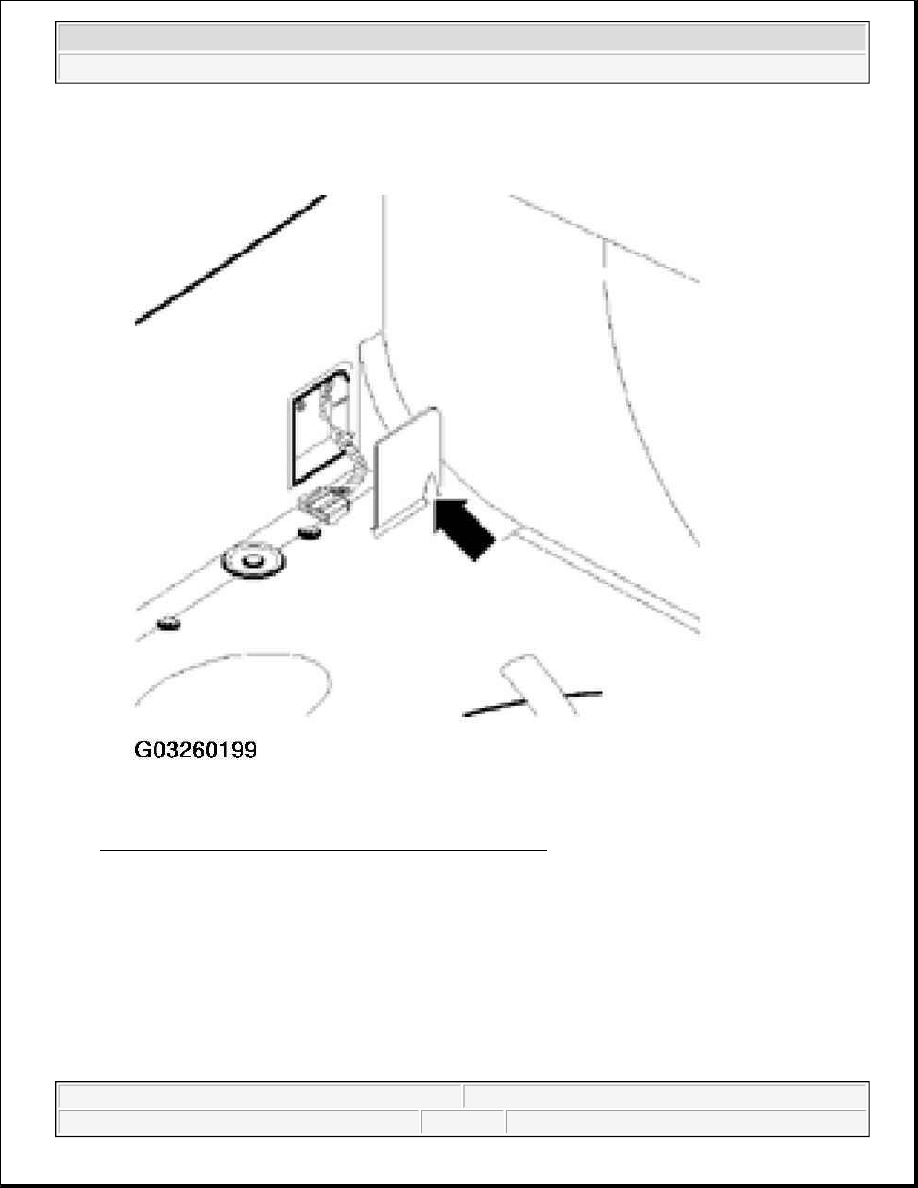

Fig. 74: Removing CD Changer Harness Connector Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Locate cutting mark inside cover.

z

Cut marked area as shown -arrow-.

z

Refit luggage compartment carpet (note area removed).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

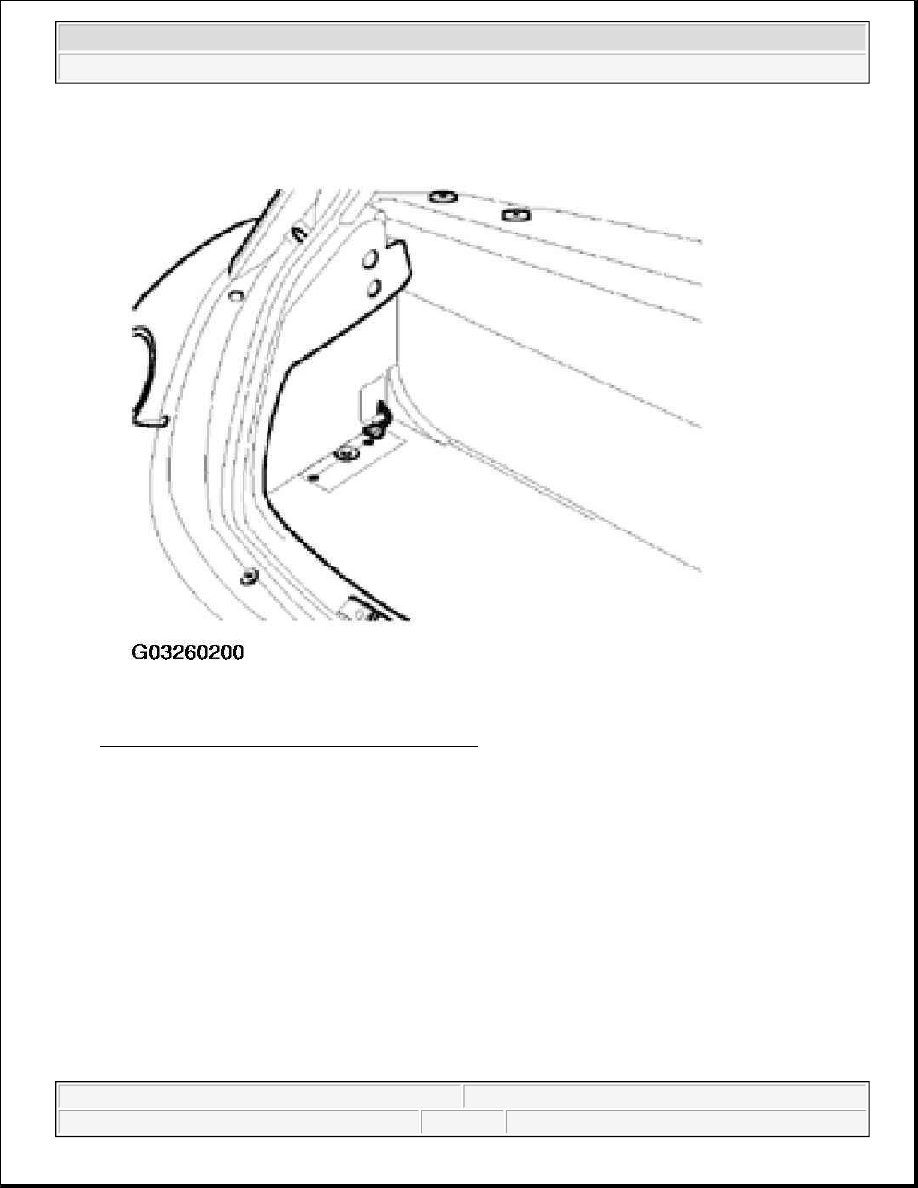

Fig. 75: Installing Luggage Compartment Carpet
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Mount CD changer bracket -1- to floor using hex screws -2-.

z

Tightening torque: 4.5 N.m (39 in lb)

CD changer, preparation



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

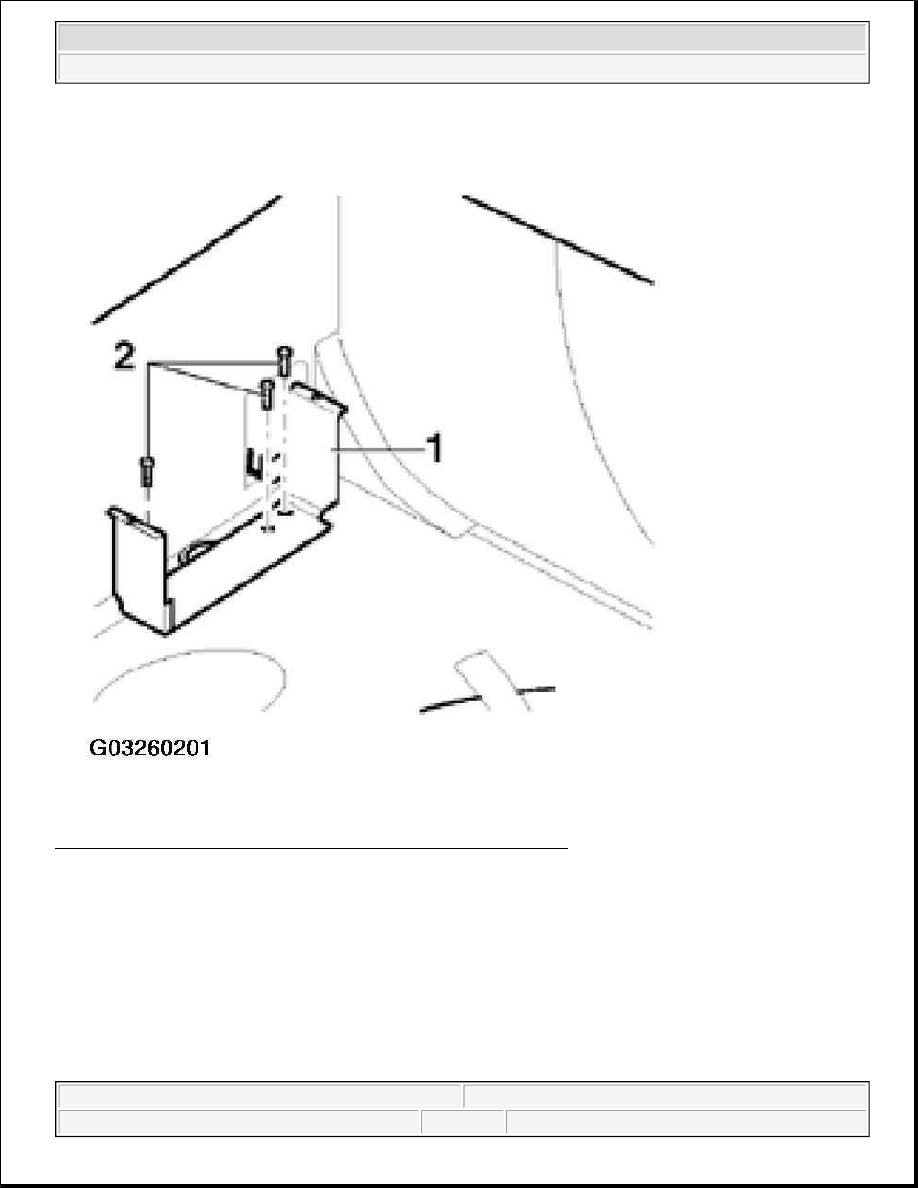

Fig. 76: Installing CD Changer Bracket To Floor With Hex Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Verify both CD changer position settings. Settings must be located on top.

If not, loosen lateral screws, slide them toward top into "V" position and tighten.

z

Tightening torque: 3 N.m (27 in lb)

NOTE:

z

CD playback will skip if switches are not set correctly.

z

Always check/set switches prior to CD installation.
