Volkswagen New Beetle. Manual - part 381





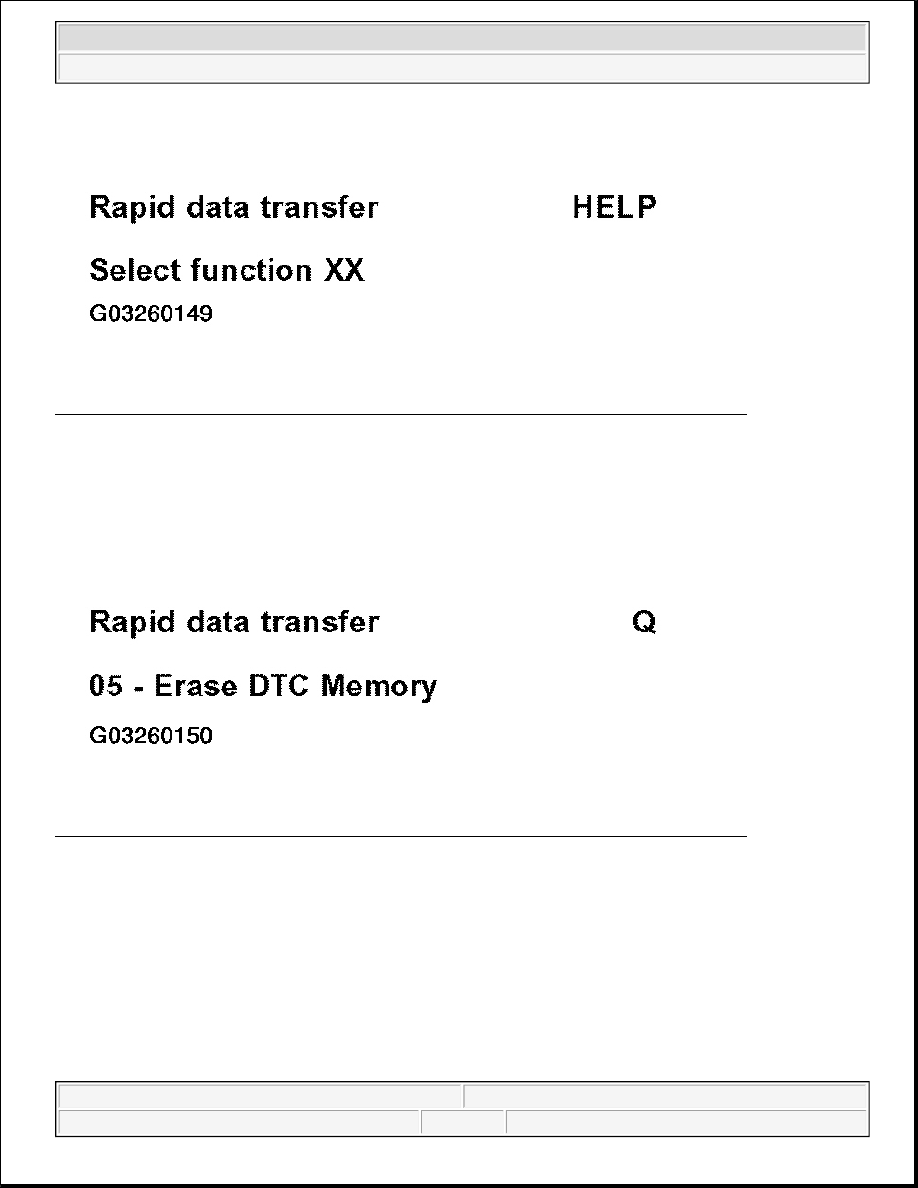

Fig. 24: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (1 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -5- to select "Erase DTC Memory" function 05.

Indicated on display

Fig. 25: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (2 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

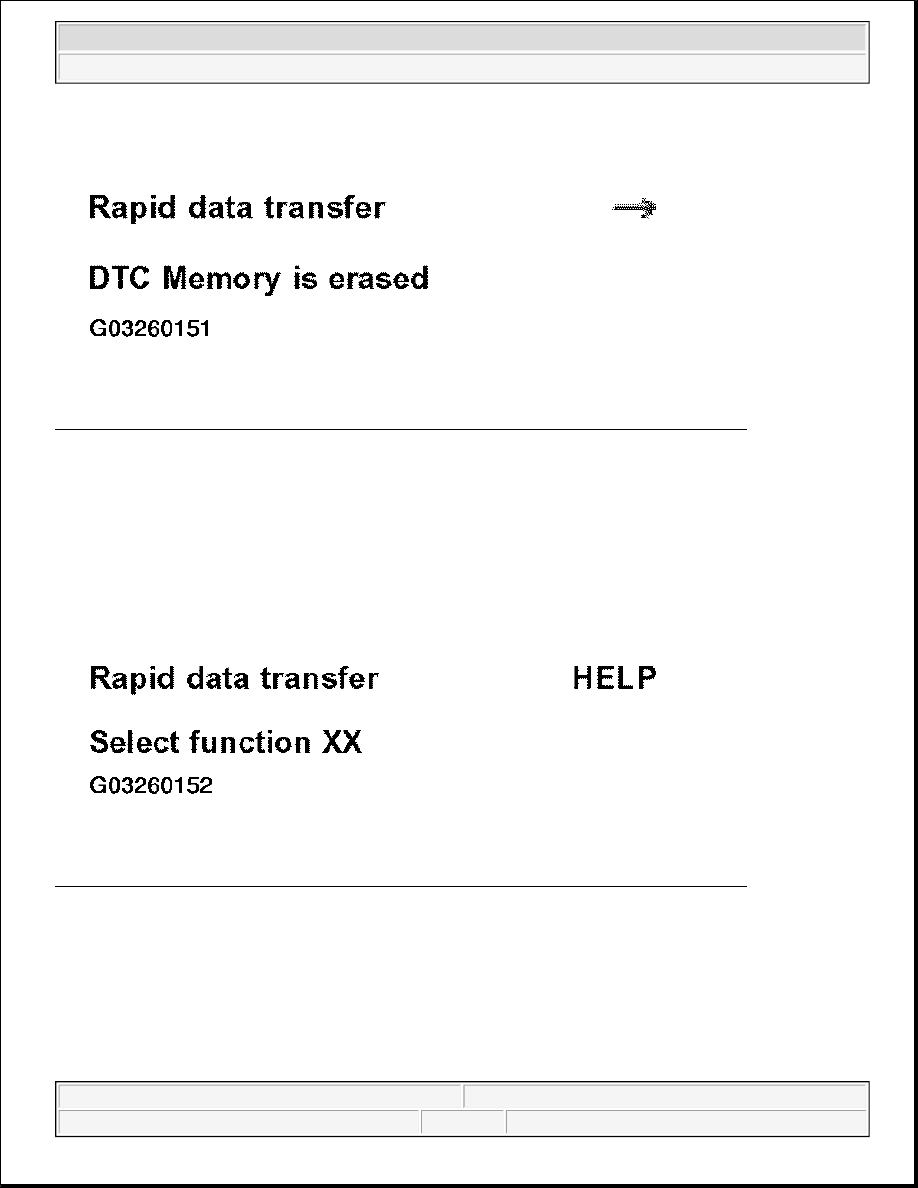

Fig. 26: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (3 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC memory is now erased.

z

Press --> button.

Indicated on display

Fig. 27: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing (4 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

z

If this appears on the display, the test sequence is faulty.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function 06 "End Output".

Indicated on display

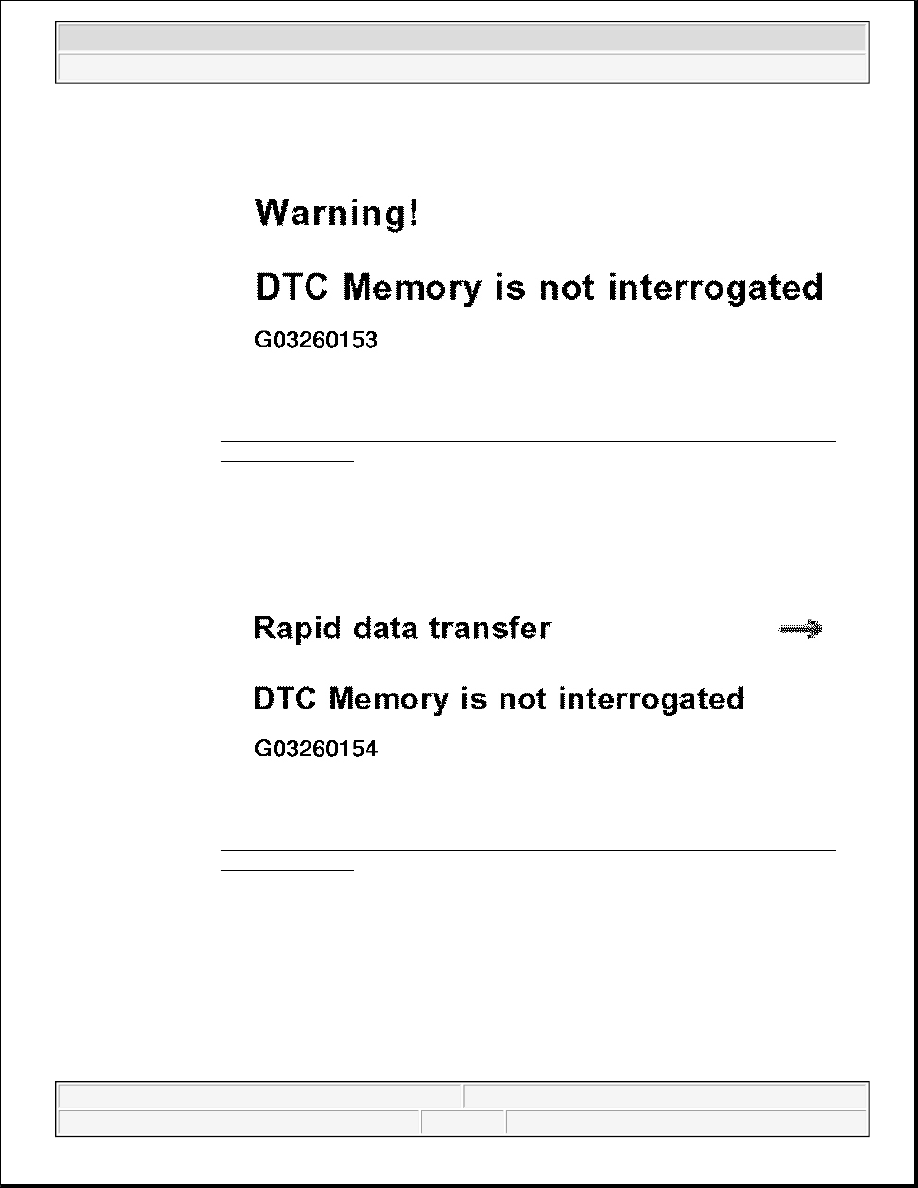

Fig. 28: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing (5 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

If this appears on the display, the test sequence is faulty.

Fig. 29: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing (6 Of 6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Follow the test sequence exactly: First check DTC memory, if necessary
repair malfunctions, then erase DTC memory.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

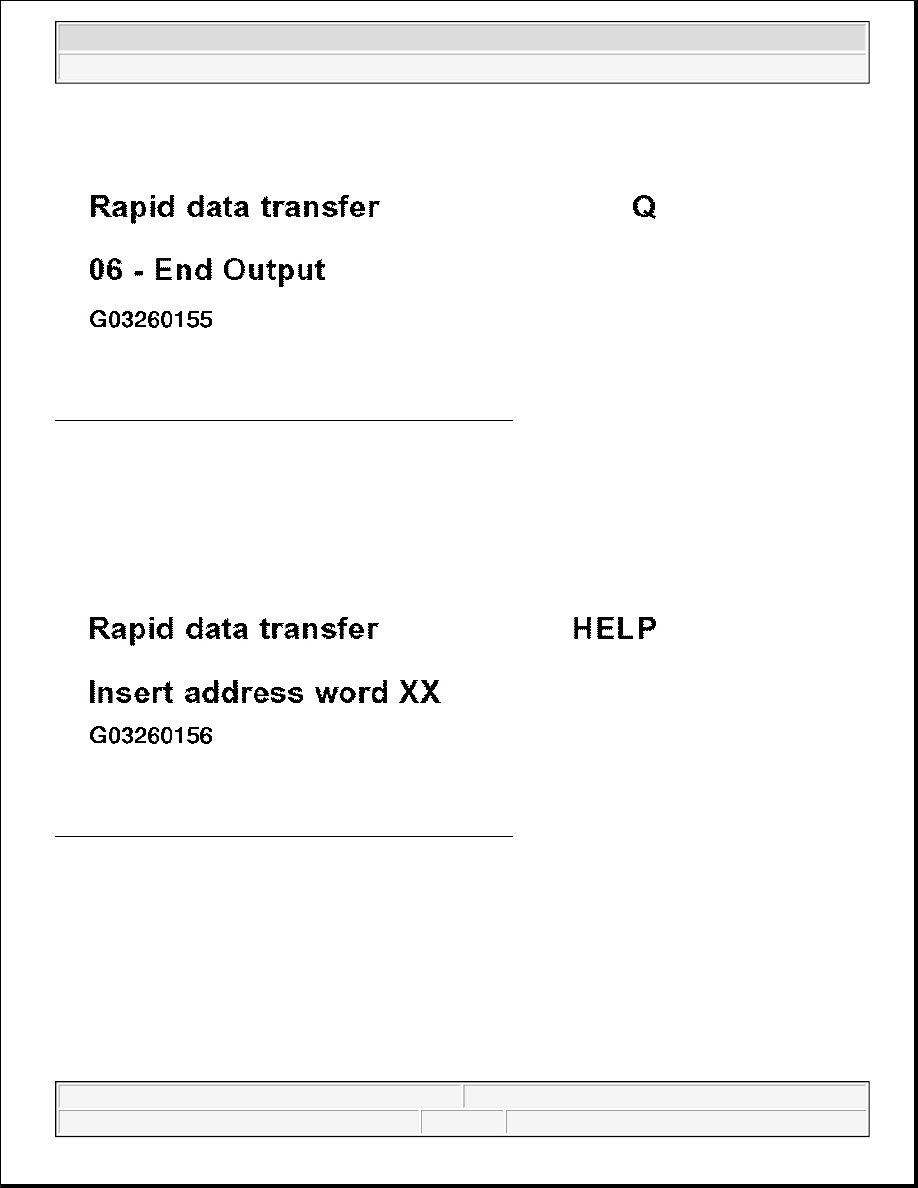

Fig. 30: VAG 1551 Scan Tool Display - End Output (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input

Indicated on display

Fig. 31: VAG 1551 Scan Tool Display - End Output (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Switch ignition off.

z

Disconnect VAG1551 scan tool.

CODE CONTROL MODULE (FUNCTION 07)

By using the code control module function the radio can be coded as follows:

z

VAG1551 scan tool connected ("Radio" address word 56); press --> button to advance program sequence



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
