Volkswagen New Beetle. Manual - part 379





z

Press -Q- button to confirm input.

The number of stored DTCs appears on the display.

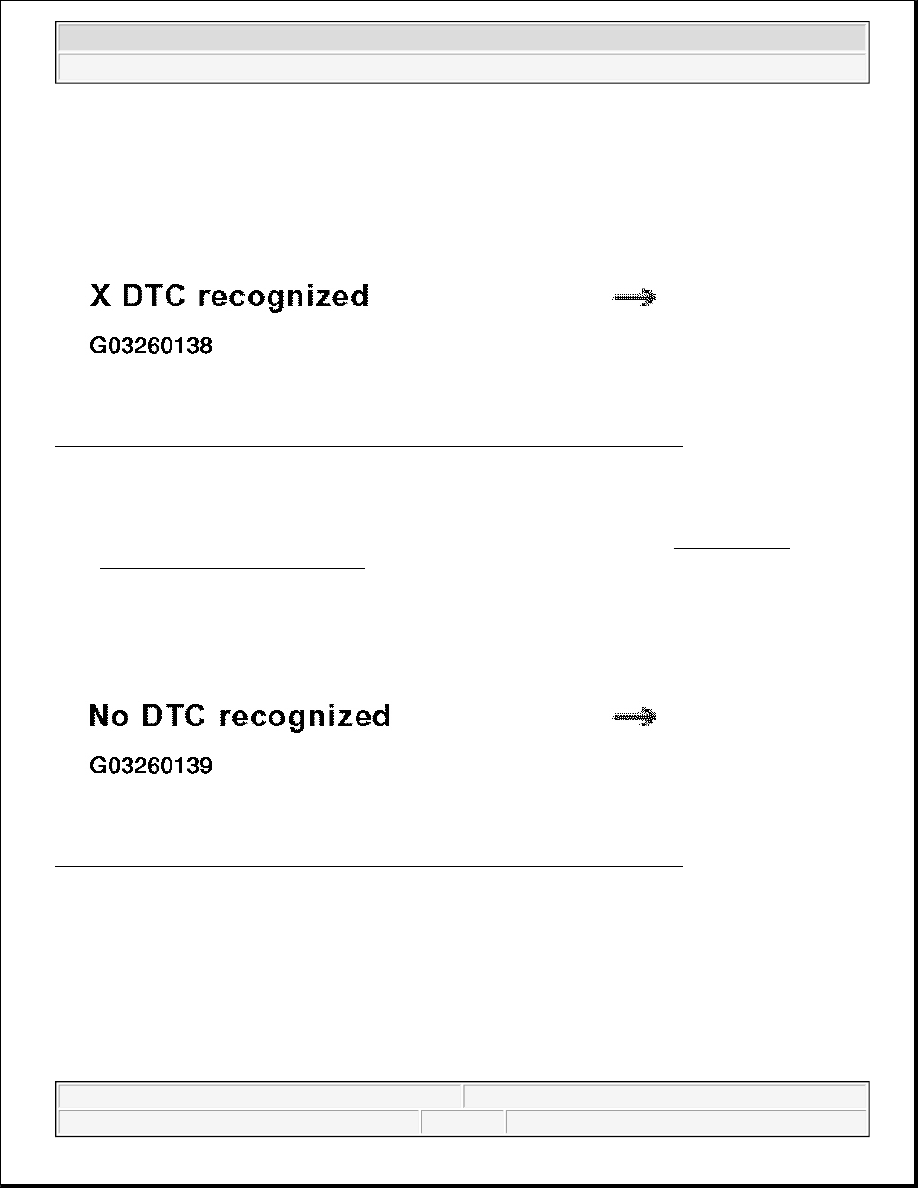

Fig. 13: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (3 Of 5)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Stored DTCs are displayed and printed out one after another.

z

Check print-out against DTC table and repair all malfunction as necessary, See DIAGNOSTIC
TROUBLE CODE (DTC) TABLE
 .

If "No DTC recognized" is displayed the program will return to initial position after pressing --> button.

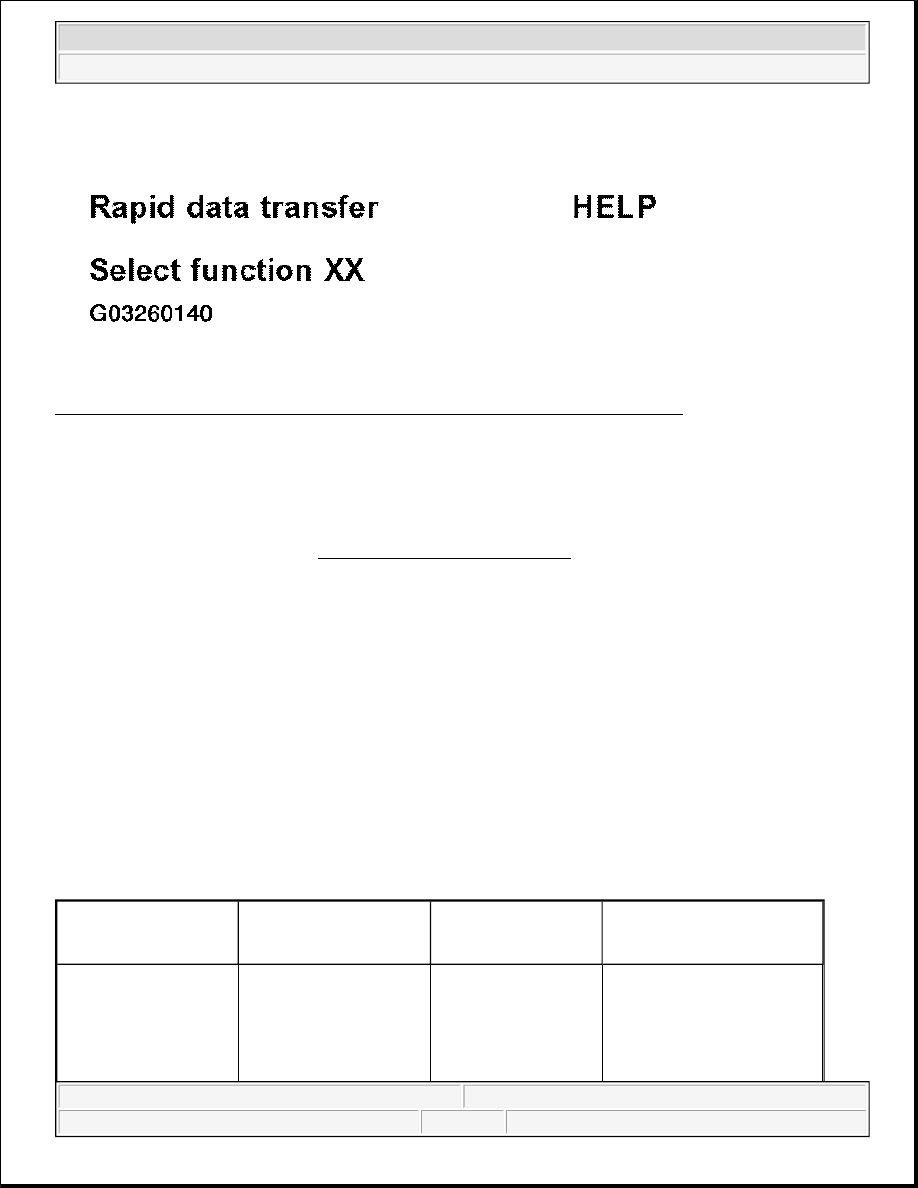

Fig. 14: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (4 Of 5)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



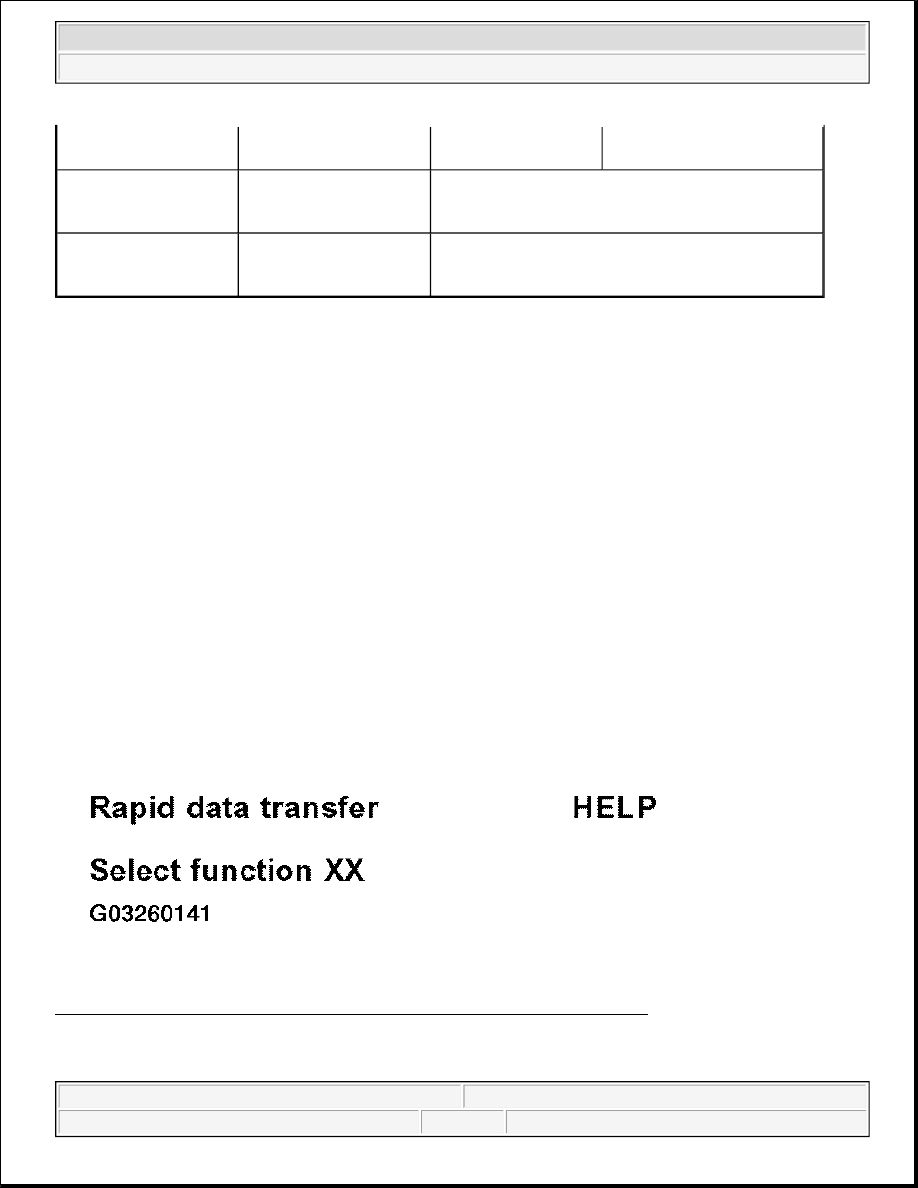

Fig. 15: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (5 Of 5)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If something else is displayed:

See Scan Tool operating instructions

z

End output (function 06), See END OUTPUT (FUNCTION 06) .

z

Switch ignition off and disconnect VAG1551 scan tool.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODE (DTC) - PREMIUM V AND PREMIUM V - MONSOON

NOTE:

z

The following table lists all the malfunctions with the corresponding 5-digit
code numbers that can be recognized by the radio and printed out
byVAG1551 scan tool.

z

DTC codes appear only on print-out.

z

Before replacing components, check wiring and connections to these
components as well as Ground (GND) connections, according to wiring
diagram.

z

When a malfunction has been repaired, DTC memory must always be
checked again with VAG1551 scan tool and erased.

DTC
VAG 1551 scan tool
display

Possible cause

Possible effects

Corrective action

00668
Battery Positive
Voltage (B+) Term. 30

z

Signal too low

z

Battery voltage

below 9.5 V

z

Battery

insufficiently

charged

z

Poor radio

performance or

radio

inoperative

z

Poor radio

z

Charge battery and if

necessary check for

malfunctions.

z

Turn off all

unnecessary electrical



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Battery voltage

below 9.5 V

z

Too many

consumers on

performance or

radio

inoperative

consumers.

00850
Control Output Active,
Radio Amplifier

z

Short circuit to
ground

Only for vehicles with

sound systems

z

Short circuit

between connector

-T20- terminal 6

and ground

z

Sound system

inoperative

z

Check for short circuit

to ground according to

wiring diagram.

00852
Loudspeaker front

z

Short circuit

z

Open circuit

z

Short circuit to

ground in wiring to

one front

loudspeaker

z

Open circuit in

wiring to one front

bass loudspeaker

z

One front

loudspeaker is

inoperative

z

One front bass

loudspeaker is

inoperative

Short circuit between wiring

is only recognized during

Output Diagnostic Test

Mode (DTM).

z

Check wiring

according to wiring

diagram.

z

Check wiring

according to wiring

diagram.

00853
Loudspeaker rear

z

Short circuit

z

Open circuit

z

Short circuit to

ground to one rear

loudspeaker

z

Open circuit in

wiring to one rear

loudspeaker

z

One rear

loudspeaker is

inoperative

z

One rear

loudspeaker

inoperative

Short circuit between wiring

is only recognized during

output Diagnostic Test Mode

(DTM).

z

Check wiring

according to wiring

diagram.

z

Check wiring

according to wiring

diagram.

00855
Connection to CD
Changer

z

No
communication

z

Open circuit to

CD-changer

z

CD-changer

inoperative

z

Check wiring

according to wiring

diagram.

00856
Radio Antenna

z

Short circuit

z

Open circuit

z

Antenna cable not

connected

z

Poor radio

performance or

radio

inoperative

z

Poor radio

performance or

z

Check antenna cable

according to wiring

diagram

z

Check antenna cable

according to wiring

diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03)

The output Diagnostic Test Mode (DTM) is part of the electrical check.

Output DTM checks for a short circuit between the speaker wires.

After output Diagnostic Test Mode (DTM), check DTC memory.

Initiating output Diagnostic Test Mode

z

Connect VAG1551 scan tool, select "Rapid data transfer" operating mode 1, switch ignition on and enter
"Radio" address word 56.

Indicated on display

Fig. 16: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (1 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -3- to select function 03 "Output Diagnostic Test Mode".

radio

inoperative

01044
Control Module
incorrectly coded

z

Radio not coded

z

This DTC cannot be erased. Radio must be

coded.

65535
Control Module
Malfunctioning

z

Radio faulty

z

Replace radio.

NOTE:

z

Output Diagnostic Test Mode (DTM) cannot be initiated, or will be
interrupted if engine is running or vehicle is moving.

z

The -C- button can be used to exit the test sequence at any time.
