Volkswagen New Beetle. Manual - part 377





1998-2004 ACCESSORIES & EQUIPMENT

Radio, Telephone, Navigation, Trip Computer - New Beetle

RADIO SYSTEM "PREMIUM V" AND "PREMIUM V - MONSOON", ON
BOARD DIAGNOSTIC (OBD)

GENERAL INFORMATION

Radio system "Premium V" is installed from start of production.

Radio system "Premium V - Monsoon" is installed as optional equipment from 10.00 production.

Before troubleshooting or servicing, technicians must be familiar with the functions and operation specifics of
the applicable standard or optional radio system. Always read the radio owner's manual and review all radio,
tape player and CD changer functions.

The radio is controlled by an internal microprocessor with On Board Diagnostic (OBD) capability. If
malfunctions occur in monitored components, Diagnostic Trouble Codes (DTC) will be stored in memory
together with an indication of malfunction type. A maximum of 4 DTCs can be stored simultaneously.

Sporadic malfunctions (indicated in the readout by "SP") are automatically cancelled if not repeated in the next
50 engine starts.

Before performing any troubleshooting or inspection, always begin by checking for DTCs using the On Board
Diagnostic (OBD) program. DTCs stored in memory are retrieved/checked with VAG 1551/1552 Scan Tools
(ST) or VAS 5051 Vehicle Diagnostic Testing and Information System.

Notes on exchanging radio

z

Do not disassemble radio.

z

When the replacement of a malfunctioning radio is necessary, follow exchange part procedures.

z

Complete the report form and return together with radio.

z

Use the original packaging from the new radio when returning.

Additional information:

z

Complaint/symptom based Technical Bulletins ("Service Fixes"):

z

Technical Bulletins

z

Radio system descriptions. See Radio, "Premium V" .

VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING CONTROL
MODULE VERSIONS

NOTE:

The following description deals only with the VAG 1551 scan tool.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Connecting VAG1551 scan tool and selecting functions

Requirements

z

All fuses OK according to wiring diagram

z

Battery (B+) voltage at least 9.0 V

Special tools and equipment

z

VAG1551 Scan Tool (ST)

z

VAG1551/3B adapter cable

Check control module version (function 01)

The Data Link Connector (DLC) is located under the instrument panel to the left.

z

Connect VAG1551 scan tool using VAG1551/3B adapter cable.

Indicated on display. Operating modes 1 and 2 are displayed alternately.

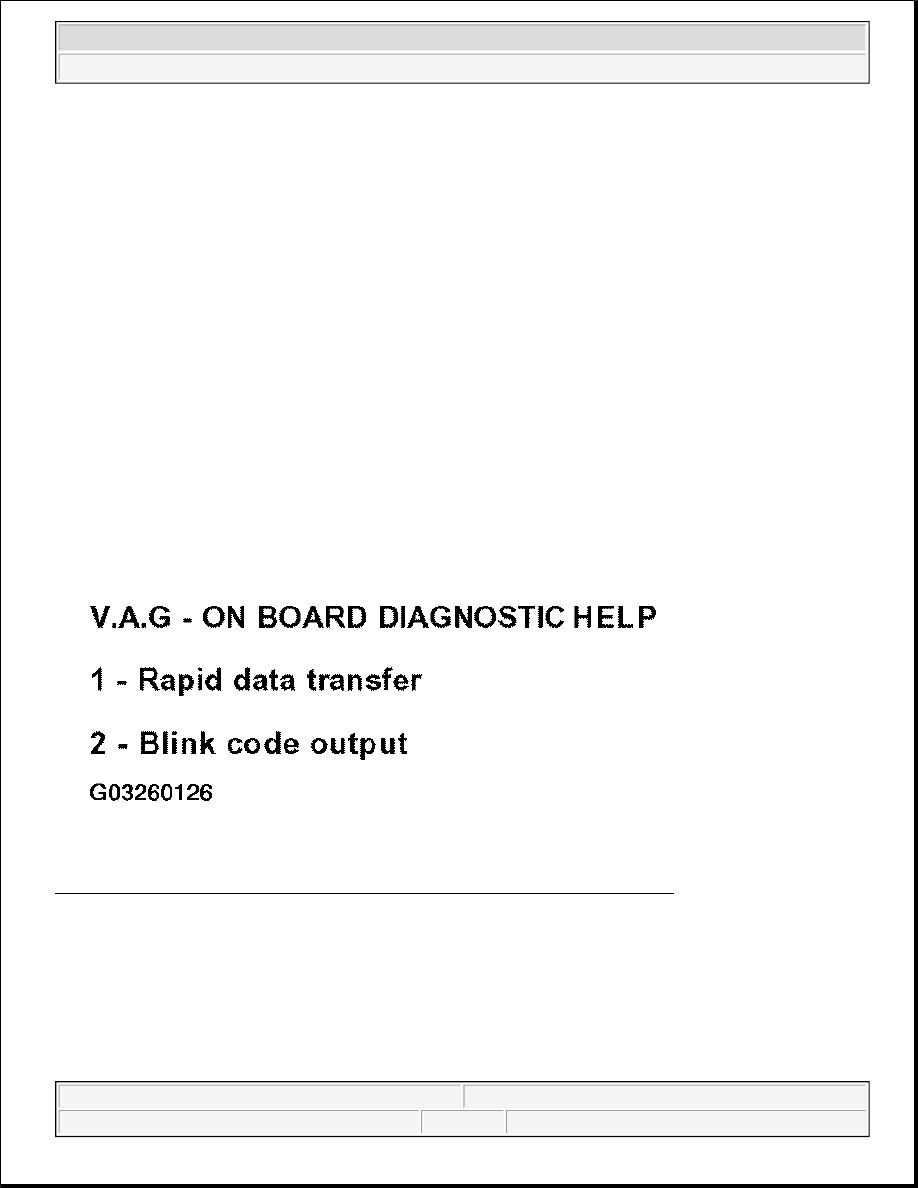

Fig. 1: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (1 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

z

If the display remains blank, check VAG1551 voltage supply according to
wiring diagram.

z

Additional operating instructions can be printed out by pressing the HELP
button.

z

The --> button is used to advance through the program sequence.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Switch ignition on.

z

Switch printer on by pressing PRINT button (indicator lamp in button lights up).

z

Press button -1- for "Rapid data transfer" mode.

Indicated on display

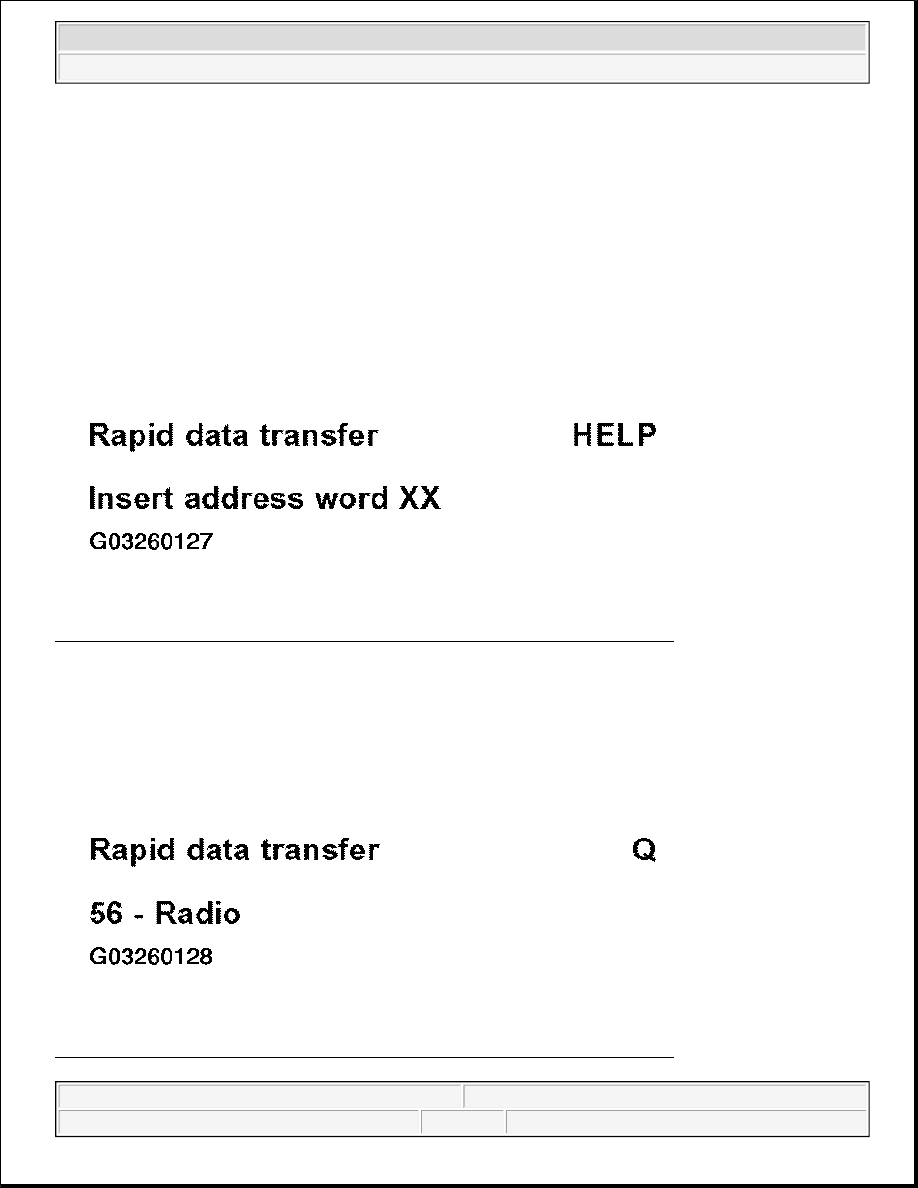

Fig. 2: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (2 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -5- and -6- to insert "Radio" address word 56.

Indicated on display

Fig. 3: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (3 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

In "Rapid data transfer" operating mode 1, all vehicle control modules with
OBD capability can be checked automatically using "Automatic Test
Sequence" address word 00.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Press -Q- button to confirm input.

Indicated on display

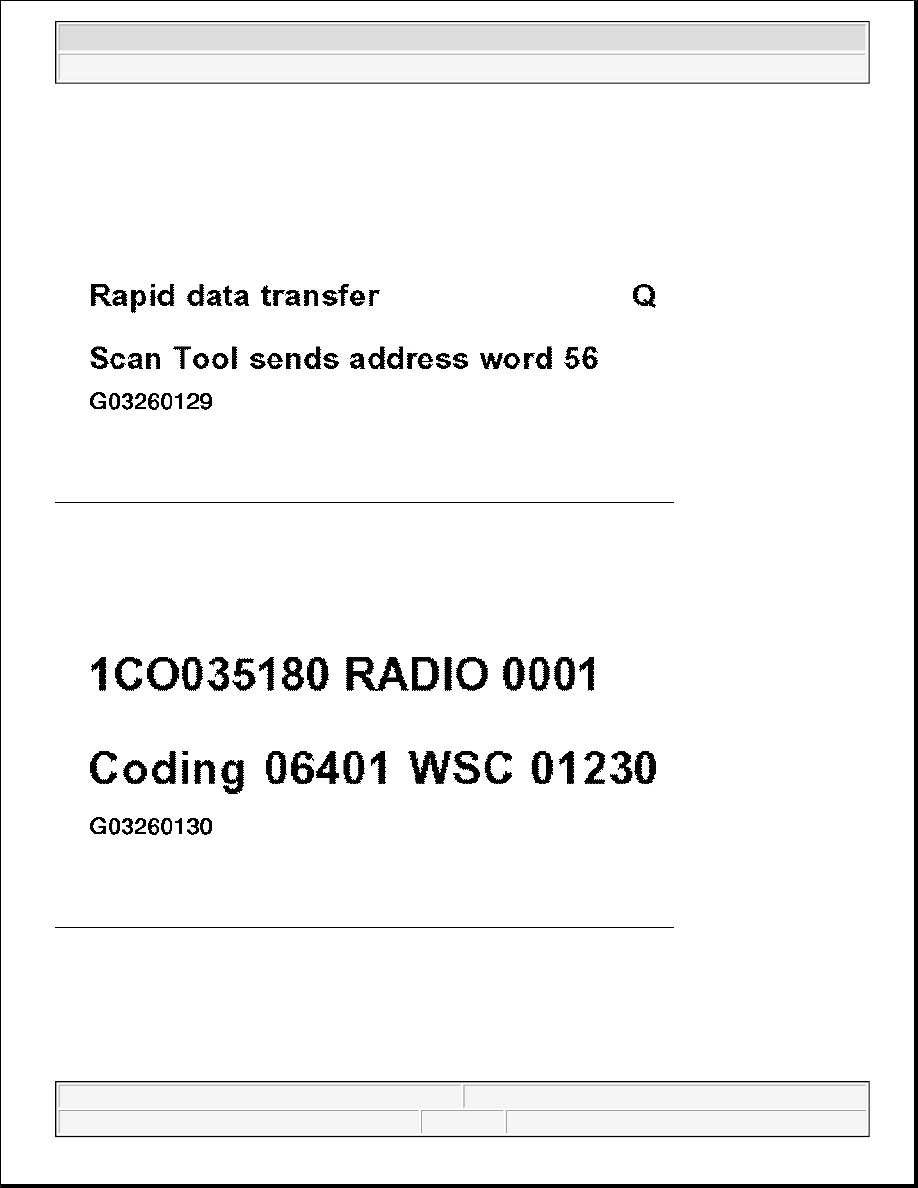

Fig. 4: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (4 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Indicated on display

Fig. 5: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (5 Of 10)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

1CO035180: Part No. of control module

z

RADIO: Component designation

z

0001: Software version installed in radio

z

Coding 06401: Example of a coding for radio "New Beetle"



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
