Fig. 216: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface, Up To 10.00
Models (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The scan tool is again in basic function.

DATA BUS ON BOARD DIAGNOSTIC INTERFACE J533- FROM 10.00 MODELS, CODING
(FUNCTION 07)

z

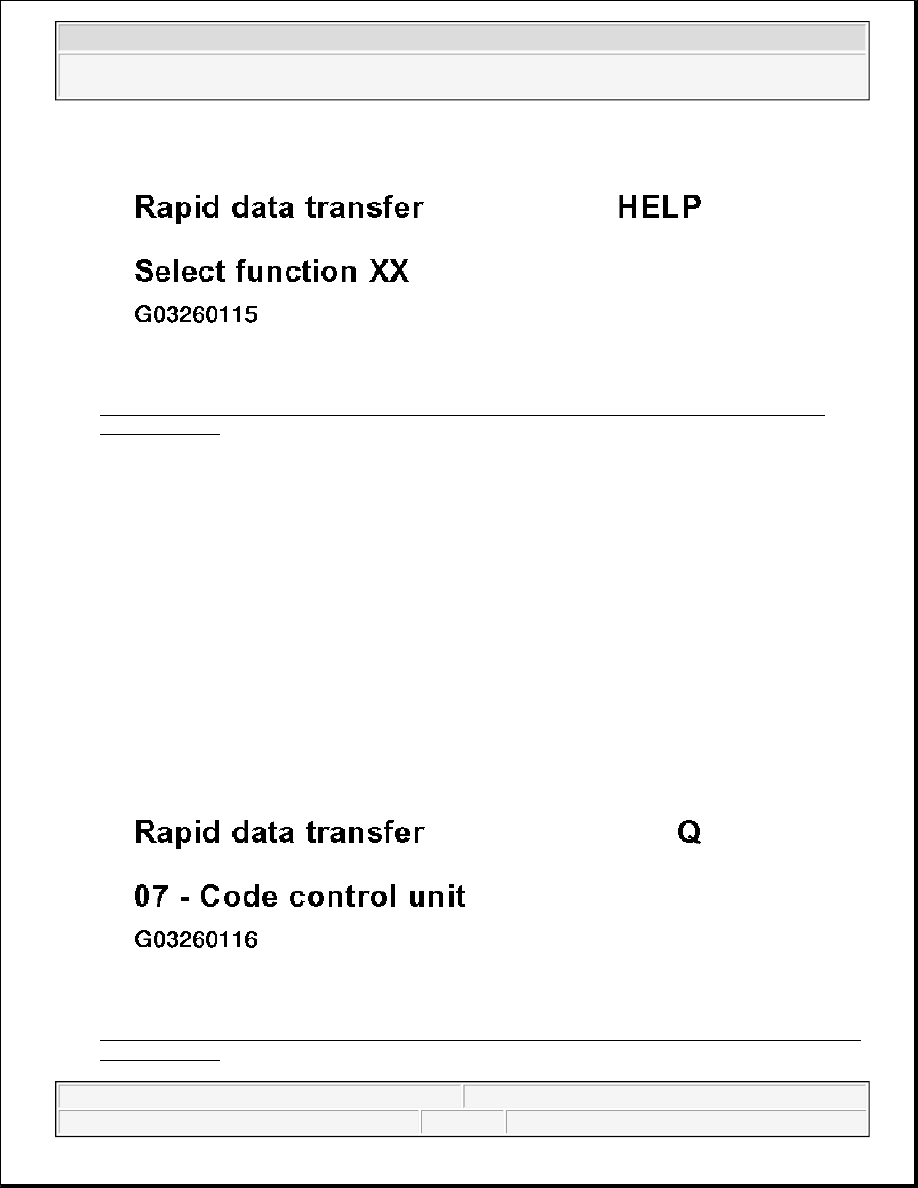

Connect VAG 1551 Scan tool (ST), input address word 19 "Gateway" and then press button until "Select
function XX" is shown in display.

z

Press buttons -0- and -7- to select function "Code control module".

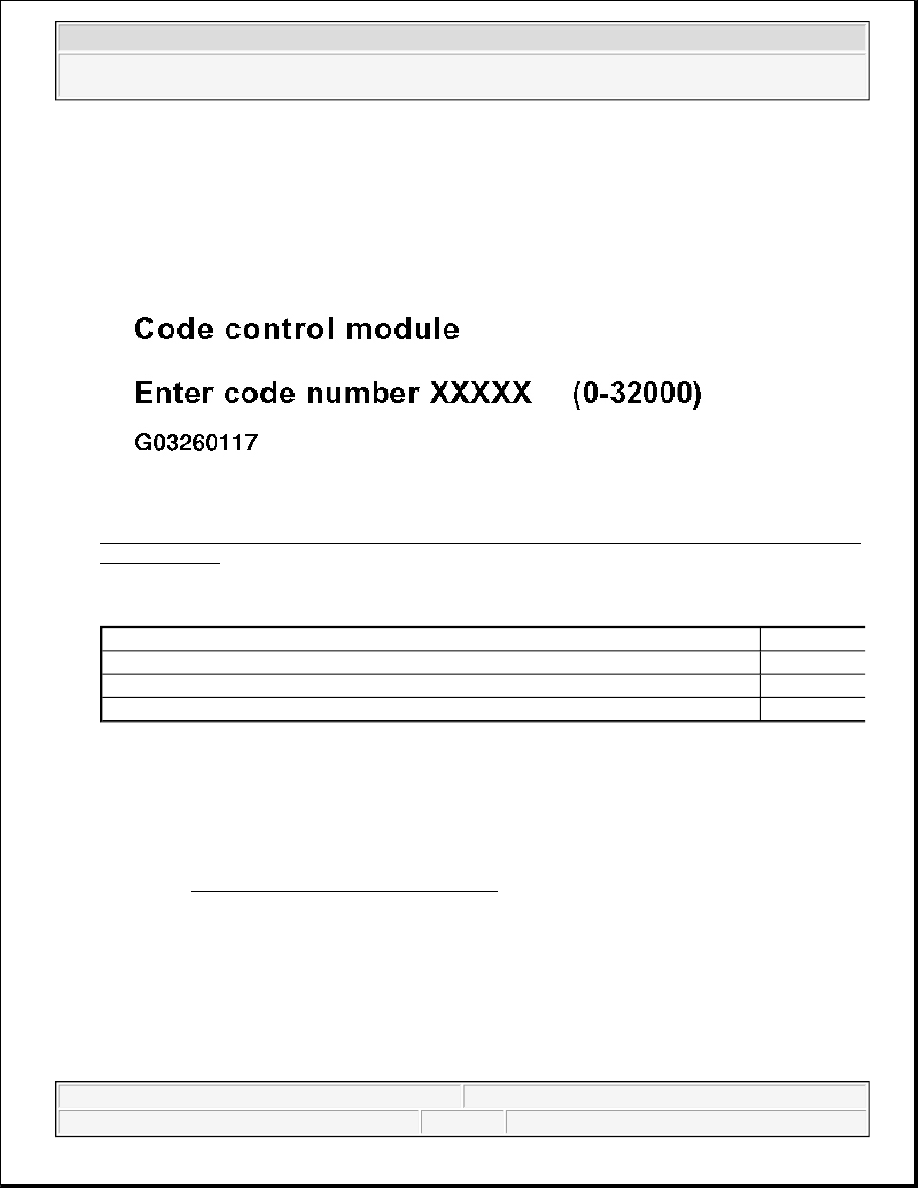

Indicate on display:

z

Press -Q- button to confirm input.

Fig. 217: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface J533- From 10.00
Models (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Coding

Indicate on display:

z

Enter code number compiled from code table.

Fig. 218: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface J533- From 10.00
Models (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

COMPONENTS AND CODE NUMBER (FROM 10.00 MODELS)

READ MEASURING VALUE BLOCK (FUNCTION 08)

The measuring value block is divided into 4 display group numbers. Each display group contains individual
display fields, See DISPLAY GROUPS, INTERPRETING .

Use this function to observe various instrument cluster inputs.

z

Connect VAG 1551 Scan Tool (ST), input address word 19 "Gateway" and then press --> button until
"Select function XX" is shown in display

Indicated on display:

z

Press buttons -0- and -8- to select function "Read measuring value block".

Control modules to power-train databus

Code

ABS activated

00002

Airbag activated

00004

ABS and Airbag activated

00006

NOTE:

Transmission control module message is not codified because it is
automatically learned.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

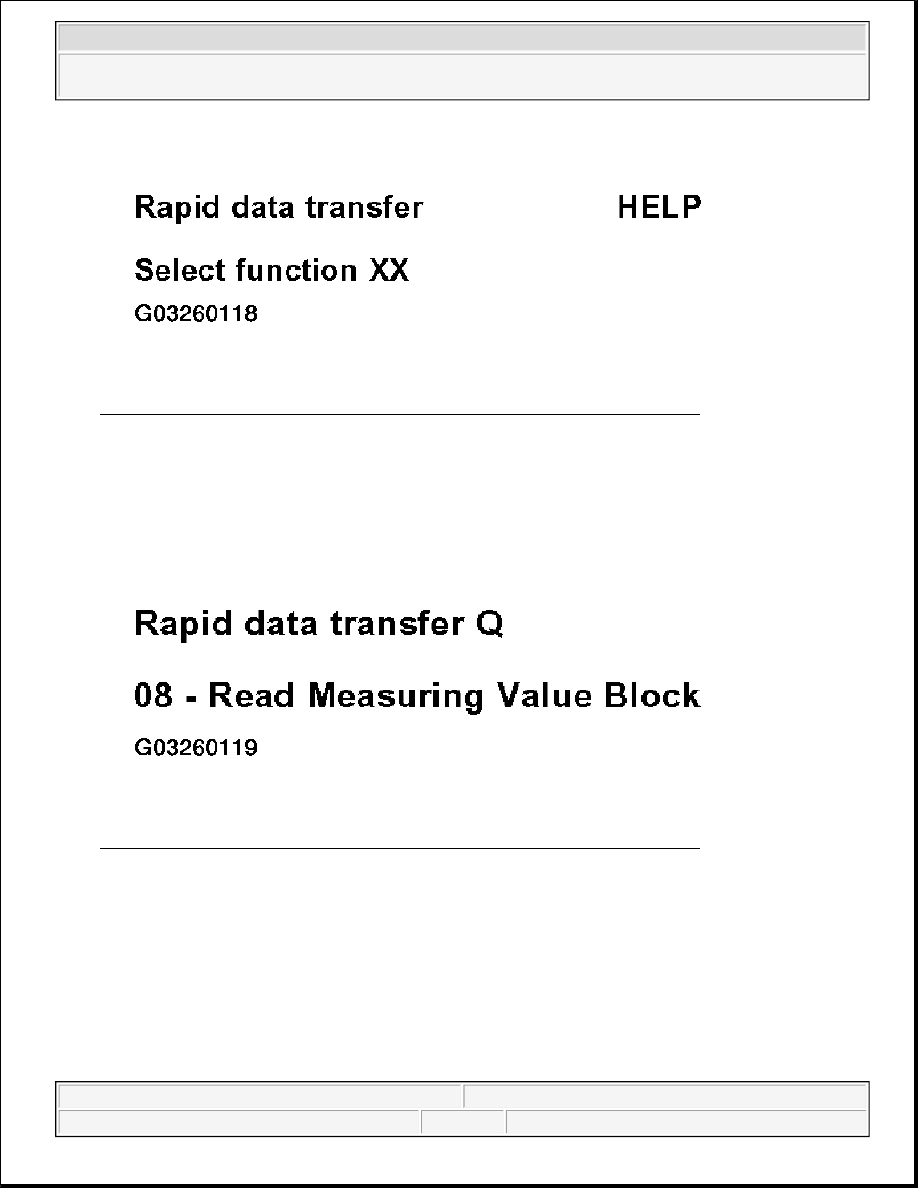

Fig. 219: VAG 1551 Scan Tool Display - Read Measuring Value Block (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

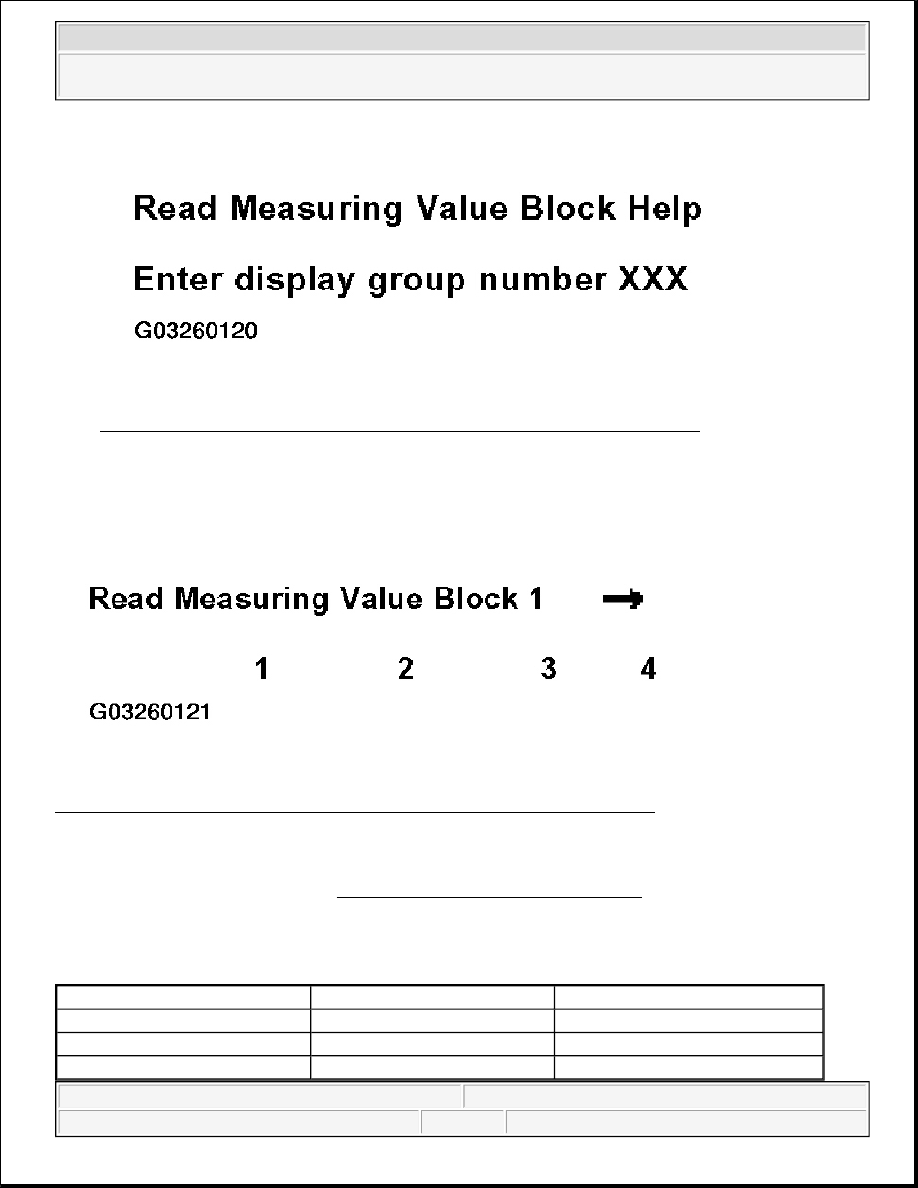

Fig. 220: VAG 1551 Scan Tool Display - Read Measuring Value Block (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Using the Scan Tool (ST) button pad, enter the required display group number (following example shows
display group 001).

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 221: VAG 1551 Scan Tool Display - Read Measuring Value Block (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (1...4 - Display fields)

Fig. 222: VAG 1551 Scan Tool Display - Read Measuring Value Block (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUP VAG 1551 AND 1552 CHART

NOTE:

Interpreting display groups and evaluating measured values in individual
display fields. See DISPLAY GROUPS, INTERPRETING .
With the printer switched on, the information on the display is printed out. To
easily change between display groups, proceed as follows:

Display group

VAG1551

VAG 1552

Higher

Press button 3

Press --> button

Lower

Press button 1

Press --> button

Skip

Press button C

Press button C
