END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function "End output."

Fig. 209: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC)
Memory Erasing, From 06.99 And Up (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this appears in the display, test sequence is faulty.

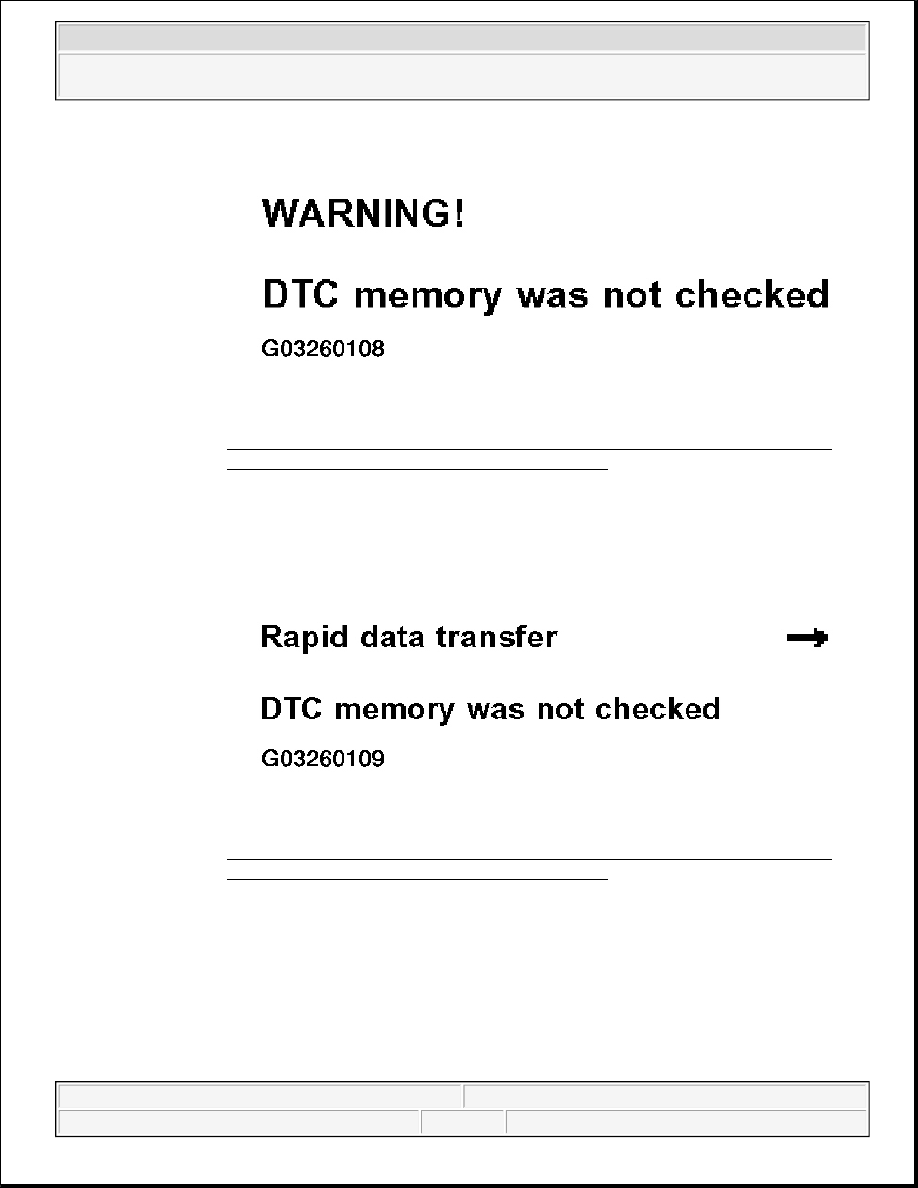

Fig. 210: VAG 1551 Scan Tool Display - Diagnostic Trouble Code (DTC)
Memory Erasing, From 06.99 And Up (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adhere exactly to test sequence: First check DTC memory, repair
malfunctions if necessary, then erase.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display:

z

Press -Q- button to confirm input.

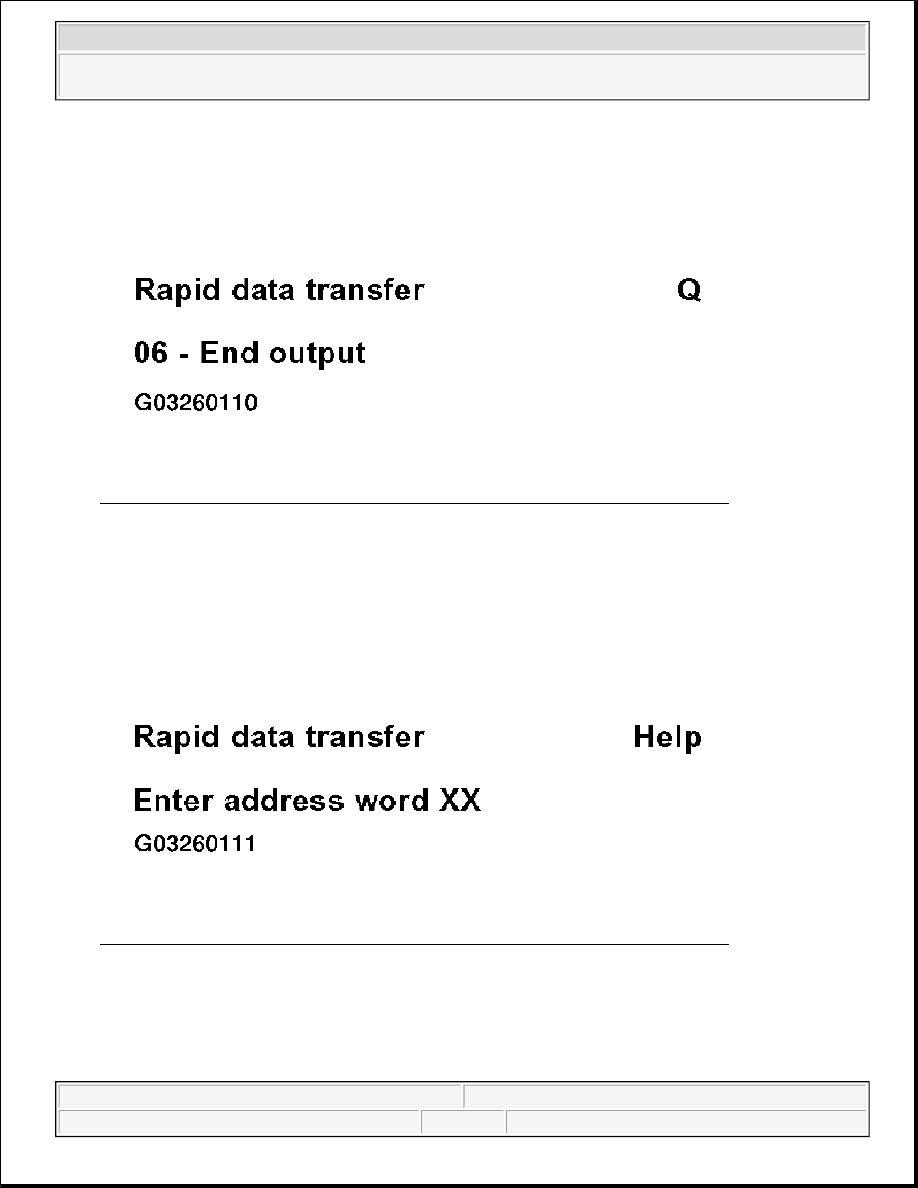

Fig. 211: VAG 1551 Scan Tool Display - End Output, From 06.99 And Up (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Switch off ignition.

z

Disconnect VAG 1551 Scan Tool (ST) from Data Link Connector (DLC)

Fig. 212: VAG 1551 Scan Tool Display - End Output, From 06.99 And Up (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- UP TO 10.00 MODELS, CODING
(FUNCTION 07)

z

Connect VAG 1551 Scan Tool (ST), input address word 19 "Gateway" and then press --> button until



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



"Select function XX" is shown in display.

z

Press buttons -0- and -7- to select function "Code control module".

Indicated on display:

z

Press -Q- button to confirm input.

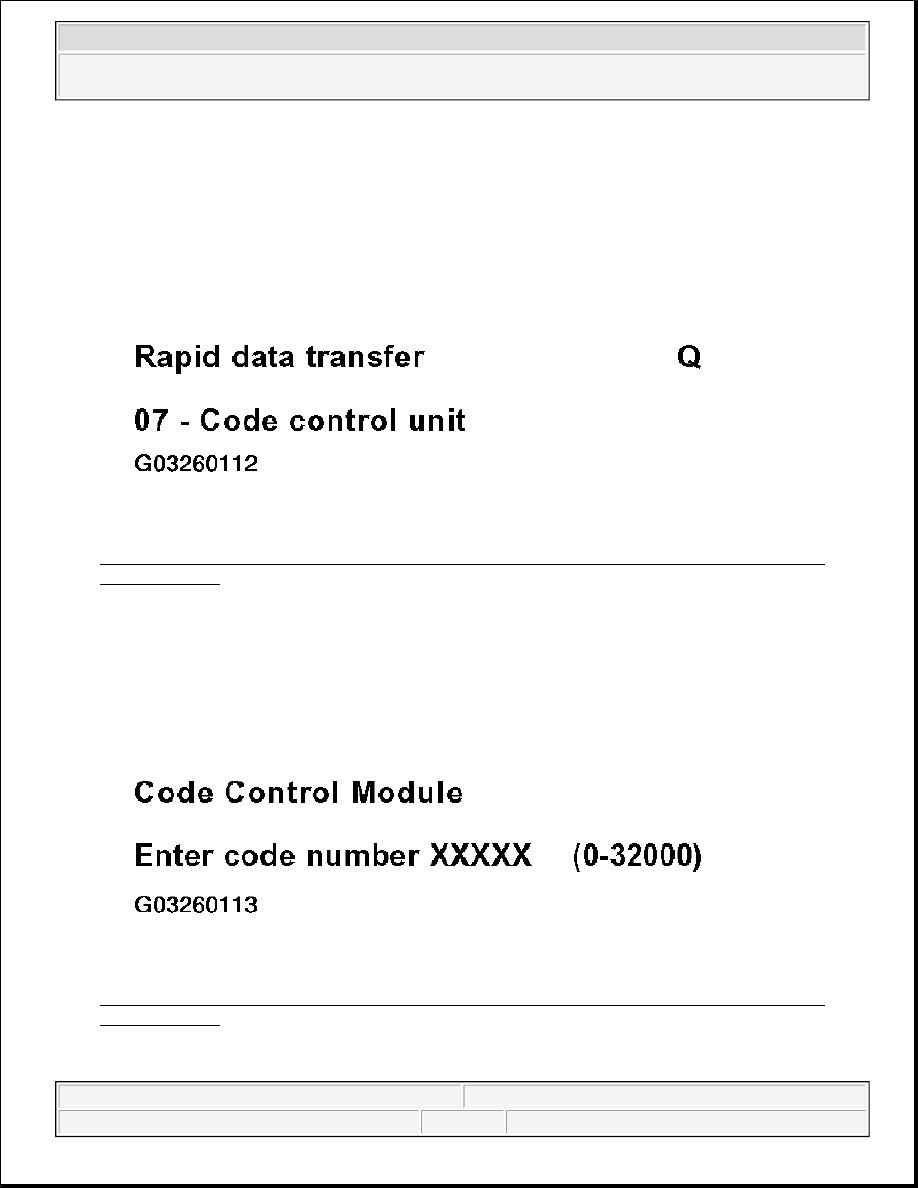

Fig. 213: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface, Up To 10.00
Models (1 Of 4)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Enter code number compiled from code table

Fig. 214: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface, Up To 10.00
Models (2 Of 4)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



COMPONENTS AND CODE NUMBER (UP TO 10.00 MODELS)

To determine code number, add applicable control module code numbers together.

Example:

Airbag + ABS + TCM

00004 + 00002 + 00001 = 00007

Indicated on display (example):

z

Press -Q- button to confirm input.

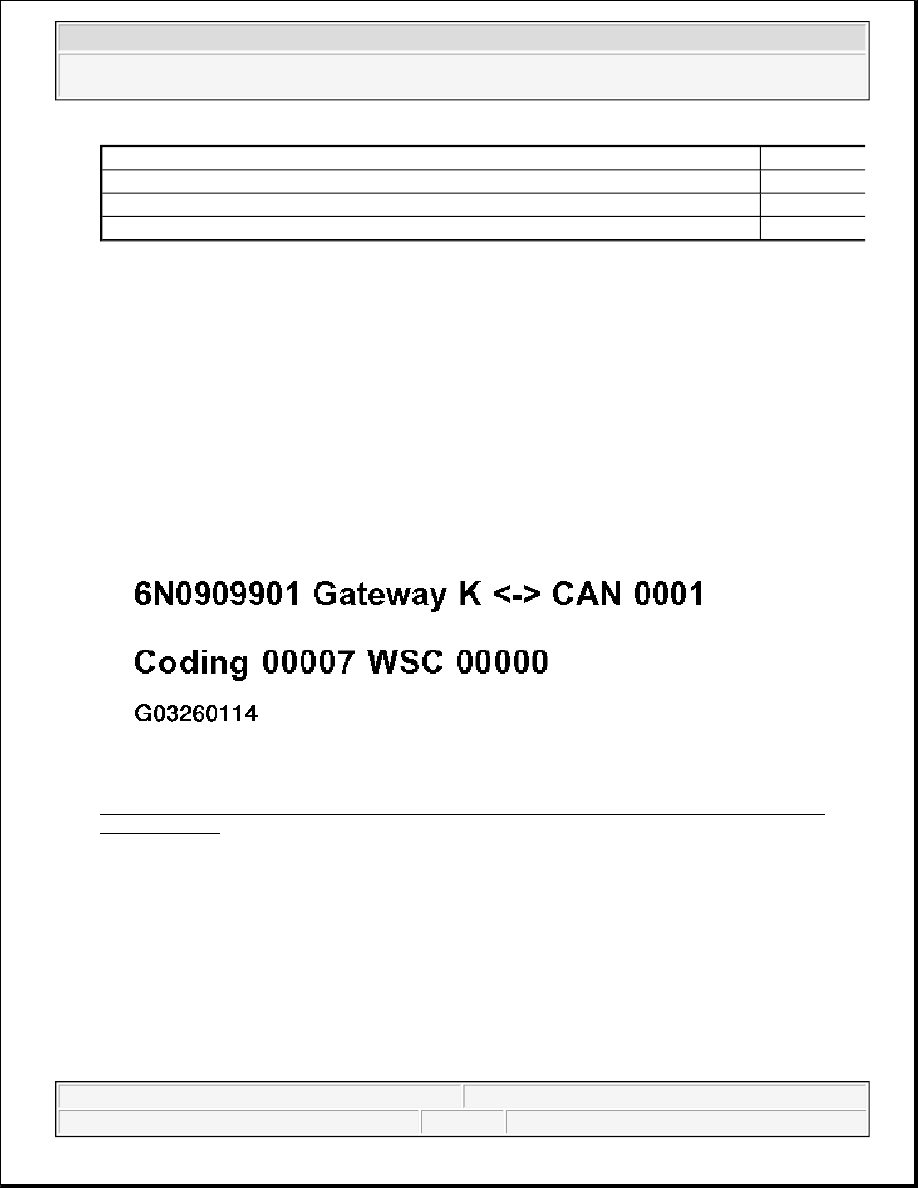

Fig. 215: VAG 1551 Scan Tool Display - Data Bus On Board Diagnostic Interface, Up To 10.00
Models (3 Of 4)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

Press buttons -0- and -6- to select function 06 "End output".

Control modules to power-train databus

Code

Transmission Control Module (TCM)

00001

ABS Control Module

00002

Airbag Control Module

00004



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
