Indicated on display

Fig. 17: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (2 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

Fig. 18: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (3 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

A short loud tone is heard.

z

Press -->button.

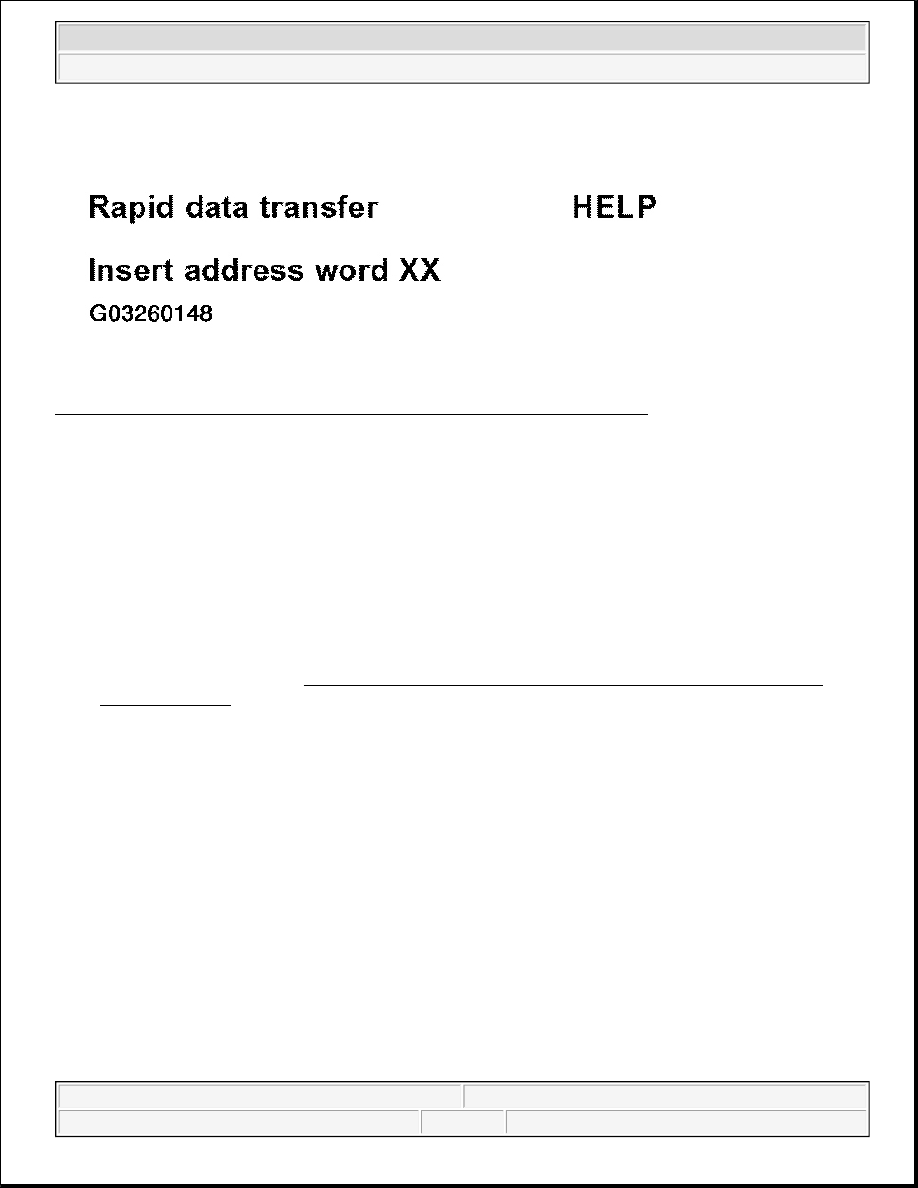

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 19: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (4 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press --> button.

Indicated on display

Fig. 20: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (5 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press --> button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

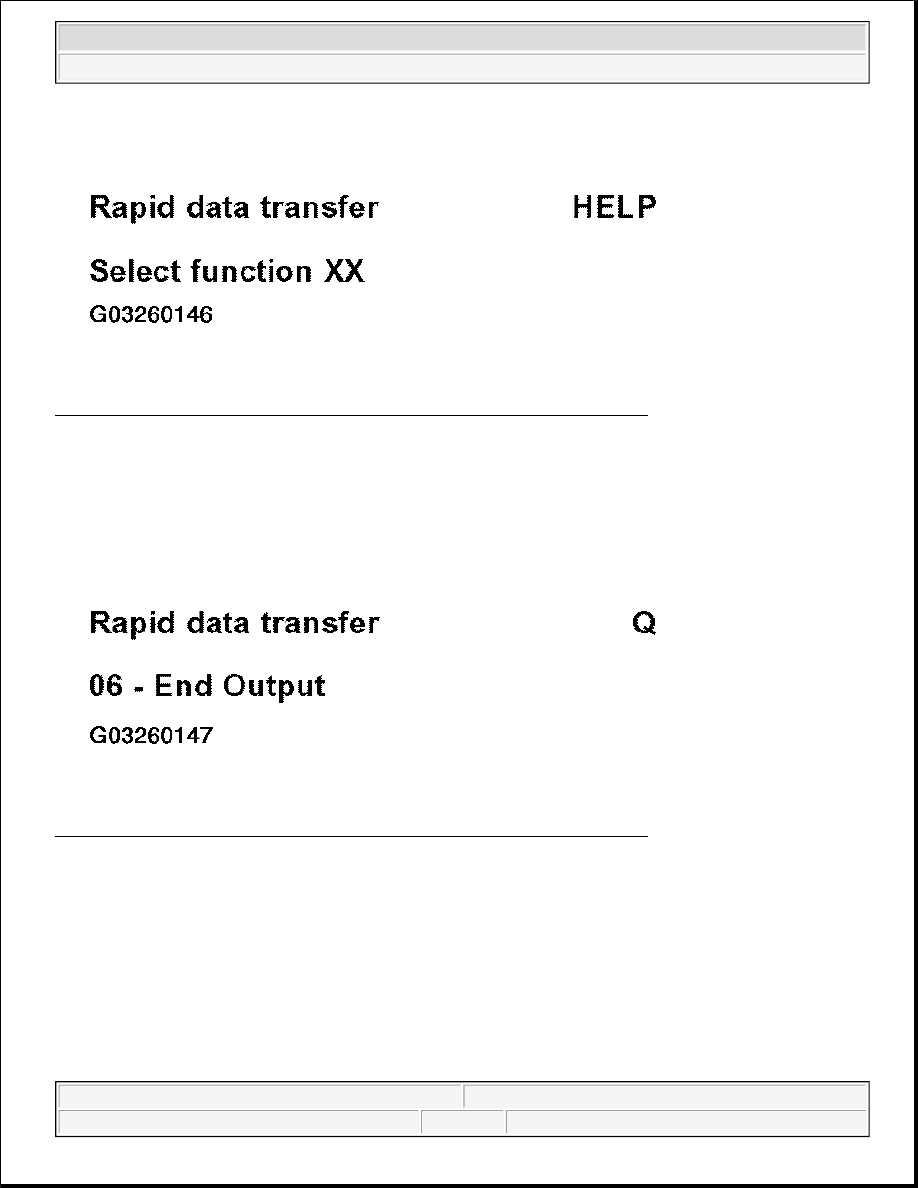

Fig. 21: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (6 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -6- to select function 06 "End Output".

Indicated on display

Fig. 22: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (7 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 23: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode (8 Of 8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Scan tool returns to start of program sequence.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05)

Requirements

z

DTC memory checked, See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
(FUNCTION 02)


z

All malfunctions repaired

(DTC) Memory, erasing (function 05)

After DTC memory has been successfully checked:

Indicated on display

NOTE:

After erasing the DTC memory its contents will automatically be indicated. If the
DTC memory cannot be erased, check DTC memory again and repair
malfunctions.
