Volkswagen New Beetle. Manual - part 363

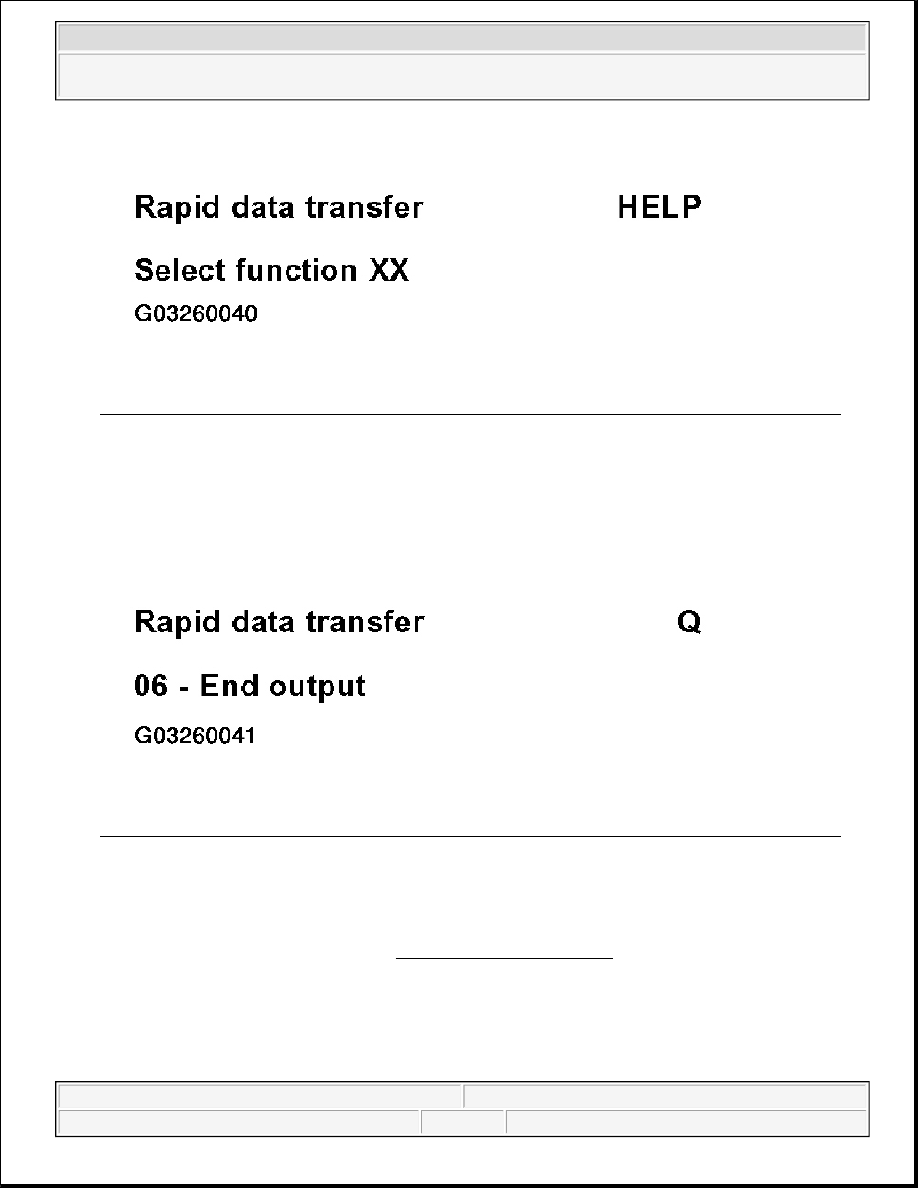

Fig. 141: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (7 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 142: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

READ MEASURING VALUE BLOCK (FUNCTION 08)

The measuring value block is divided into 4 display groups. The assignment of the individual display fields can
be taken from the display group overview. See Display groups, interpreting .

Use this function to observe various instrument cluster inputs.

z

Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition
and input address word 17 "Instrument cluster".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



After control module identification and immobilizer identification number are displayed:

z

Press --> button.

Indicated on display:

z

Press buttons -0- and -8- to select function 08 "Read measuring value block".

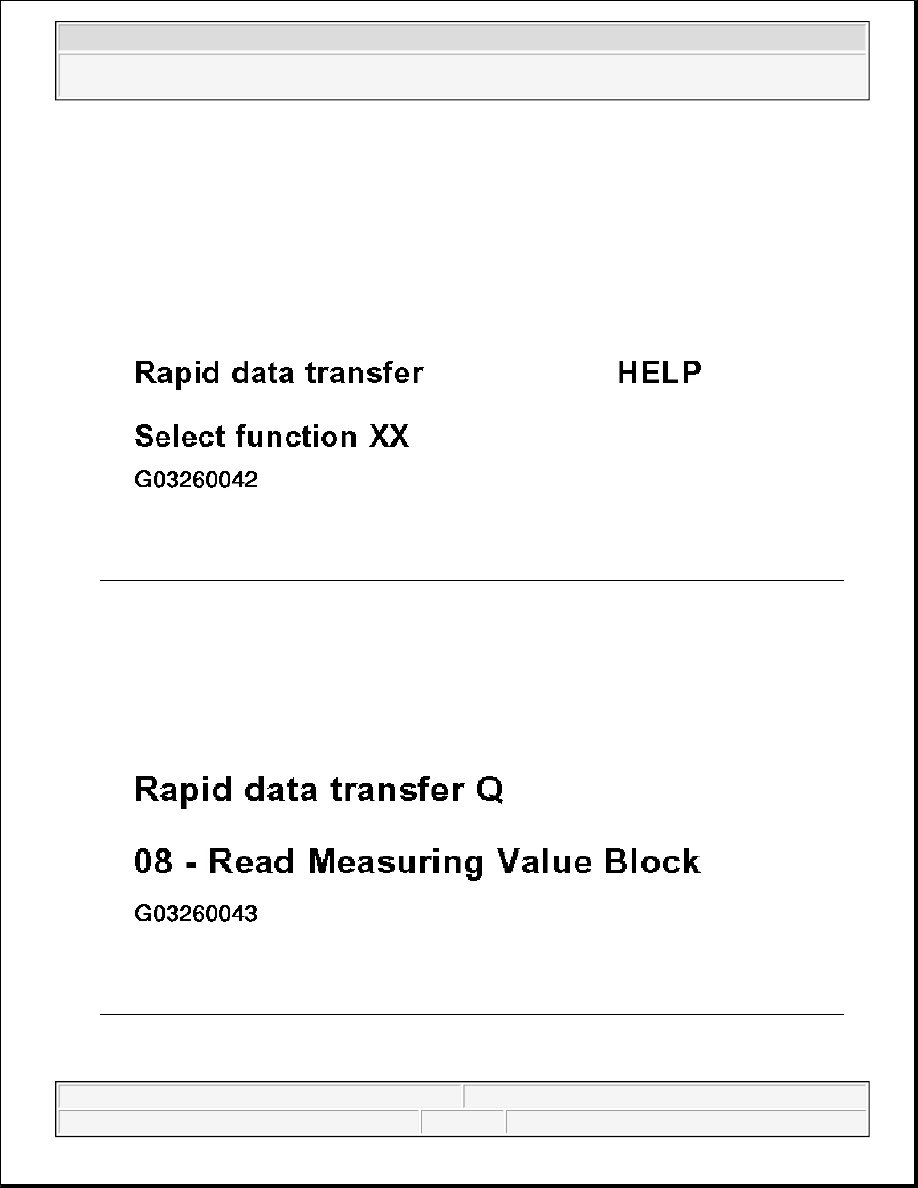

Fig. 143: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 144: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Using the Scan Tool (ST) button pad, enter required display group number (following example shows
display group 001). Press keys 0, 0 and 1 for "Display group number 1" and press -Q- button to confirm
input.

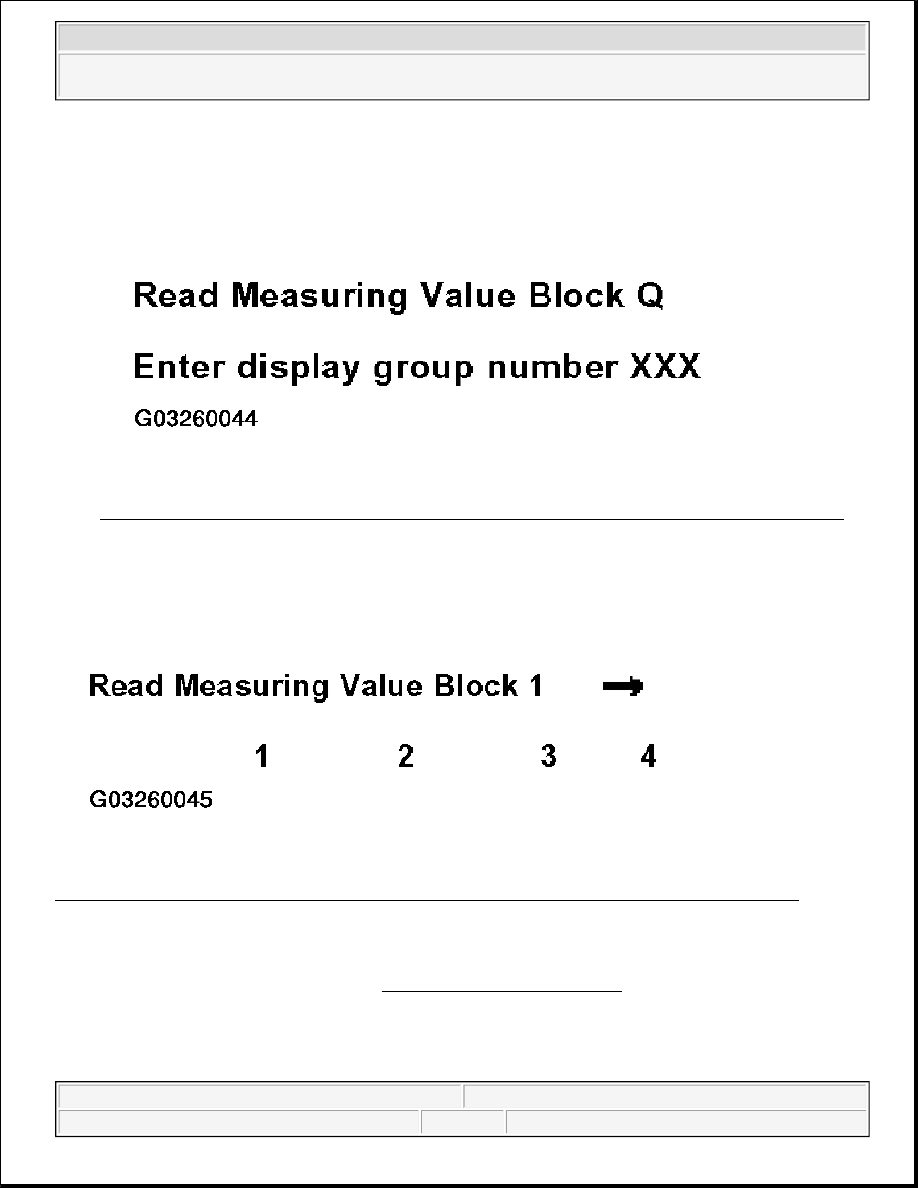

Fig. 145: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (1 ... 4 = Display zones)

Fig. 146: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

Interpreting display groups and evaluating measured values in individual
display fields. See Display groups, interpreting .

z

With printer switched on, information on display is printed out.

z

To easily change between display groups, proceed as follows:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



DISPLAY GROUPS VAG 1551 AND 1552

z

Displayed after pressing -C- button.

Indicated on display:

z

Enter display group number as needed tables beginning, See Display groups, interpreting .

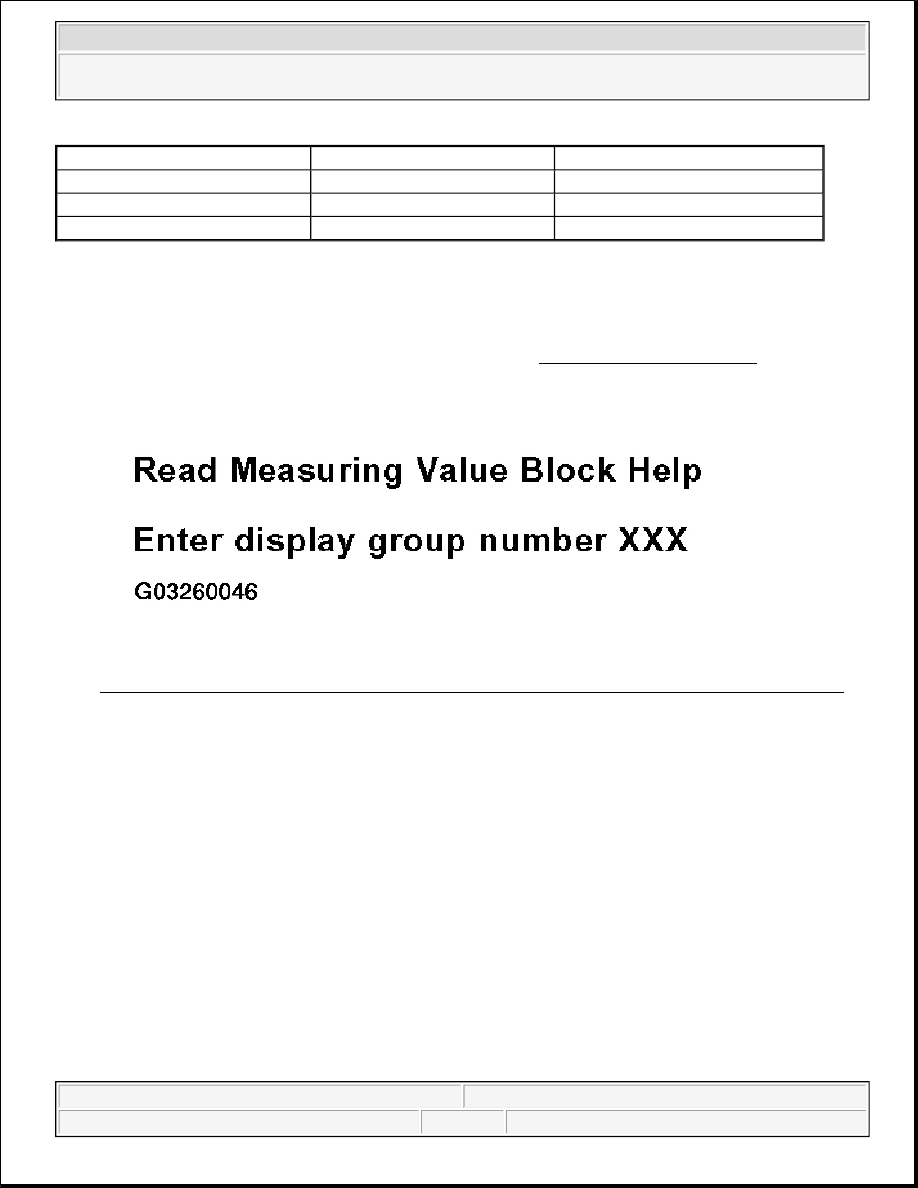

Fig. 147: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUPS, INTERPRETING

Display group 001

Display group

VAG 1551

VAG 1552

Higher

Press button 3

Press --> button

Lower

Press button 1

Press --> button

Skip

Press button C

Press button C

NOTE:

z

Display fields always show actual values transmitted from senders and
sensors. However, instrument cluster display values can differ from those
in the display fields due to internal filtering.

z

Other display groups are possible, but are not required for On Board
Diagnostic program!



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
