Volkswagen New Beetle. Manual - part 364





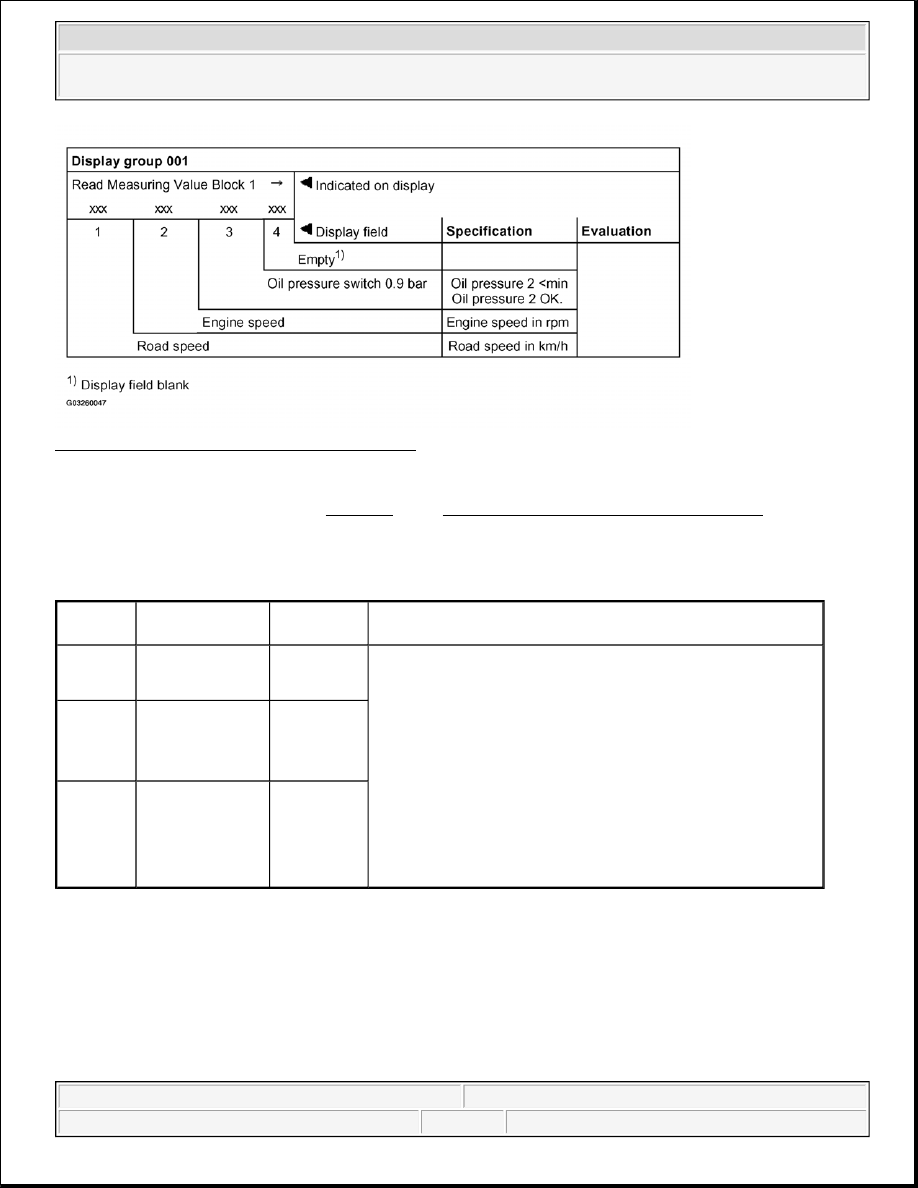

Fig. 148: Display Group 001, From 06.99 & Up
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 001

EVALUATING DISPLAY GROUP NUMBER 001 (FROM 06.99 & UP)

Display group 002

NOTE:

For evaluation of Fig. 148 , see Evaluating display group number 001 .

Display
field

Description

Display

Corrective Action

1

Speed signal

Speed in

km/h

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for
correct connection and tight fit while simultaneously
observing display.

z

If display does not change after checking connections,
troubleshoot wiring using wiring diagram

z

Replace relevant component, if necessary.

z

Erase DTC memory.

z

Perform functional check

z

Check DTC memory again.

2

Engine speed

Engine

speed in

rpm

3

Oil pressure

switch 0.9 bar

Oil pressure

2< min.

Oil pressure

2 OK.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 149: Display Group 002, From 10.00 Models
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 002

EVALUATING DISPLAY GROUP NUMBER 002 (FROM 10.00 MODELS)

Display group 003

NOTE:

For evaluation of Fig. 149 , see Evaluating display group number 002 .

Display
field

Description

Display

Corrective Action

1

Distance travelled

(odometer)

Distance in

km

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for
correct connection and tight fit while
simultaneously observing display

z

If display does not change after checking
connections, troubleshoot wiring using wiring
diagram.

z

Replace relevant component, if necessary.

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Fuel level

(1)

Fuel level in

liters

3

ohm value of fuel

gauge sender -G

Resistance in

ohm

(1)

For an open circuit of the fuel level sender, "0L" is displayed in field 2 and 510 ohm is displayed in
field 3. For a short circuit of the fuel level sender, "0L" is displayed in field 2 and 0 ohm is displayed
in field 3.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



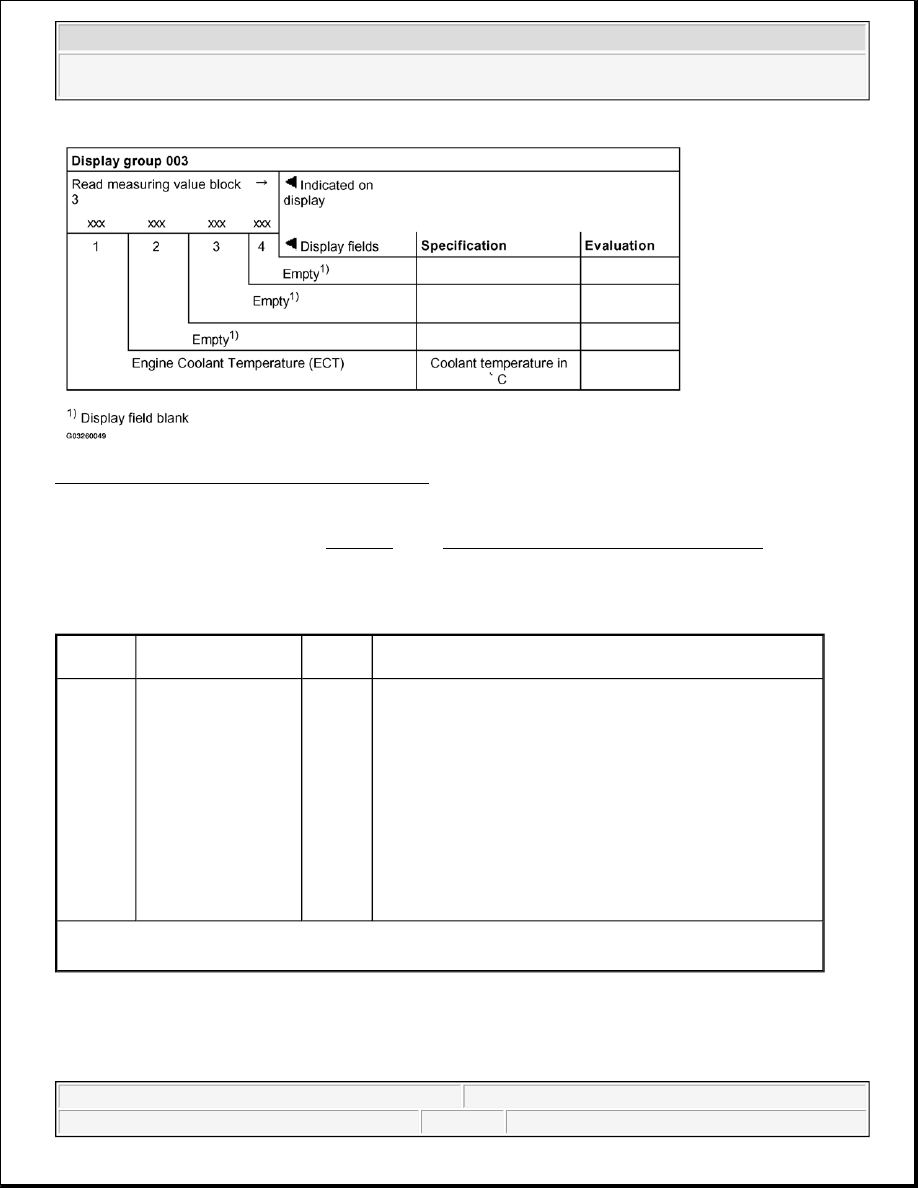

Fig. 150: Display Group 003, From 10.00 Models
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 003

EVALUATING DISPLAY GROUP NUMBER 003 (FROM 10.00 MODELS)

Display Group 050

NOTE:

For evaluation of Fig. 150 , see Evaluating display group number 003 .

Display
field

Description

Display

Corrective Action

1

Engine Coolant

Temperature (ECT)

(1)

ECT in °

C

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for

correct connection and tight fit while simultaneously

observing display

z

If display does not change after checking connections,

troubleshoot wiring using wiring diagram

z

Replace relevant component if necessary

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

(1)

The coolant temperature value steadily indicates 90° C (194 °F) whenever the actual coolant
temperature varies between approx. 75°C (167°F) and 107°C (225 °F).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



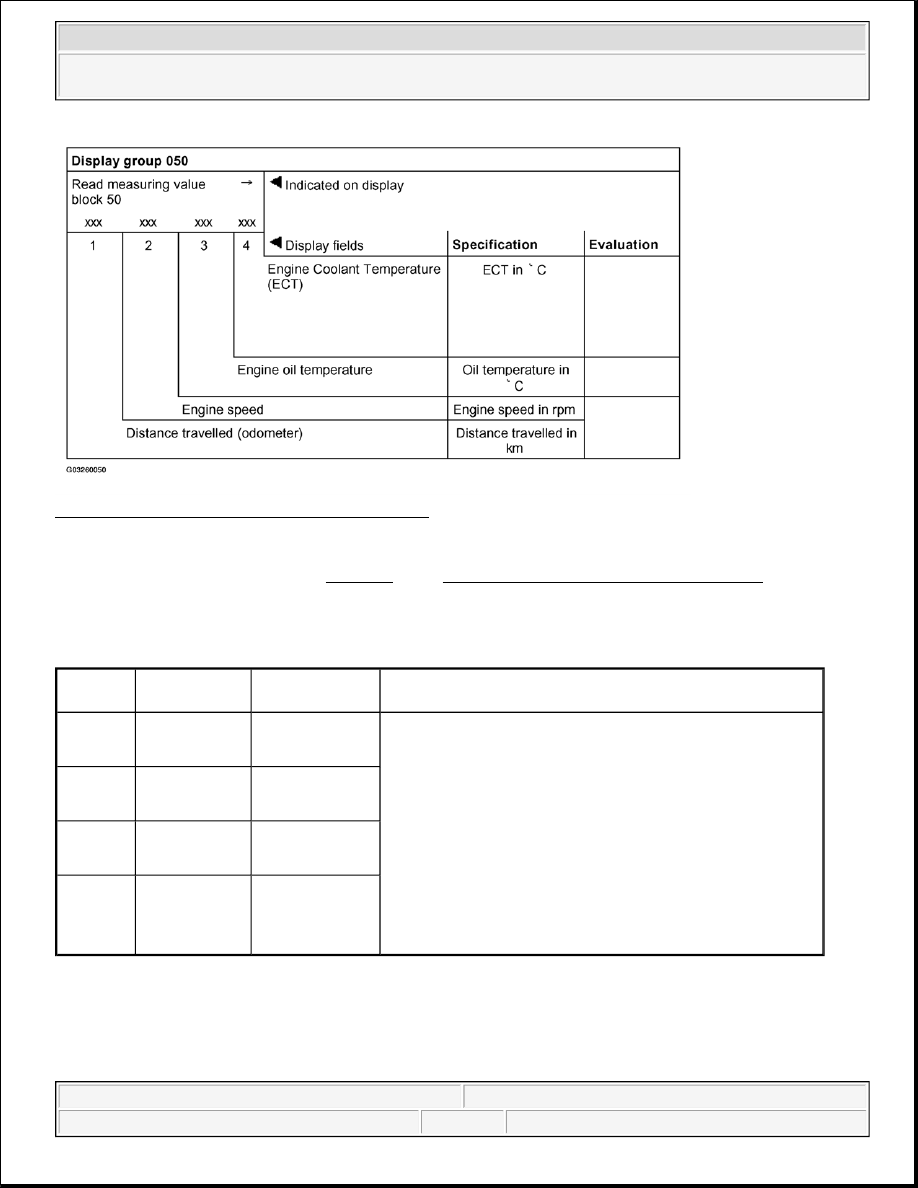

Fig. 151: Display Group 050, From 10.00 Models
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 050

EVALUATING DISPLAY GROUP NUMBER 050 (FROM 10.00 MODELS)

ADAPTATION (FUNCTION 10)

Use this function to initiate and store the following changes:

z

Adaptation of odometer reading when replacing/exchanging instrument cluster

NOTE:

For evaluation of Fig. 151 , see Evaluating display group number 050 .

Display
field

Description

Display

Corrective Action

1

Distance
travelled

Distance

travelled in km

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for
correct connection and tight fit while simultaneously
observing display

z

If display does not change after checking connections,
troubleshoot wiring using wiring diagram

z

Replace relevant component, if necessary

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Engine speed

Engine speed in

rpm

3

Oil

temperature

Oil temperature

in °C

4

Coolant

temperature

Coolant

temperature in °

C
