Volkswagen New Beetle. Manual - part 361

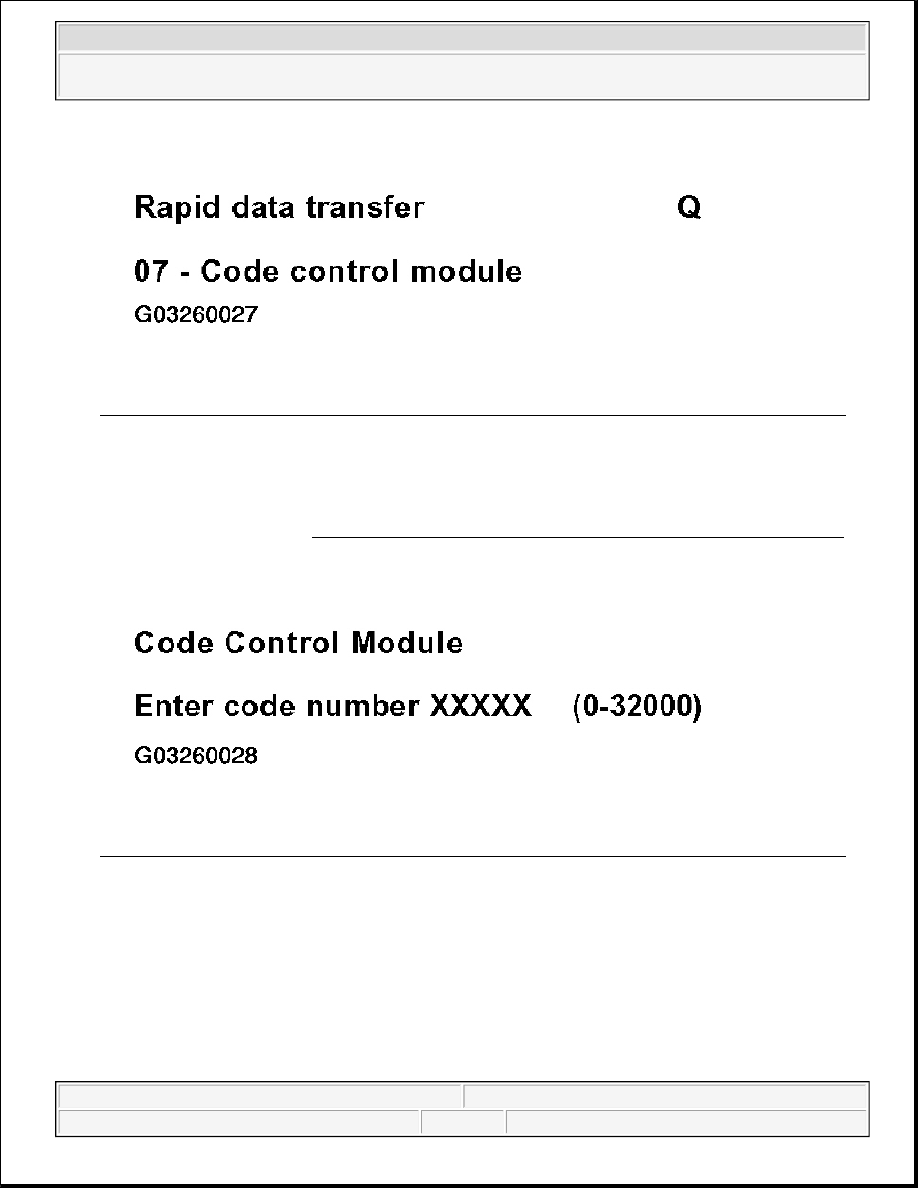

Fig. 128: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (2 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm applicable available equipment, model and service interval particulars, determine and enter code
number from code table. See INSTRUMENT CLUSTER CODE TABLE (UP TO 10.00 MODELS) .

Fig. 129: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (3 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

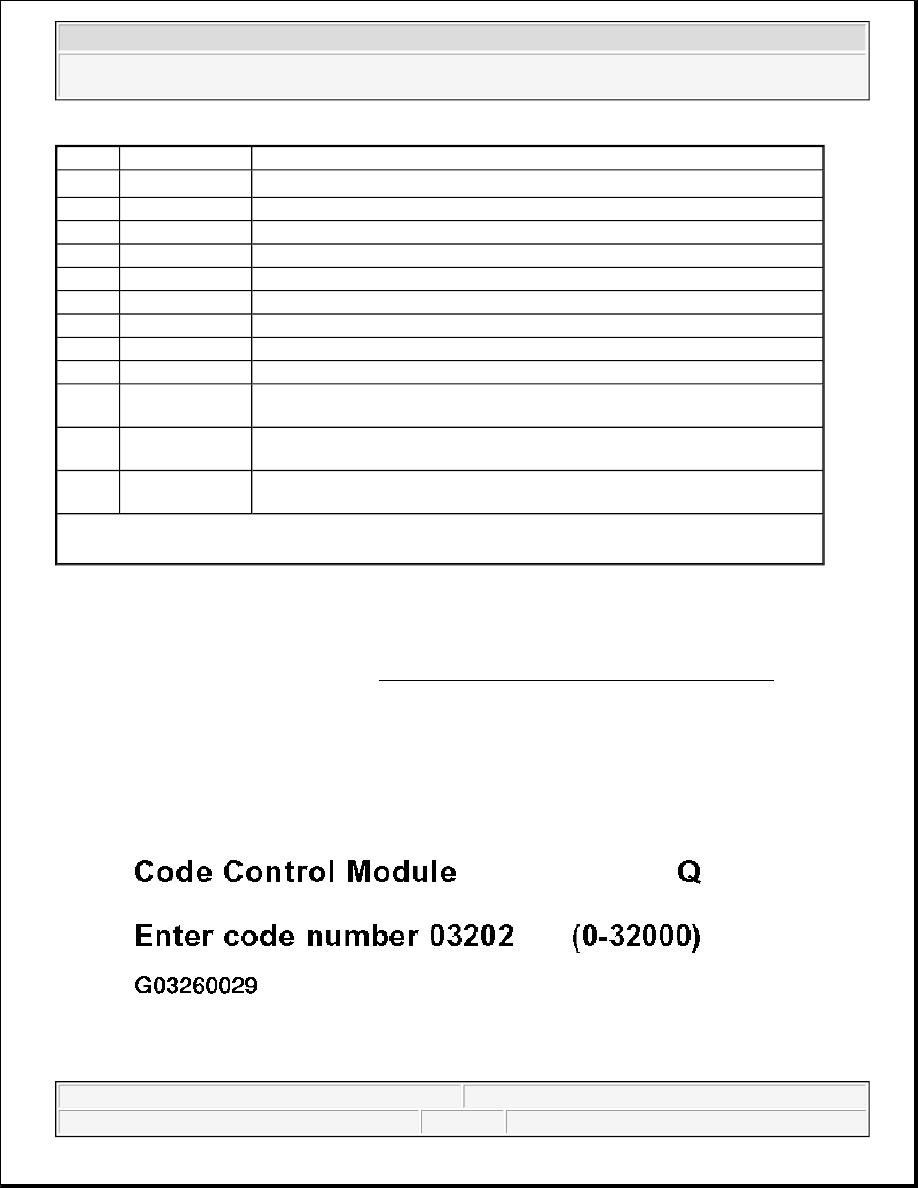

Coding example:

03 Code number for vehicle options

2 Code number for country version

0 Code number for service intervals

2 Code number for distance impulse number (K-number)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



INSTRUMENT CLUSTER CODE

Indicated on display:

z

Press -Q- button to confirm input.

Code

Place In Code

Designation



1st & 2nd Digits

Available equipment

(1)

00

1st & 2nd Digits

No optional equipment active

01

1st & 2nd Digits

Brake pad wear indicator active

02

1st & 2nd Digits

Seat belt warning active

04

1st & 2nd Digits

Rear spoiler



3rd Digit

Market version

2

3rd Digit

USA (US)

3

3rd Digit

Canada (CDN)



4th Digit

Code number for service intervals



0

Fixed USA/CDN service intervals - without oil level thermal sensor -G266-

installed



2

Fixed USA/CDN service intervals - with oil level thermal sensor -G266-

installed



5th Digit

Code number for trip impulse number (K-number)

3528

(1)

If more than one type of available equipment is to be entered, then the code numbers must be added
together. Example: Brake pad wear indicator & seat belt warning: 01 + 02 = 03.

NOTE:

z

The distance impulse number is a constant used to calculate speed and
distance travelled.

z

The distance impulse number (K number) can be read using function 10
"Adaptation". See Distance impulse number (K number), reading .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

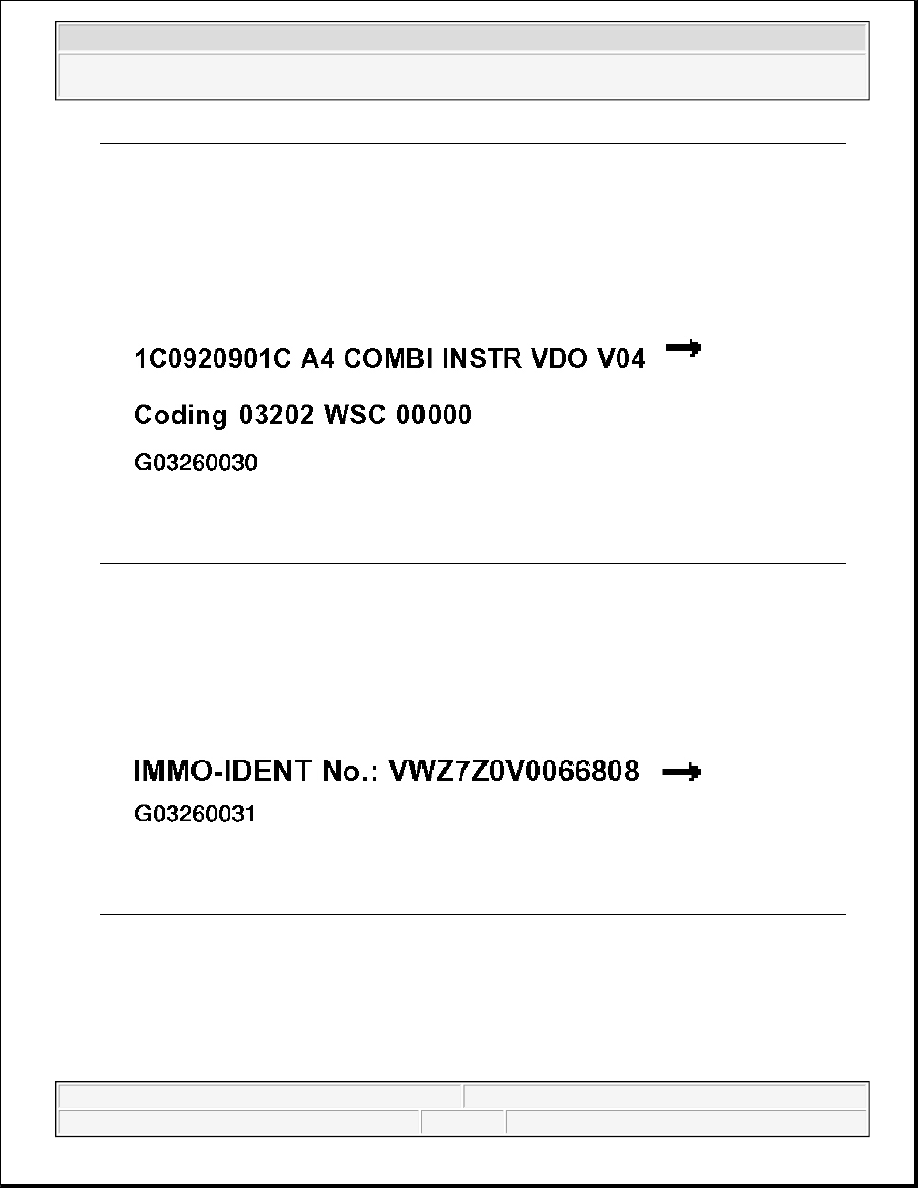

Fig. 130: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (4 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Indicated on display (example only):

z

Press --> button.

Fig. 131: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (5 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press --> button.

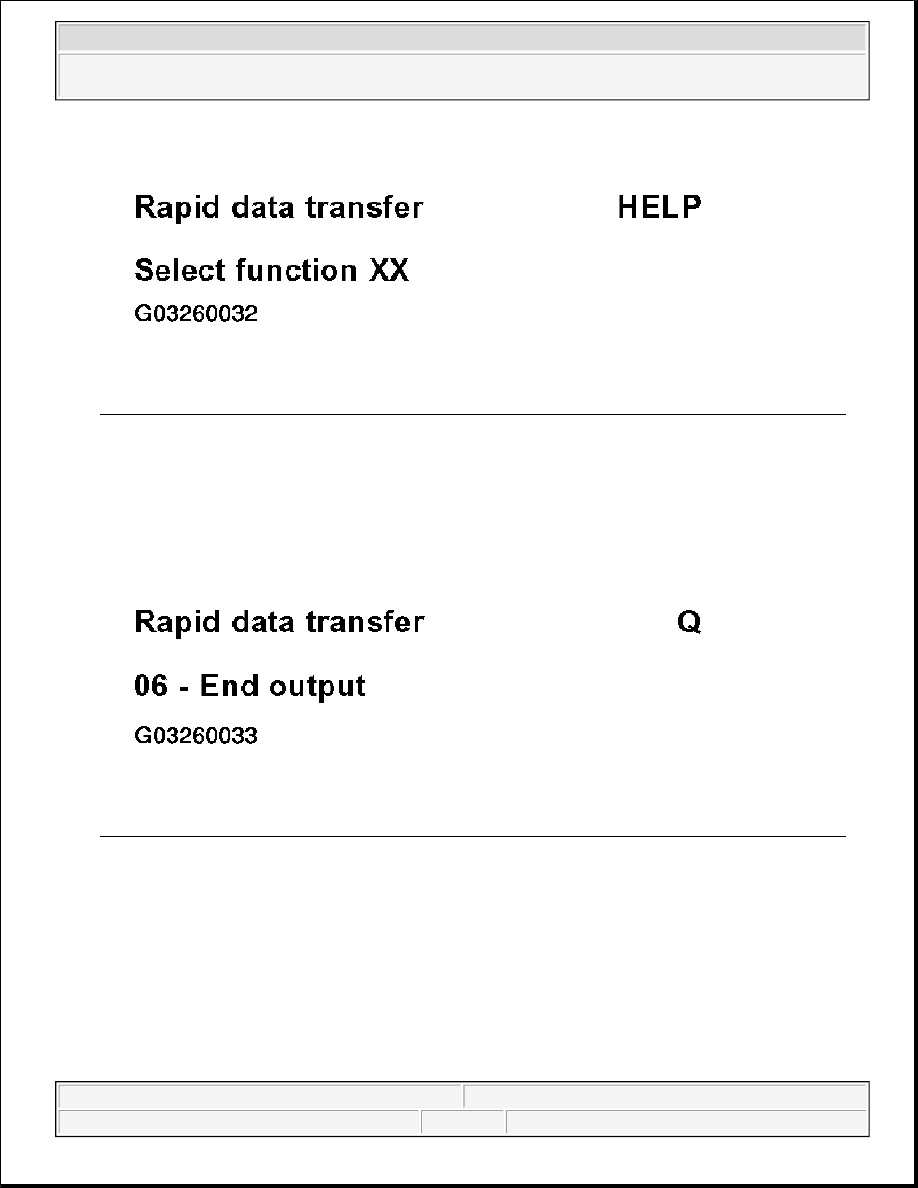

Fig. 132: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (6 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function)

Ending function:

z

Press buttons -0- and -6- to select function 06 "End output".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 133: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (7 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 134: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT CLUSTER FROM 10.00 MODELS, CODING (FUNCTION 07)

Use this function to code the control module with indicator unit in instrument cluster -J285- with the following
information:

z

Available equipment

z

Market version

z

Code number for service intervals

z

Code number for distance impulse number ("K" number)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
