Volkswagen New Beetle. Manual - part 360

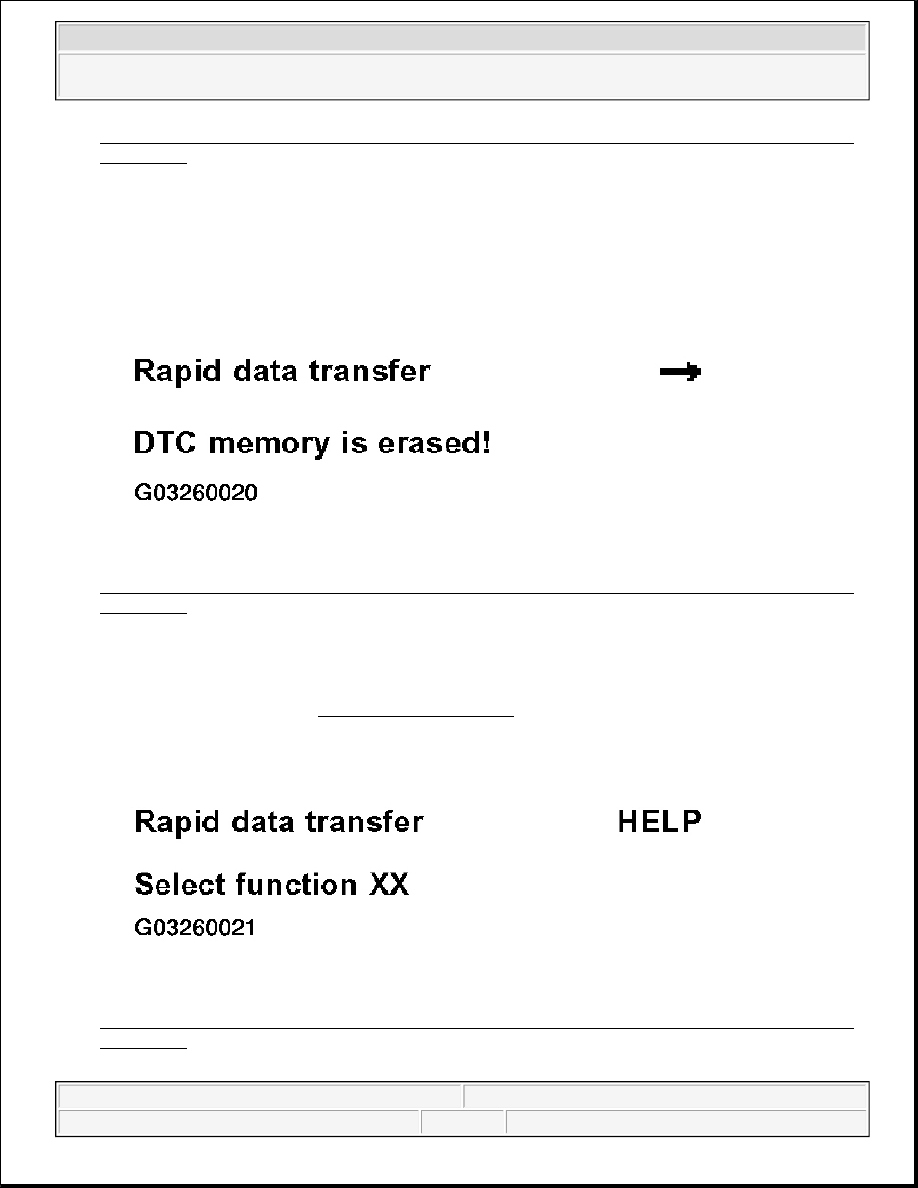

Fig. 120: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (2 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (DTC memory is erased)

z

Press --> button.

Fig. 121: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (3 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

End output (function 06). See End Output (function 06) .

Fig. 122: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (4 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function "End output."

Indicated on display:

NOTE:

z

If this appears in the display, test sequence is faulty.

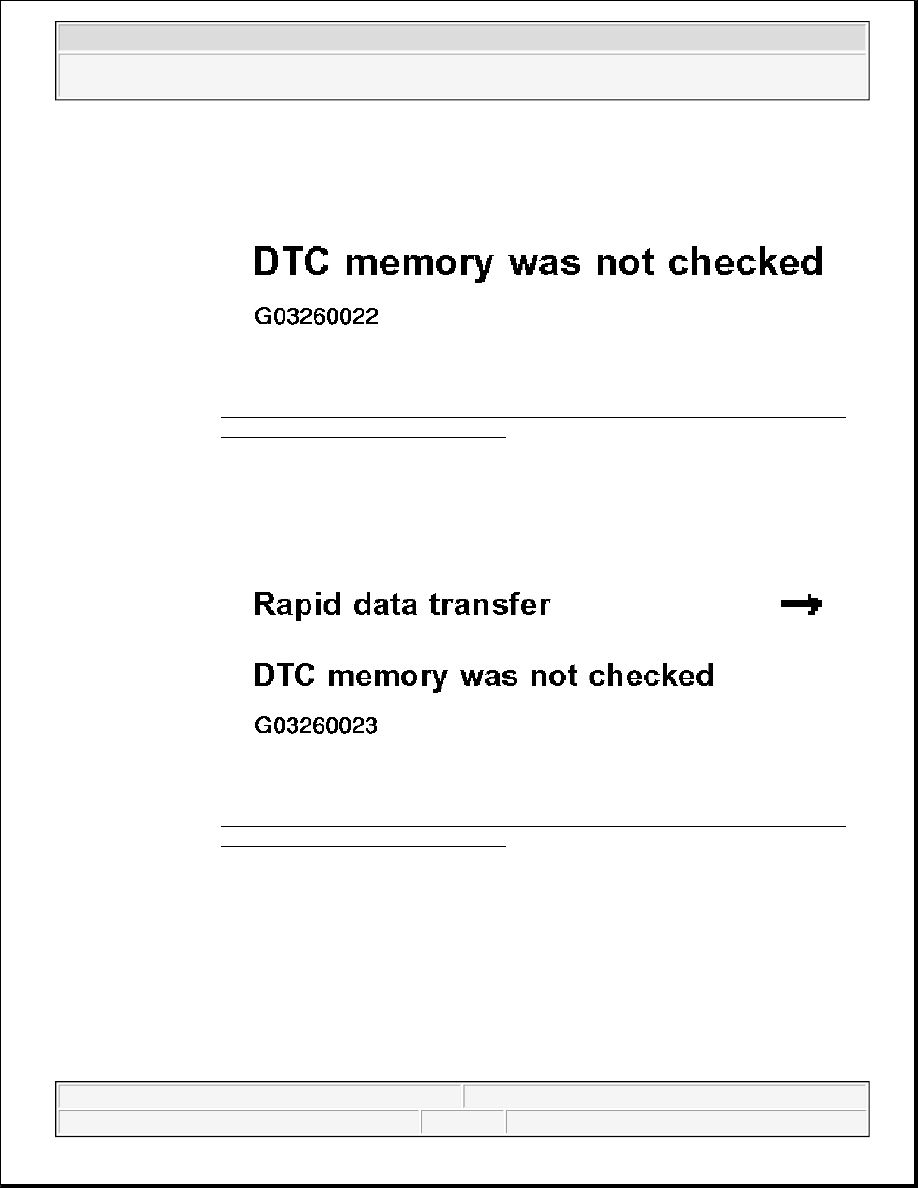

Fig. 123: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, From 06.99 & Up (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this appears in the display, test sequence is faulty.

Fig. 124: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, From 06.99 & Up (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adhere exactly to test sequence: First check DTC memory, repair
malfunctions if necessary, then erase.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Press -Q- button to confirm input.

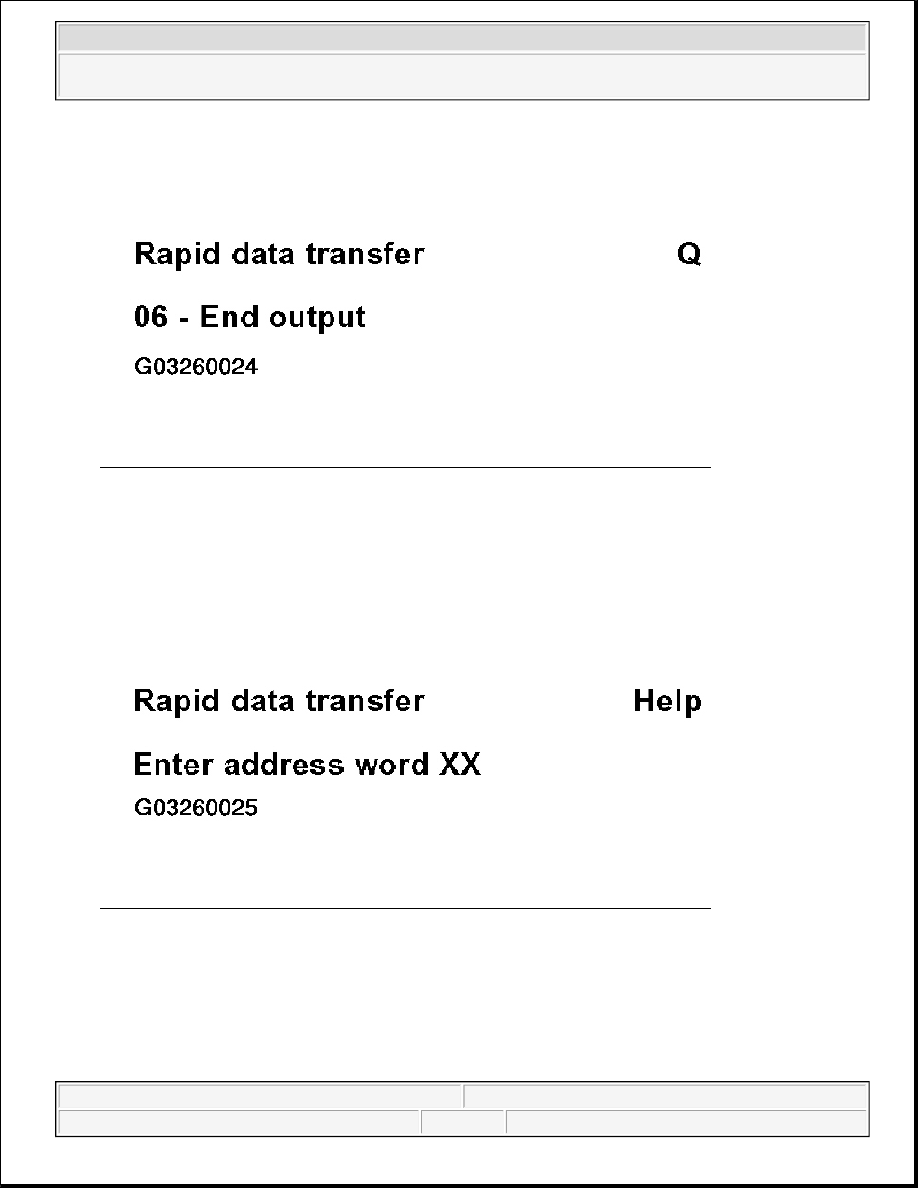

Fig. 125: VAG 1551 Scan Tool Display - End Output, From 06.99 & Up (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Switch off ignition.

z

Disconnect VAG 1551 Scan Tool (ST) from Data Link Connector (DLC).

Fig. 126: VAG 1551 Scan Tool Display - End Output, From 06.99 & Up (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT CLUSTER UP TO 10.00 MODELS, CODING (FUNCTION 07)

Use this function to code the control module with indicator unit in instrument cluster -J285- with the following
information:

z

Available equipment



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Market version

z

Code number for service intervals

z

Code number for distance impulse number ("K" number)

Coding

z

Connect VAG 1551 scan tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition and
input address word 17 "Instrument cluster".

After control module identification and immobilizer identification number are displayed:

z

Press --> button.

Indicated on display:

z

Press buttons -0- and -7- to select function 07 "Code control module".

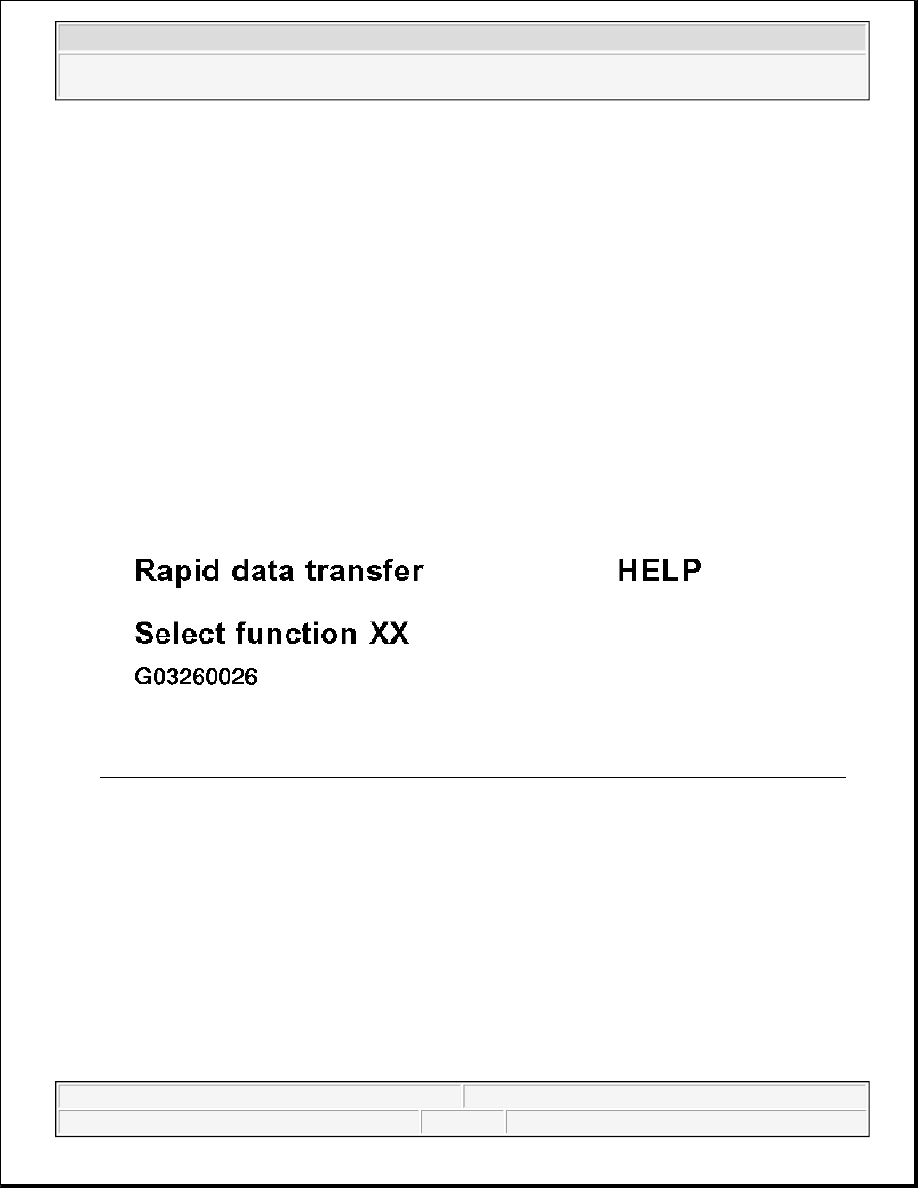

Fig. 127: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (1 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
