Volkswagen New Beetle. Manual - part 340





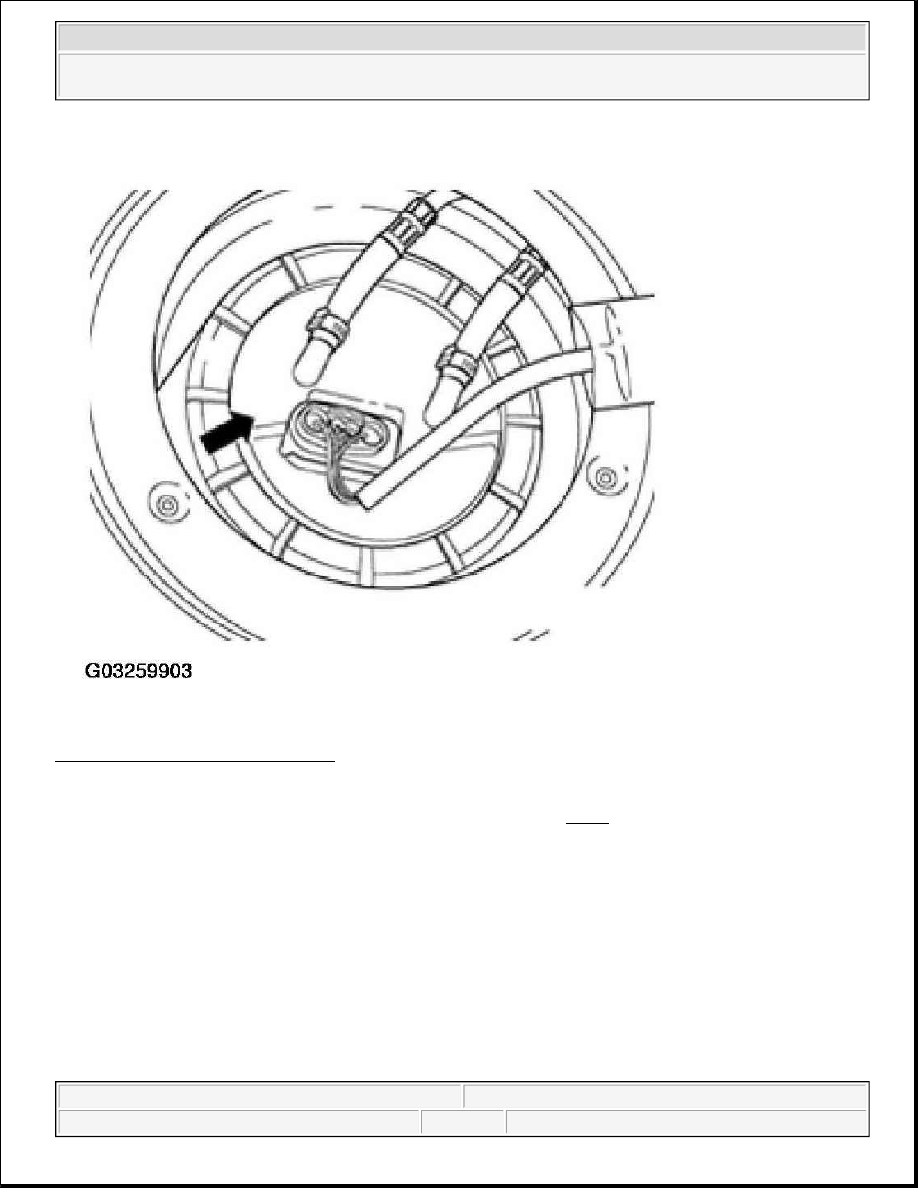

Fig. 4: Identifying Fuel Level Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The fuel level sensor is integrated into fuel pump module (arrow). See Fig. 4 .

Both components are located in the fuel tank and are accessible under the rear seat on the right side.

VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING CONTROL
MODULE VERSIONS

Special tools, testers, and auxiliary items

z

VAG 1551 or VAG 1552 Scan Tool (ST)

z

Optional: VAS 5051 Vehicle Diagnostic Tester



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



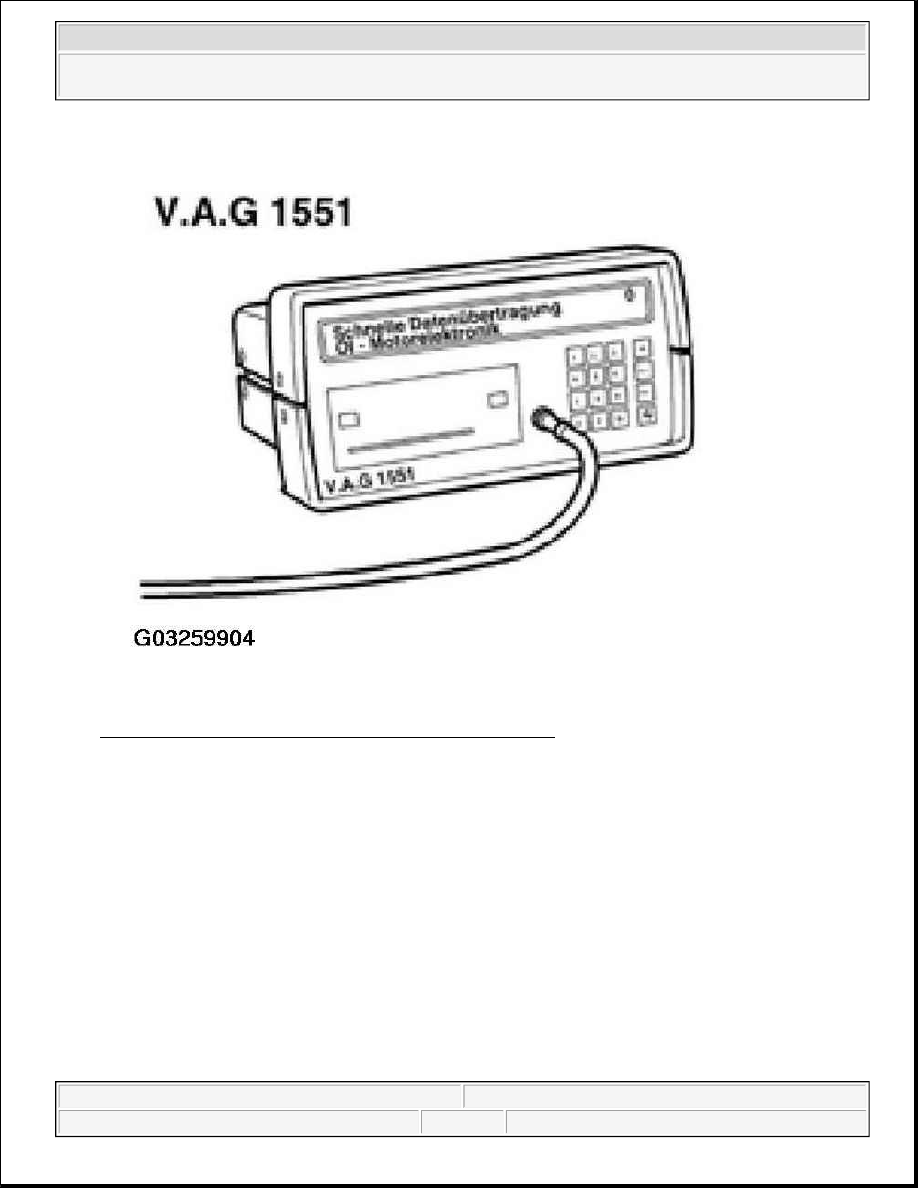

Fig. 5: Identifying VAG 1551 Or VAG 1552 Scan Tool (ST)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG 1551/3 or 1551/3B adapter cable



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



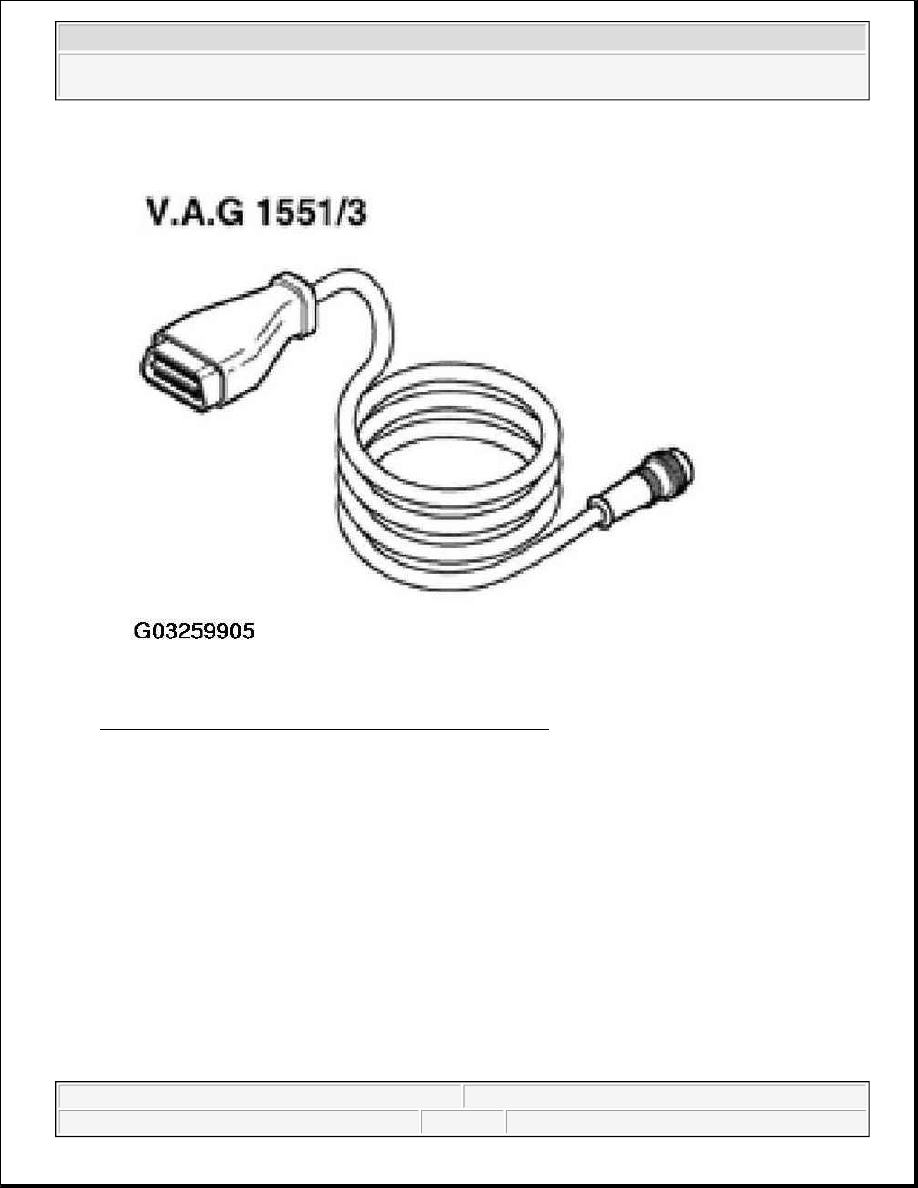

Fig. 6: Identifying VAG 1551/3 Or 1551/3B Adapter Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites:

z

All fuses OK according to wiring diagram.

z

Battery (B+) voltage at least 9 Volts.

Connecting

With ignition switched off, connect VAG 1551 Scan Tool (ST) with adapter cable 1551/3 to the Data Link
Connector (DLC) located above ashtray

NOTE:

z

VAG 1552 Scan Tool (ST) may be used instead of the VAG 1551 Scan Tool
(ST), however a print-out is not possible.

z

The following procedure and display references pertain only to VAG 1551
Scan Tool (ST).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



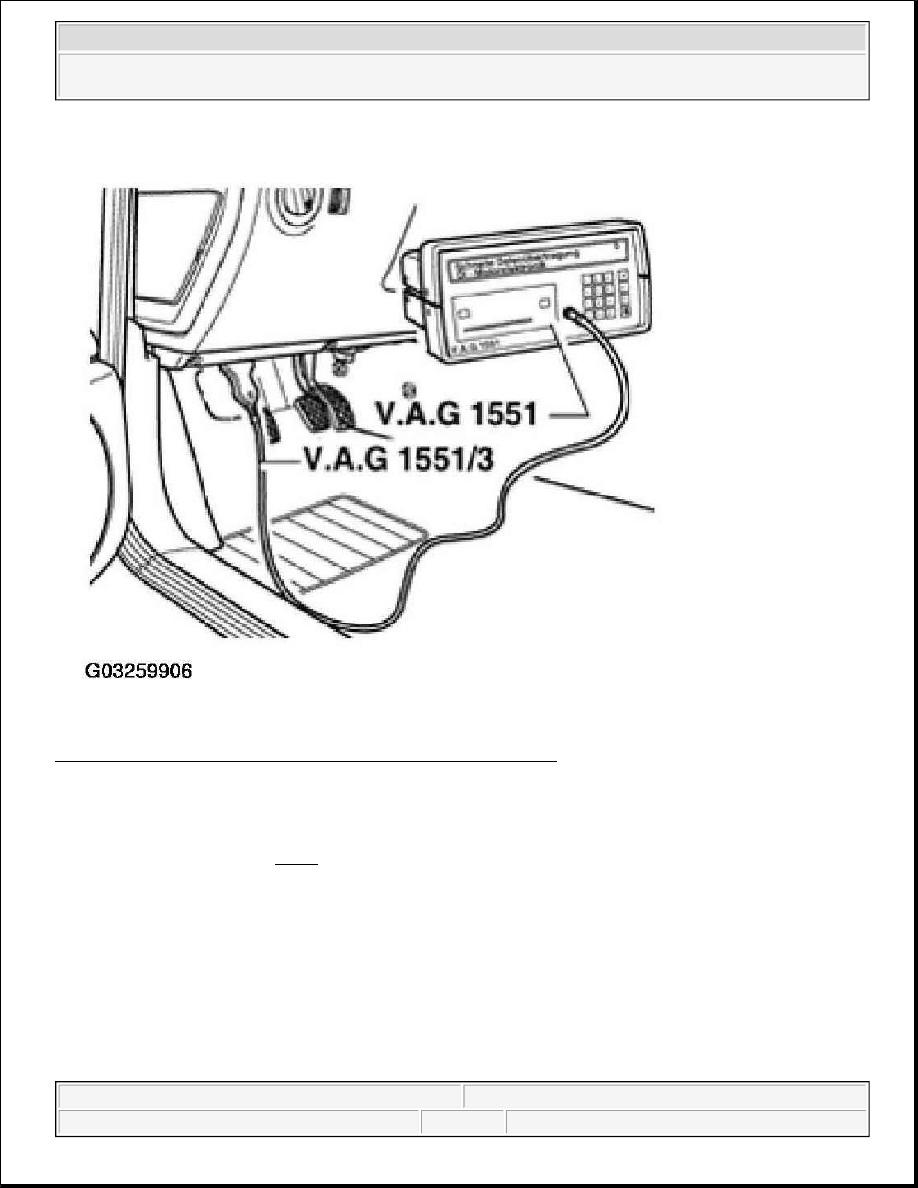

Fig. 7: Connecting VAG 1551 Scan Tool To Data Link Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

* Is displayed alternately. See Fig. 8 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
