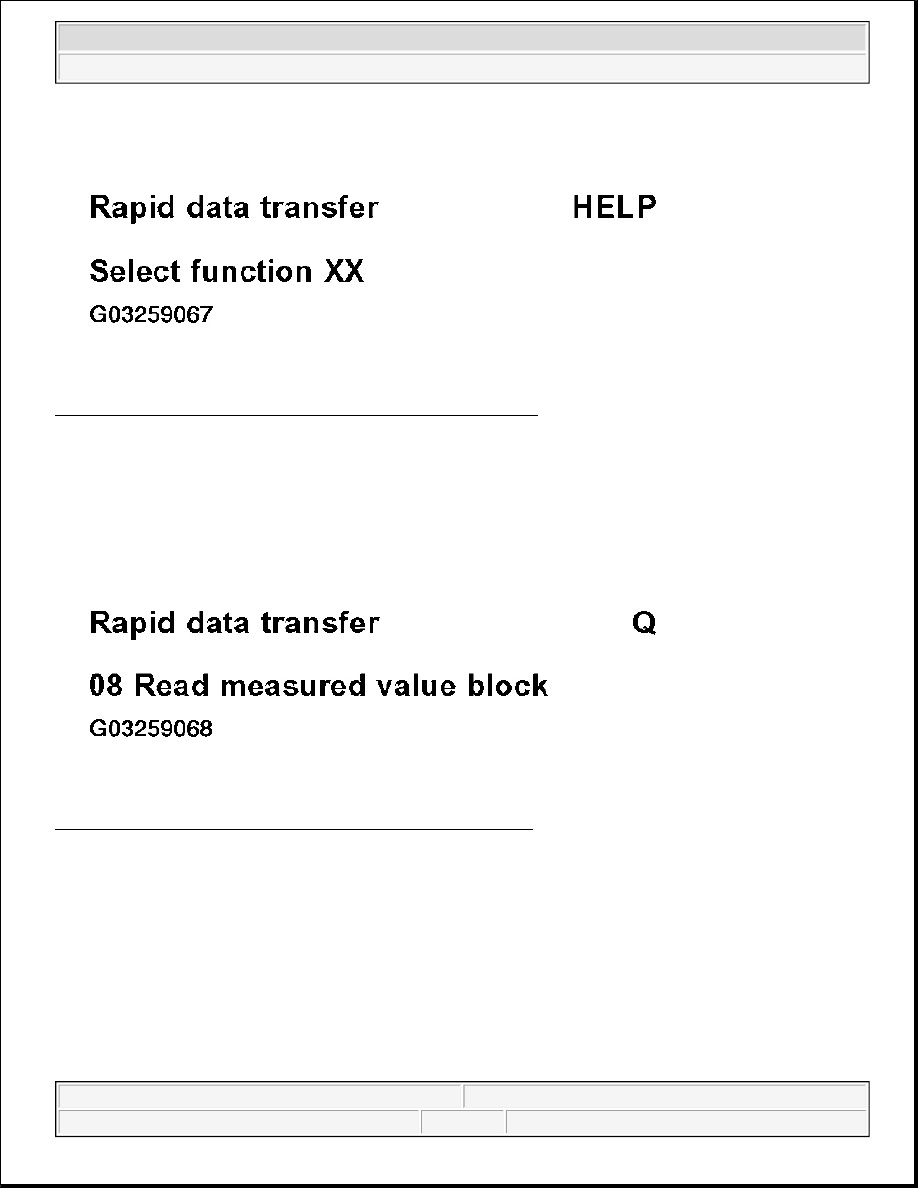

Fig. 267: Scan Tool Display - Rear Spoiler Function 08 (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- (08 initiates function "Read measured value block").

Indicated on display:

Fig. 268: Scan Tool Display- Rear Spoiler Function 08 (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

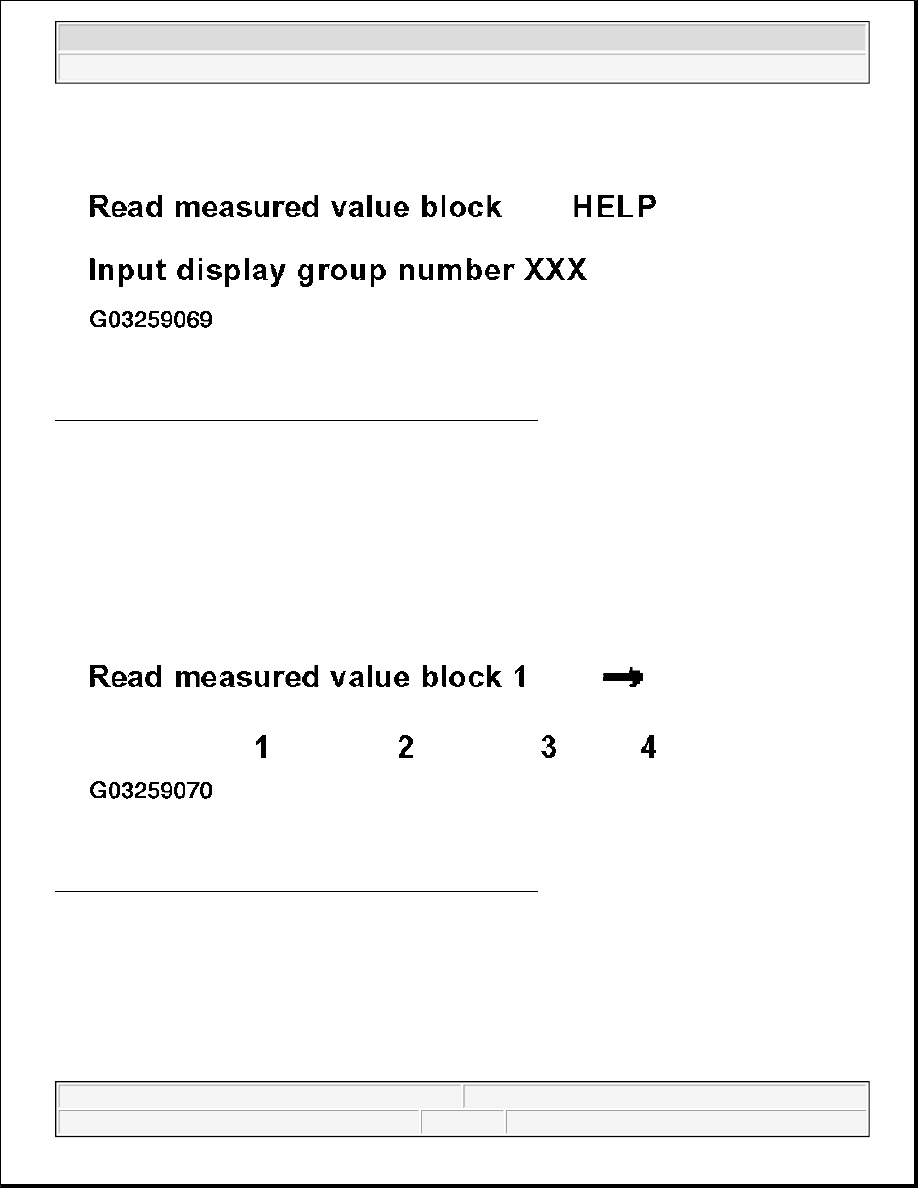

Fig. 269: Scan Tool Display - Rear Spoiler Function 08 (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -1- for "Display group number 1" and confirm entry with -Q- button.

Indicated on display: (1...4 = display zones)

Fig. 270: Scan Tool Display - Rear Spoiler Function 08 (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUP OVERVIEW

Break down of display content for display group number 001

NOTE:

The display group number 001 is an example, to illustrate the sequence.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



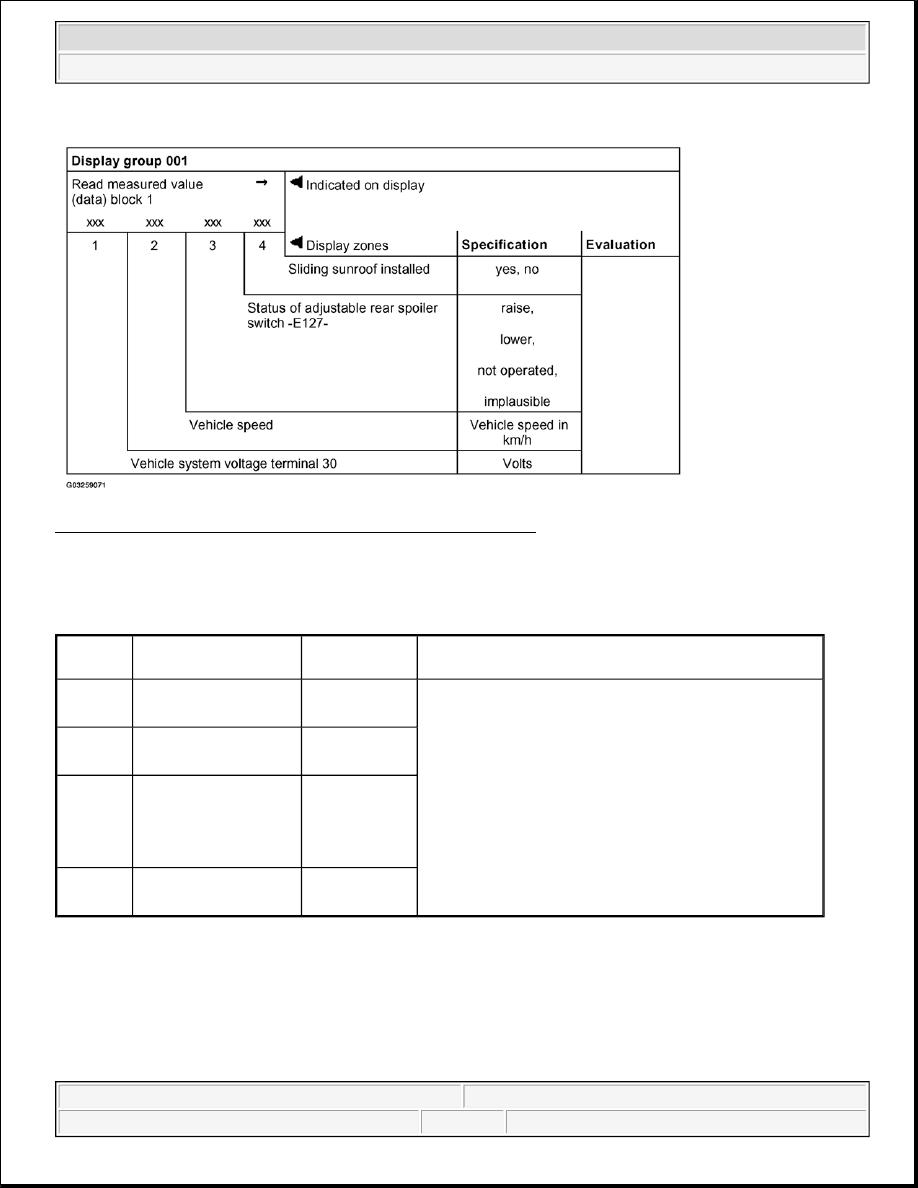

Fig. 271: Break Down Display Group 001 Chart - Rear Spoiler
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 001

EVALUATING DISPLAY GROUP NUMBER 001 - REAR SPOILER

Display
zone

Designation

Display

contents

Corrective action

1

Vehicle system

voltage terminal 30

Volts

z

Visual check of wiring

z

Check that connections of relevant current

circuit are correctly connected and fit tightly

together while simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Vehicle speed

Vehicle speed

in km/h

3

Status of adjustable

rear spoiler switch -

E127-

raise,

lower,

not operated,

implausible

4

Sliding sunroof

installed

yes, no



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus & Anti-theft

Immobilizer)

INSTRUMENT CLUSTER UP TO 06.99, ON BOARD DIAGNOSTIC (OBD)

GENERAL INFORMATION

The instrument cluster is controlled by an internal microprocessor with On Board Diagnostic (OBD) capability.
If malfunctions occur in monitored sensors and components, Diagnostic Trouble Codes (DTC) will be stored in
memory together with an indication of malfunction type. A maximum of 4 DTCs can be stored simultaneously.

Sporadic malfunctions (indicated in the readout by "SP") are automatically cancelled if not repeated in the next
50 engine start cycles.

For OBD purposes, the instrument cluster counts one start cycle whenever the ignition is switched on longer
than 5 min. and a minimum speed of 30 km/h (18.5 mp/h) is exceeded.

Before performing any troubleshooting or inspection, always begin by checking for DTCs using the OBD
program. DTCs stored in memory are retrieved/checked with either the VAG 1551/1552 Scan Tool (ST) or
VAS 5051 Vehicle Diagnostic Tester.

Additional information:

z

Complaint/symptom based Technical Bulletins ("Service Fixes"): Check for Technical Bulletins.

z

Instrument cluster, see INSTRUMENTS .

Notes on exchanging instrument cluster

z

Do not disassemble instrument cluster.

z

When replacing an instrument cluster is necessary, follow normal exchange part procedures.

z

Complete report form and return together with instrument cluster.

z

Use original packaging from new cluster when returning items.

z

Replacement instrument clusters must first be coded according to vehicle market version and equipment
level variables using VAG 1551 Scan Tool (ST)

z

Odometer reading must also be adapted to the replacement instrument cluster. See ODOMETER
READING UP TO 06.98 MODELS, ADAPTATION
 .

ELECTRICAL & ELECTRONIC COMPONENTS, LOCATIONS

NOTE:

The following description and illustrations deal specifically with the VAG 1551
scan tool. VAG 1552 and VAS 5051 procedures are similar.
