Volkswagen New Beetle. Manual - part 336

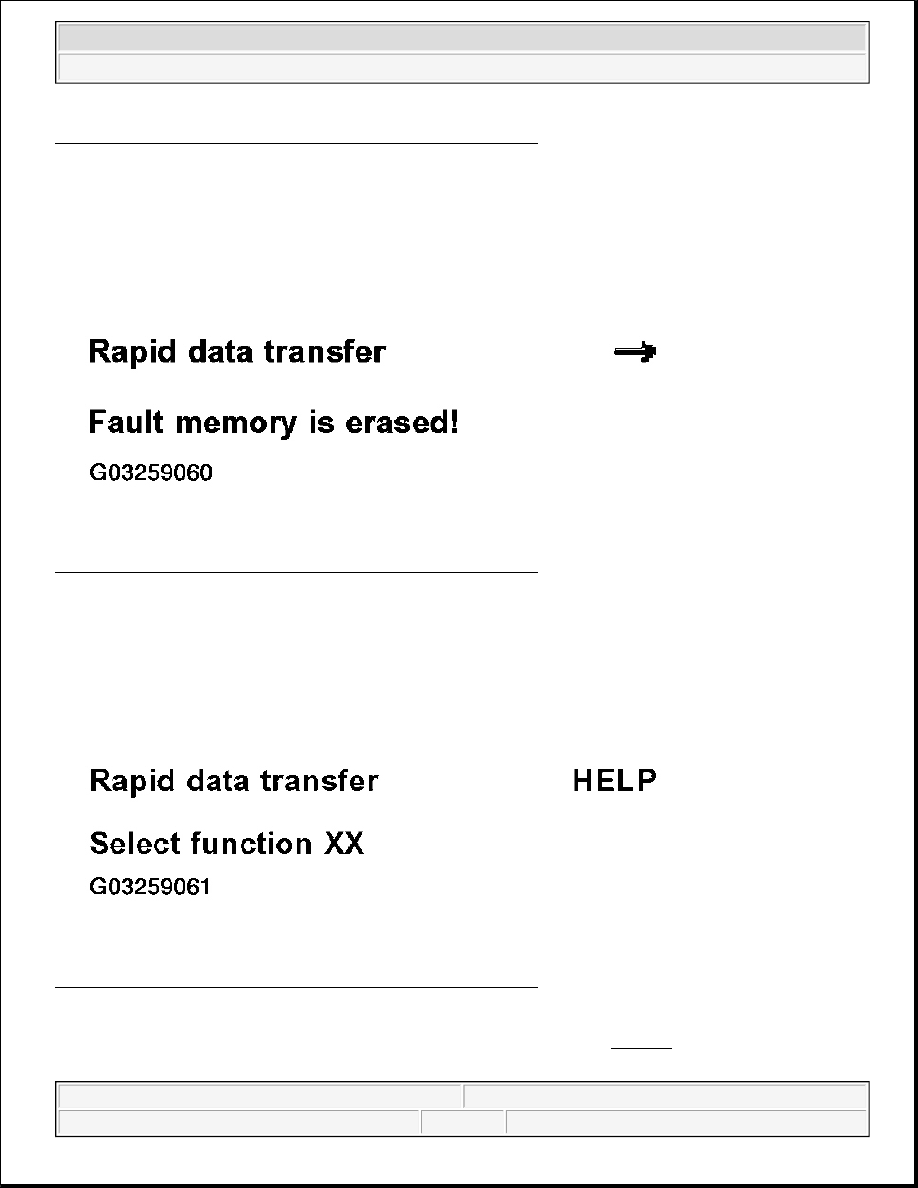

Fig. 259: Scan Tool Display - Rear Spoiler Function 05 (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Confirm entry with -Q- button.

Indicated on display:

Fig. 260: Scan Tool Display - Rear Spoiler Function 05 (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:

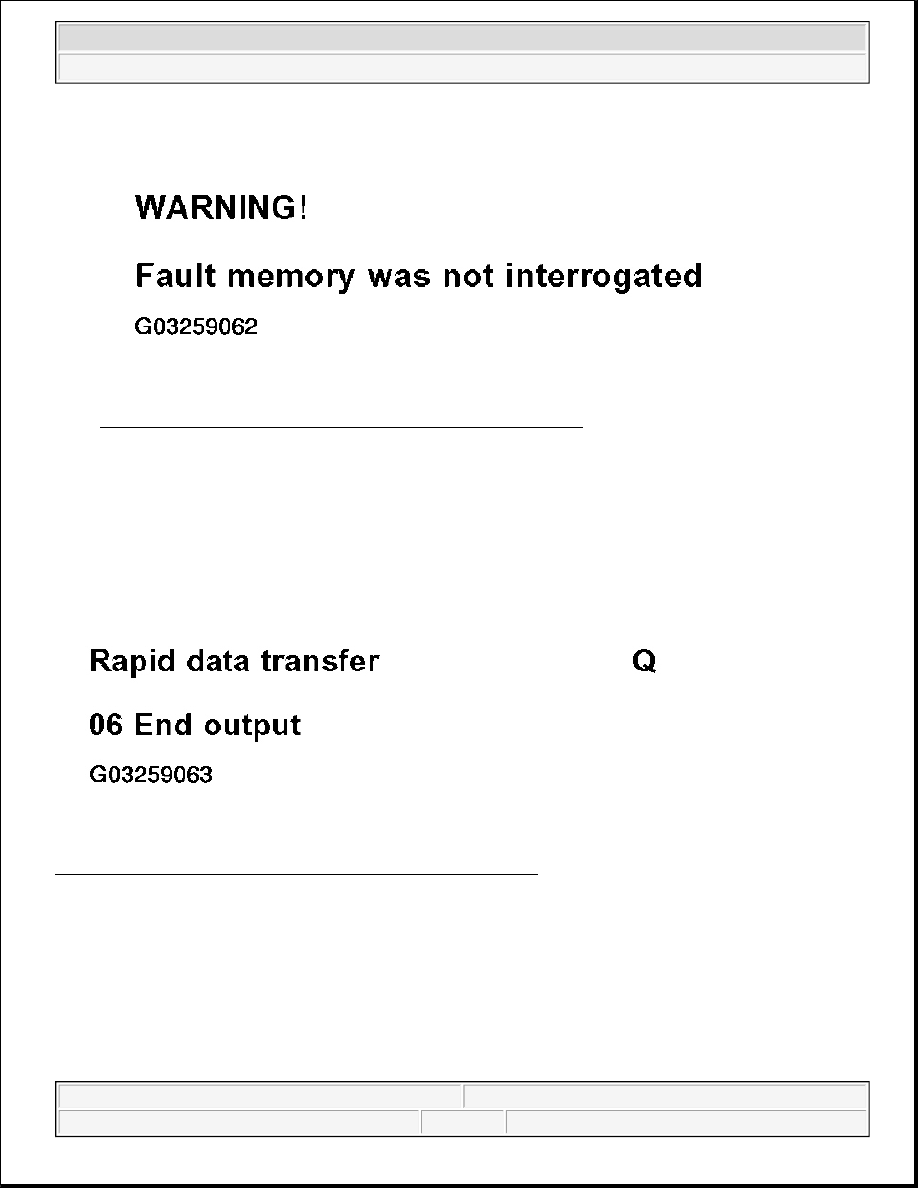

Fig. 261: Scan Tool Display - Rear Spoiler Function 05 (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this appears in the display, the test sequence has malfunctioned. See Fig. 262 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 262: Scan Tool Display - Rear Spoiler Function 05 (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Adhere exactly to test sequence: first of all interrogate DTC memory, then erase memory.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

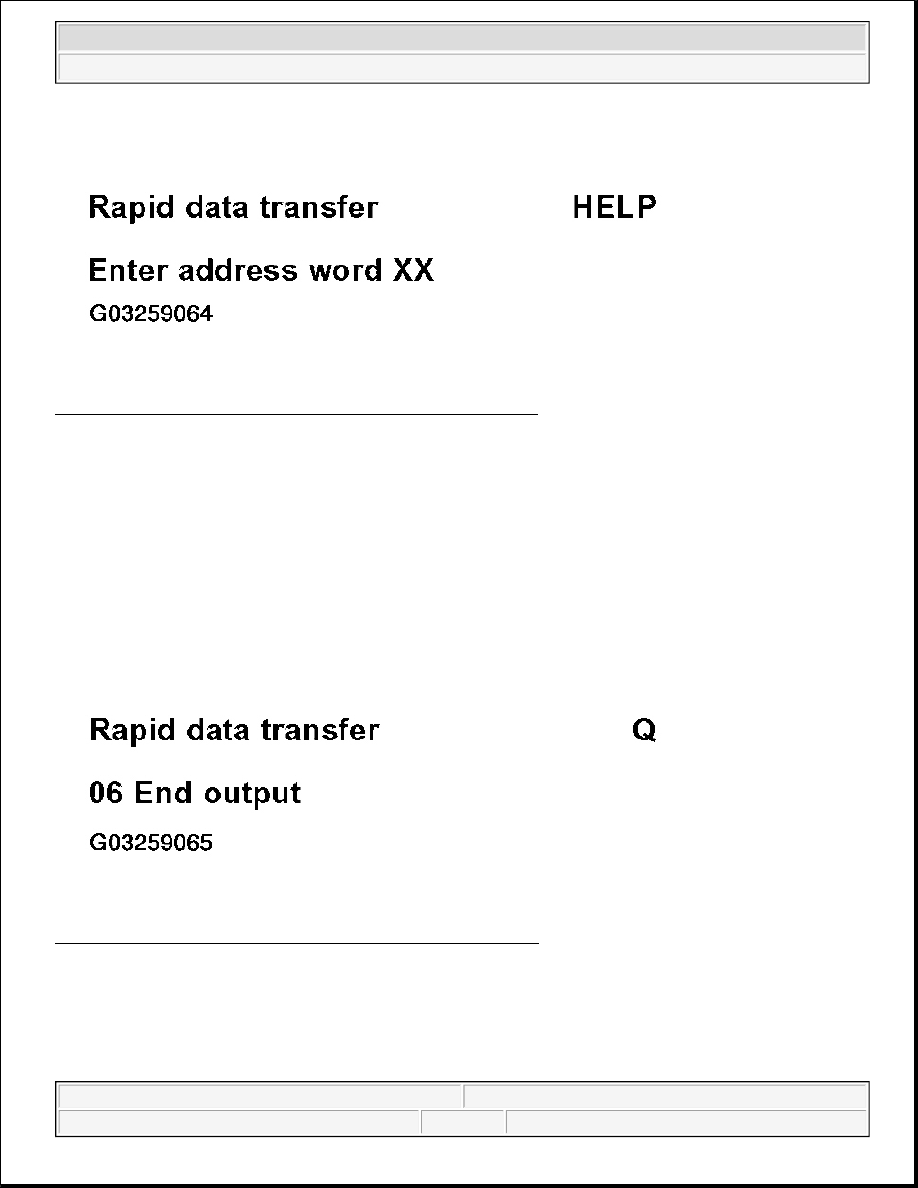

Fig. 263: Scan Tool Display - Rear Spoiler Function 05 (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 264: Scan Tool Display - Rear Spoiler Function 05 (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

END OUTPUT

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 265: Scan Tool Display - Rear Spoiler End Output (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 266: Scan Tool Display - Rear Spoiler End Output (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODE (DTC) - REAR SPOILER (00000 & 00926)

NOTE:

z

The Diagnostic Trouble Code (DTC) tables are listed according to the 5
digit malfunction code on the left.

z

Explanation of the DTC types (e.g. "open circuit/short to ground (GND)"):
See Scan tool operating instructions.

z

Before replacing components indicated as being faulty, check the wiring
and connectors to these components as well as the ground (GND)
connections using Electrical Wiring Diagram. This is particularly relevant
if malfunctions are output as "occurring sporadically" (SP).

z

The malfunctions displayed can be localized using the test table.

V.A.G 1551 print-
out

Possible cause

Corrective action

00000
No fault recognized

If "No fault recognized" appears after performing repairs, the On Board
Diagnosis (OBD) is terminated.

00926
Vehicle voltage
terminal 30 Signal too
large
Signal too small

z

Voltage regulator

-C-1 faulty

z

Alternator -C-

faulty

z

Battery-A-

discharged or

faulty

-

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Read measured value block; Display group

number 001, see DISPLAY GROUP

OVERVIEW , display zone 1

z

Replace faulty components



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
