Volkswagen New Beetle. Manual - part 334





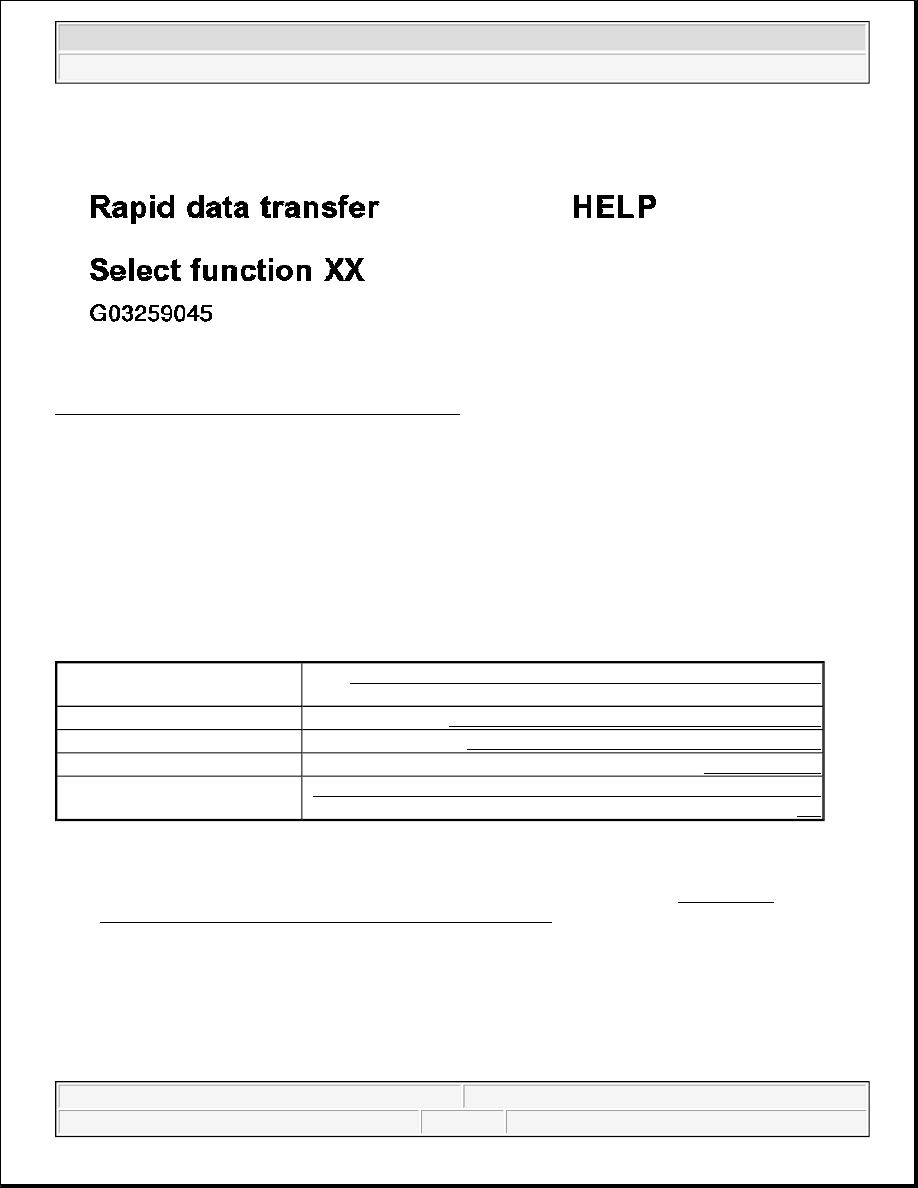

Fig. 245: Scan Tool Display - Rear Spoiler (13 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

List of selectable functions

LIST OF SELECTABLE FUNCTIONS - REAR SPOILER

CONTROL UNIT VERSION, CHECKING (FUNCTION 01)

z

Connecting scan tool, see Page 01-3, initiating On Board Diagnosis (OBD), see ON BOARD
DIAGNOSIS (OBD) FOR REAR SPOILER, INITIATING
 .

Indicated on display:

NOTE:

z

A list of possible functions is printed out after pressing the HELP button.

z

Do not select further functions, which can be printed out after pressing the
HELP button.

z

After the functions have been completed the V.A.G 1551 returns to the
following start position:

01 - Checking control unit
version

CONTROL UNIT VERSION, CHECKING (FUNCTION 01)

02 - Check fault memory

DTC MEMORY, CHECKING (FUNCTION 02)

05 - Erasing fault memory

DTC MEMORY, ERASING (FUNCTION 05)

06 - Ending output

END OUTPUT

08 - Read measured value block

MEASURED VALUE (DATA) BLOCK, READING (FUNCTION

08)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

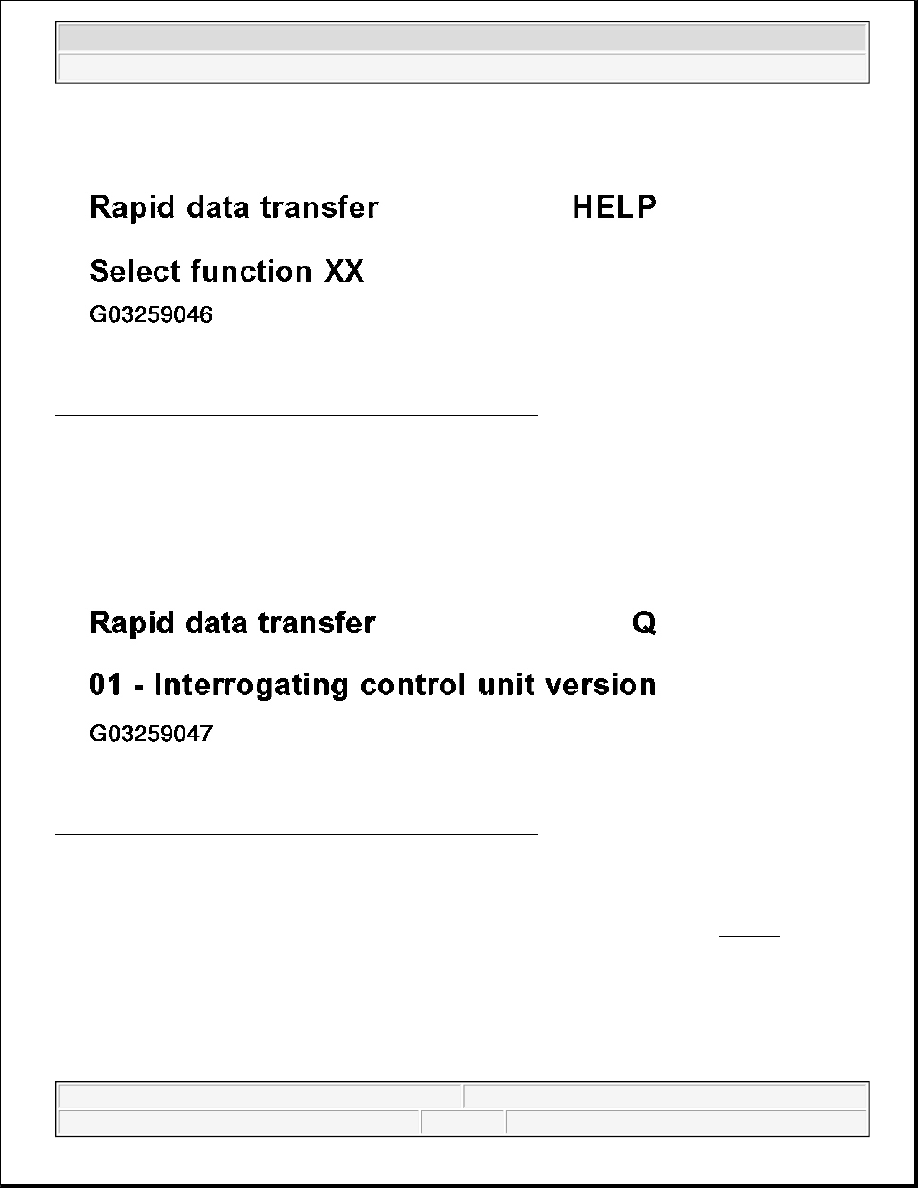

Fig. 246: Scan Tool Display - Rear Spoiler Function 01 (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -1-.

Indicated on display:

Fig. 247: Scan Tool Display - Rear Spoiler Function 01 (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

The scan tool V.A.G 1551 display will show the control unit identification, for example see Fig. 248 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

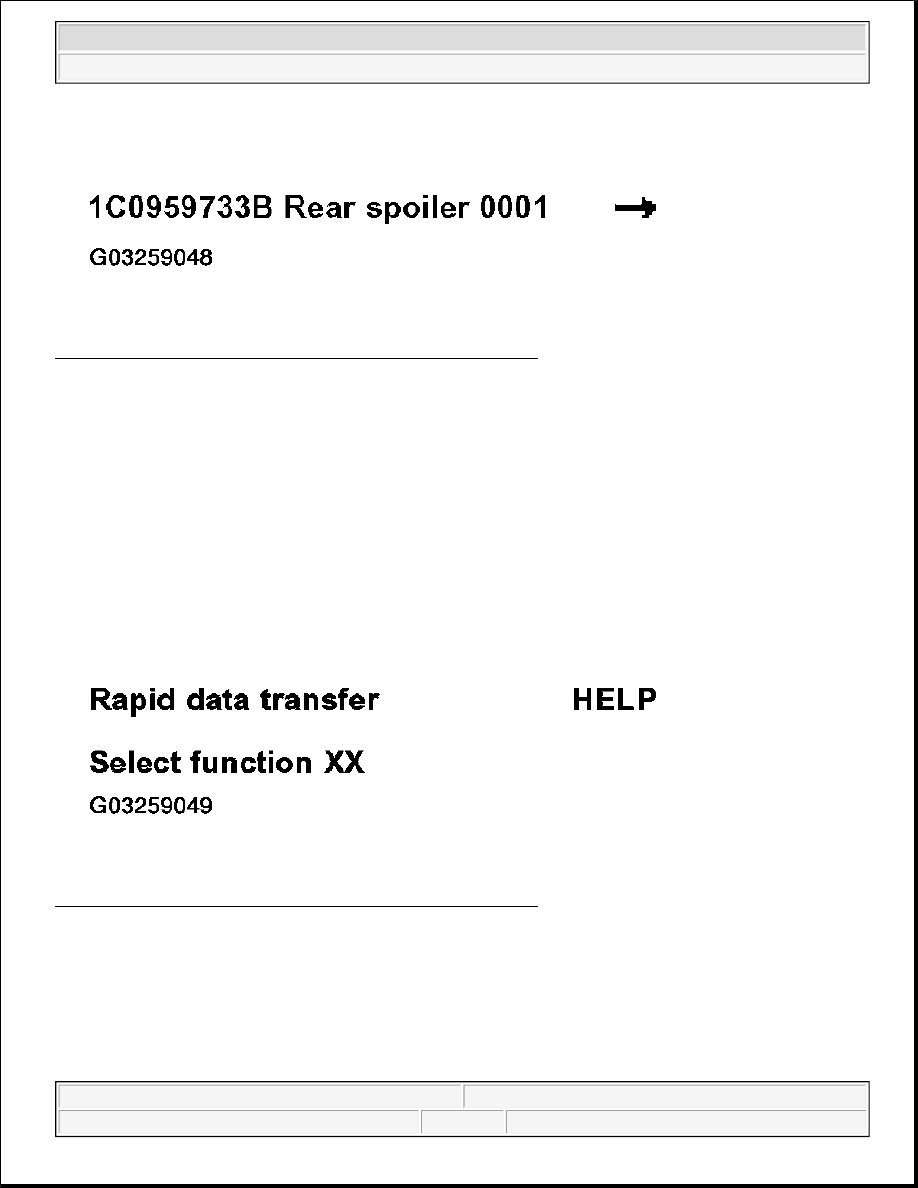

Fig. 248: Scan Tool Display - Rear Spoiler Function 01 (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Breakdown of the display:

z

1C0959733B = Part No. of the control unit (for latest control unit version see parts catalog)

z

Rear spoiler = System designation

z

0001 = Software version

z

Press --> button.

Indicated on display:

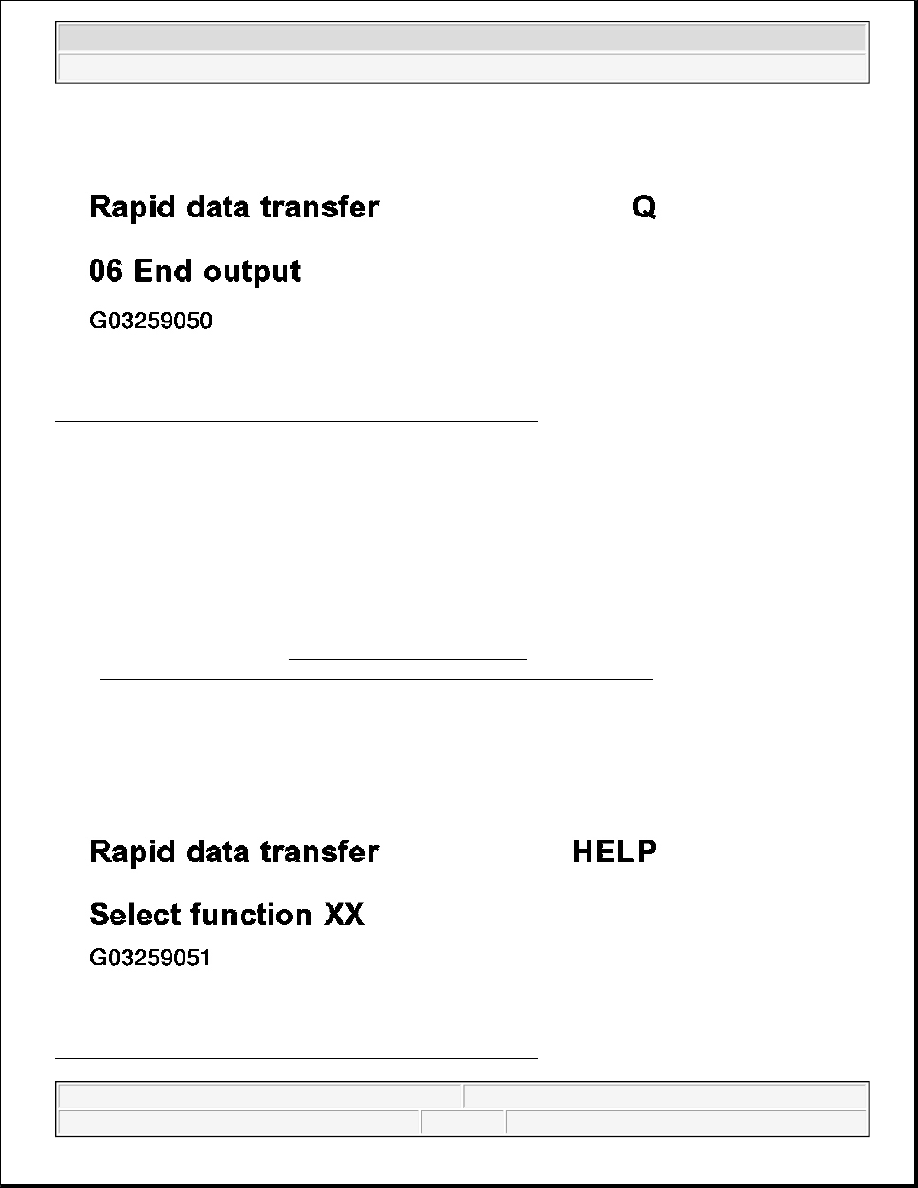

Fig. 249: Scan Tool Display - Rear Spoiler Function 01 (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 250: Scan Tool Display - Rear Spoiler Function 01 (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

DTC MEMORY, CHECKING (FUNCTION 02)

z

Connecting scan tool, see SCAN TOOL, CONNECTING . Initiating On Board Diagnosis (OBD), see
ON BOARD DIAGNOSIS (OBD) FOR REAR SPOILER, INITIATING .

z

Switch on printer with the Print button (indicator lamp in button lights up).

Indicated on display:

Fig. 251: Scan Tool Display - Rear Spoiler Function 02 (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the scan tool
V.A.G 1551;, however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
