Volkswagen New Beetle. Manual - part 335





z

Press buttons -0- and -2-. (Function "Interrogate fault memory" is selected with 02).

Indicated on display:

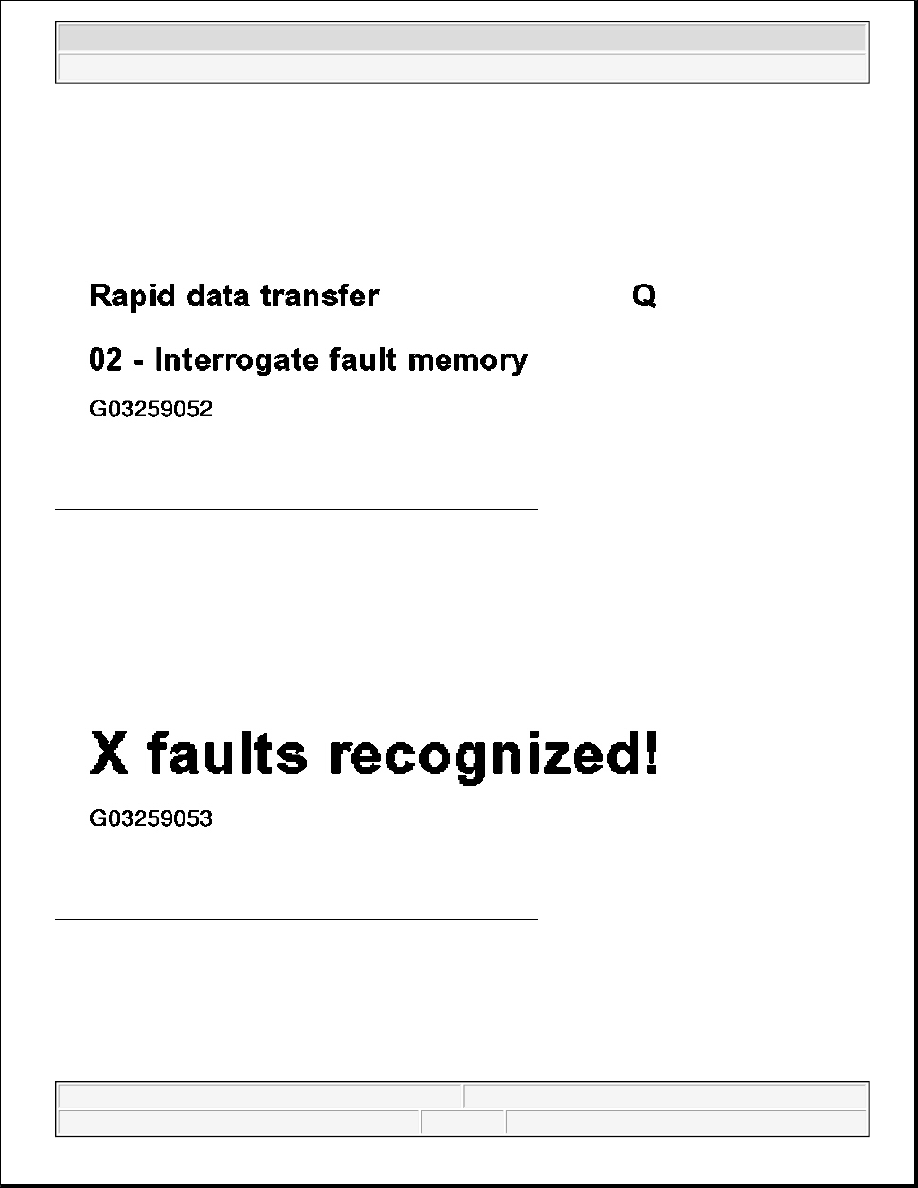

Fig. 252: Scan Tool Display - Rear Spoiler Function 02 (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press Print button.

z

Confirm entry with -Q- button.

The number of stored DTCs appears in the display.

Fig. 253: Scan Tool Display - Rear Spoiler Function 02 (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The stored DTCs will be displayed and printed out one after the other.

z

Repair malfunction

NOTE:

If a malfunction is recognized:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Erase DTC memory (function 05)

z

Interrogate DTC memory again (function J 02).

z

The malfunctions printed out can be repaired with aid of Diagnostic Trouble Code (DTC) table. See
DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

z

MEASURED VALUE (DATA) BLOCK, READING (FUNCTION 08) and DISPLAY GROUP
OVERVIEW
 are additional aids.

If "No fault recognized" is displayed the program will return to the initial position after pressing the --> button.

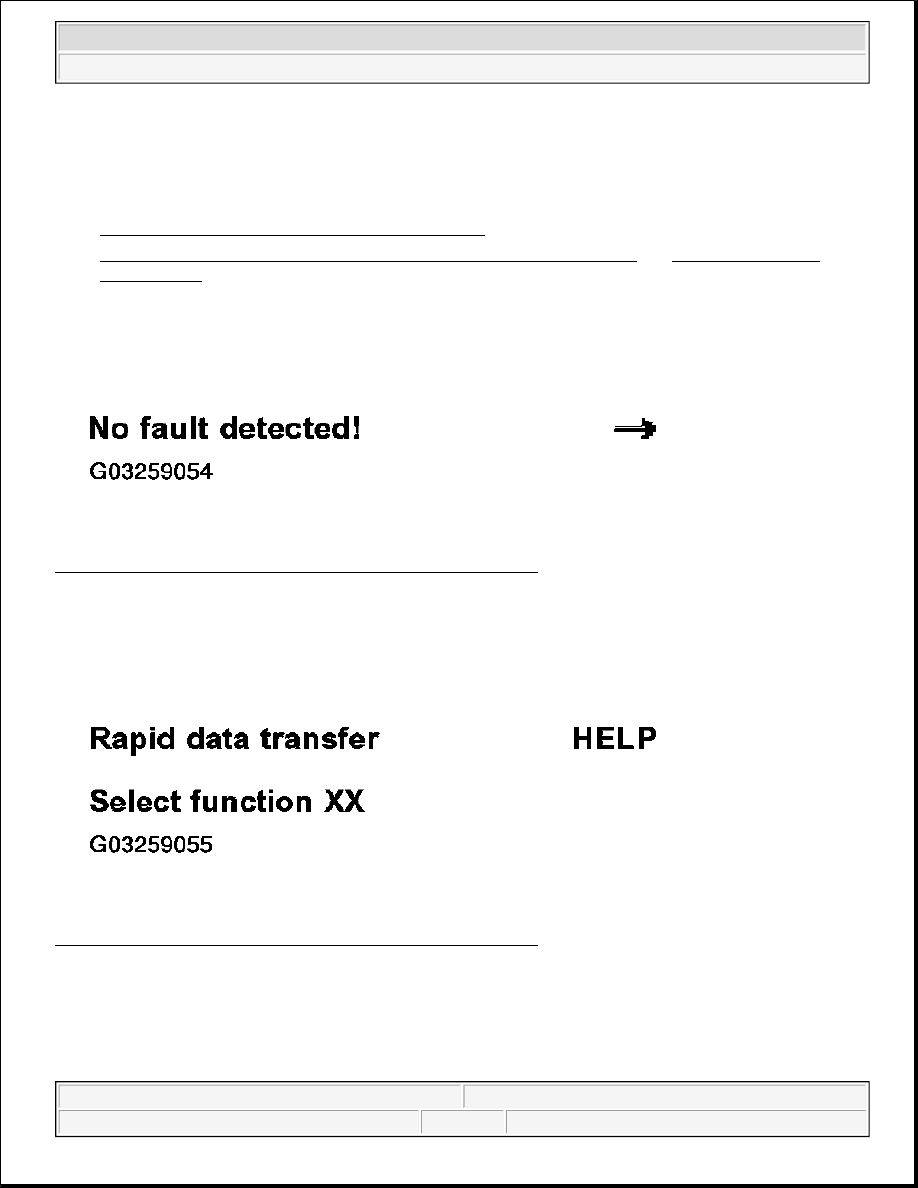

Fig. 254: Scan Tool Display - Rear Spoiler Function 02 (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 255: Scan Tool Display - Rear Spoiler Function 02 (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

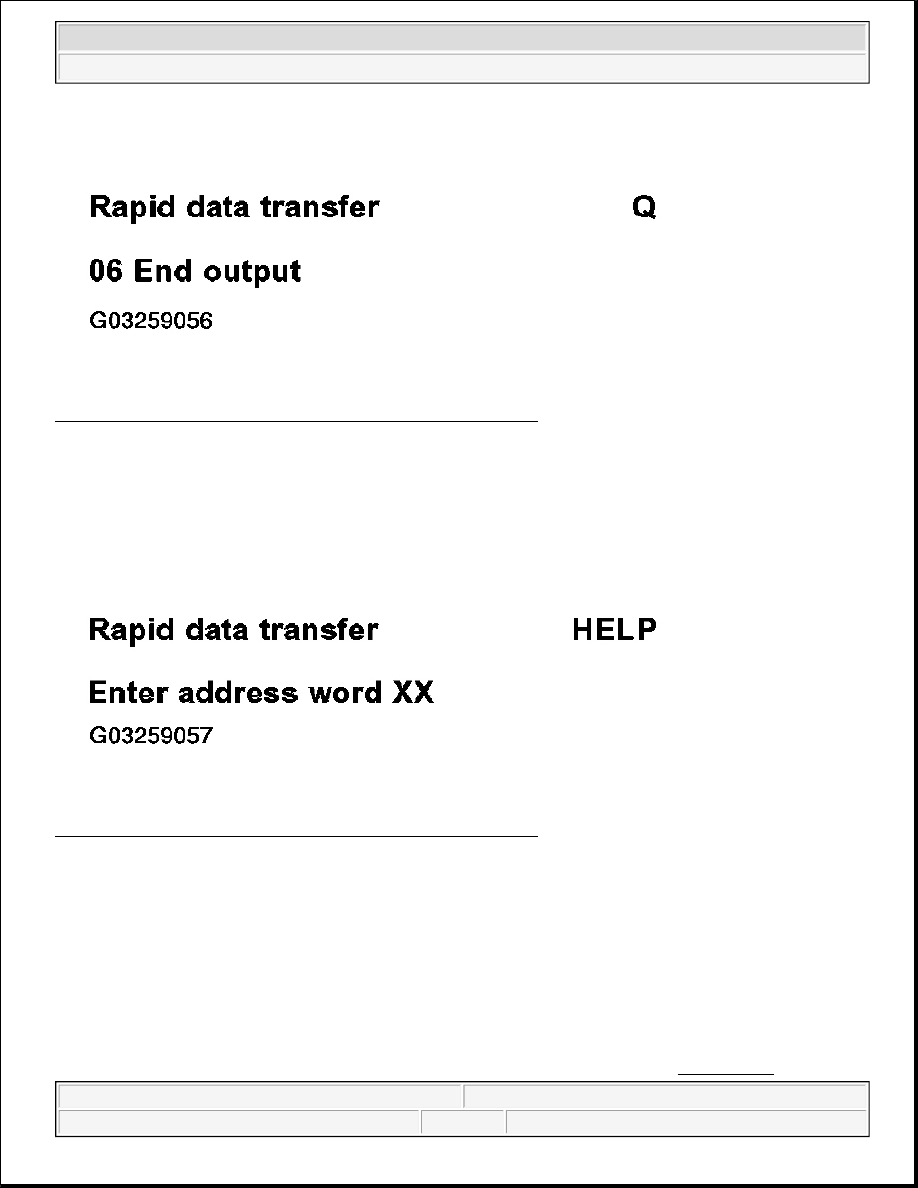

Fig. 256: Scan Tool Display - Rear Spoiler Function 02 (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 257: Scan Tool Display - Rear Spoiler Function 02 (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Disconnect connection to scan tool V.A.G 1551.

DTC MEMORY, ERASING (FUNCTION 05)

z

Connecting scan tool, see Page 01-3, initiating On Board Diagnosis (OBD), see ON BOARD

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the scan tool
V.A.G 1551; however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



DIAGNOSIS (OBD) FOR REAR SPOILER, INITIATING

Requirements:

z

Malfunction is corrected

z

Functional check has been carried out

z

DTC memory interrogated again

DTC memory, erasing

Indicated on display:

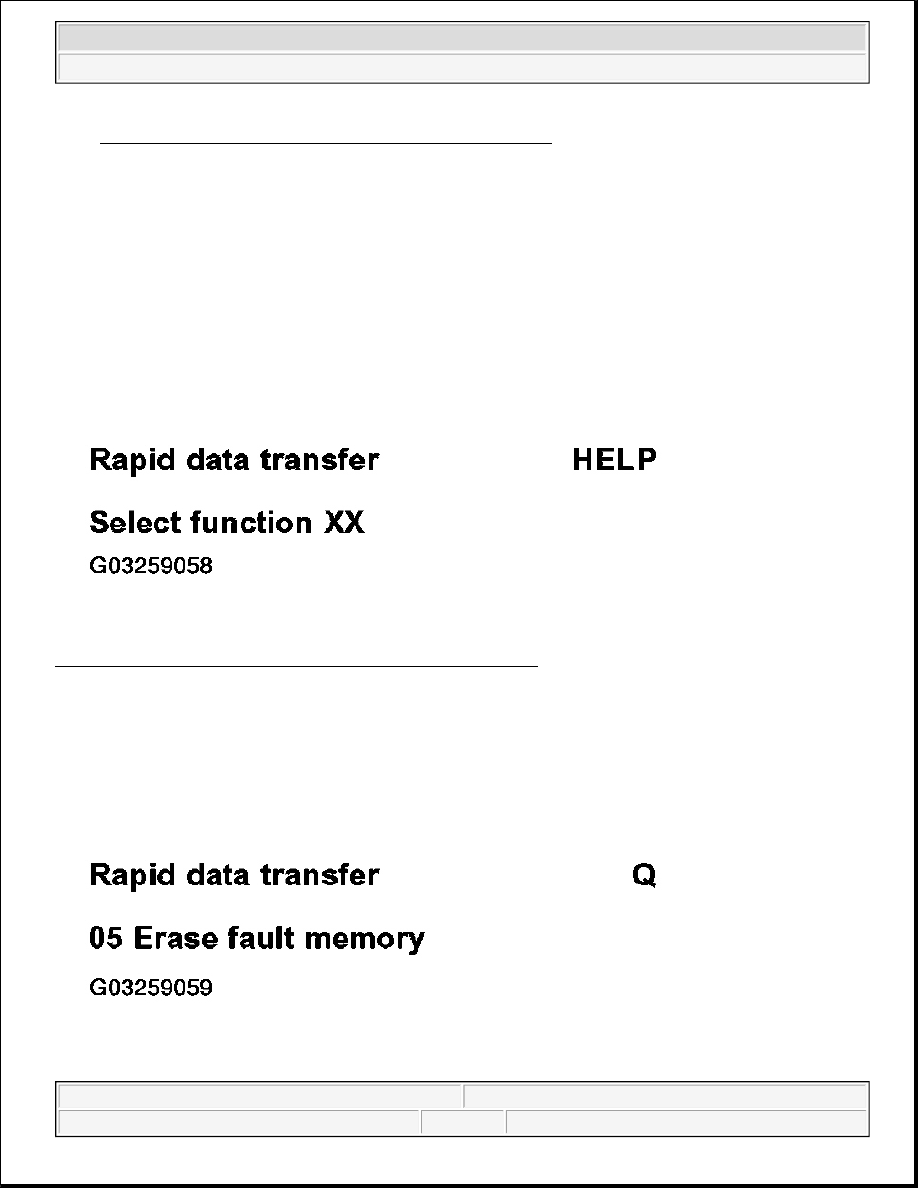

Fig. 258: Scan Tool Display - Rear Spoiler Function 05 (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -5- (the function "Erase fault memory" is entered with 05).

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
